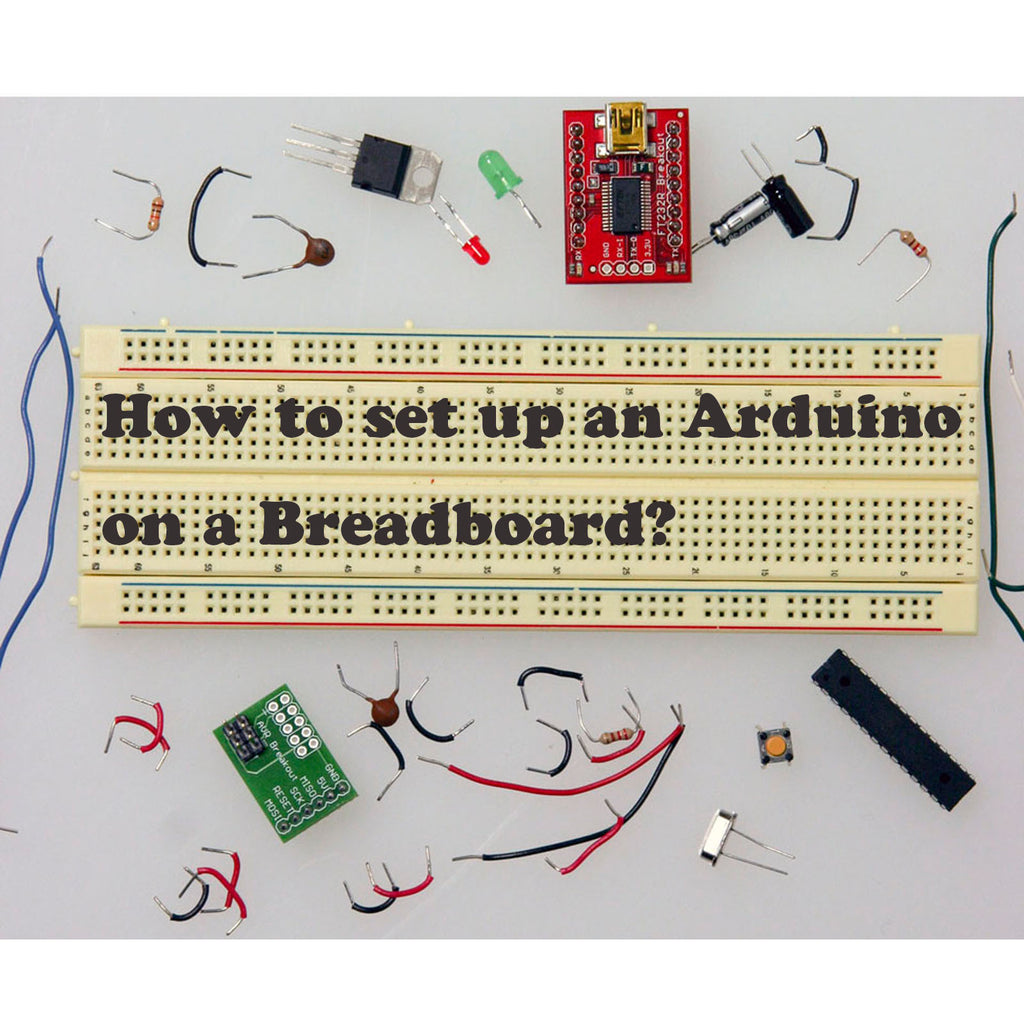

How to set up an Arduino on a Breadboard?

We will teach you how to build an Arduino compatible breadboard with an Atmel Atmega8/168/328 AVR microcontroller and FTDI FT232 breakout board. You could also use the Arduino USB Mini. At first, you should prepare something for Arduino setting. Basic Parts for wiring up Arduino A breadboard 22 AWG wire 7805 Voltage regulator 2 LEDs 2 220 Ohm resistors 1 10k Ohm resistor 2 10 uF capacitors 16 MHz clock crystal 2 22 pF capacitors small momentary normally open ("off") button, i.e. Omron type B3F USB to Serial Communication Board You will need a FT232 USB Breakout board. Bootloading your Atmega Chips There are several options...
