- The IC Sockets made of strong and high quality plastic and brass, it insulation resistance greater than 1000 MΩ and the withstand voltage up to 500 volts/minute.
- The Double rows IC Sockets solder in well and hold the chips securely, only need to insert and solder fixed, it is easy to solder in place.
- IC Sockets Adaptor have the advantage of flexibility, if your chip is broken, you can change it directly. These adapters make it really easy to replace the IC.
- The IC Sockets set has great selection of IC sockets. The assortment of different sizes has ensured that you have what when you need it.

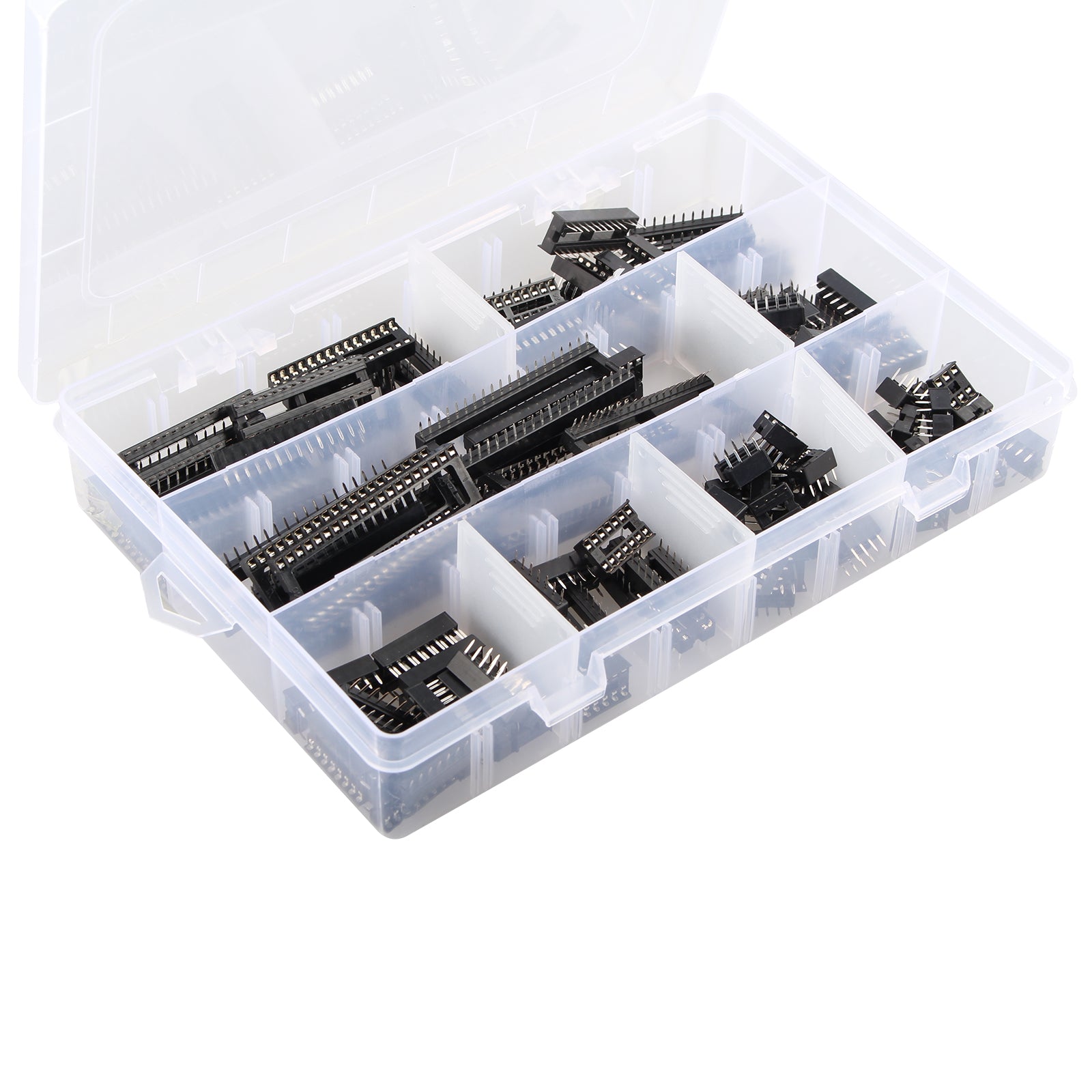

- There's a storage box with 8 separate grids, so IC Sockets Adaptors with different pins are divided to collect that will convenience to store and protect pins from bending.
Specification:
Material: Plastic and Metal
Number of Pins: 6/8/14/16/18/24/28/40Pins
Size:6 Pins:7.6mm x 10mm
8 Pins:10mm x 10mm
14 Pins:17.8mm x 10mm
16 Pins:20.3mm x 10mm
18 Pins:22.8mm x 10mm
24 Pins:30.5mm x 10mm
28 Pins:35.7mm x 10mm
40 Pins:51mm x 18mm
Pin Spacing:2.54mm
Temperature Range: -45-110℃
Terminal Contact Resistance: Less than 20 milliohms
Insulation Resistance: Greater than 1000 megohms
Withstand voltage:500 volts/minute

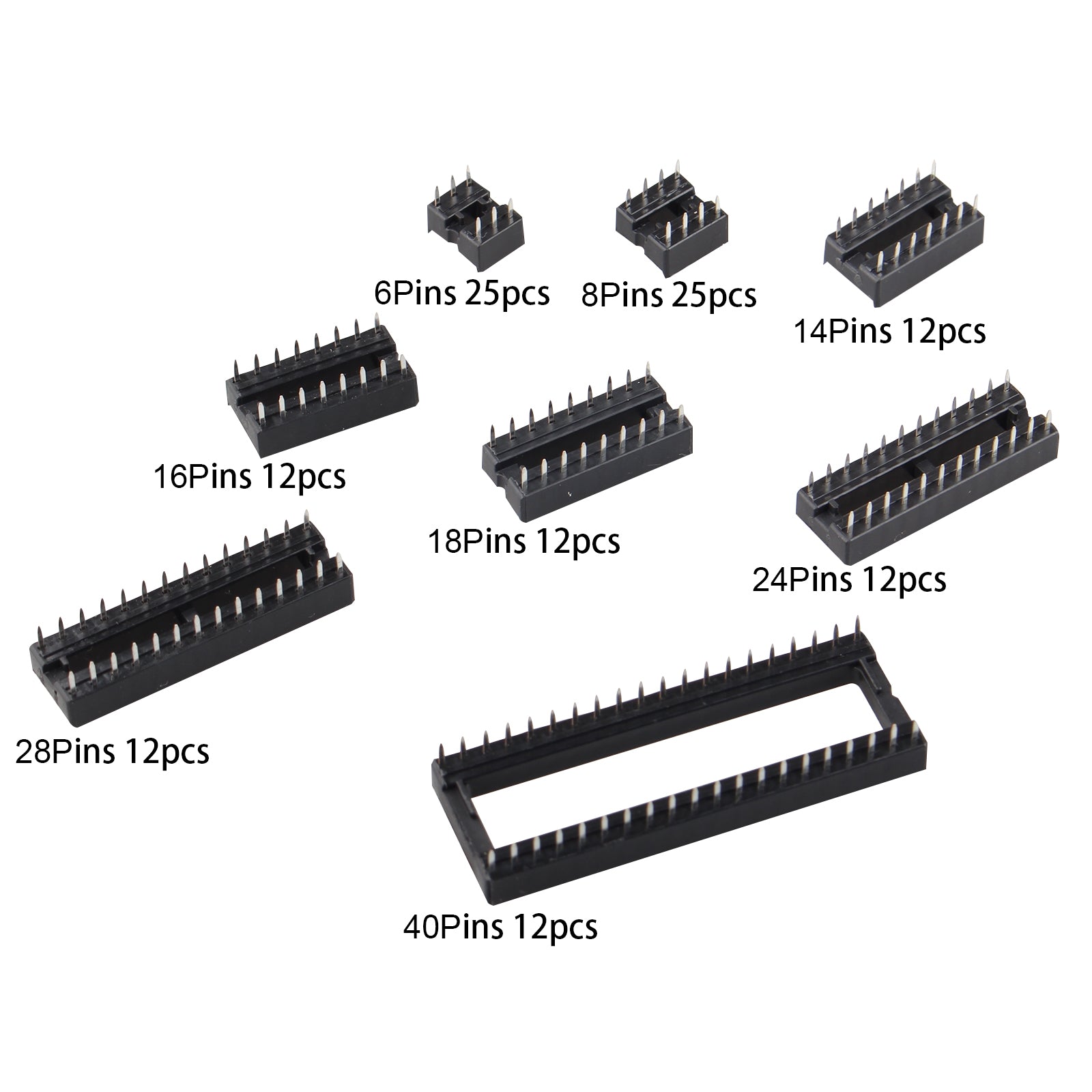

Items included::
25pcs x 6 Pins
25pcs x 8 Pins
12pcs x 14 Pins
12pcs x 16 Pins
12pcs x 18 Pins
12pcs x 24 Pins
12pcs x 28 Pins
12pcs x 40 Pins
Packing List:

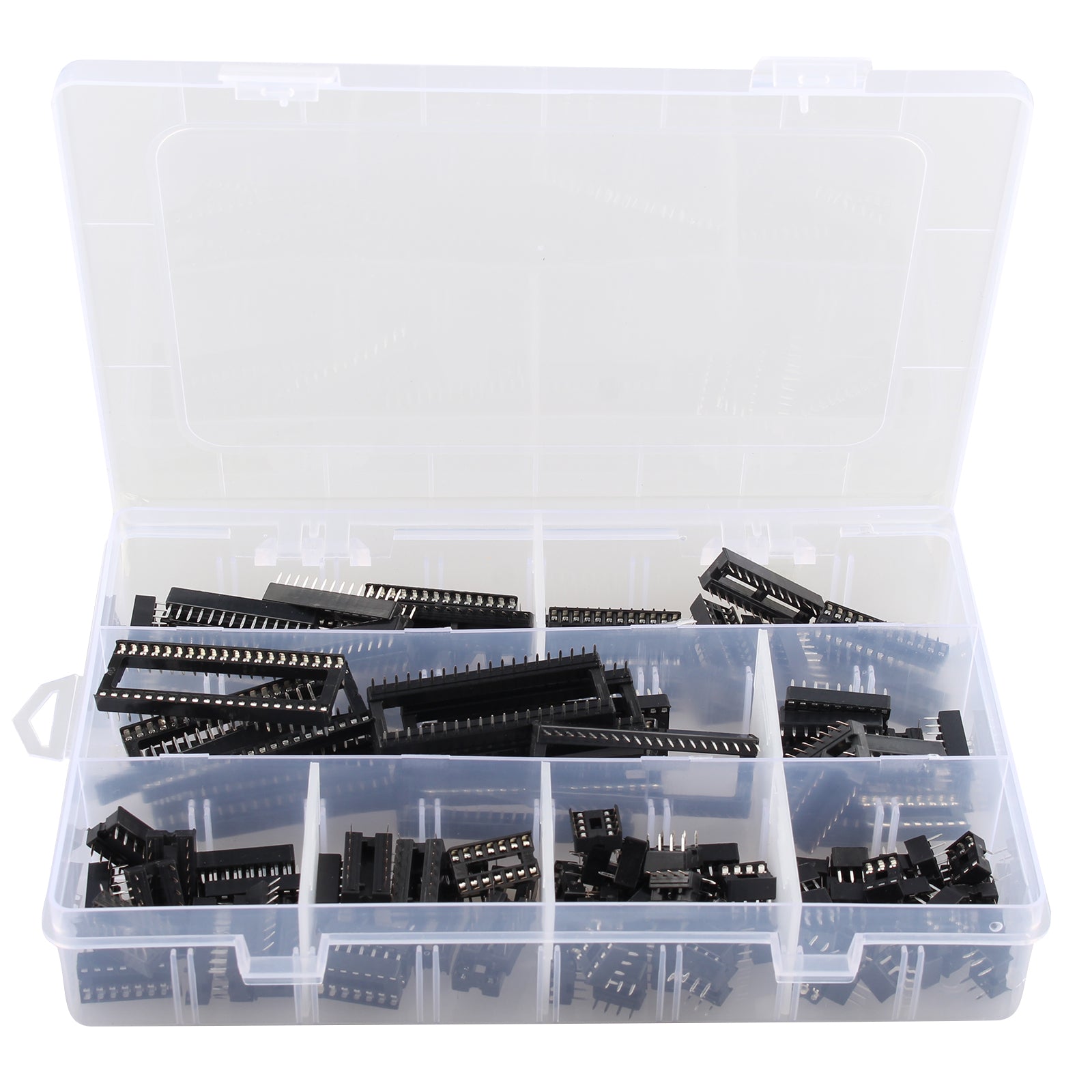

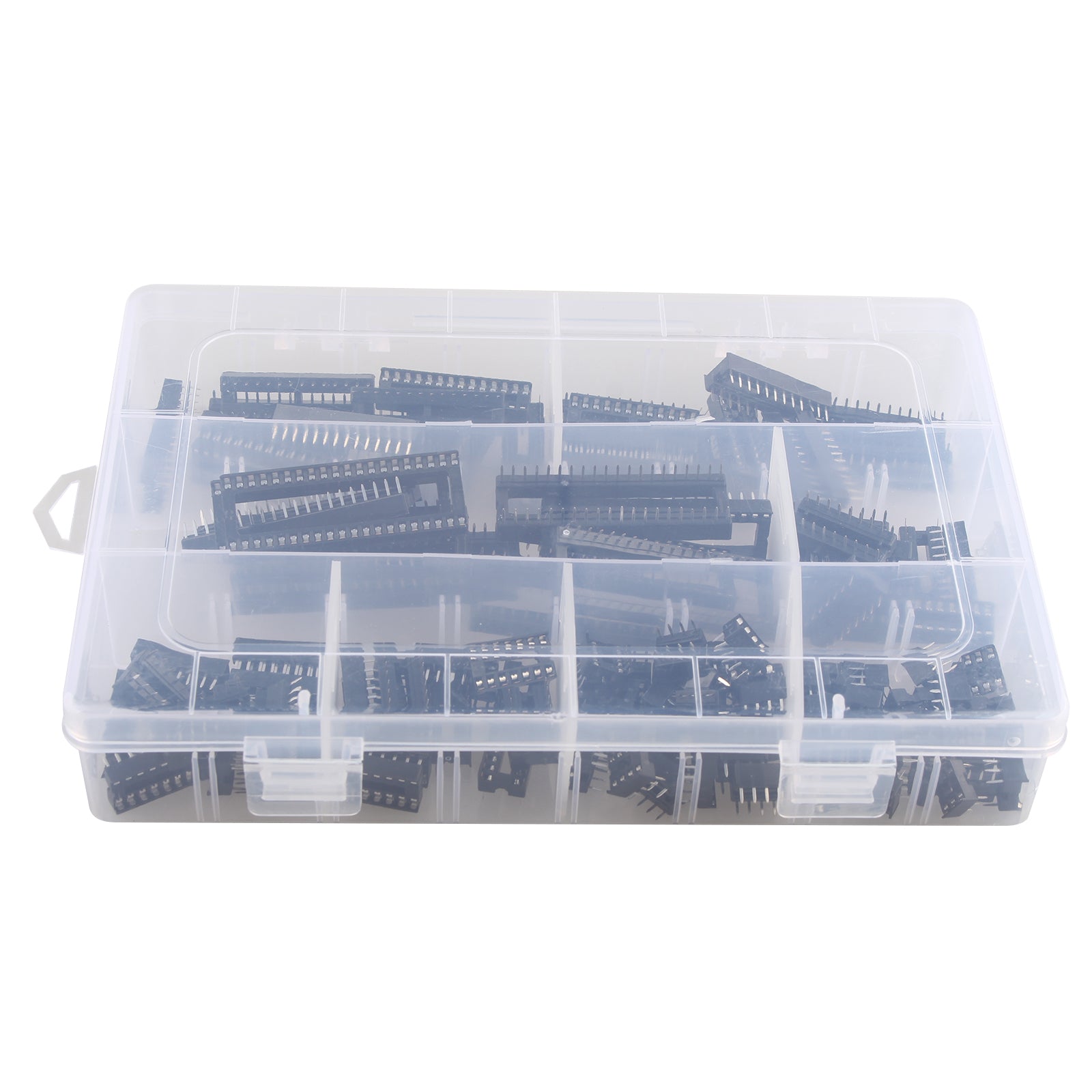

1 x plastic box of 122pcs IC Sockets Adapter
