- The W25Q32 (32M-bit) Serial Flash memories provide a storage solution for systems with limited space, pins and power.
- Ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data.
- The devices operate on a single 2.7V to 3.6V power supply with current consumption as low as 5mA active and 1μA for power-down.
- A Hold pin, Write Protect pin and programmable write protection, with top or bottom array control, provide further control flexibility.
- Support SPI interface. Provide STM32 test code.
Feature:

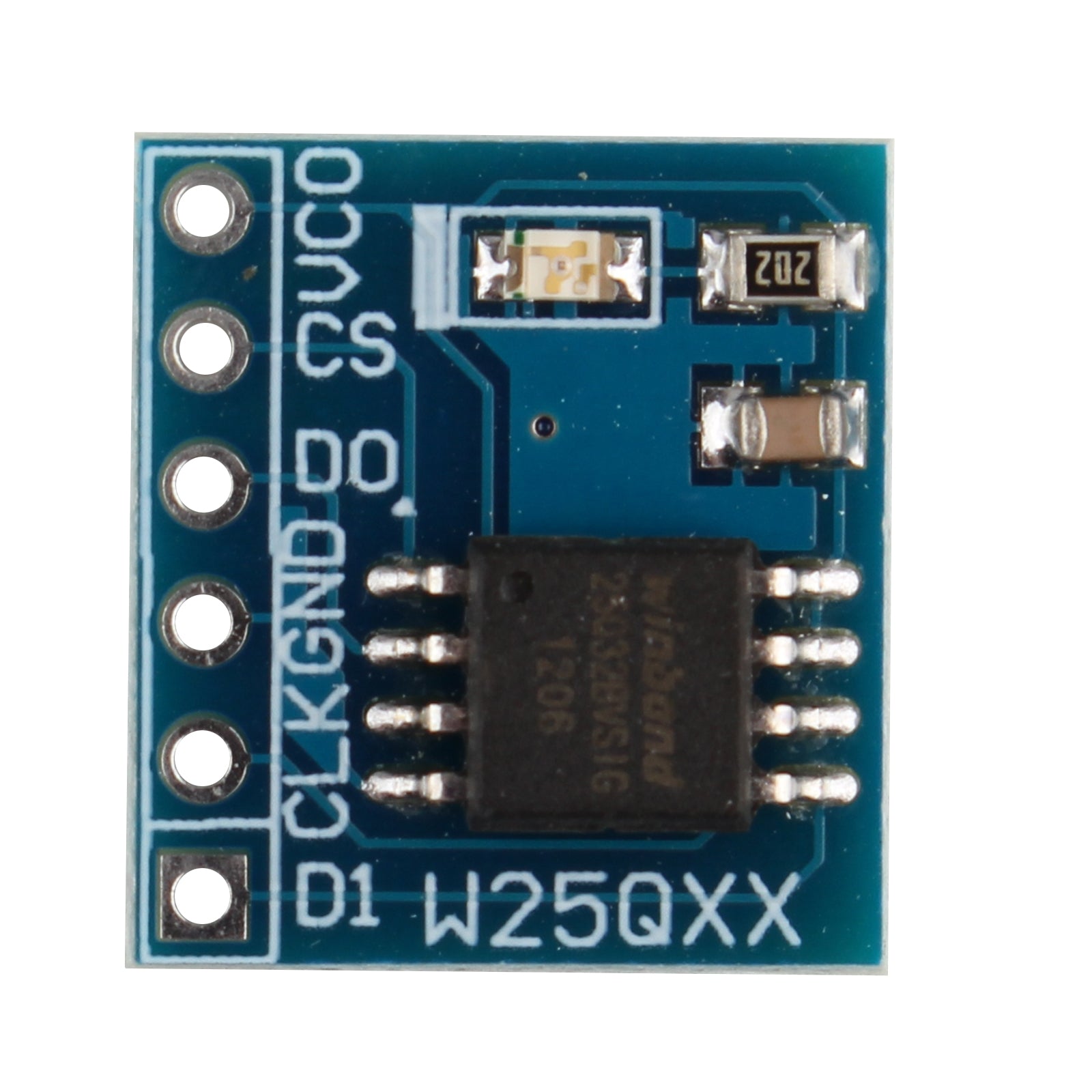

Using serial Nor flash external expansion memory chip W25Q32.

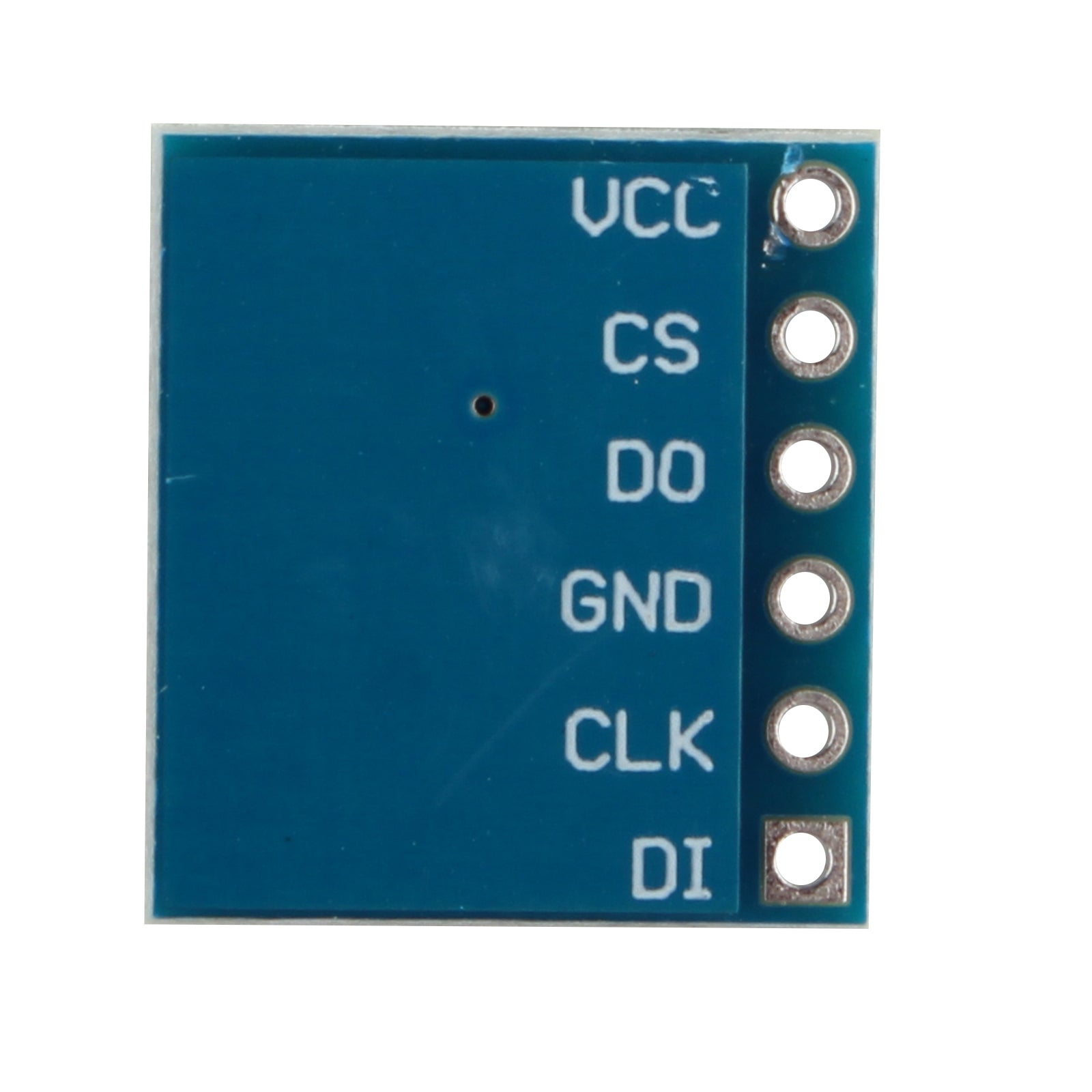

Support SPI interface.
Provide STM32 test code.
Capacity: 32M-bit / 4M-byte
Clock Frequency: ≤ 104MHz
Operating Voltage: 2.7-3.6V

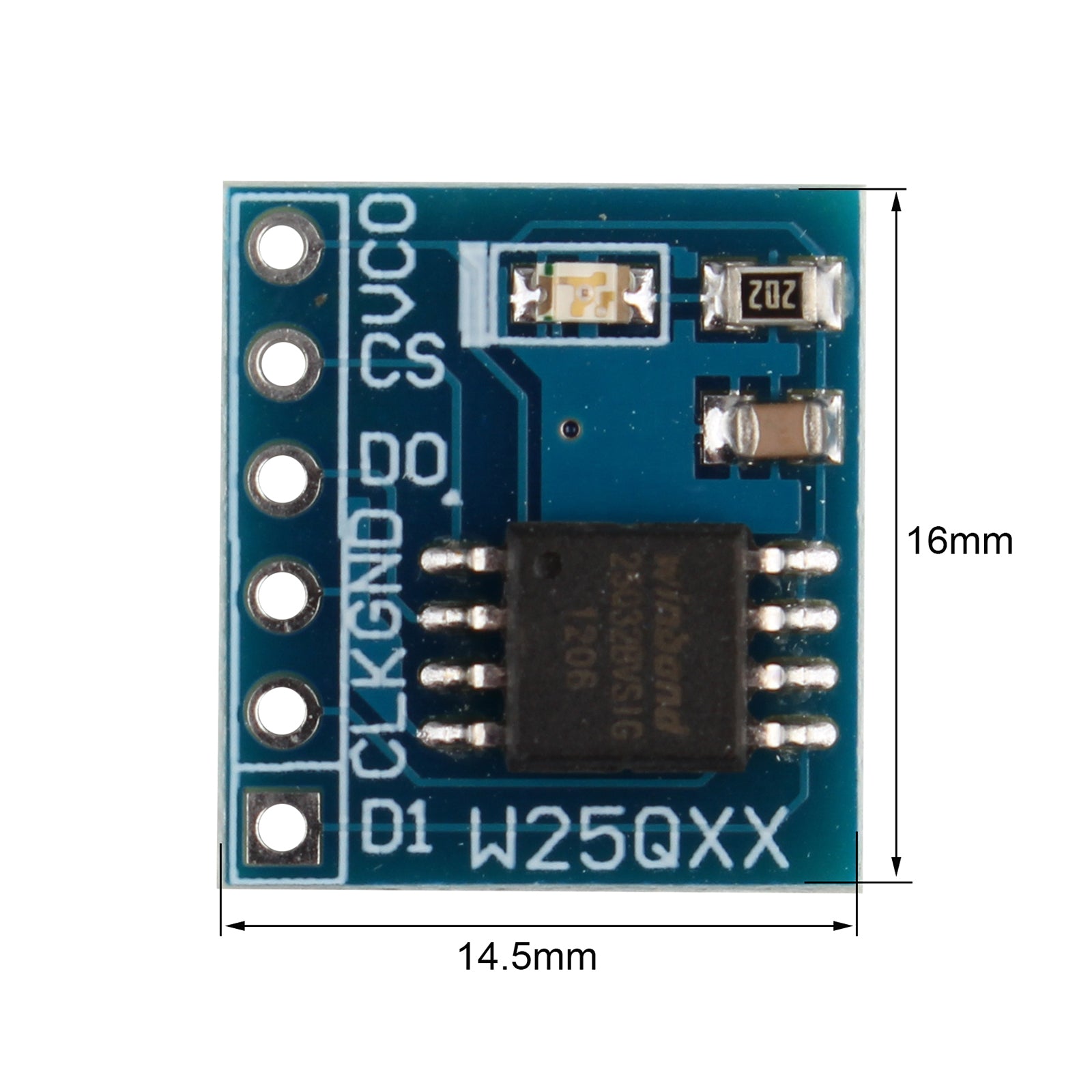

Size: 14.5mm x 16mm/0.57 x 0.63inch
Weight: 1.2g

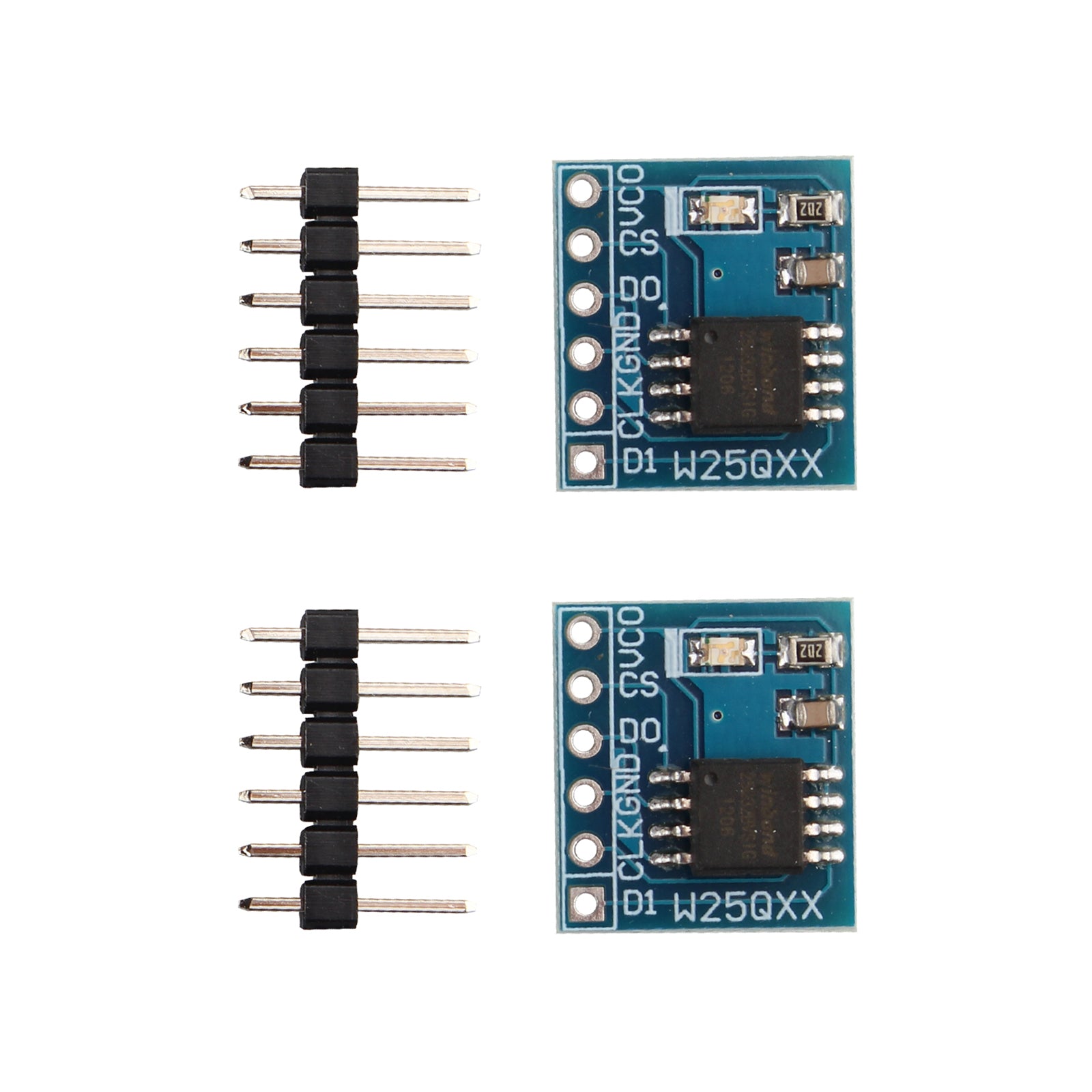

Packing List:

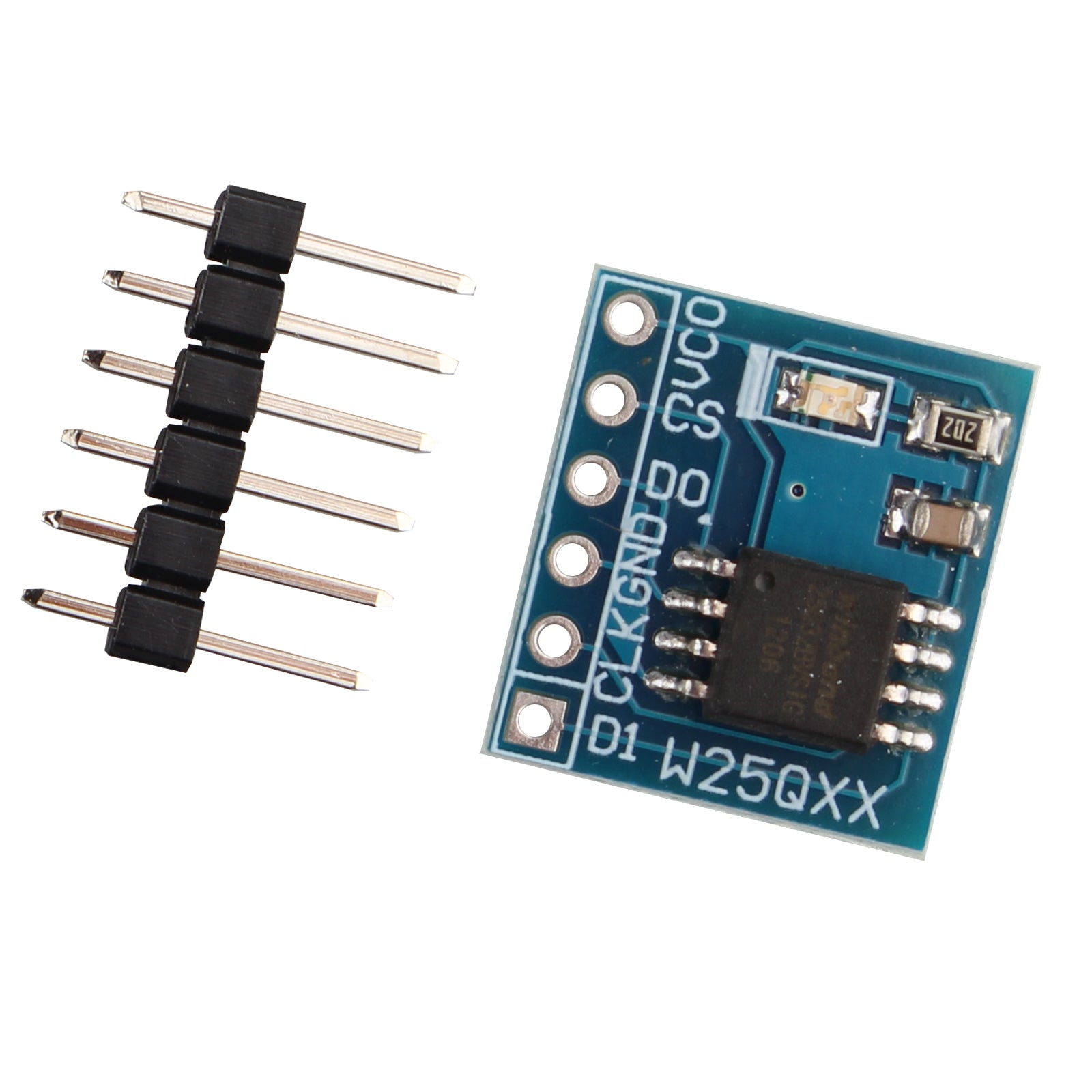

2 x FLASH Storage Module
2 x Pin Header
