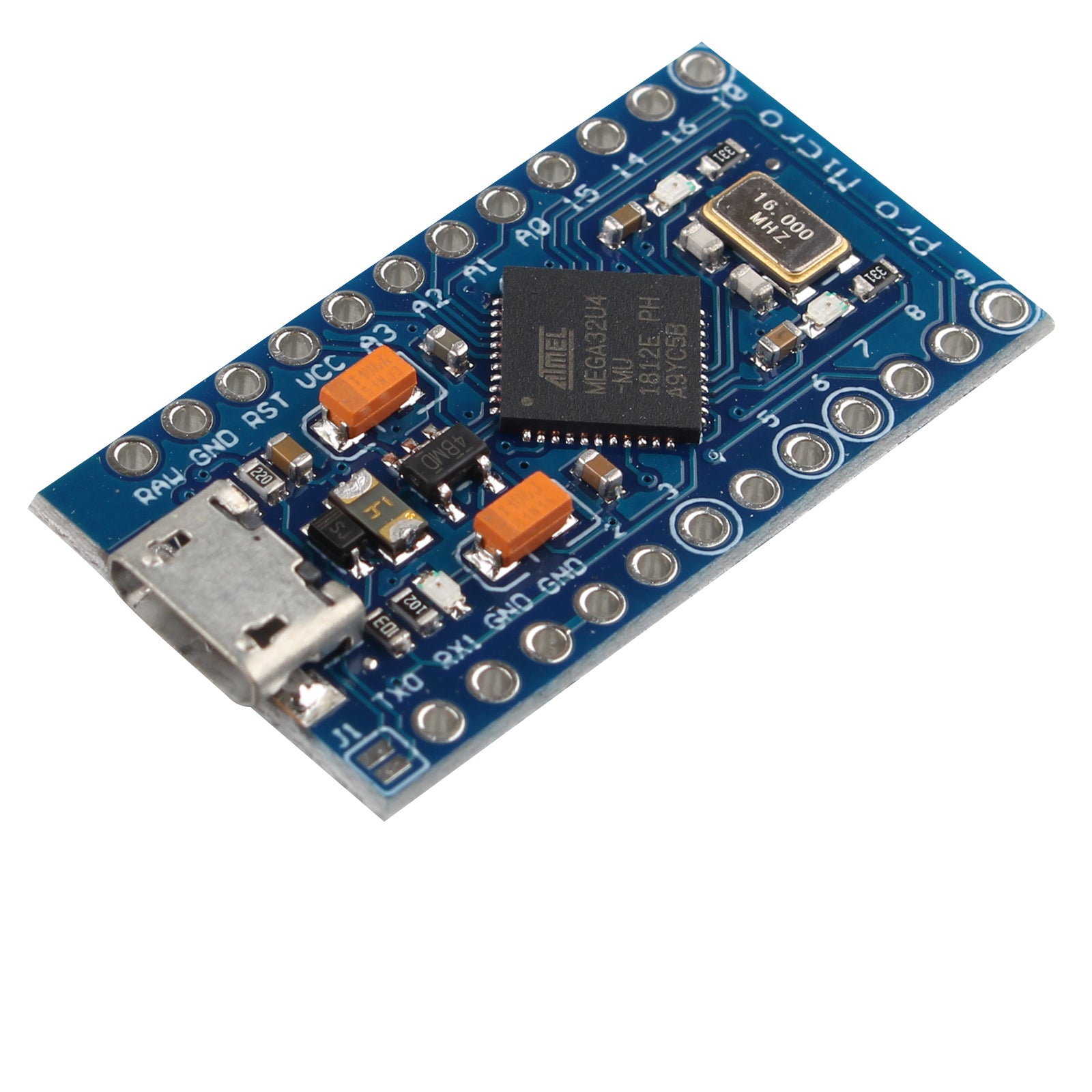

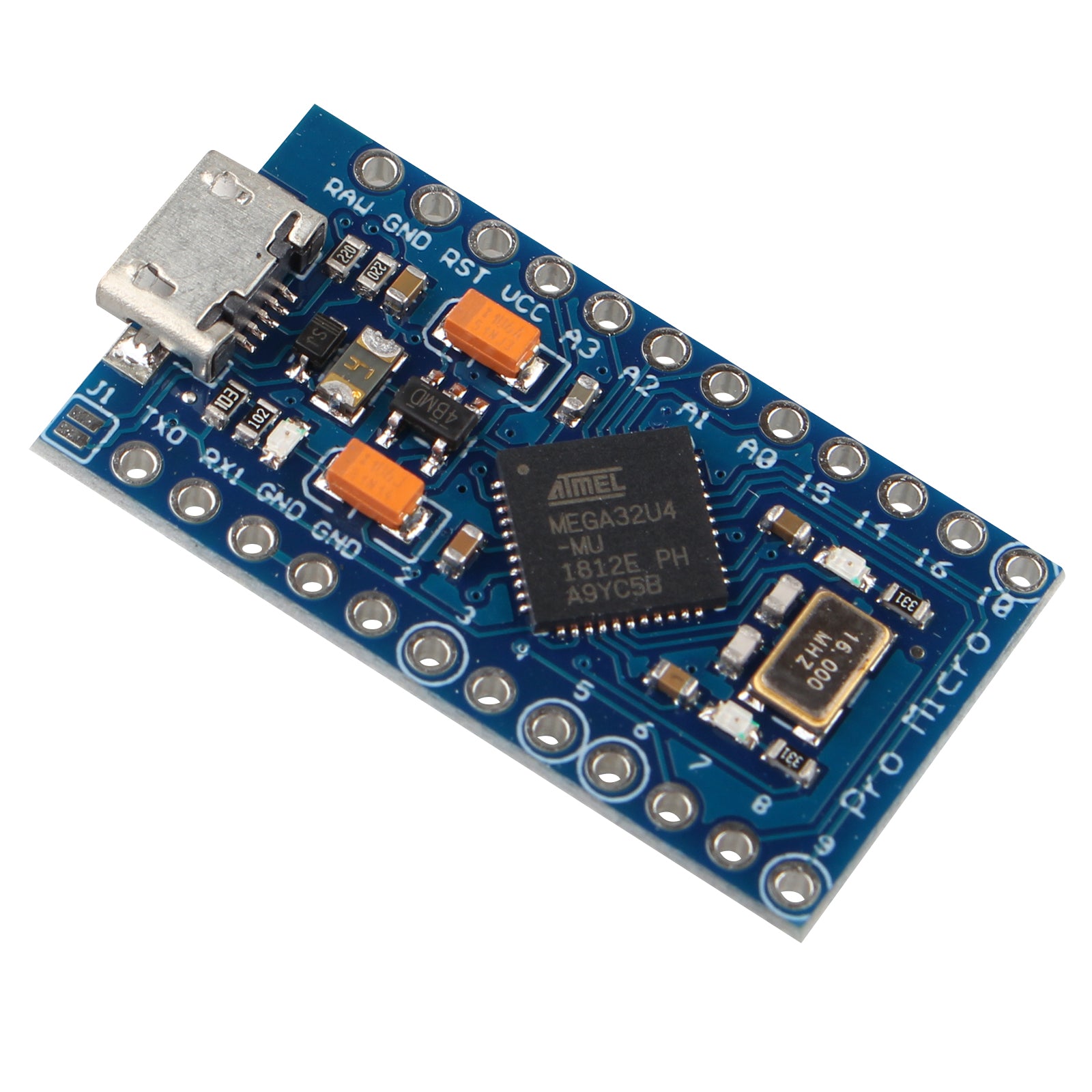

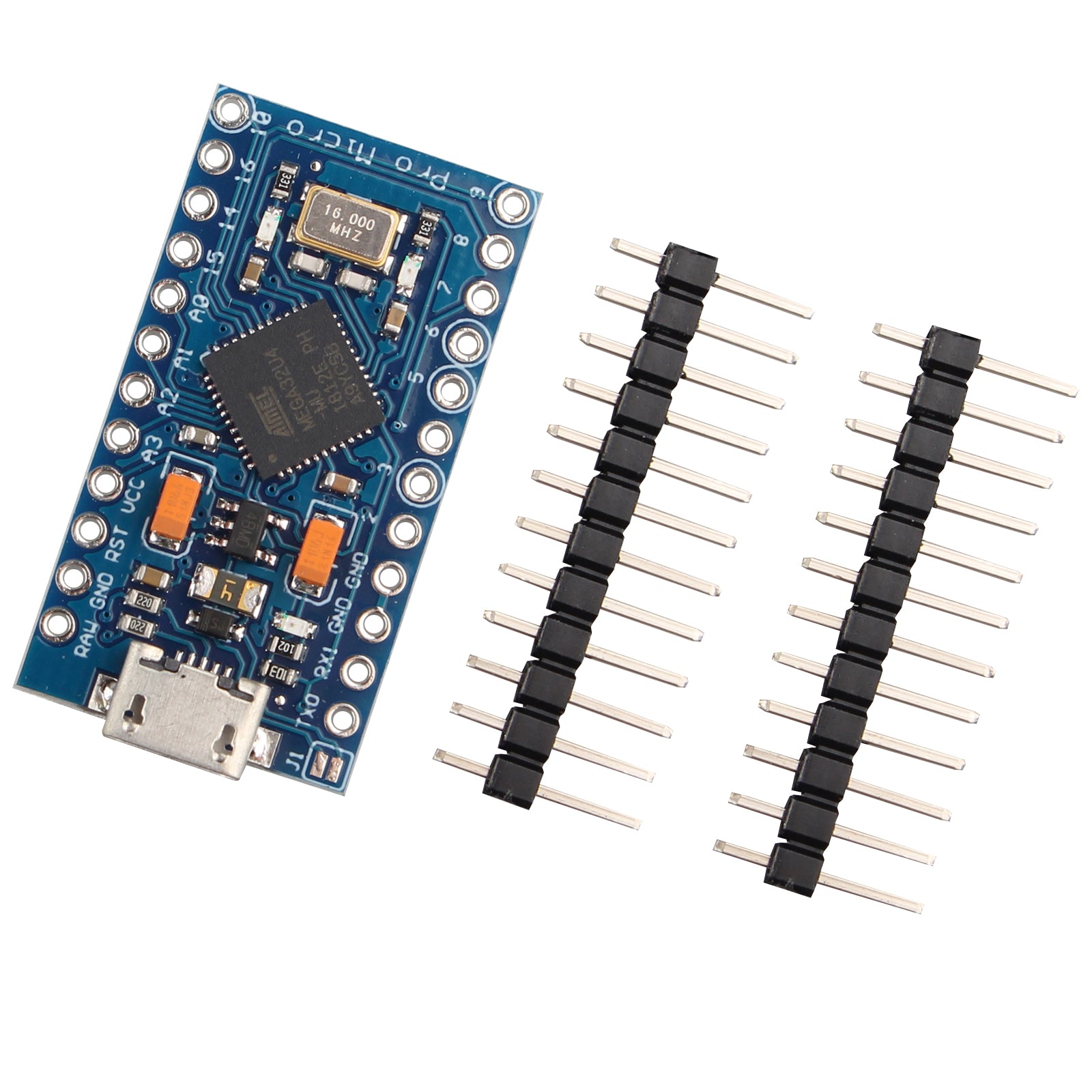

- The Micro is a microcontroller board based on the Atmega32u4, developed in conjunction with Adafruit.
- It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started.
- It has a form factor that enables it to be easily placed on a breadboard.
- The Micro is similar to the Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor.
- This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
Feature:
ATmega32U4 running at 5V/16MHz
Supported under Arduino IDE v1.0.1
Recommend power supply for board: 6-7V, less than 9V
On-Board micro-USB connector for programming
4 x 10-bit ADC pins, 12 x Digital I/Os
Rx and Tx Hardware Serial Connections

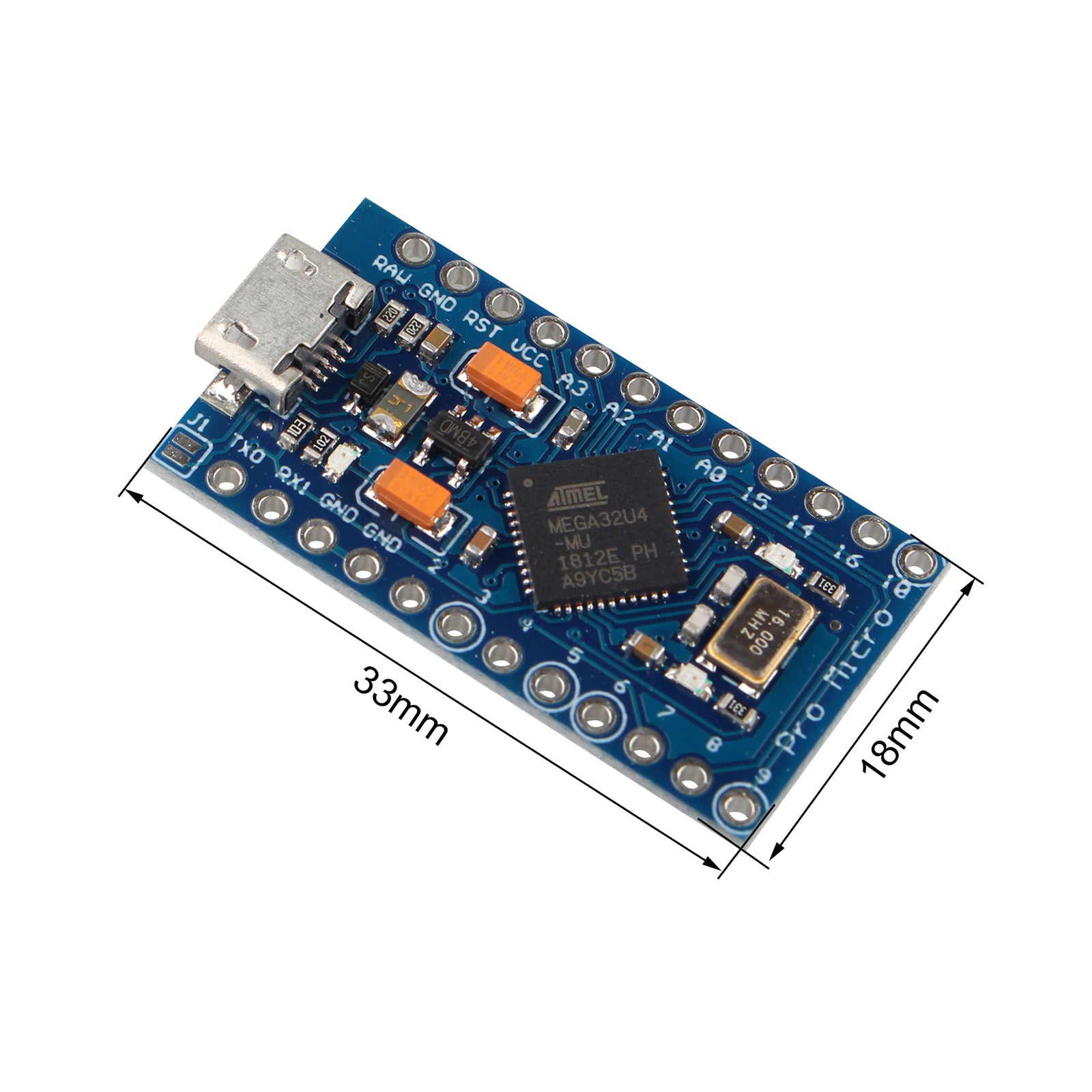

Dimension: 33mm*18mm
Weight: 3.7g
Usage:
Connected to computer.
Opened Arduino IDE and loaded Blink sketch.
Set board to Leonardo and selected the appropriate COM port (It showed up in the list already identified as a Leonardo).
Connected an LED to pin 9 and modified the sketch accordingly.
Hit upload and within a few seconds having a blinking LED.
Packing List:

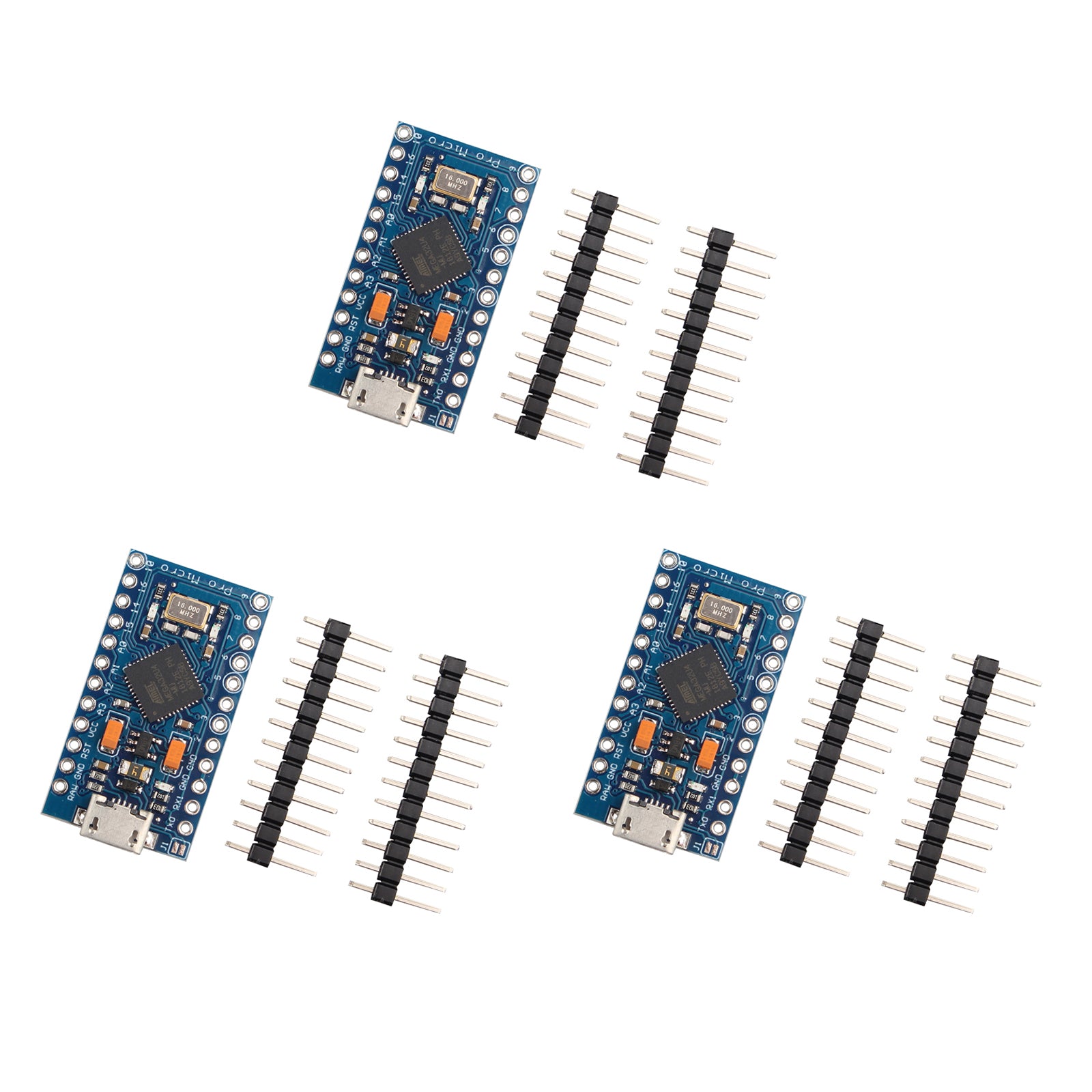

3 x Arduino Pro Mini ATmega32U4 Module
