Specification:

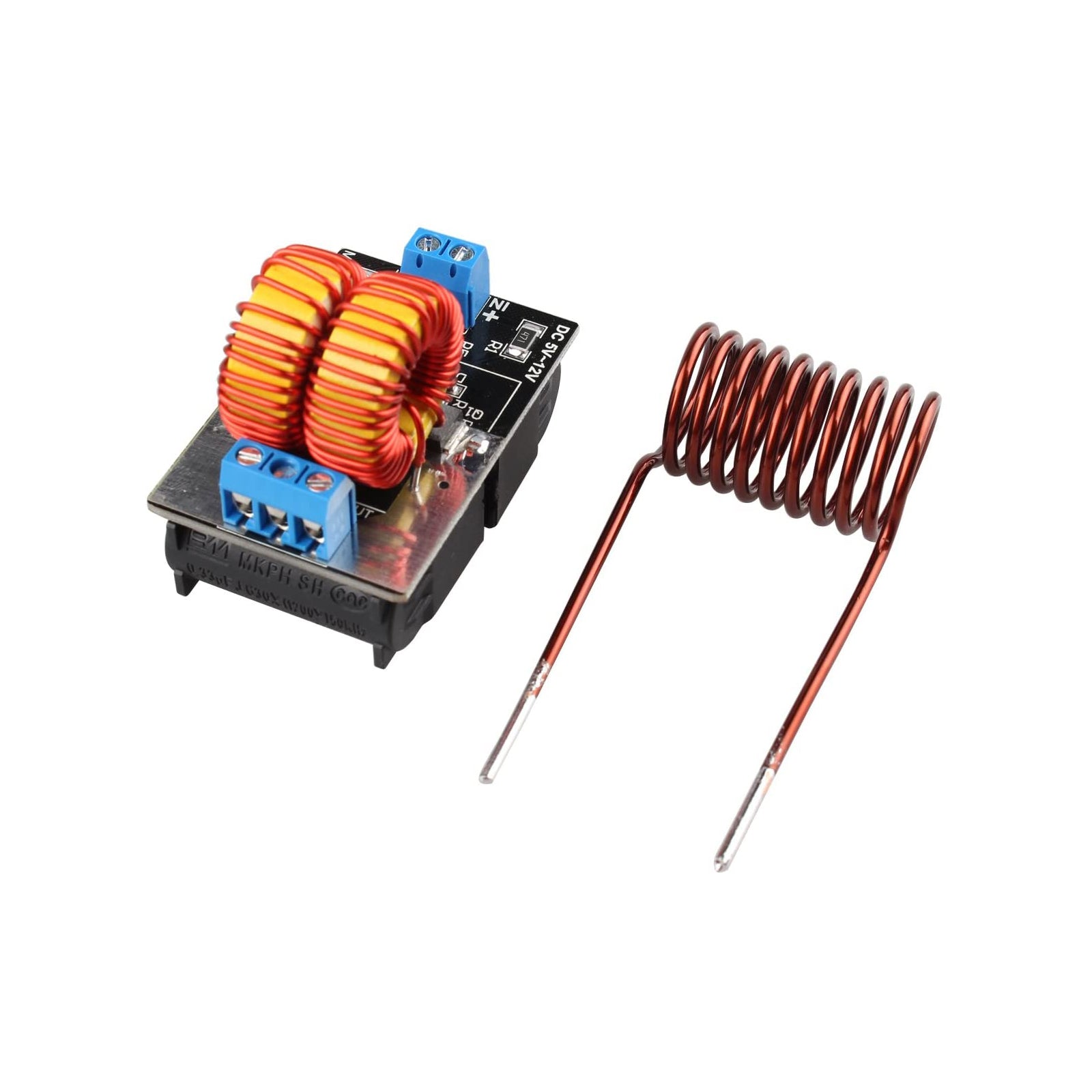

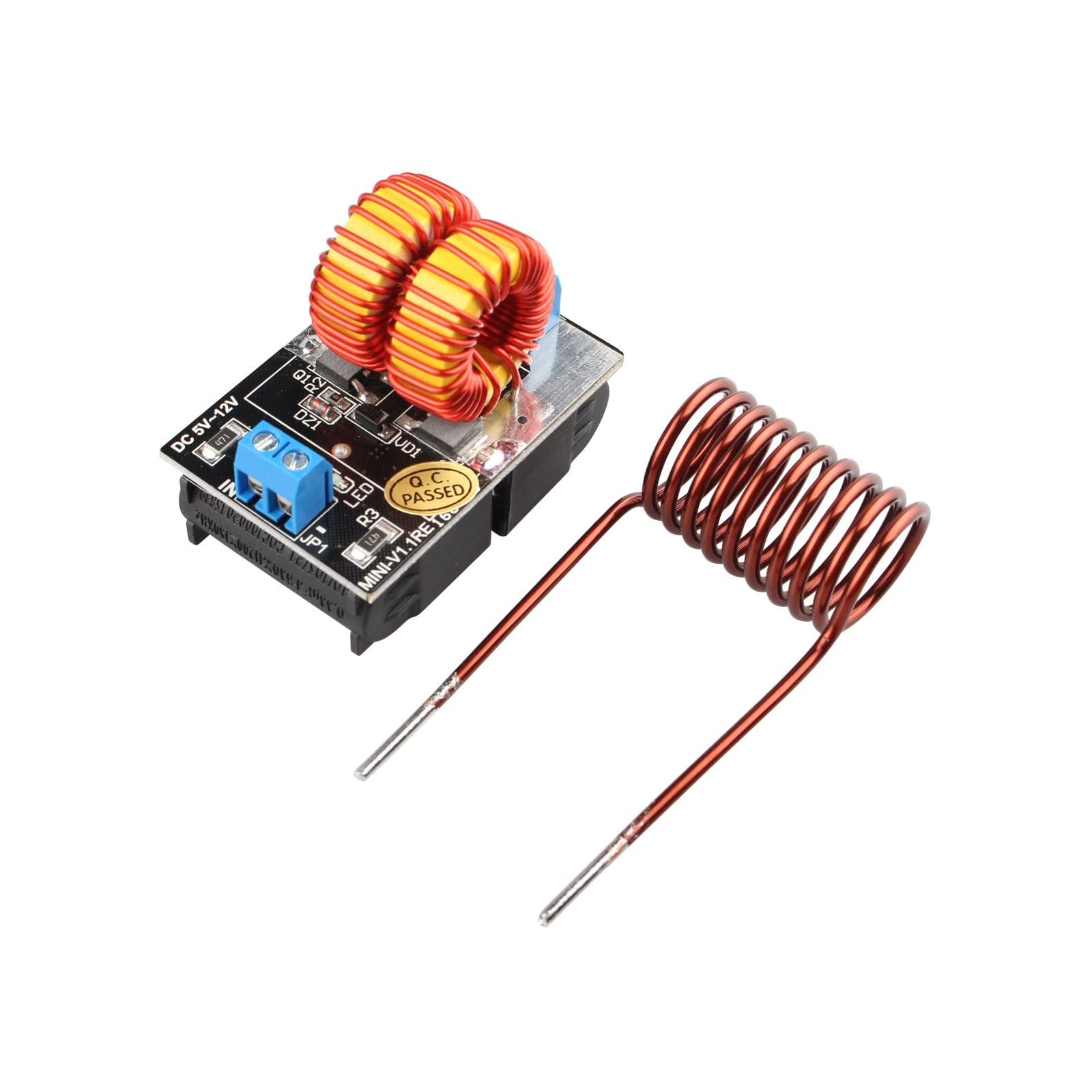

1.This no tap mini plate ZVS finished board, with heating coil.
2.Working Input voltage:DC 5 v to 12 v
3.Maximum power: 120 w (when 12V induction heating).
4.The width of the heated object should be between 1/3 and 1/2 of the inner diameter of the heating coil. The maximum should not exceed 2/3.
5.Induction heating, please kindly stop working every 5 minutes to cool the board

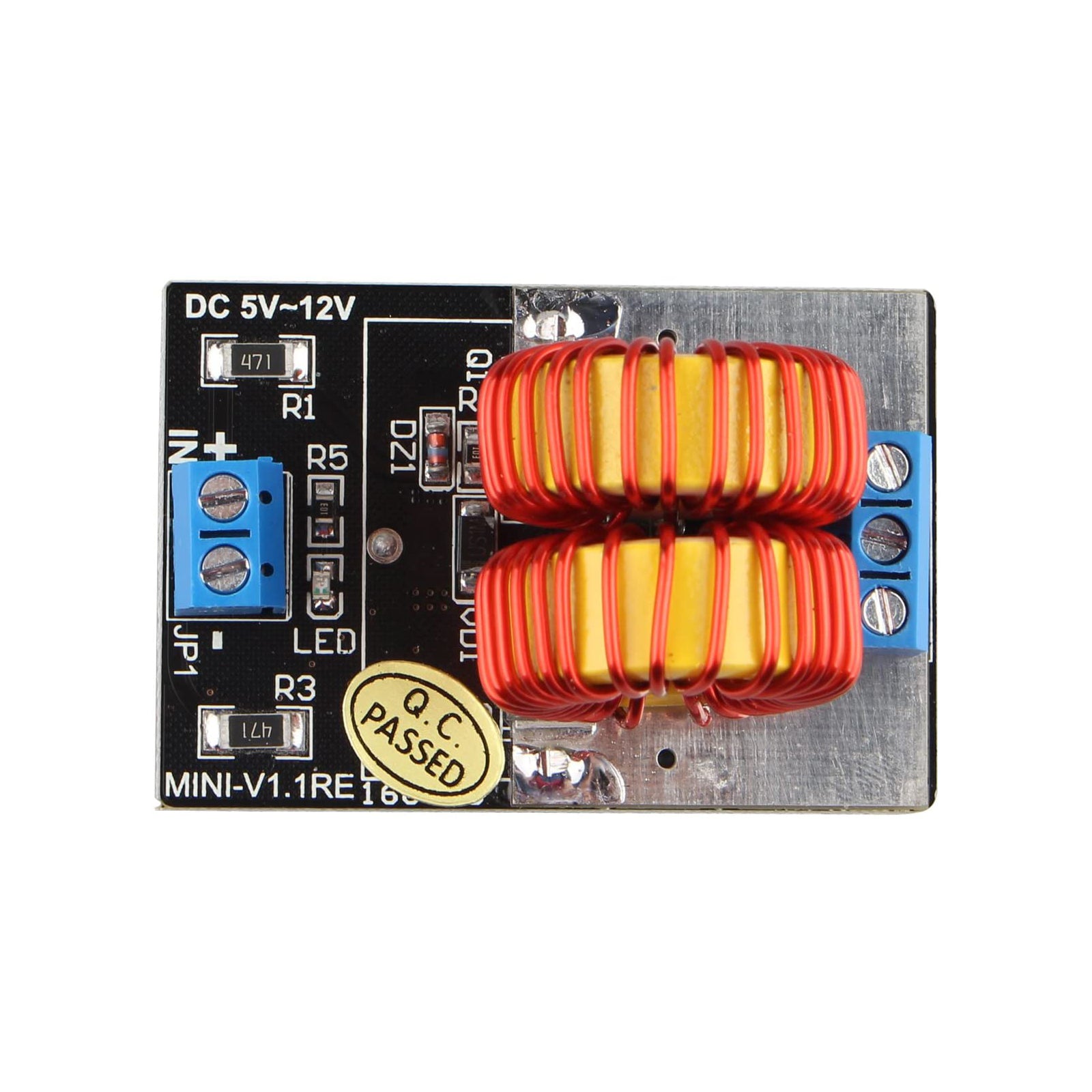

6.Pcb size: 55 mm * 37 mm * 1.6 mm
Packing List:

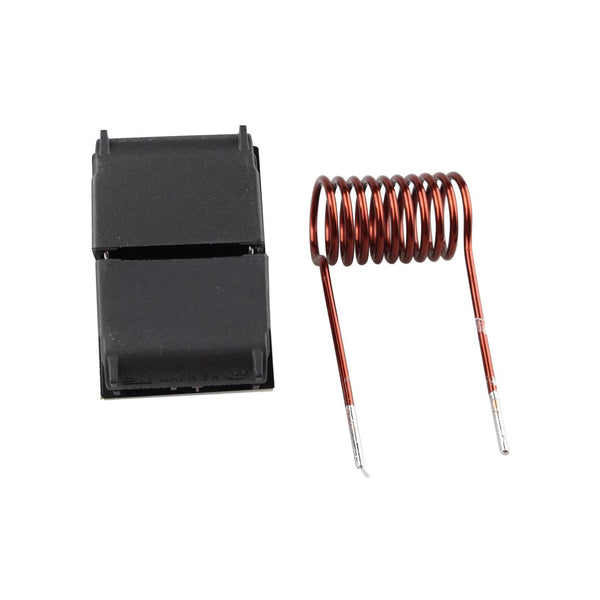

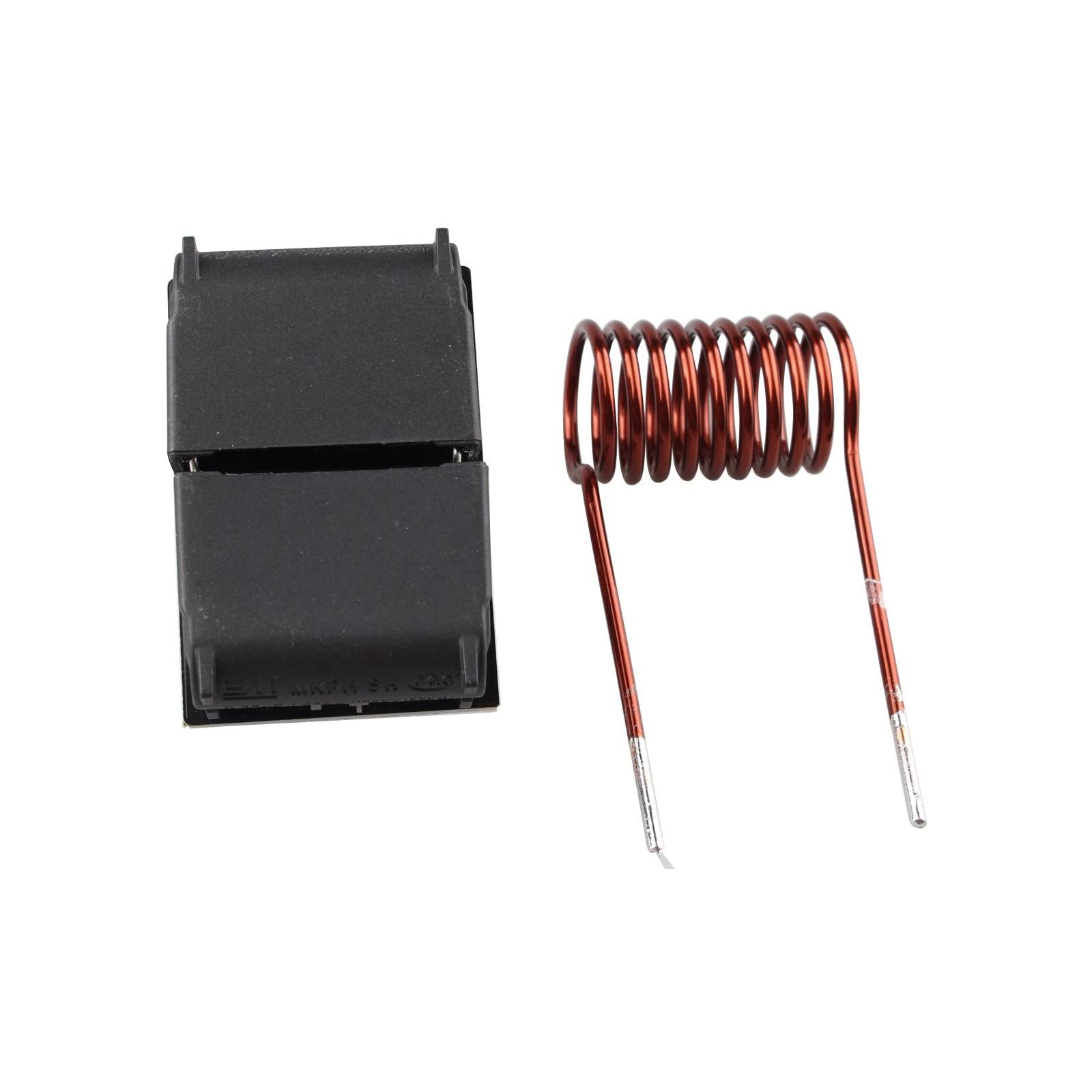

1 x zvs heating power Supply module
1 x heating coil.
