- Five Direction Navigation Button Module for 5D Rocker Joystick Inde MCU AVR Game.
- 5D navigation key module support up/down/left/right/middle 5 directions with extra set and reset button.
- 5 direction navigation button module has 2V-9V wide working voltage and all pins (7 IO) port pinout compatible for most MCU development board.
- Compatiable with 3.3V and 5V. Operating voltage is 2.0V to 9.0V.

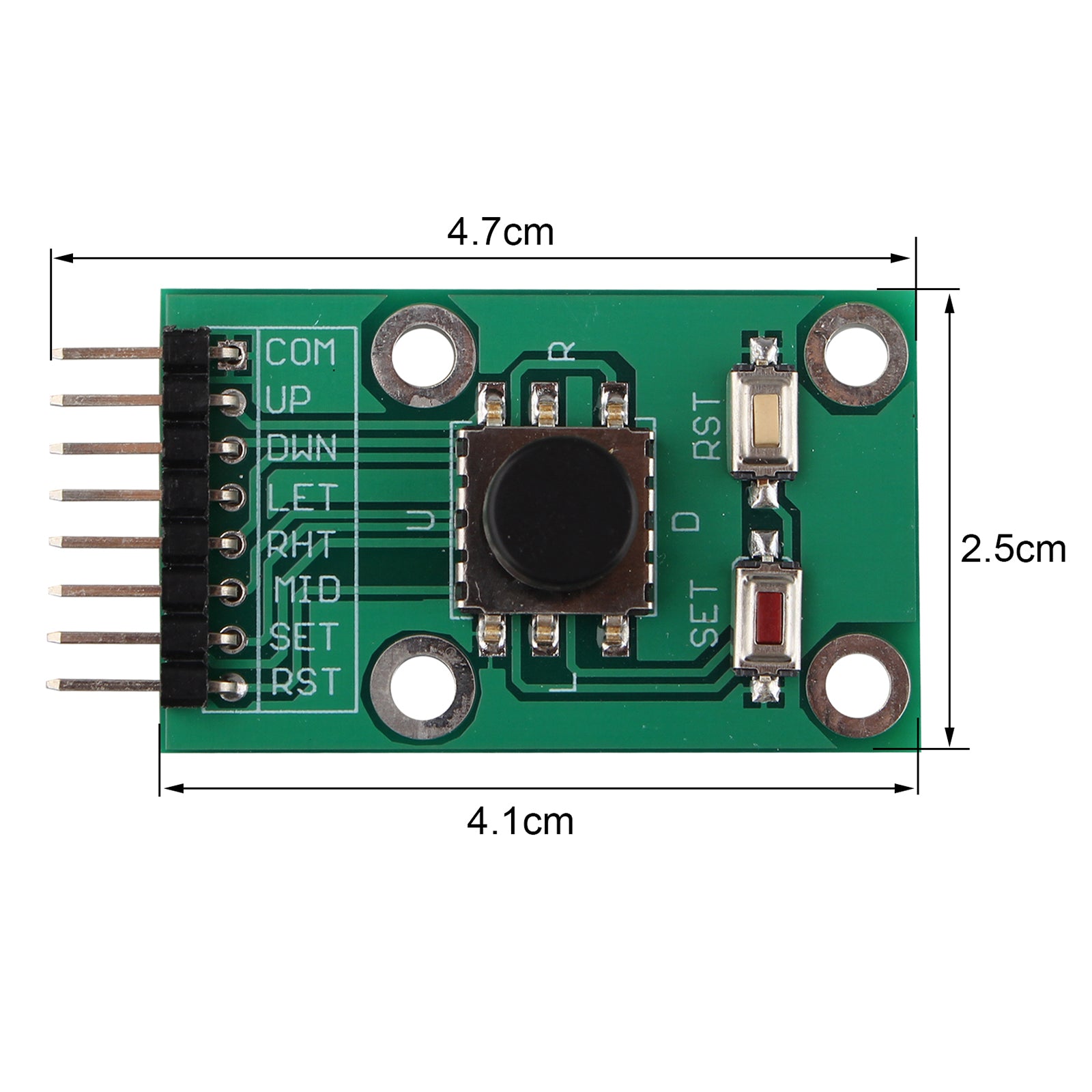

- Module Size: 41 x 25mm; Operating temperature: -40℃- 85℃.

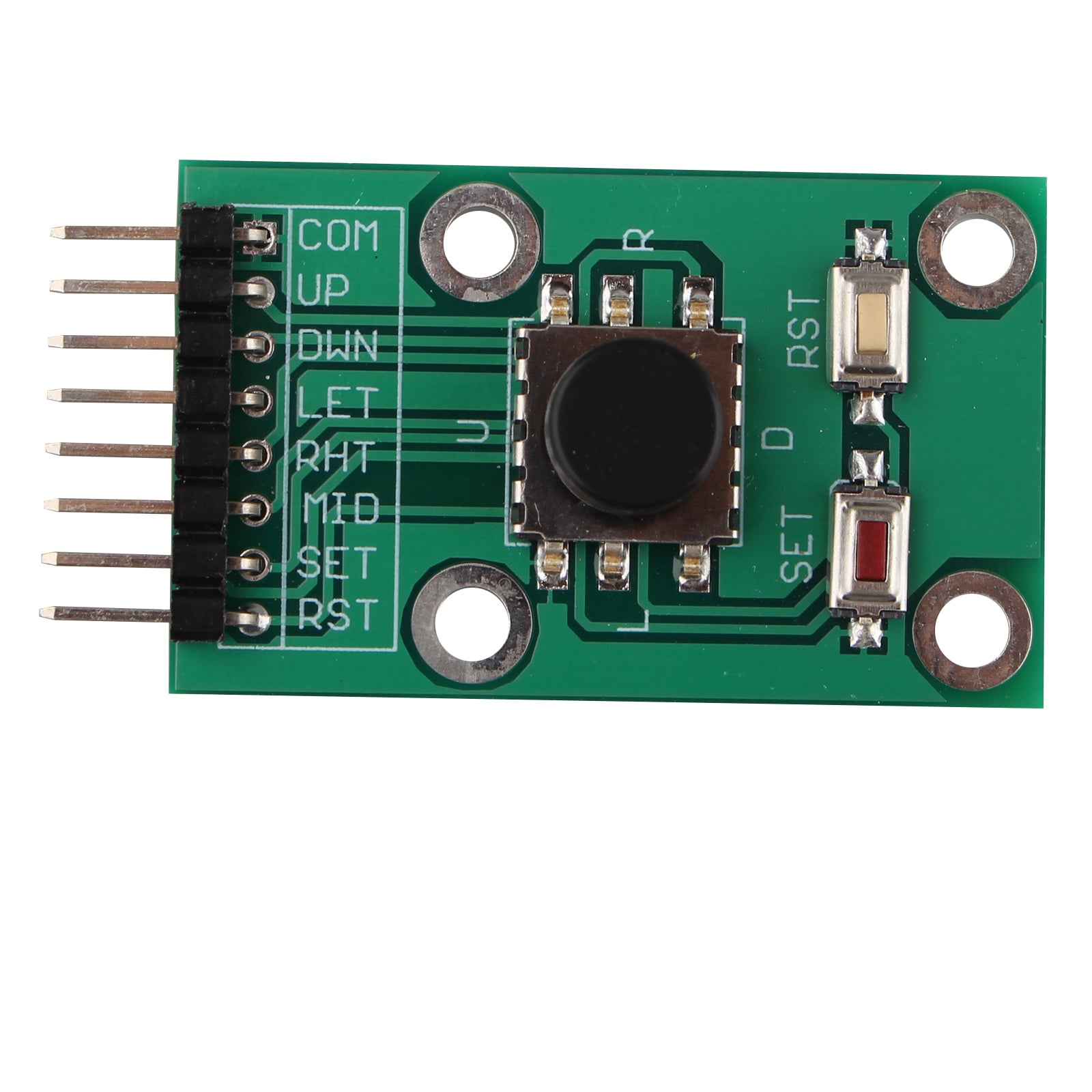

Descripition:
COM(Commonport): connect to the VCC or GND of the MCU development board
UP(Up direction button): connect to the IO pin of MCU
DWN(Down direction button): connect to the IO pin of MCU
LFT(Left direction button): connect to the IO pin of the MCU
RHT(Right direction button): connect to the IO pin of the MCU
MID(Middle direction button): connect to the IO pin of the MCU
SET(Set button): connect to the IO pin of the MCU
RST(Reset button): connect to the IO pin of the MCU
Feature:
5D navigation key module support up/down/left/right/middle 5 directions with extra set and reset button.
5 direction navigation button module has 2V-9V wide working voltage and all pins (7 IO) port pinout compatible for most MCU development board.
Type : Voltage regulator
Application : Computer
The number of IO: 7
Operating voltage: 2.0V-9.0V
Operating temperature: -40℃-85℃
Size: 41 x 25mm
Weight: 5g
Packing List:

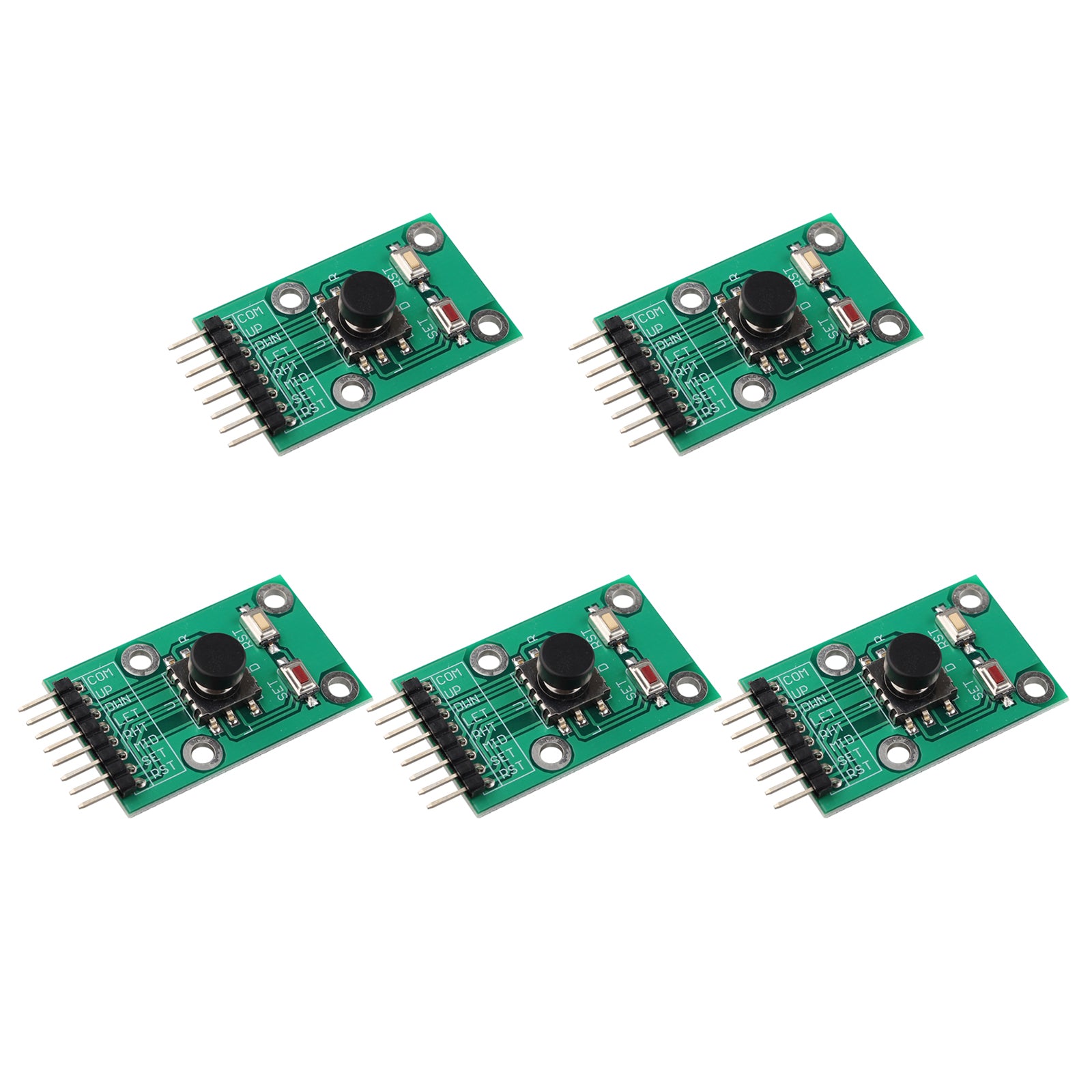

5 x Navigation Button Module Joystick Module
