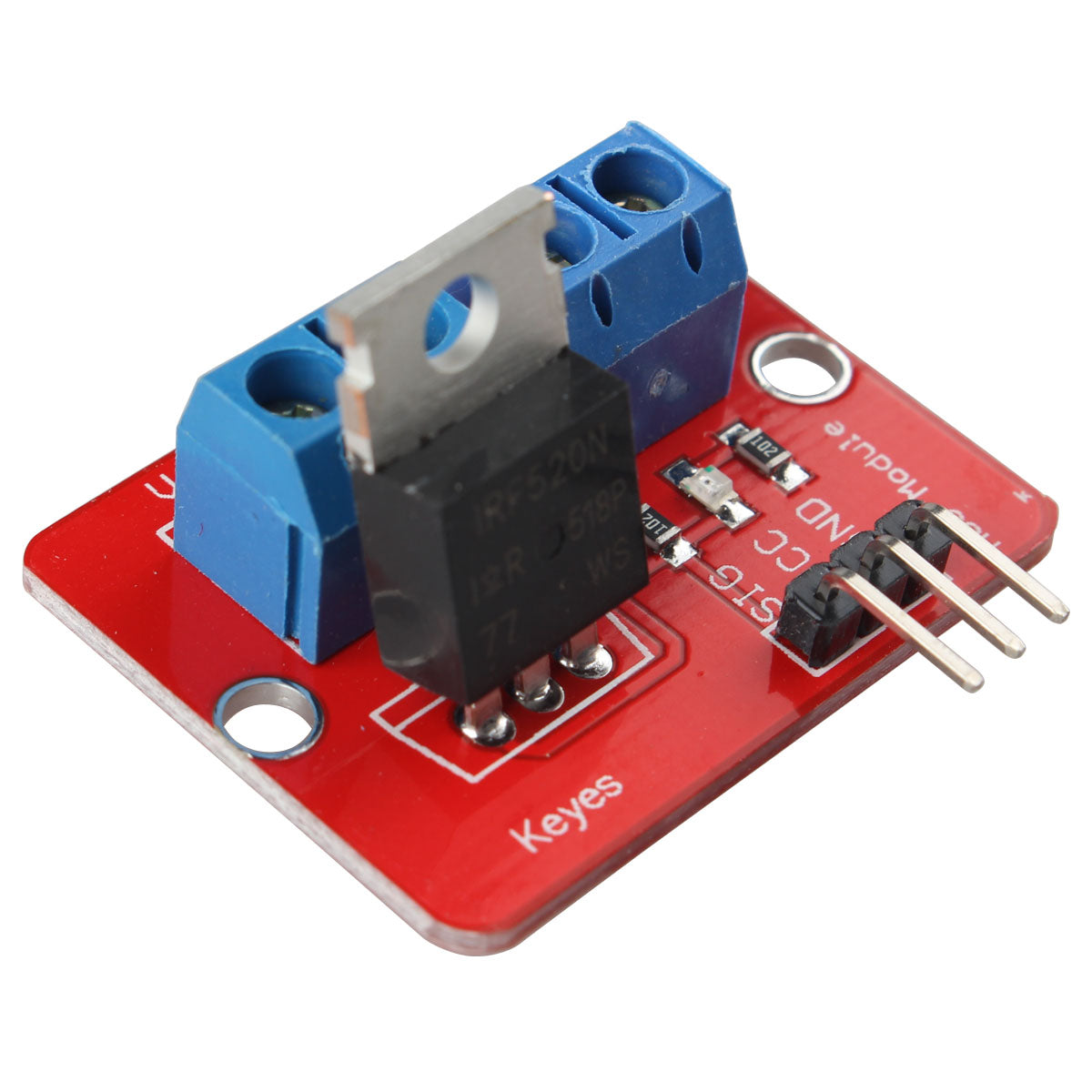

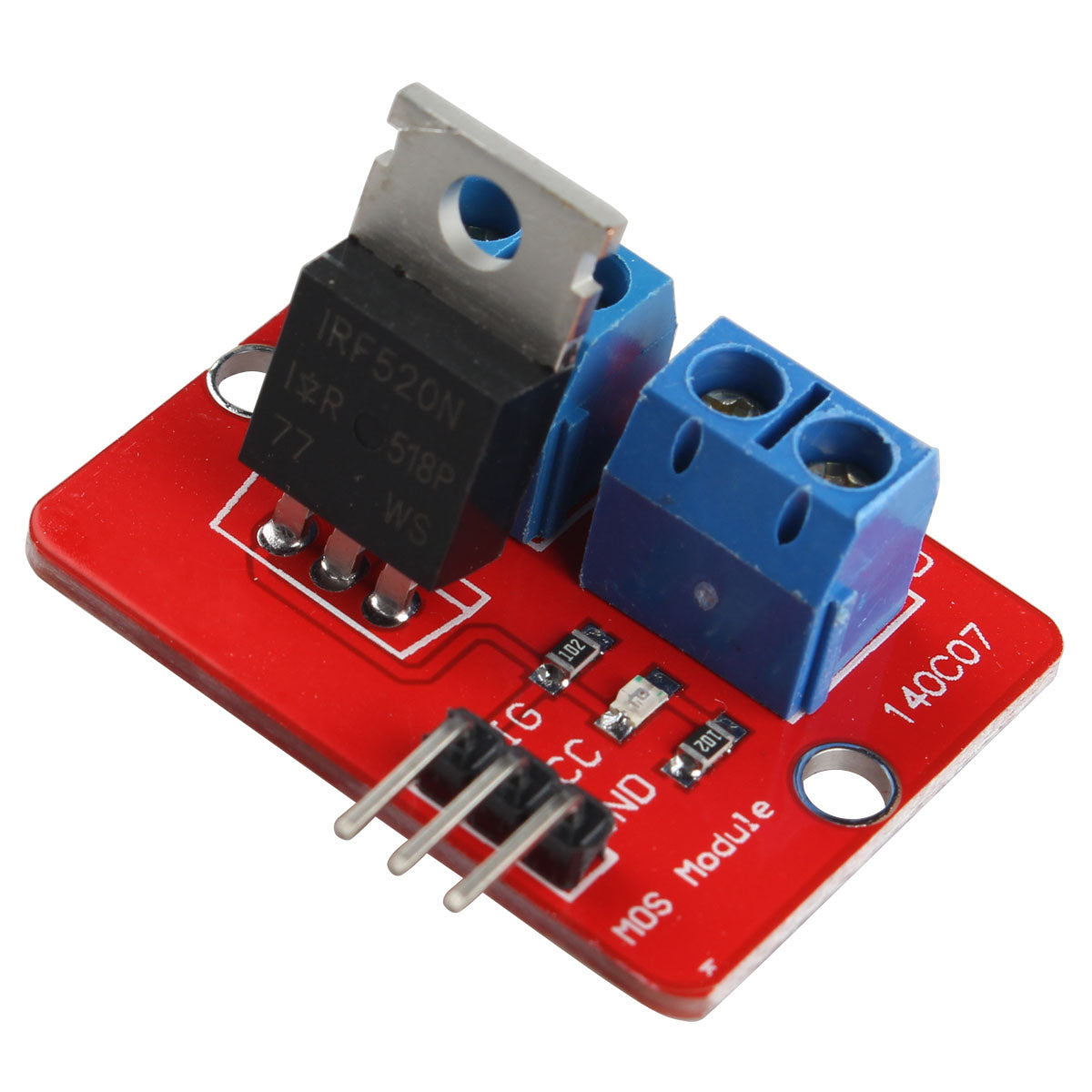

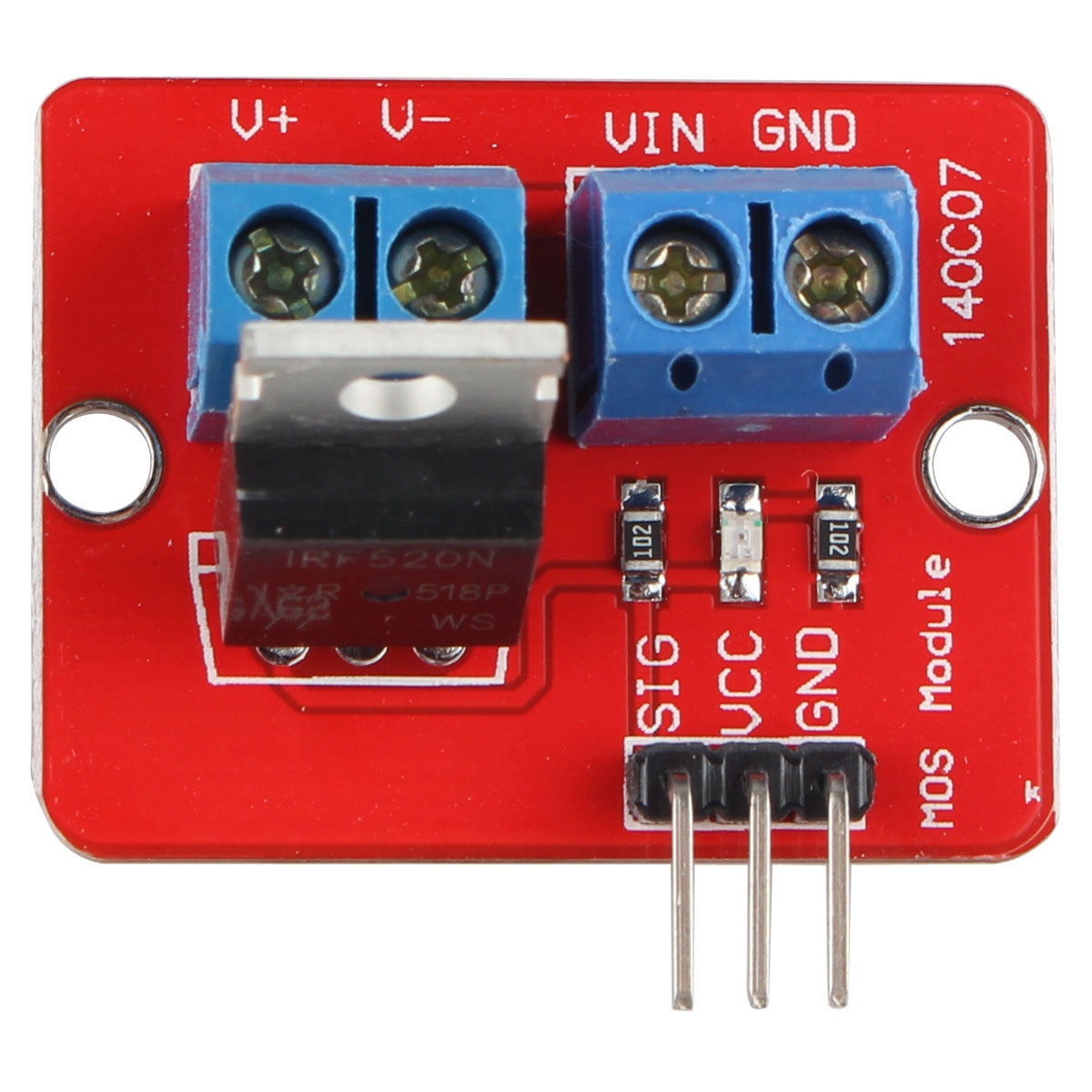

- Using original IRF520 power MOS tube, can adjust PWM output.

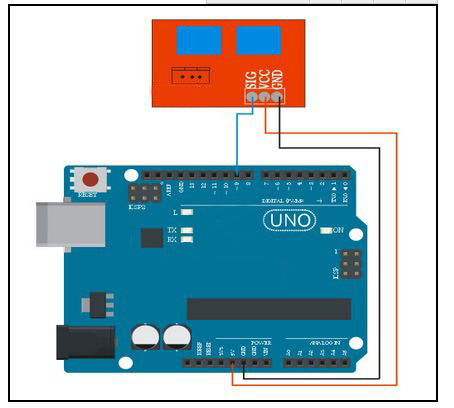

- Can let the Arduino drive up to 24v load, such as LED lights belt, dc motor, micro pump, solenoid valve.
- Used PWM adjustable can realize stepless dimming LED, motor stepless speed regulation.
Product Specification:
1. Size: 33*24mm.
2. Weight: 10g.
3. Voltage: 3.3V, 5V.
4. Ports: digital quantity level.
5. Output load voltage: 0~24V.
6. Output load current: <5A (1A above need to add heat sink)
7. Platform: Arduino, MCU, ARM, raspberry pie.
Note: Drive 1A above need to add heat sink.
Packing List:

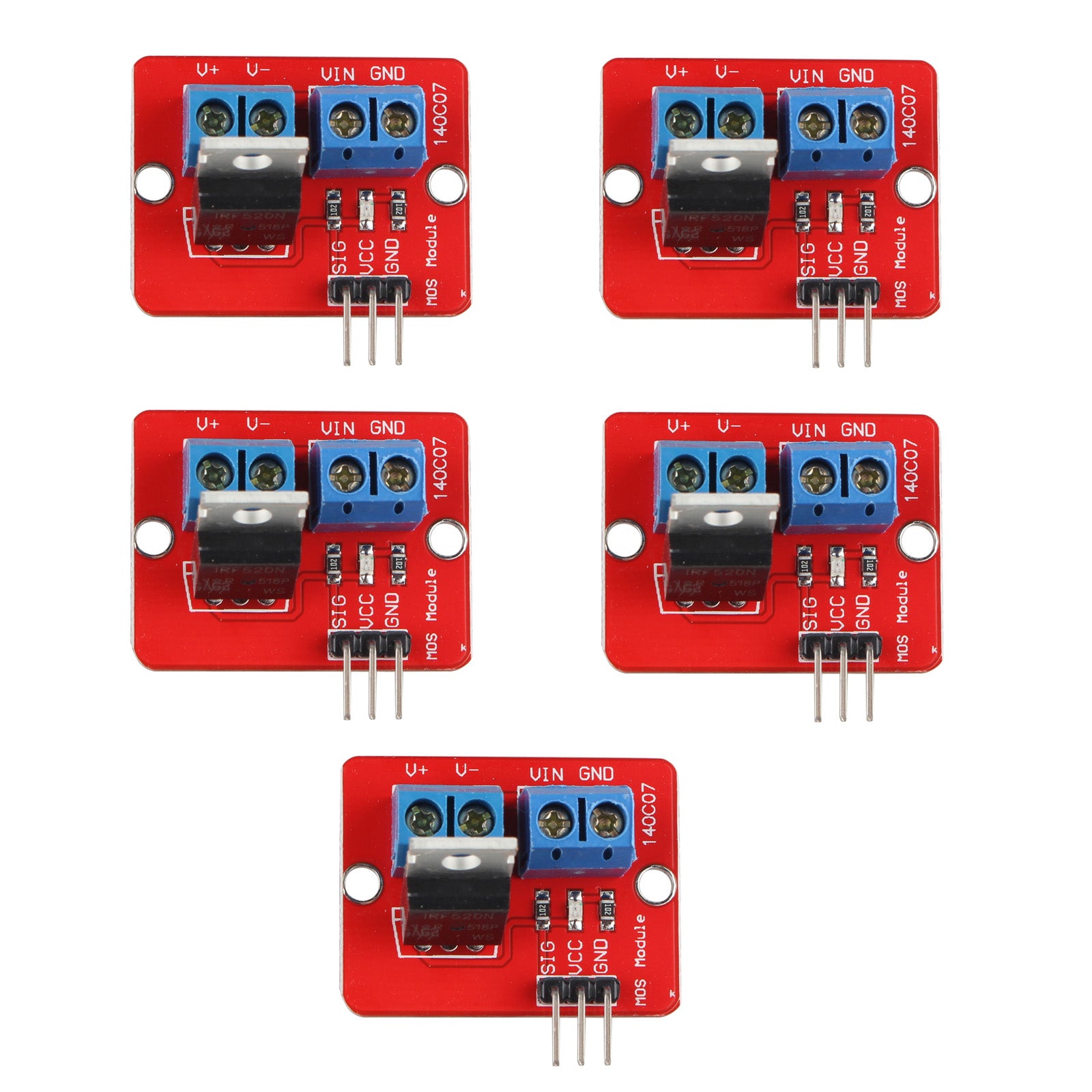

5 x IRF520 Module
