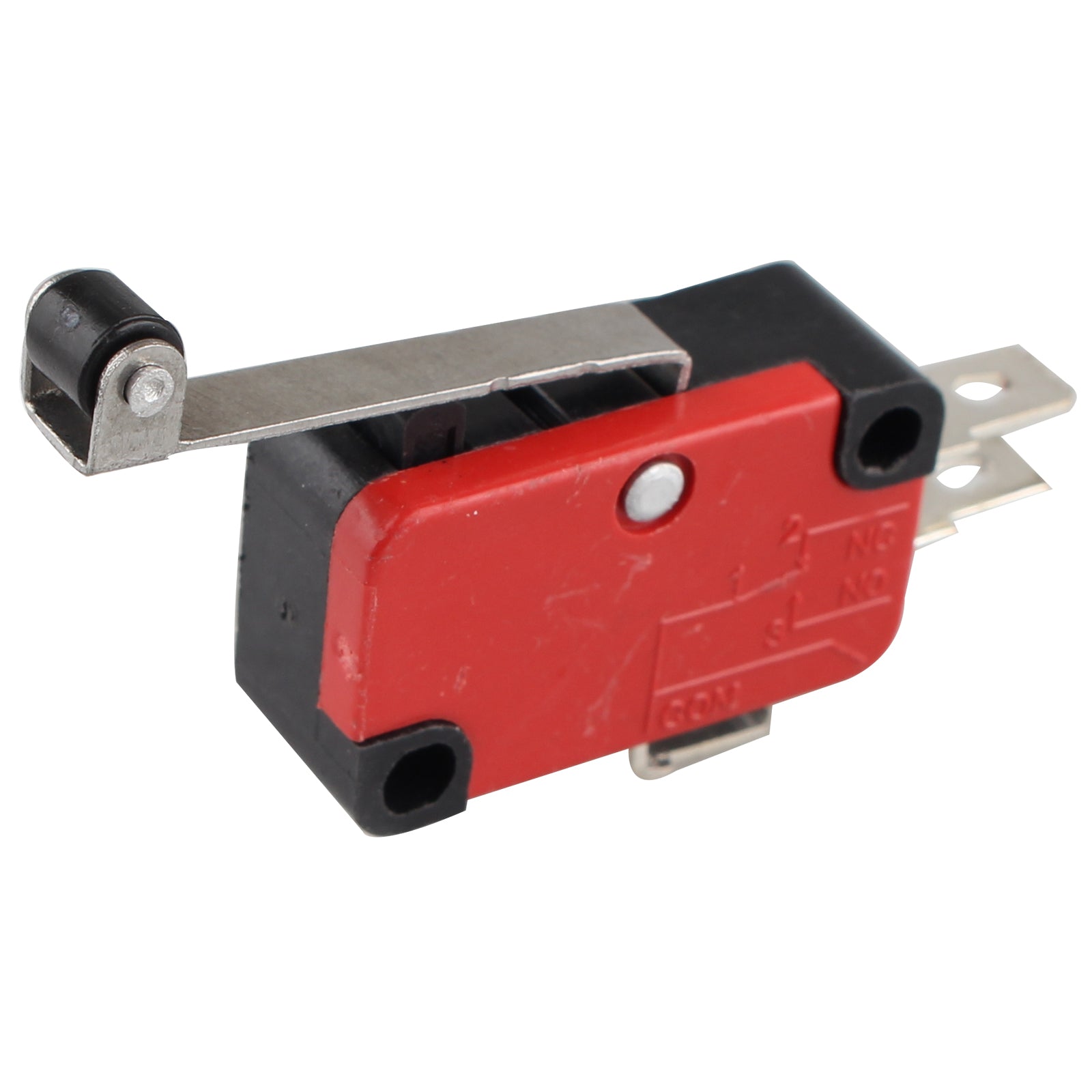

- Micro limit switch with long hinge roller.
- Features with hinge lever actuator, 1NO+1NC conatact congfiguration, 3 terminals design.
- High precision mechanism design offering acute operation and long life.
- In snap action contacts, the movement of the actuator applies force to an overcenter mechanism. This mechanism creates a quick change in contact state when the trip point is reached.Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position.
- Applicable to AC DC control circuits; designed to control the movement of a mechanical part.
Features:
High-quality silver alloy contacts, excellent conductivity.
High-quality flame-retardant and heat-resistant shell, safer to use.
The alloy iron handle is not easy to deform and has better sensitivity.
Used in various machine tools, lifting machinery, electrical equipment machinery, and various industrial automation equipment applications.
Specification:

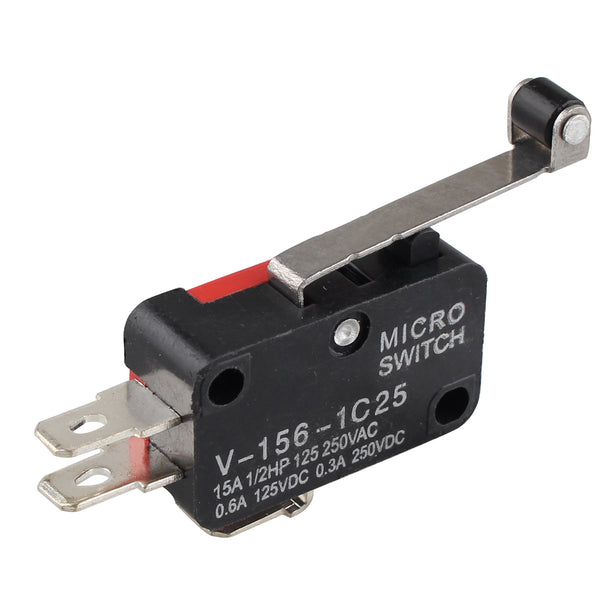

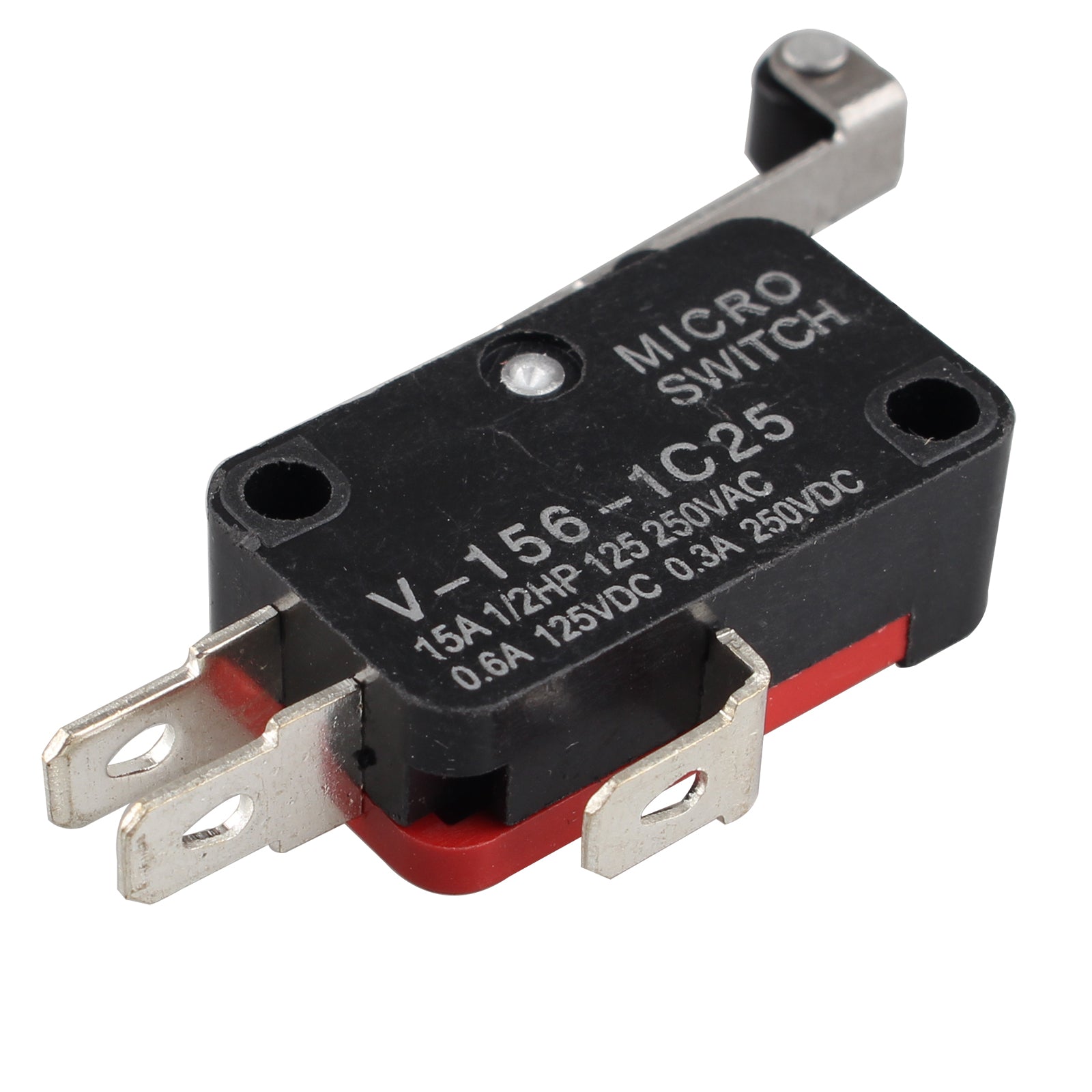

Model:V-156-1C25
Product Name: Micro Switch
Actuator Action:Momentary
Actuator Type:Roller Hinge Lever
Rated voltage: 250V
Rated current: 15A
Material:Plastic, Metal
Main Color:Red, Black

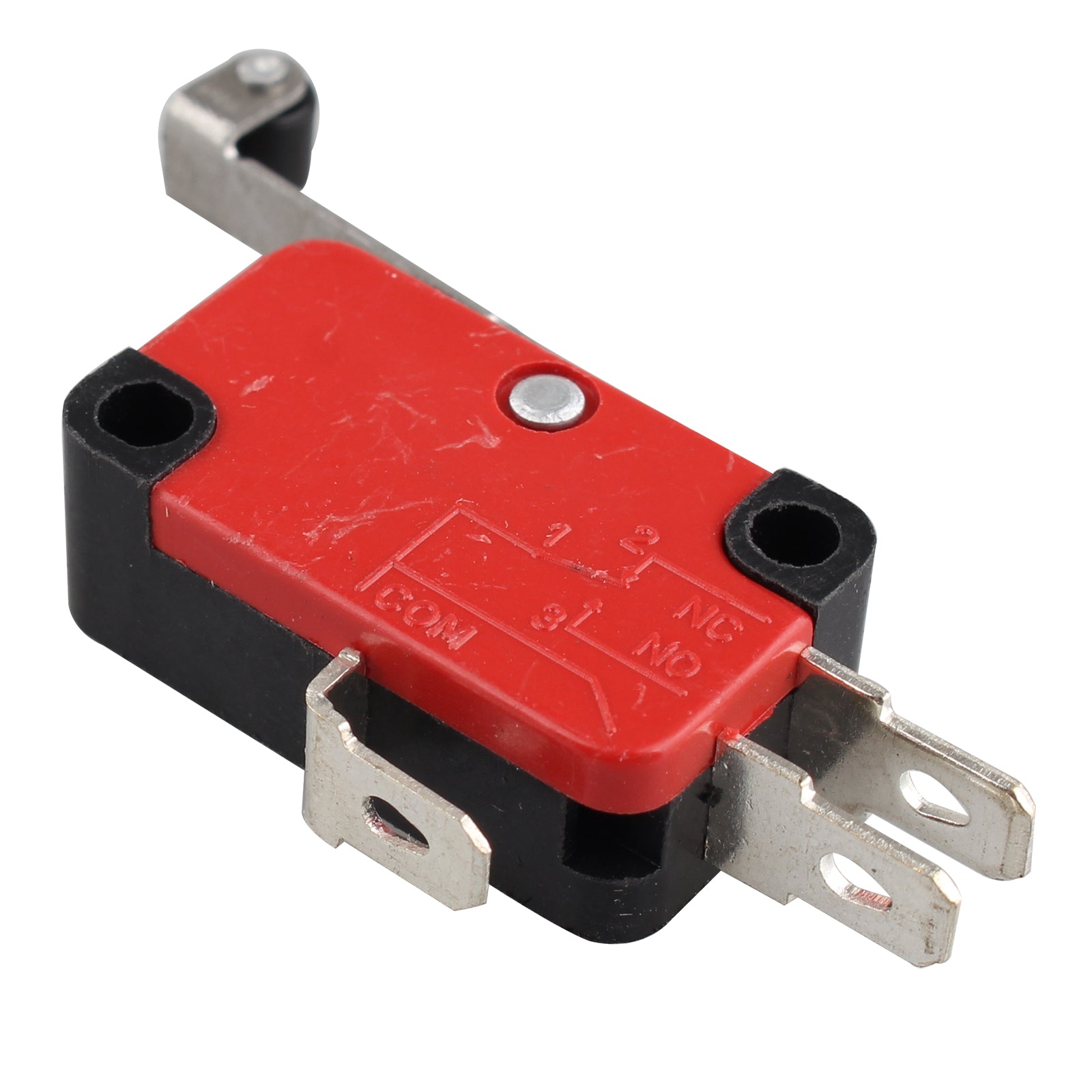

Contact Configuration:1NO,1NC(SPDT)

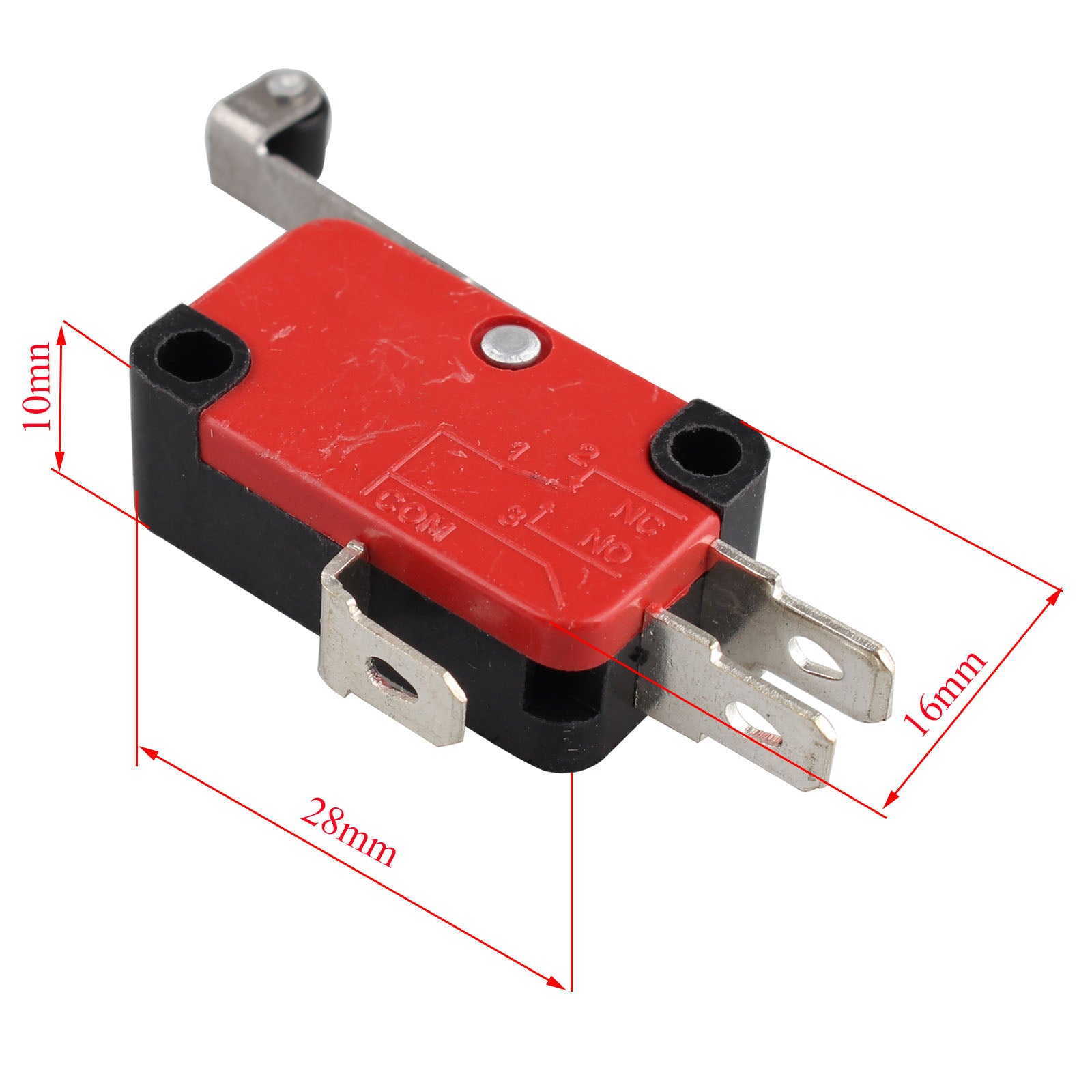

Switch Body Size:2.8 x 1.6 x 1cm(L*W*H)
Button Height:0.3cm
Level Length:29mm
Net Weight:7.4g
Packing List:

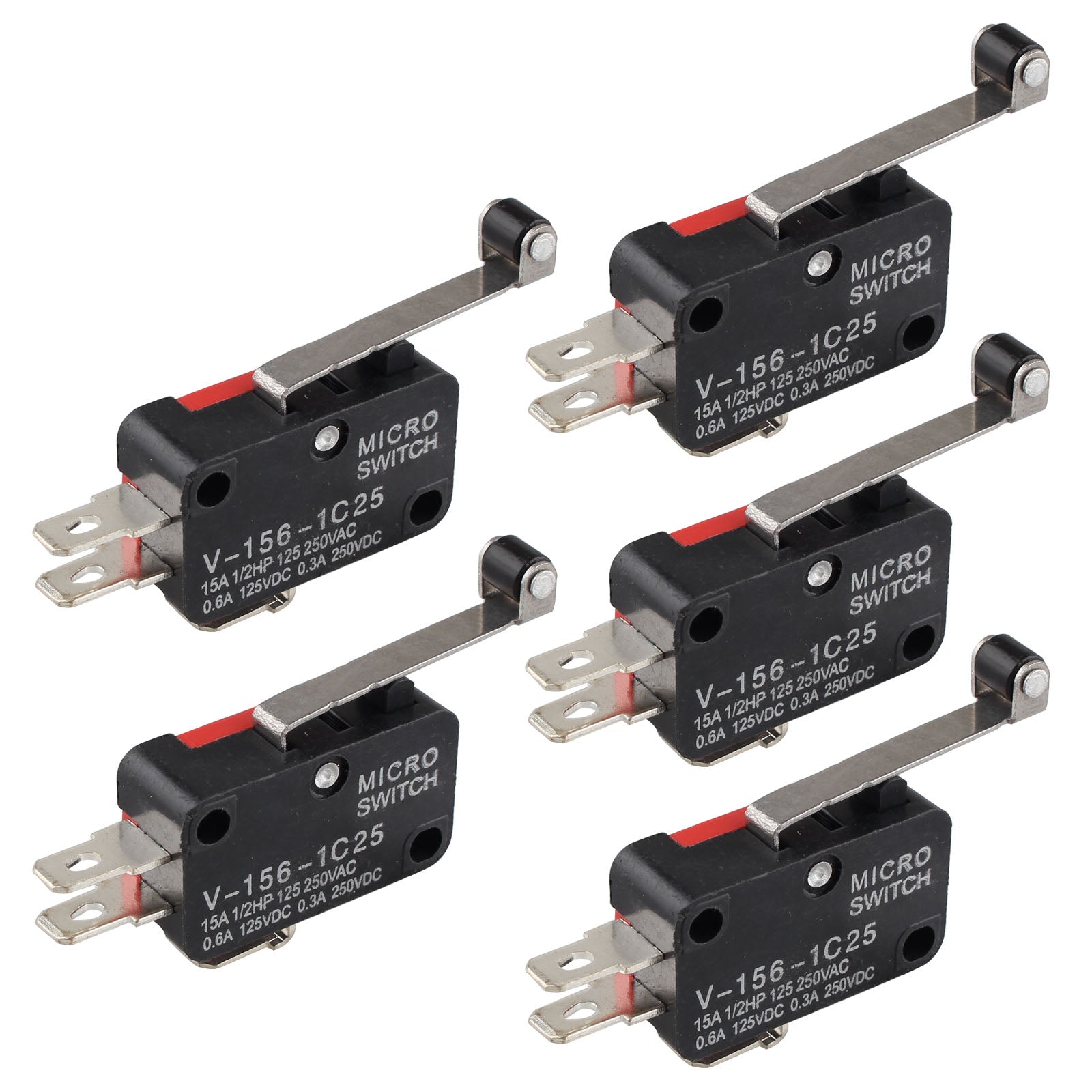

5 x Micro Limit Switch
