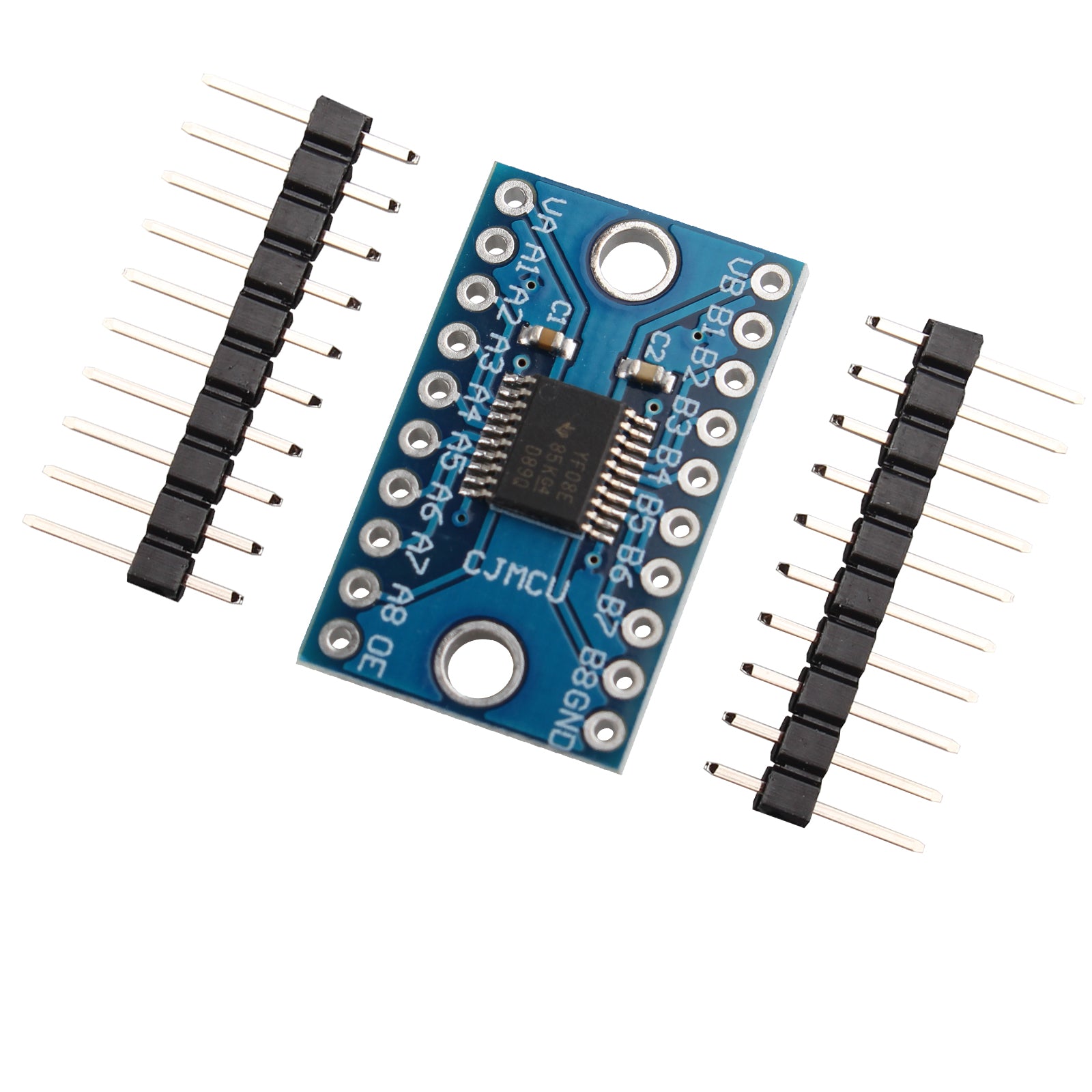

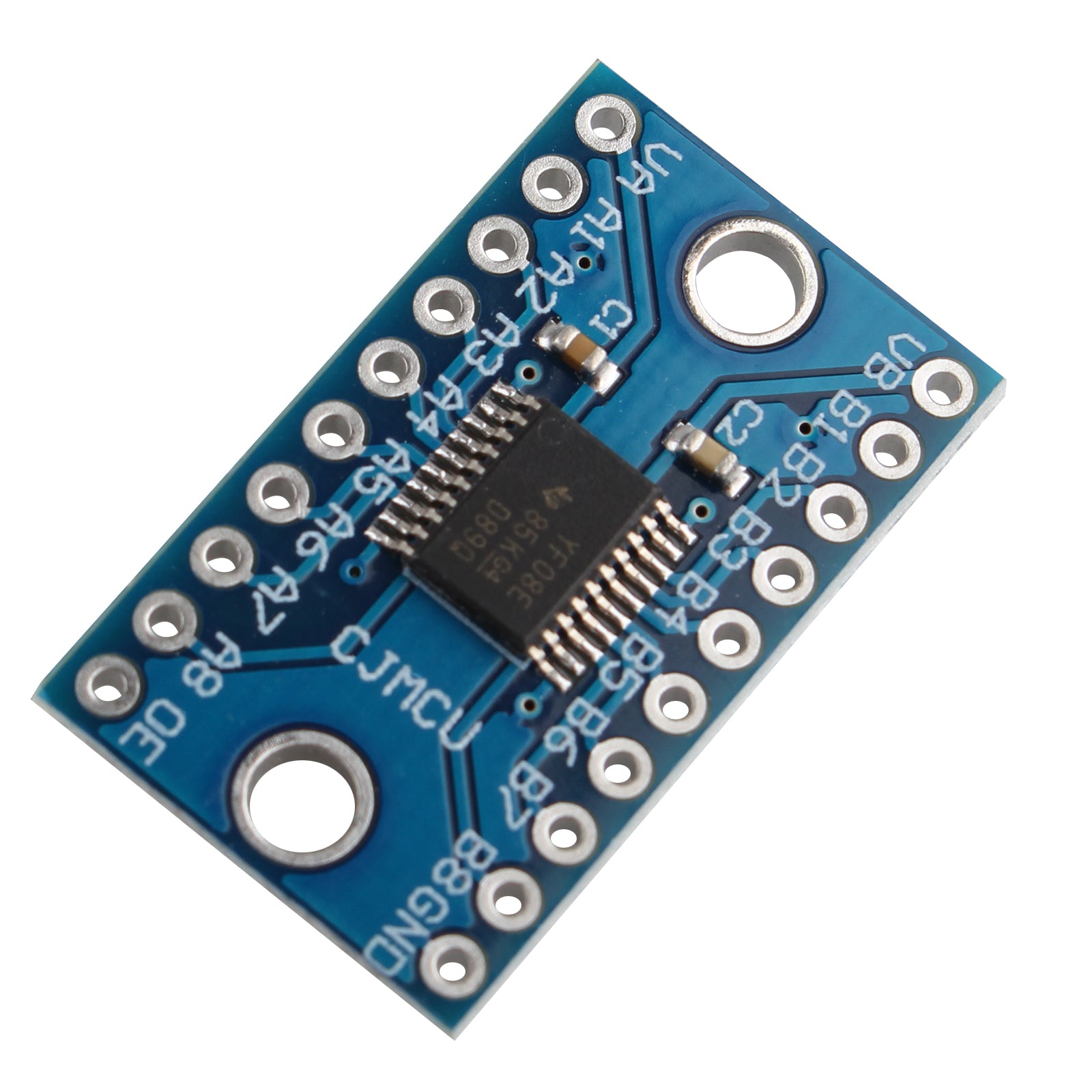

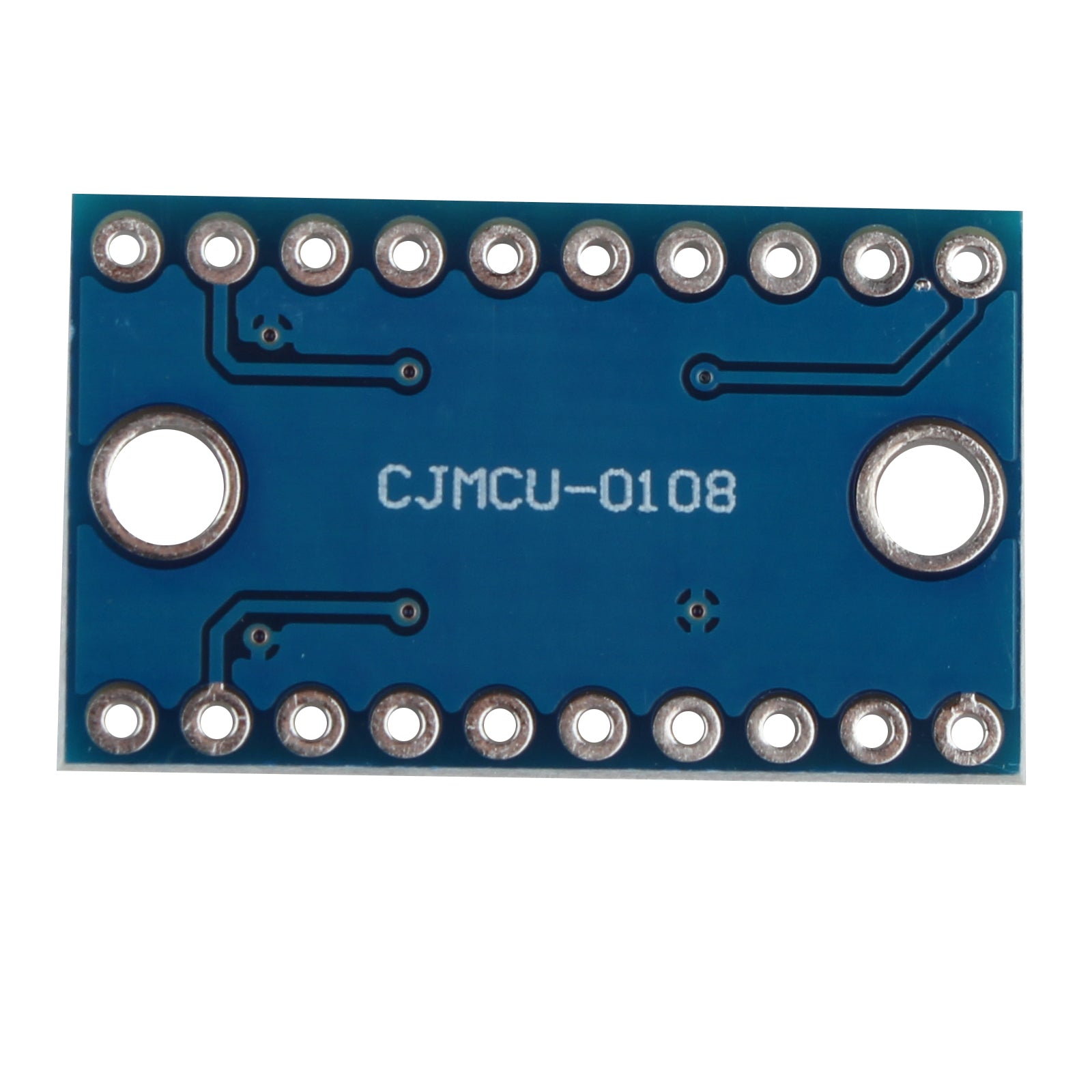

- High-speed Full-duplex 8-channel level conversion module. Module Chip: TXS0108E.
- Provide bidirectional communication capability.
- VCCA Terminal Support Voltage: 1.2V-3.6V; VCCB Terminal Support Voltage: 1.65V-5.5V.
- Provide Common Level Conversion Capability such as 3.3-5V, 1.8-3.3V.
- Compatible with 5V singlechip and 3.3V module, 3.3V singlechip and 5V module.
Feature:
Provide Level Conversion Between Single Chip Microcomputer and SD Card Communication.
Provide Level Conversion between Single Chip Microcomputer and iic, SPI Serial Port Equipment.
OE enables IO to be efficient at high levels. It is recommended to connect IO ports at low voltage terminals.
8 channels bidirectional voltage translation between different logic level, translate between Ax and Bx automatically.
Usage:
In the case of translating between 3.3V and 5V system:
VCCA connects to 3.3V power supply
VCCB connects to 5V power supply
GND connects to power negative pole respectively, the two power supply should be common-grounded with each other
When Ax has TTL 3.3V input, Bx will get TTL 5V output
When Bx has TTL 5V input, Ax will get TTL 3.3V output
NO direction control required
Voltage level: 1.8V-6V

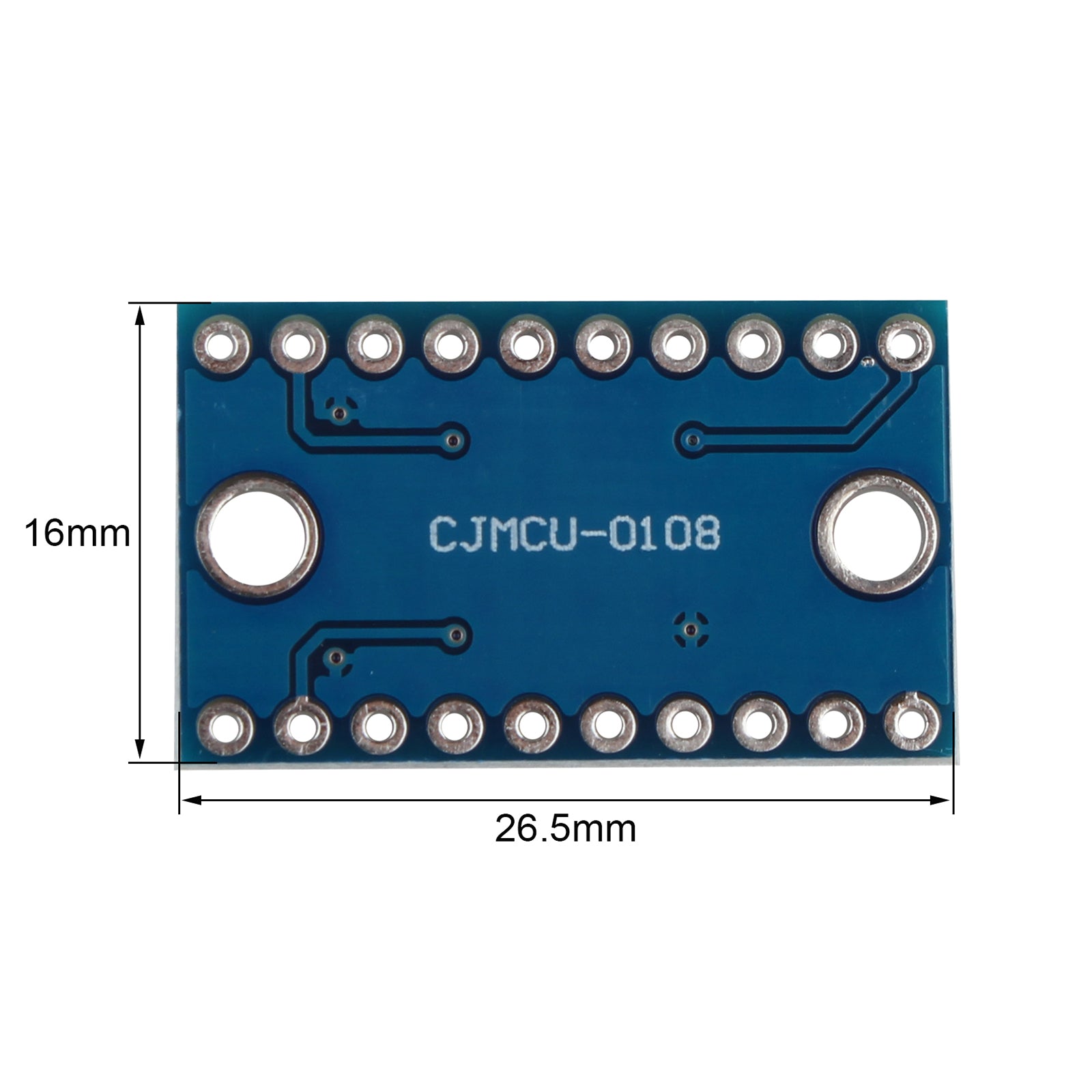

Size: 26.5mm x 16mm
Weight: 2.5g
Packing List:

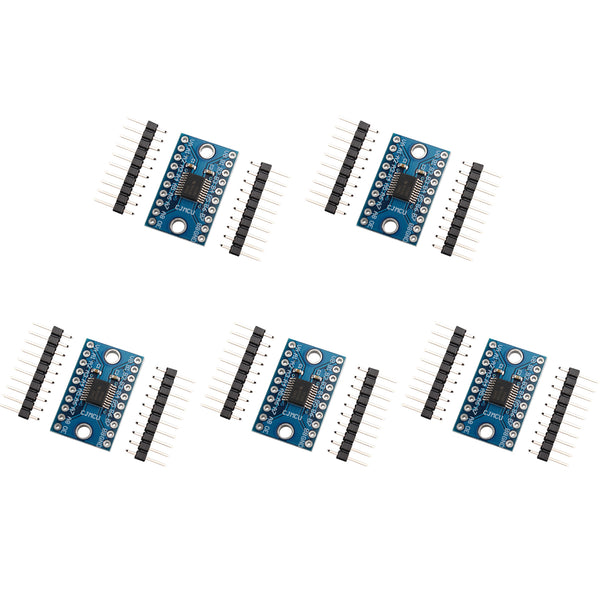

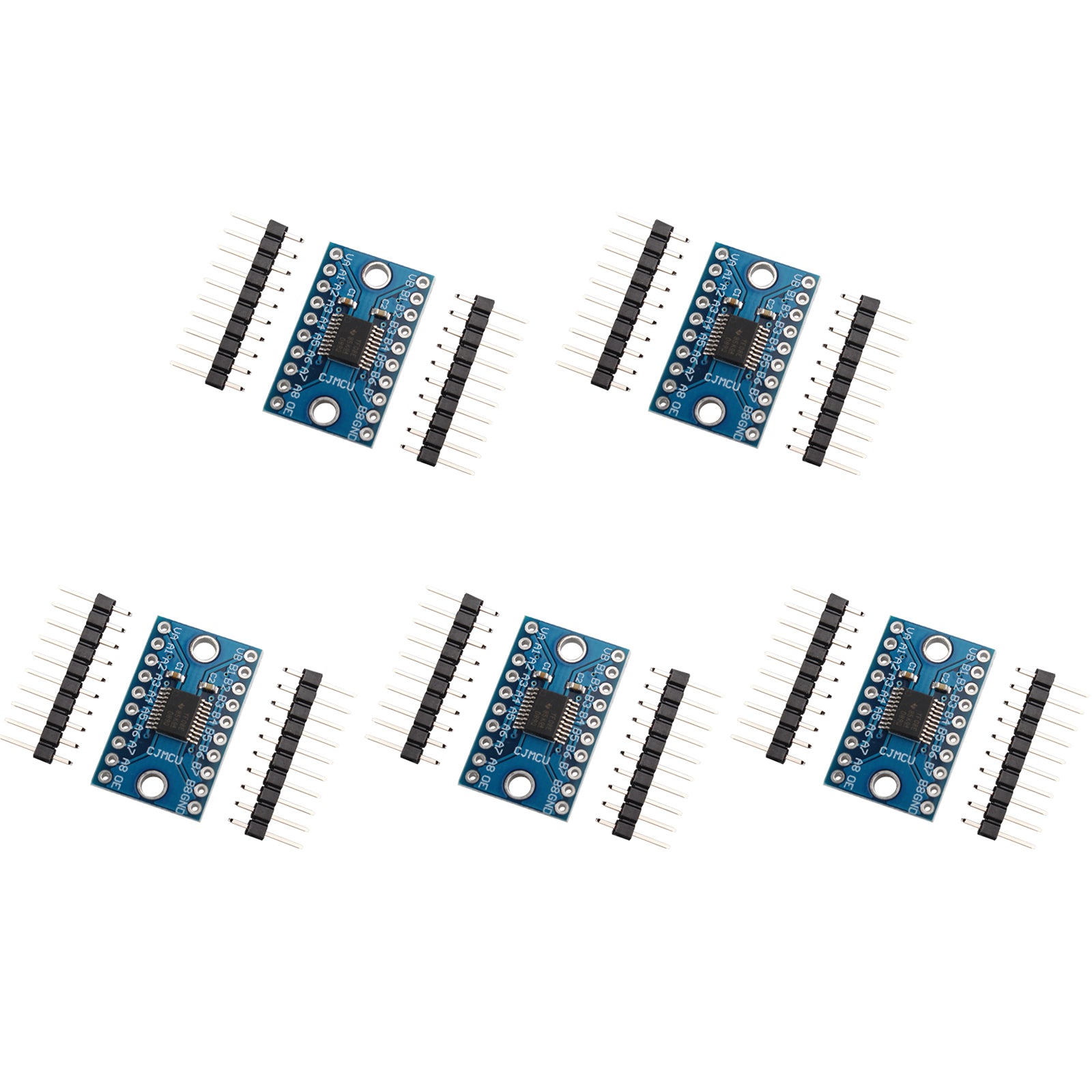

5 x TXS0108E Logic Converter
