- Super mini volume. Can be easily placed in a variety of digital products within a small space, high efficiency amplification.
- Dual-channel stereo, 5V power supply can output 3W +3 W power, can be directly driven 4Ω, 8Ω small speakers, the output power, enough energy, good sound quality.
- Excellent noise control. When there is no audio input, you cannot hear any noise even you close to the speaker.
- It can be powered by the computer's USB port 5V power supply, or by using the mobile phone charger USB port 5V power supply, or you can use the lithium battery power supply.
- The module has short circuit over current protection and over temperature protection.
Feature:
1. Working voltage: 2.5V-5.5V.
Note: The power supply voltage should not exceed 5.5V, and the power supply should not be reversed.
2. Speakers: 4-8 Euro.
Recommended: 4 Euros.
Speaker Power: 2-8W.
3. It can be powered by the computer's USB port 5V power supply, or by using the mobile phone charger USB port 5V power supply, or you can use the lithium battery power supply.
4. High efficiency 90100, 4Ω load and 5V power supply, 3W (left channel) + 3W (right channel) output power. The efficiency of Class A and Class B power amplifiers is only about 30, and Class D power is highly regarded under the current green trend.
5. Class D power amplifiers are extremely efficient, do not affect the sound quality due to temperature rise, and do not need to add heat sinks, occupying a small volume.
6. The power amplifier board has a built-in noise canceling circuit, and there is no noise when the power is turned on/off; the module has short circuit over current protection and over temperature protection.
Note:
1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

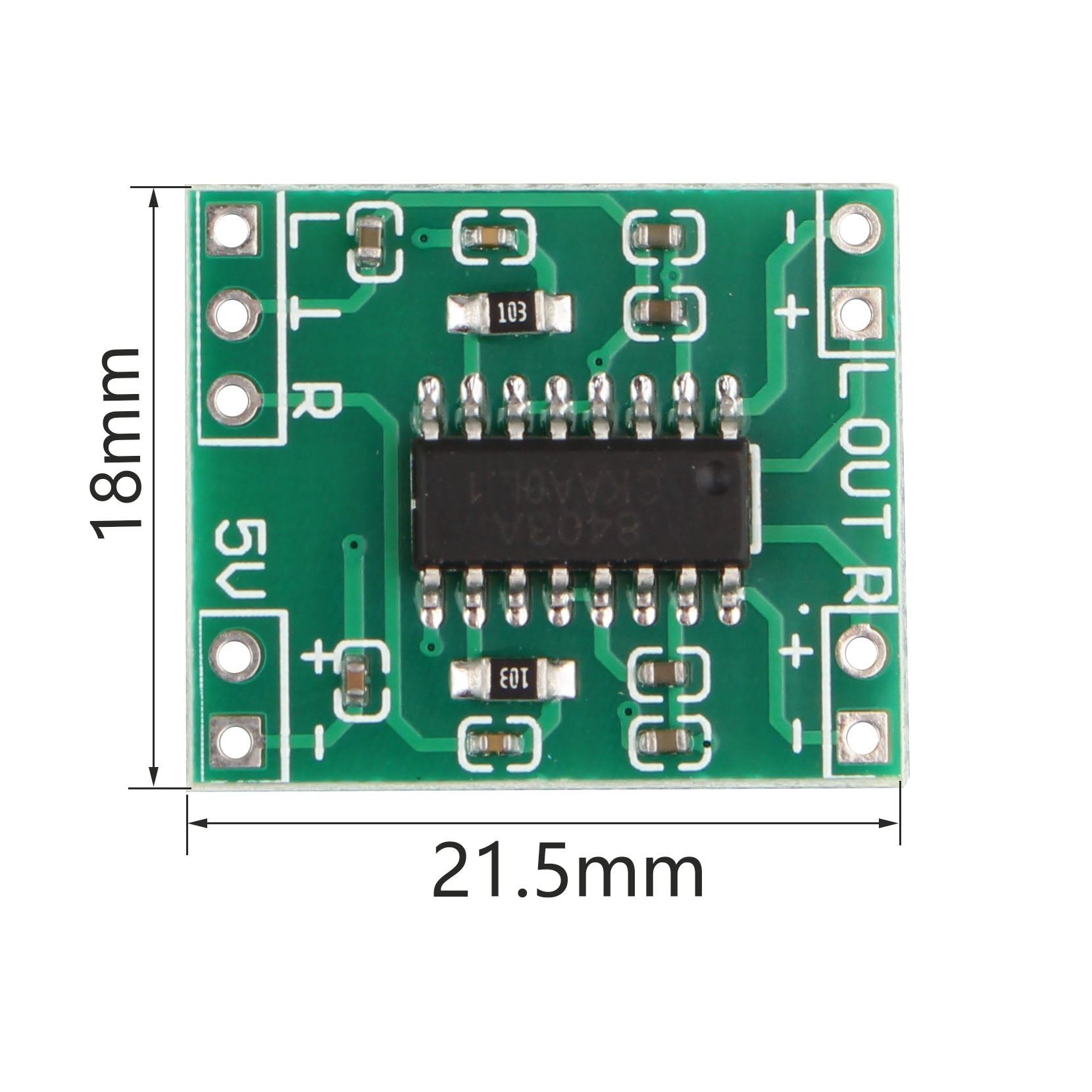

Size: 22 (mm) x 18 (mm) x 3 (mm)
Weight : 1.2 g
Packing List:

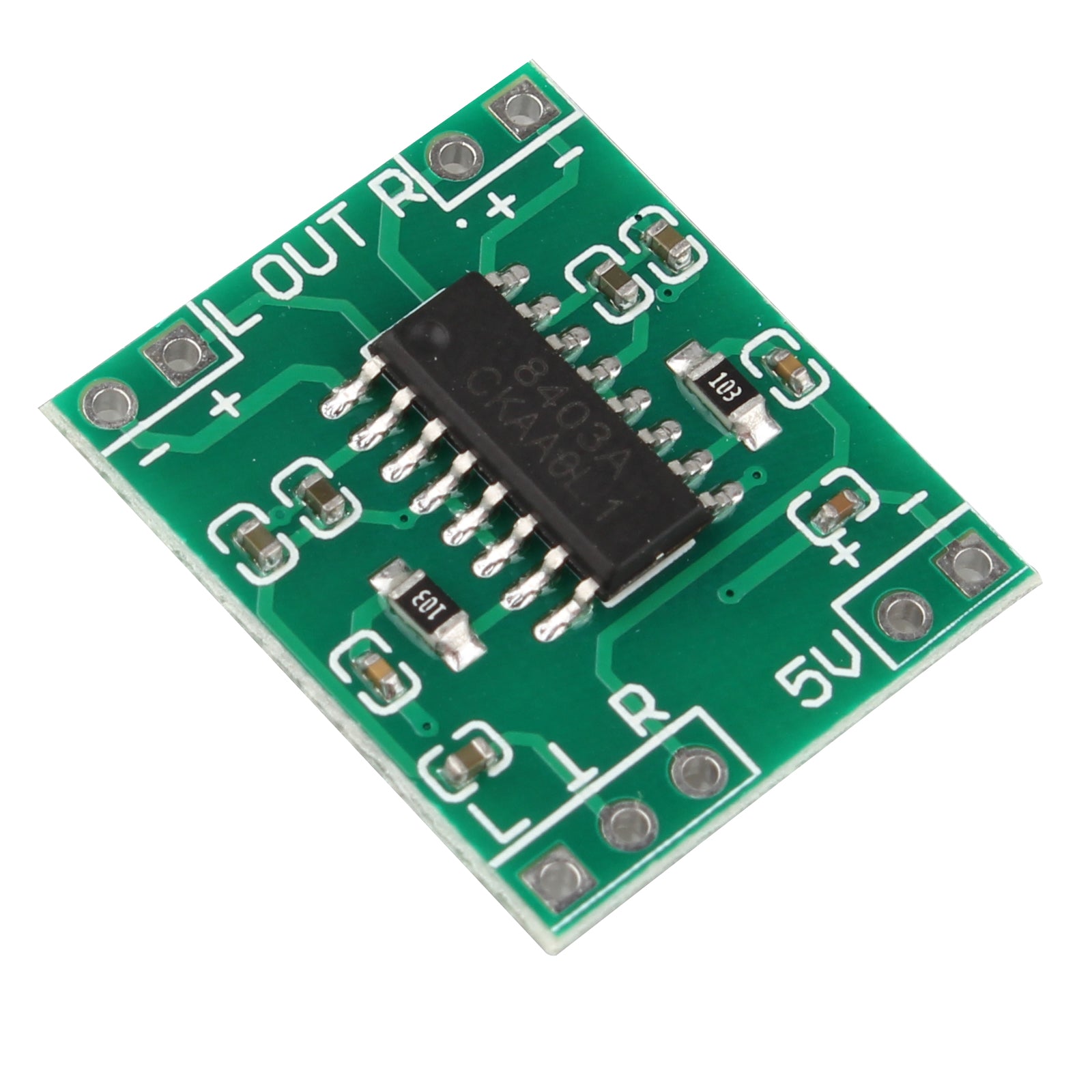

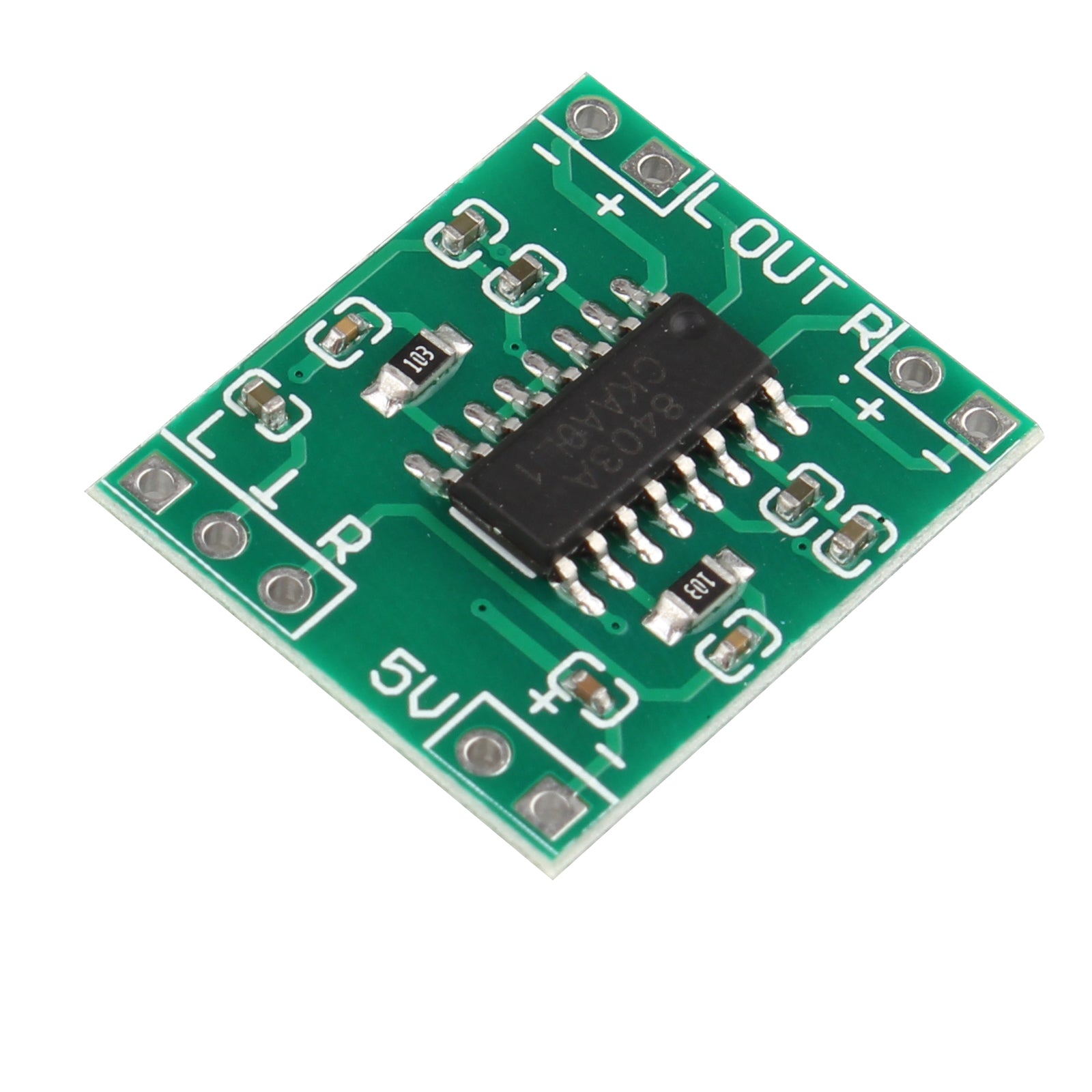

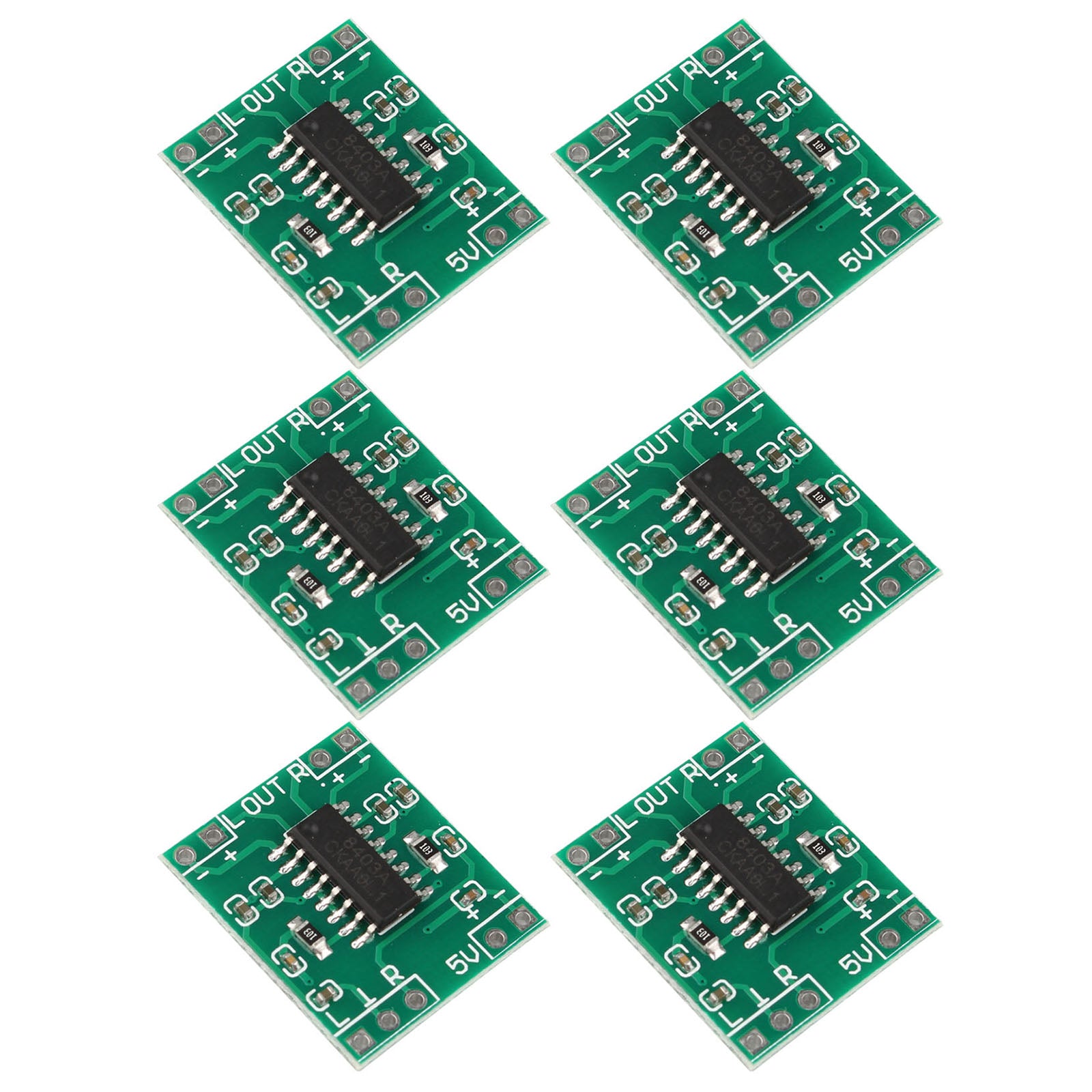

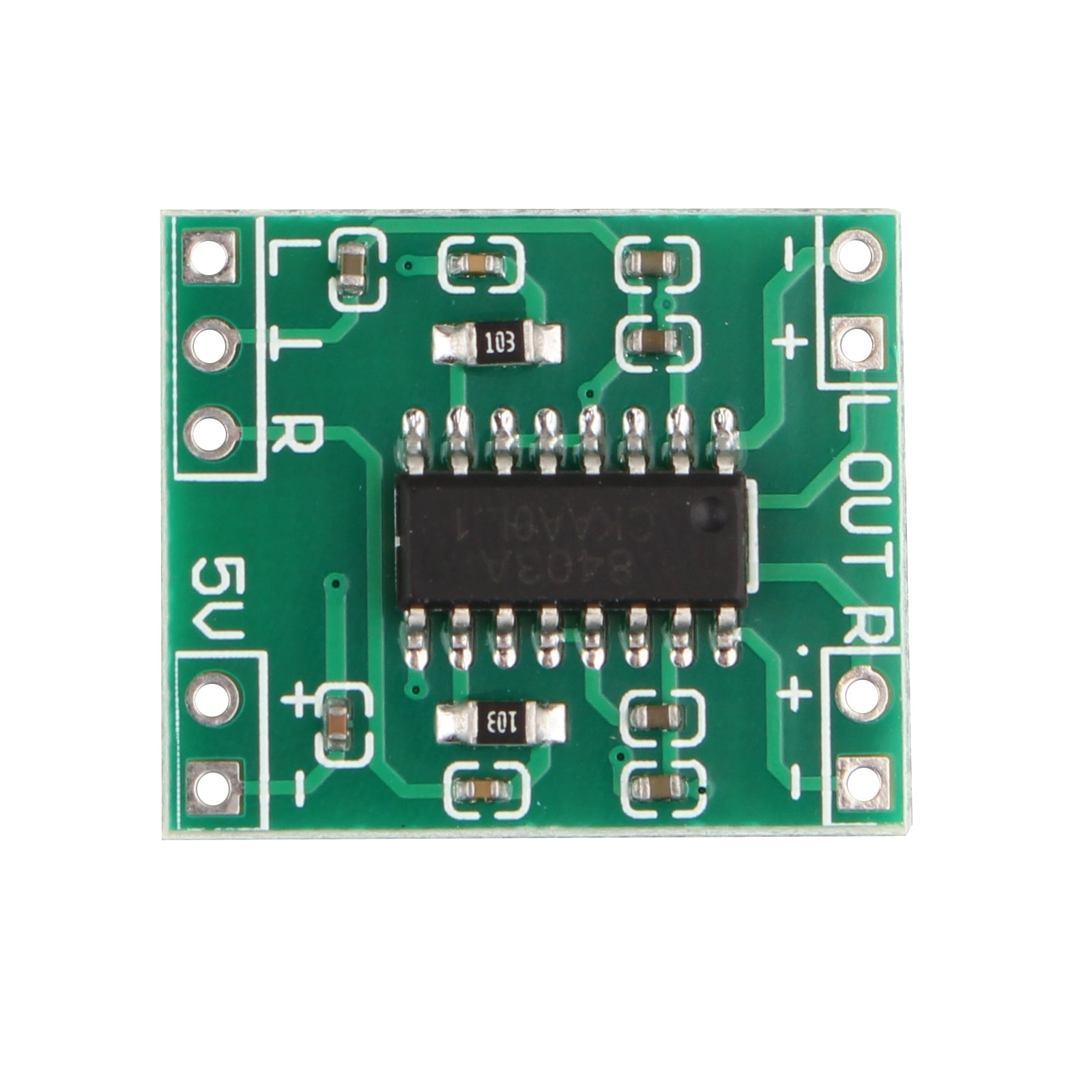

6 x PAM8403 Mini Digital Power Amplifier Board
