- Work greatly for Dupont with all your typical breadboard style pin connectors and sockets.
- Amazing choice for DIY electronic project, home electronics prototyping
- Suitable for Arduino and Raspberry Pi projects.

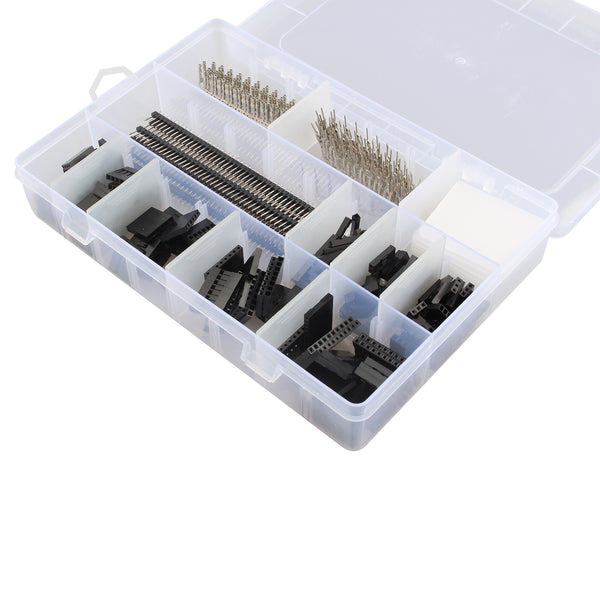

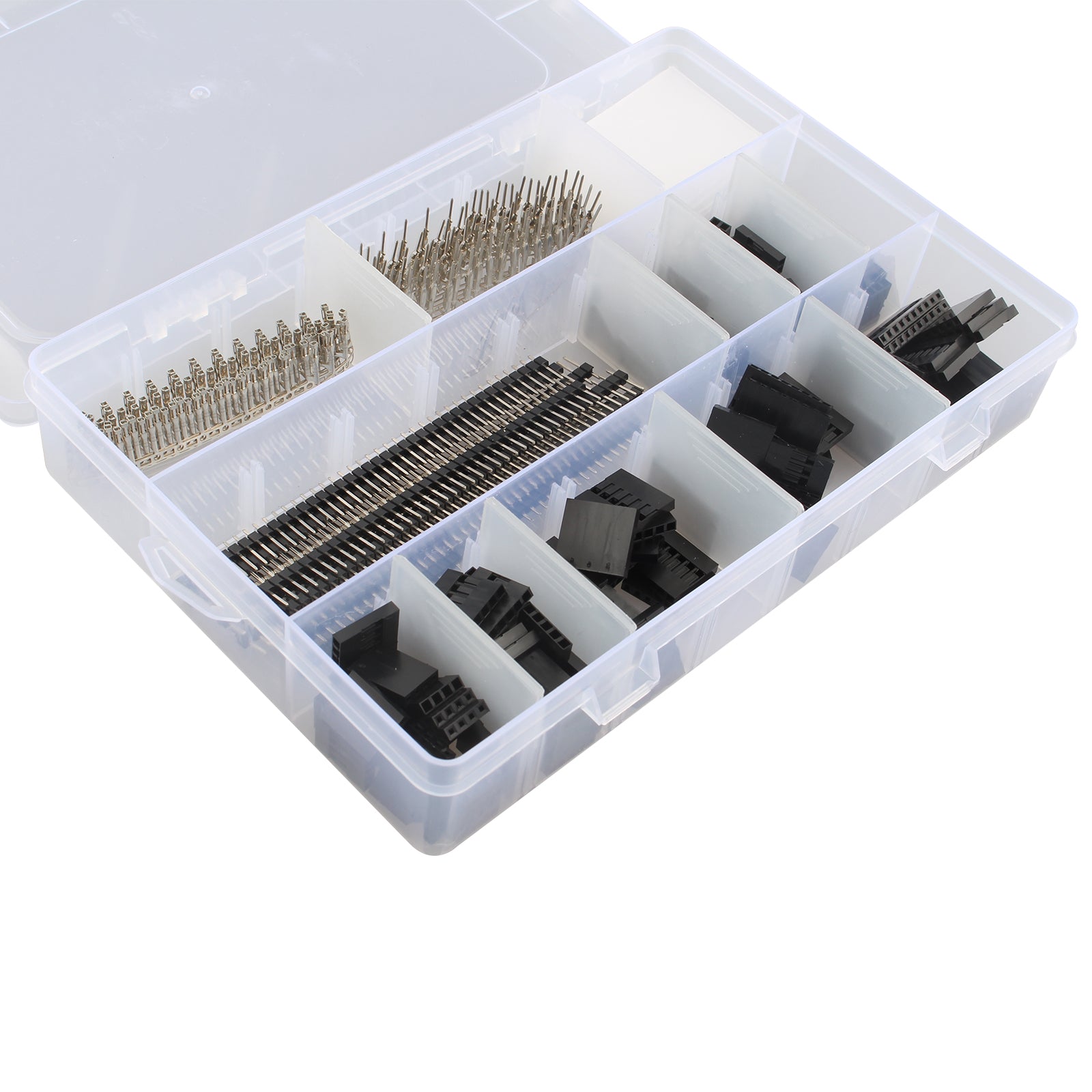

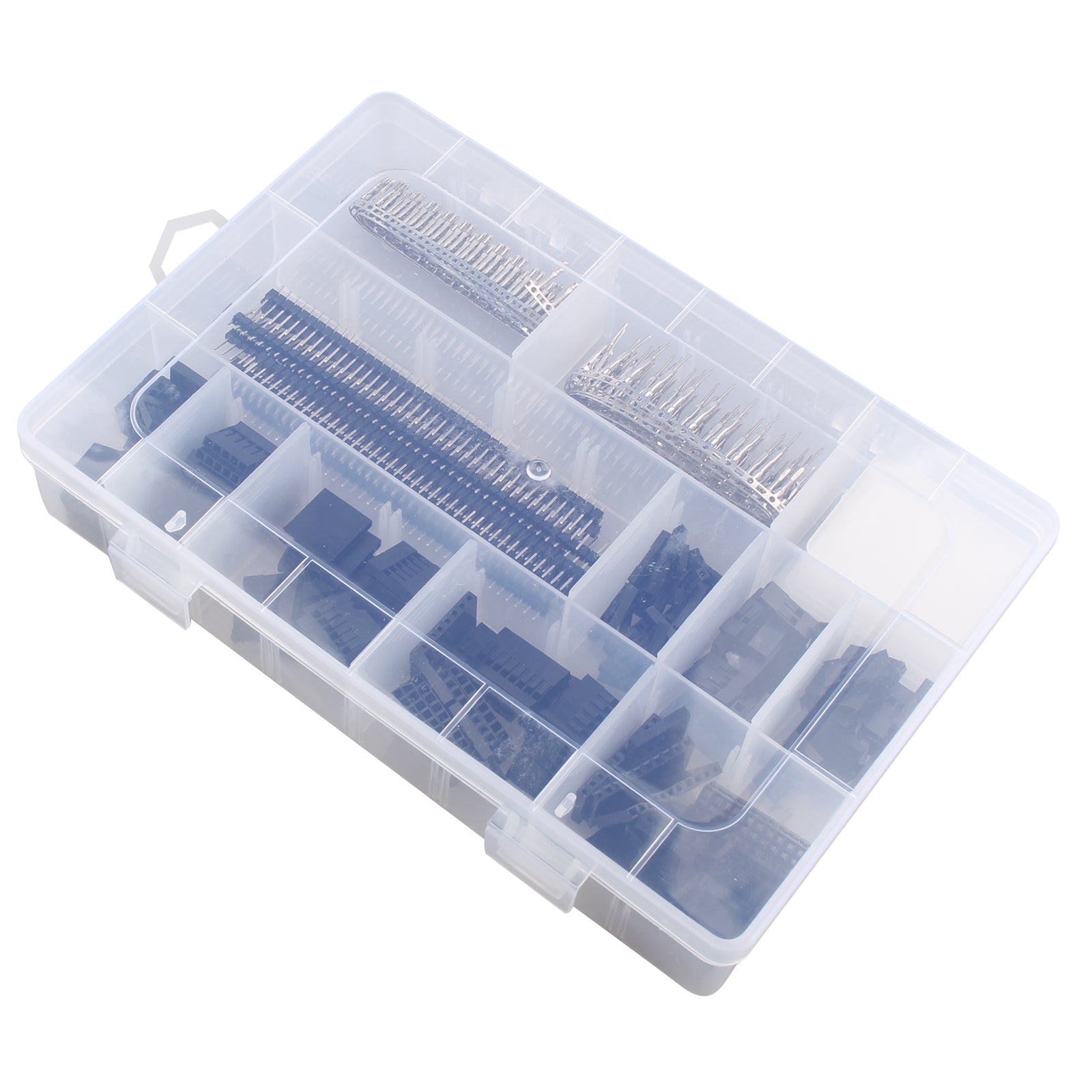

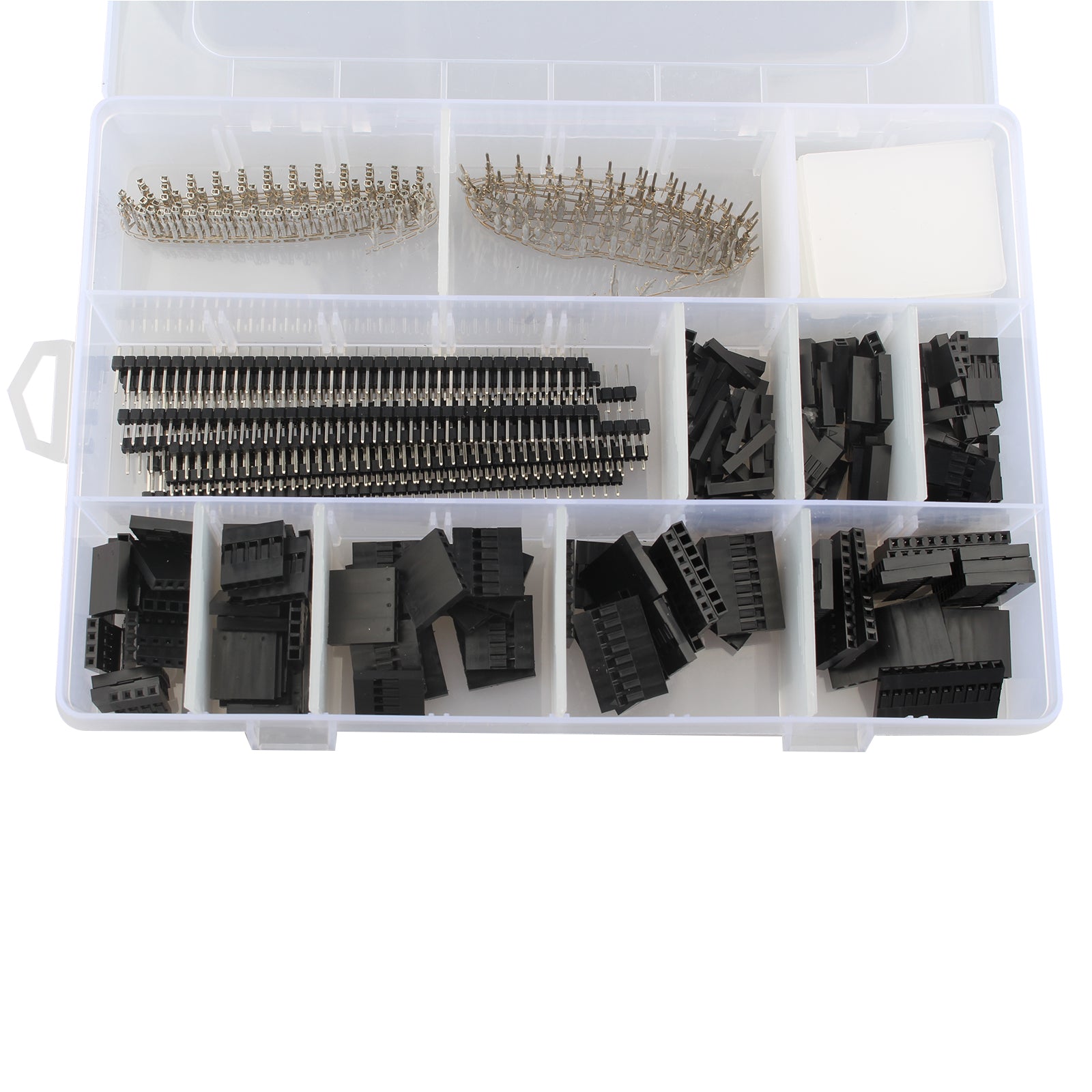

- Assorted in a plastic case, convenient and easy for use & storage.
- Different Size,which can meet your different need.
Specifications:
Color: Black + Silver
Material: Plastic + Tinned Copper
Wire Gauge: 18-26awg
Pin Spacing: 2.54mm / 0.1"
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥1000MΩ(DC 500V)
Rated Current: 3A
Rated Voltage: 250V
Contact Material: Phosphor Bronze
Insulating Base: Nylon
Working Temperature: -25℃ to 85℃
Type: Jumper Wire & Connector Kit

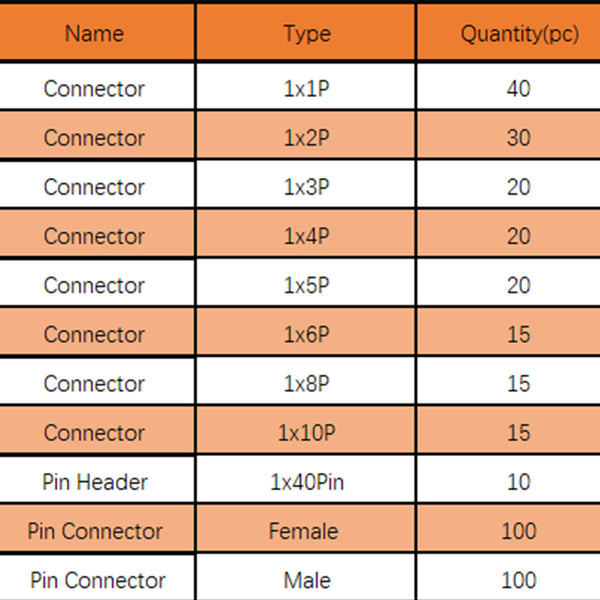

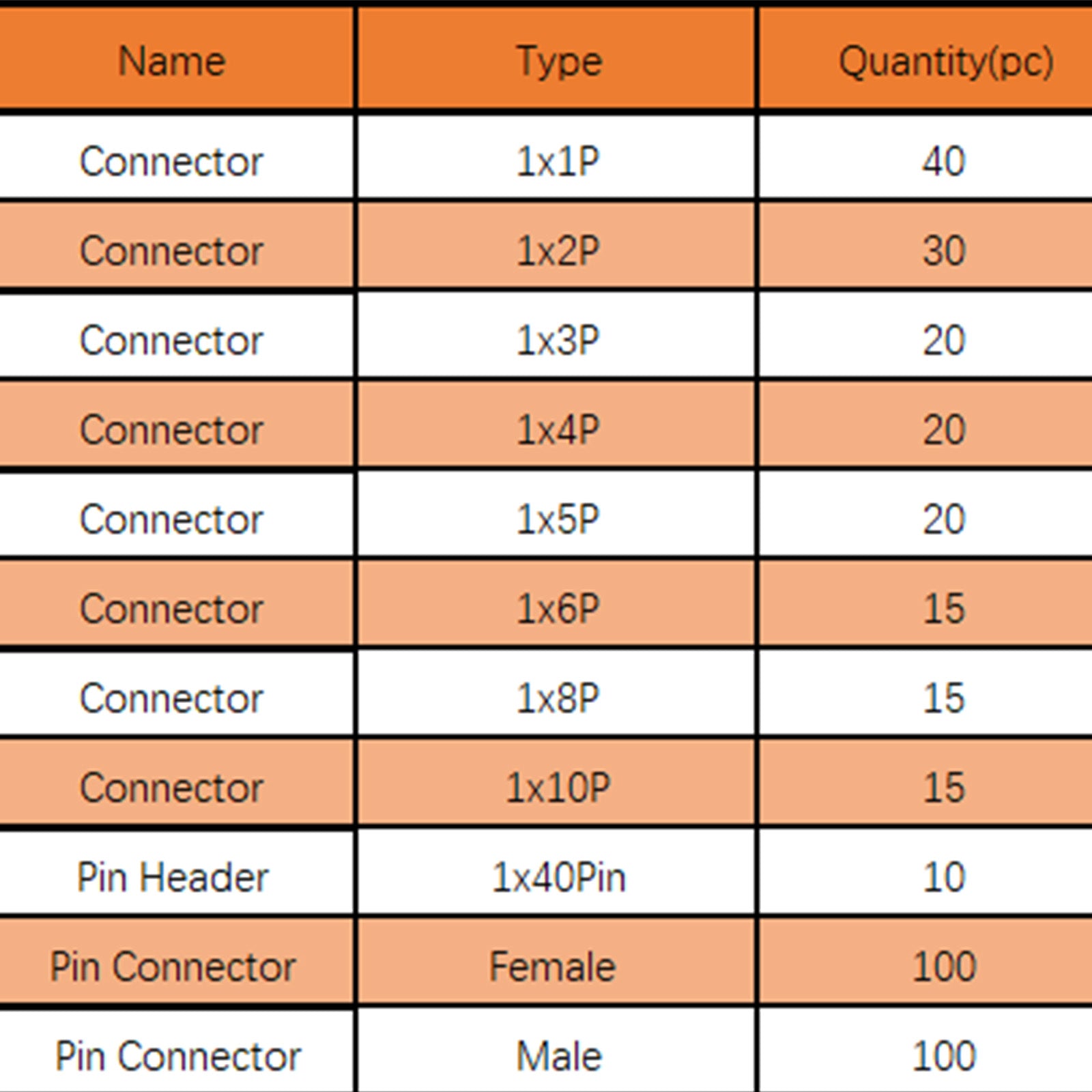

Quantity: 775PCS

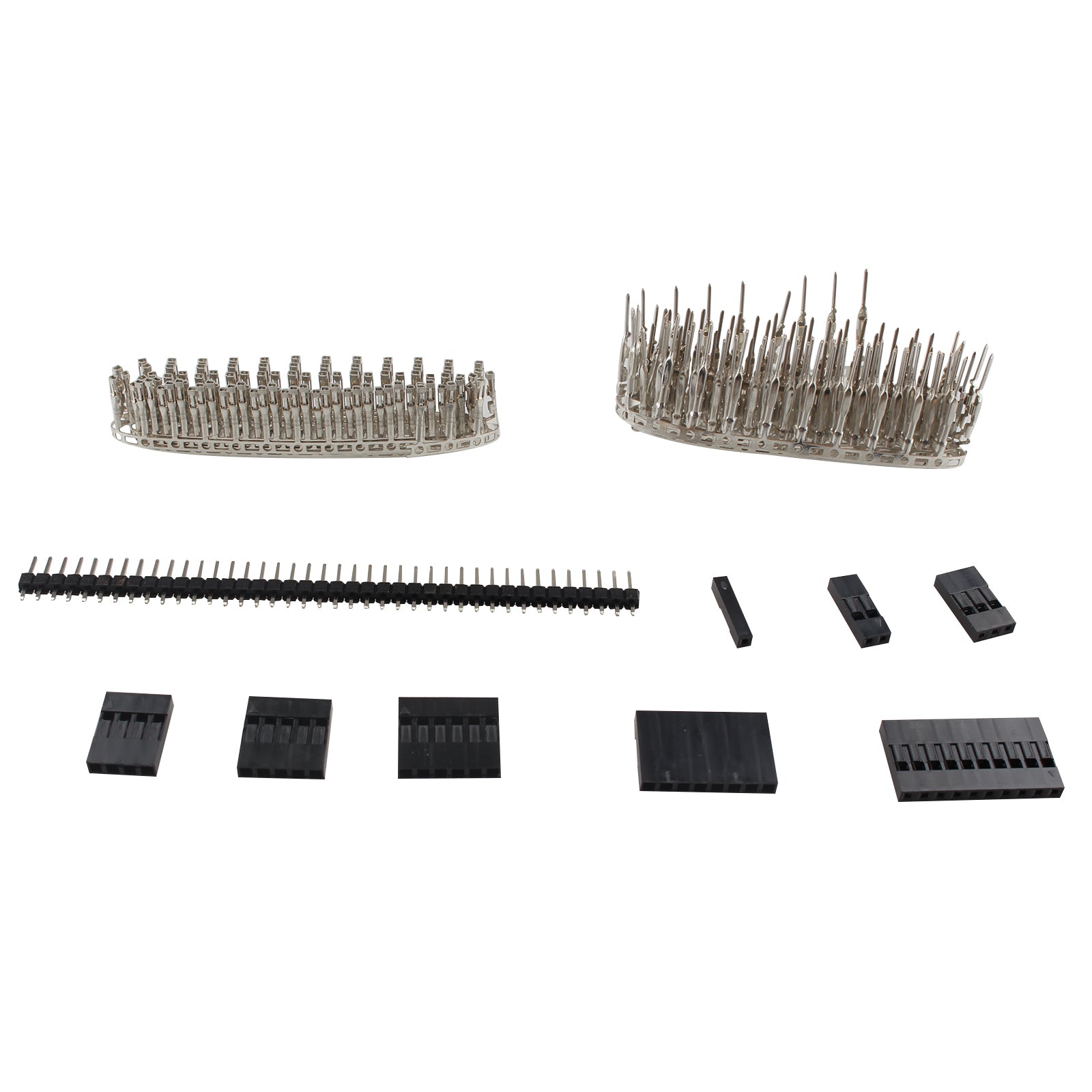

40PCS * Connector Housing Female 2.54mm 1x1P
30PCS * Connector Housing Female 2.54mm 1x2P
20PCS * Connector Housing Female 2.54mm 1x3P
20PCS * Connector Housing Female 2.54mm 1x4P
20PCS * Connector Housing Female 2.54mm 1x5P
15PCS * Connector Housing Female 2.54mm 1x6P
15PCS * Connector Housing Female 2.54mm 1x8P
15PCS * Connector Housing Female 2.54mm 1x10P
10Row(1x40Pin) * 40Pin 2.54mm Single Row Straight Male Header
100PCS * Jumper Wire Cable Female Pin Connector
100PCS * Jumper Wire Cable Male Pin Connector
Packing List:
1*775PCS 2.54mm Connector PCB and Jumper Wire Cable Female Pin Connector with Single Row Straight Female Male Header
