- 100% brand new with good quality
- automatic sensor:when enter the sensor,output range is high,when people leave the sensor, range of the automatic off, output low
- photosensitive control,optional, factory is not set
- two trigger mode:not repeat the trigger, repeatable trigger
- temperature compensation
Condition:100% brand new with good quality

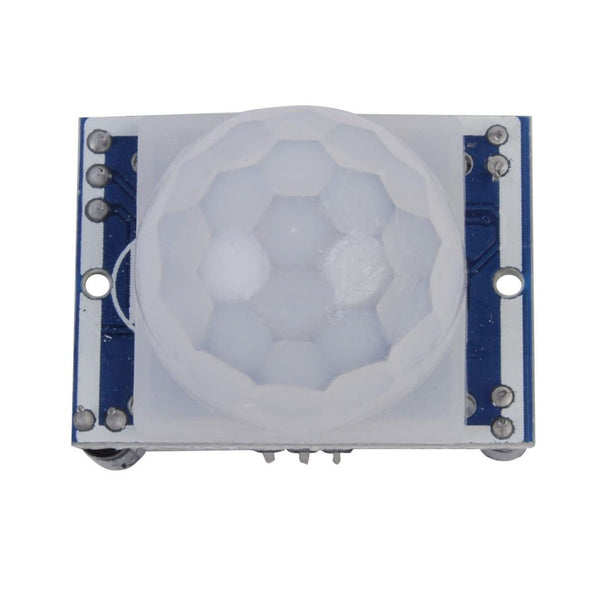

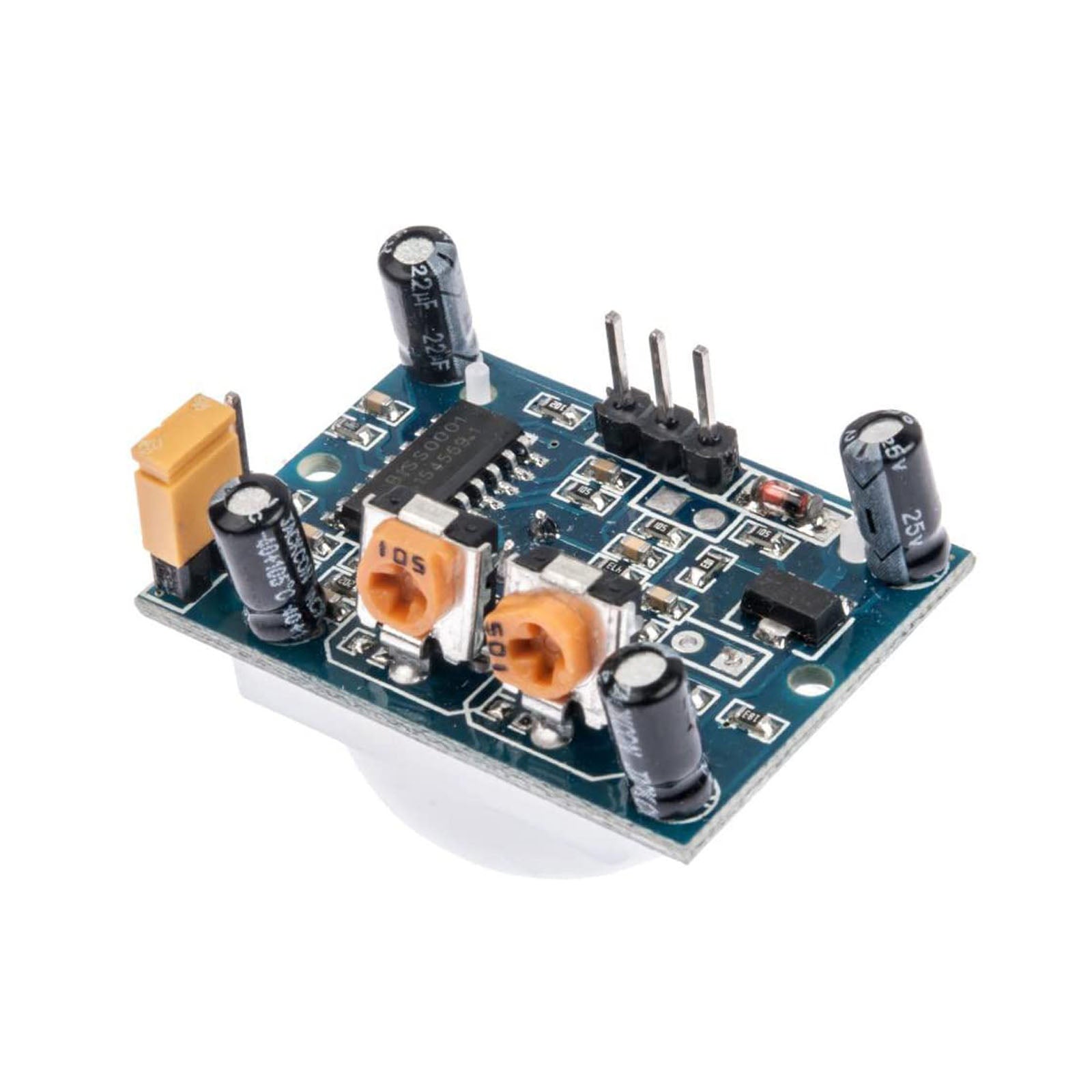

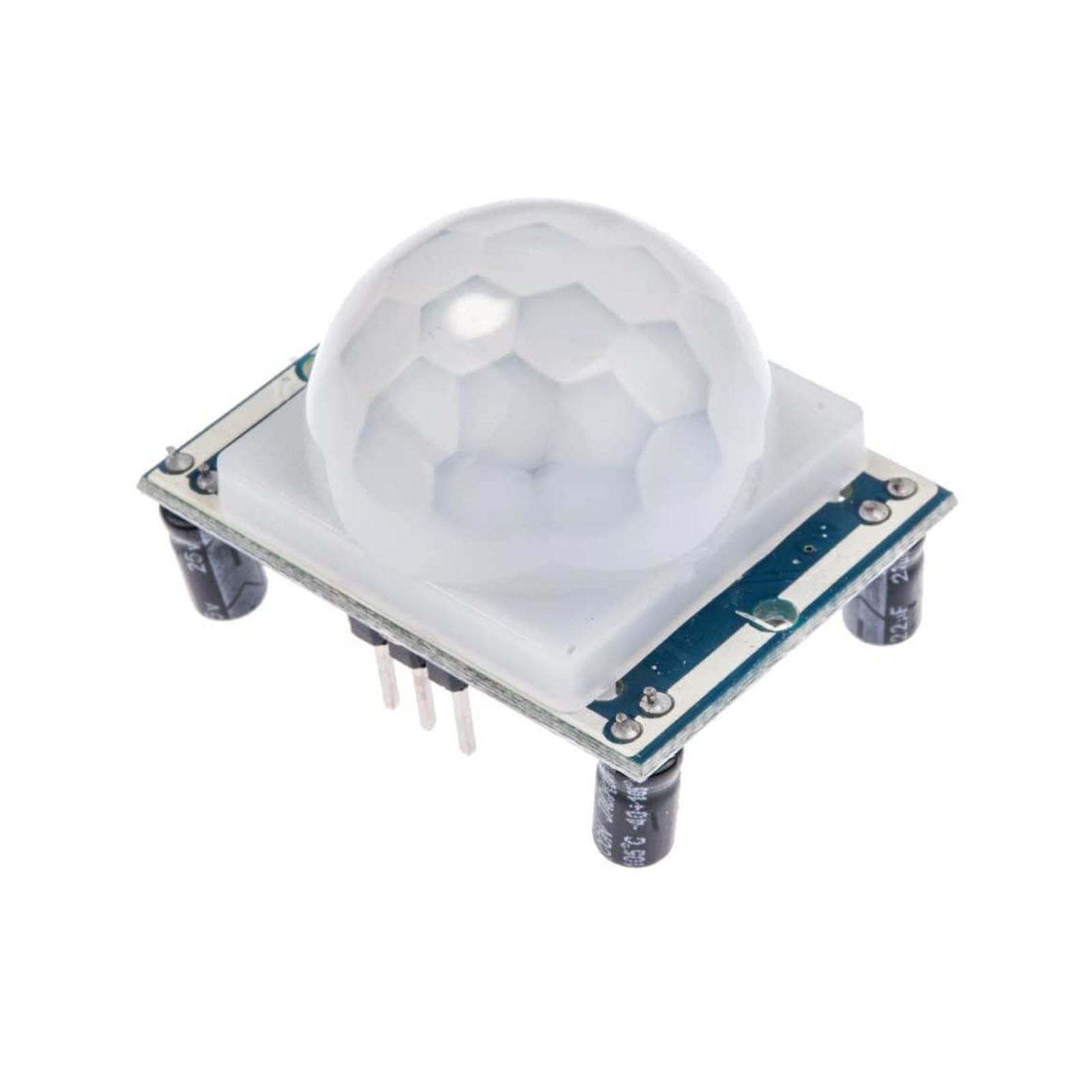

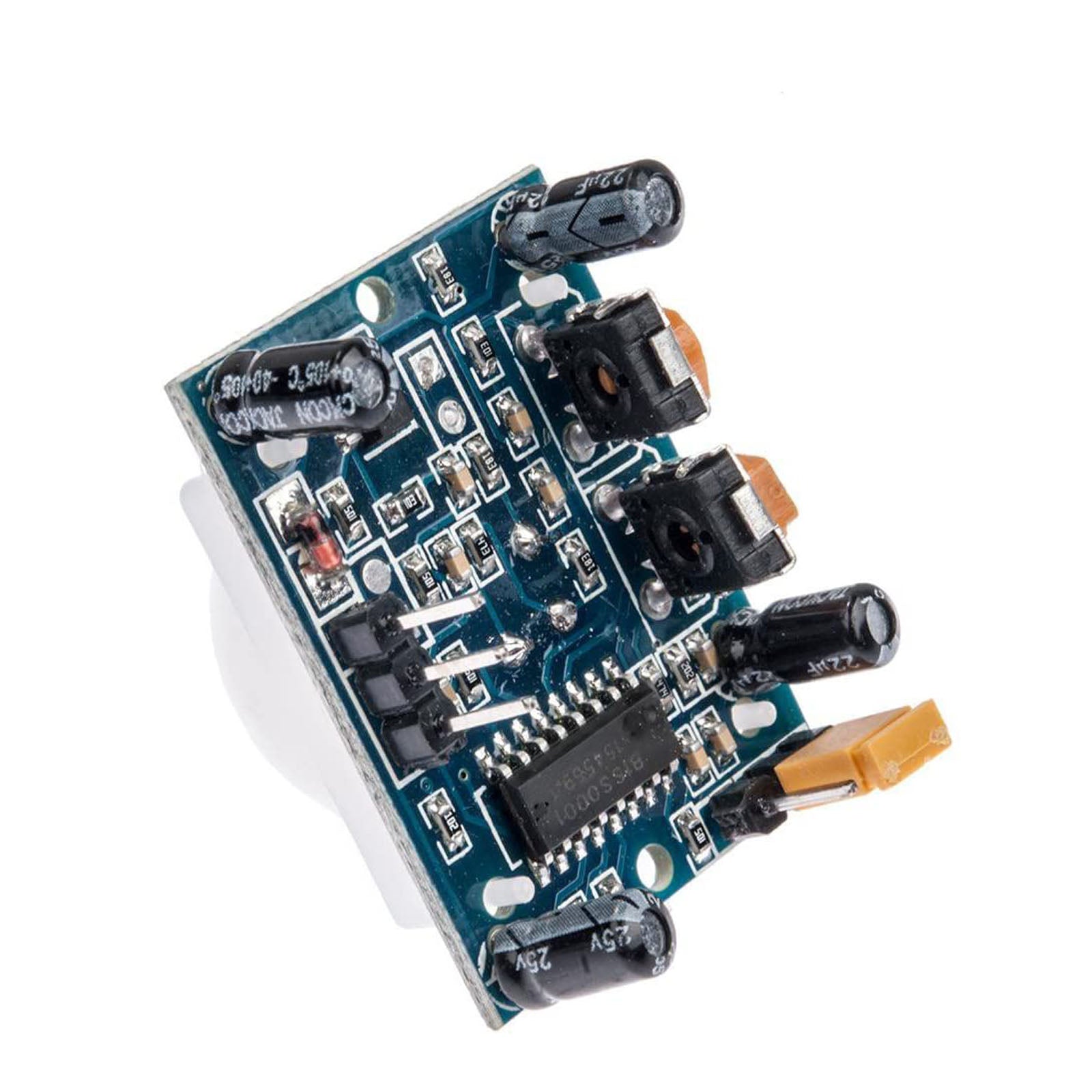

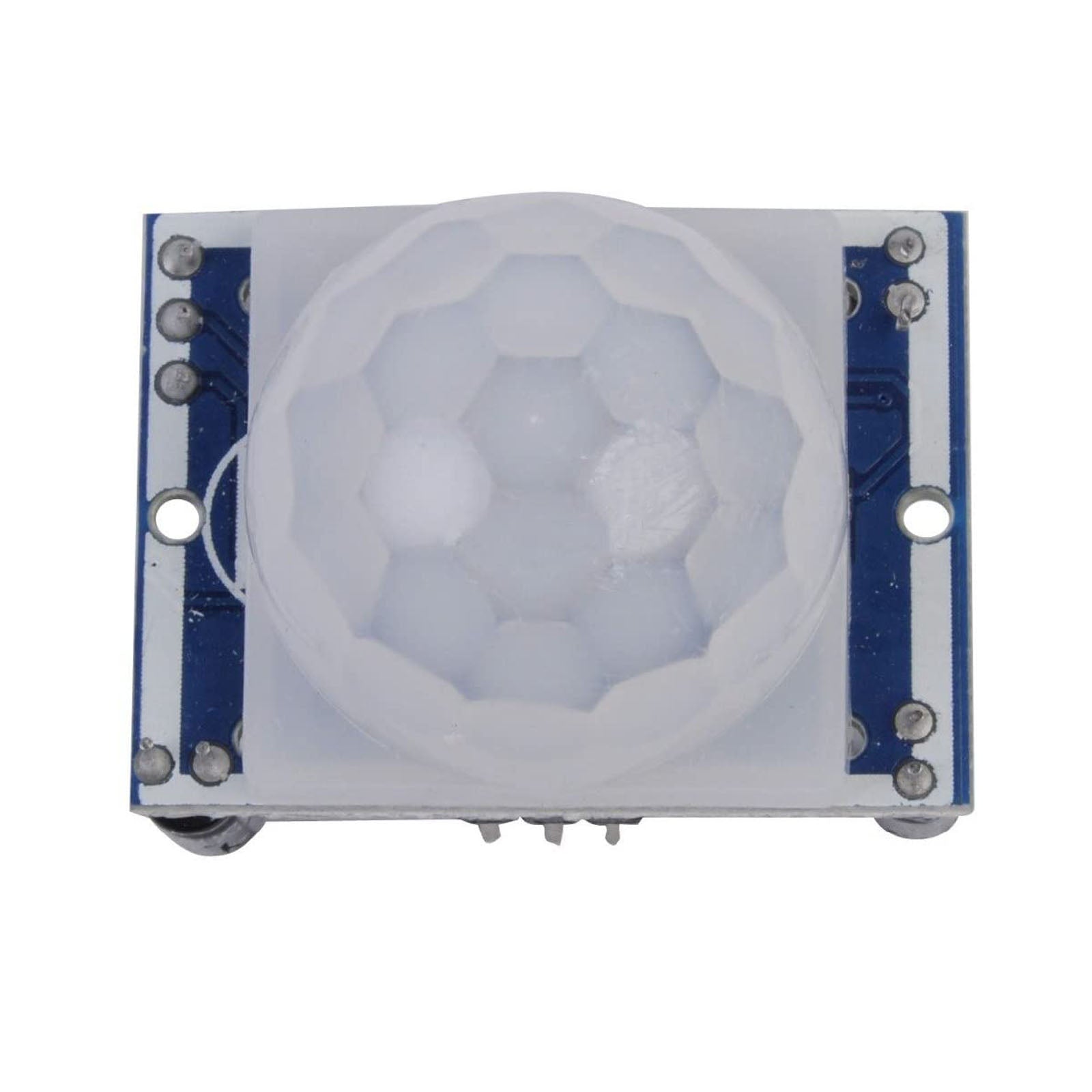

Product Type: HC--SR501 Body Sensor Module
Operating voltage range: DC 4.5-20V
Quiescent Current: <50uA Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second)
Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds
Board Dimensions: 32mm*24mm
Angle Sensor: <100 ¡ã cone angle Lens size sensor:Diameter:23mm(Default)
Applications:
*Security Products
*the human body sensors toys
*the human body sensor lighting industrial automation and control, etc
Use:It can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors, electric fans,automatic washing machine and dryer Machines and other devices,is a hightech products. Especially suitable for enterprises, hotels, shopping malls, warehouses and family aisles, corridors and other sensitive Sense of region, or for the security zone automatic lighting, lighting and alarm systems
