5V single power supply
4 pin set of pure sine wave output frequency:
50Hz pure sine wave of fixed frequency of 60Hz pure sine wave of fixed frequency 0-100Hz
pure sine wave frequency adjustable 0-400Hz pure sine wave frequency adjustable
Unipolar and bipolar modulation
Comes with deadband control, pin 4 dead time:
300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time
External 12MHz crystal oscillator
PWM carrier frequency 23.4KHz
Voltage, current, real time temperature feedback
Overvoltage, undervoltage, overcurrent and overheating protection
Soft-start mode pin setting the response time of 1S
Serial communication to set the output voltage, frequency and other parameters
External Serial LCD Module 1602 displays the inverter
voltage, frequency, temperature and current information
Packing List:

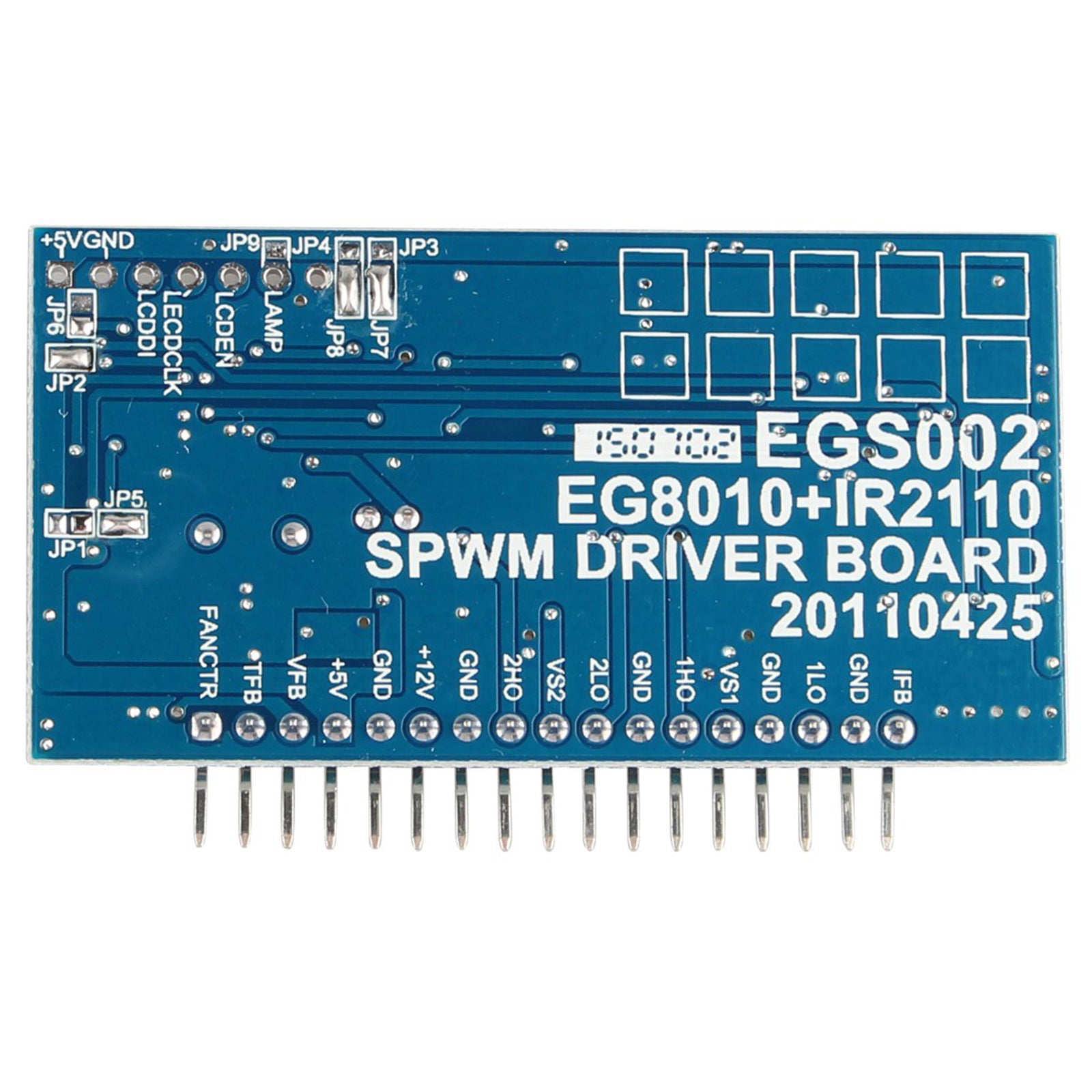

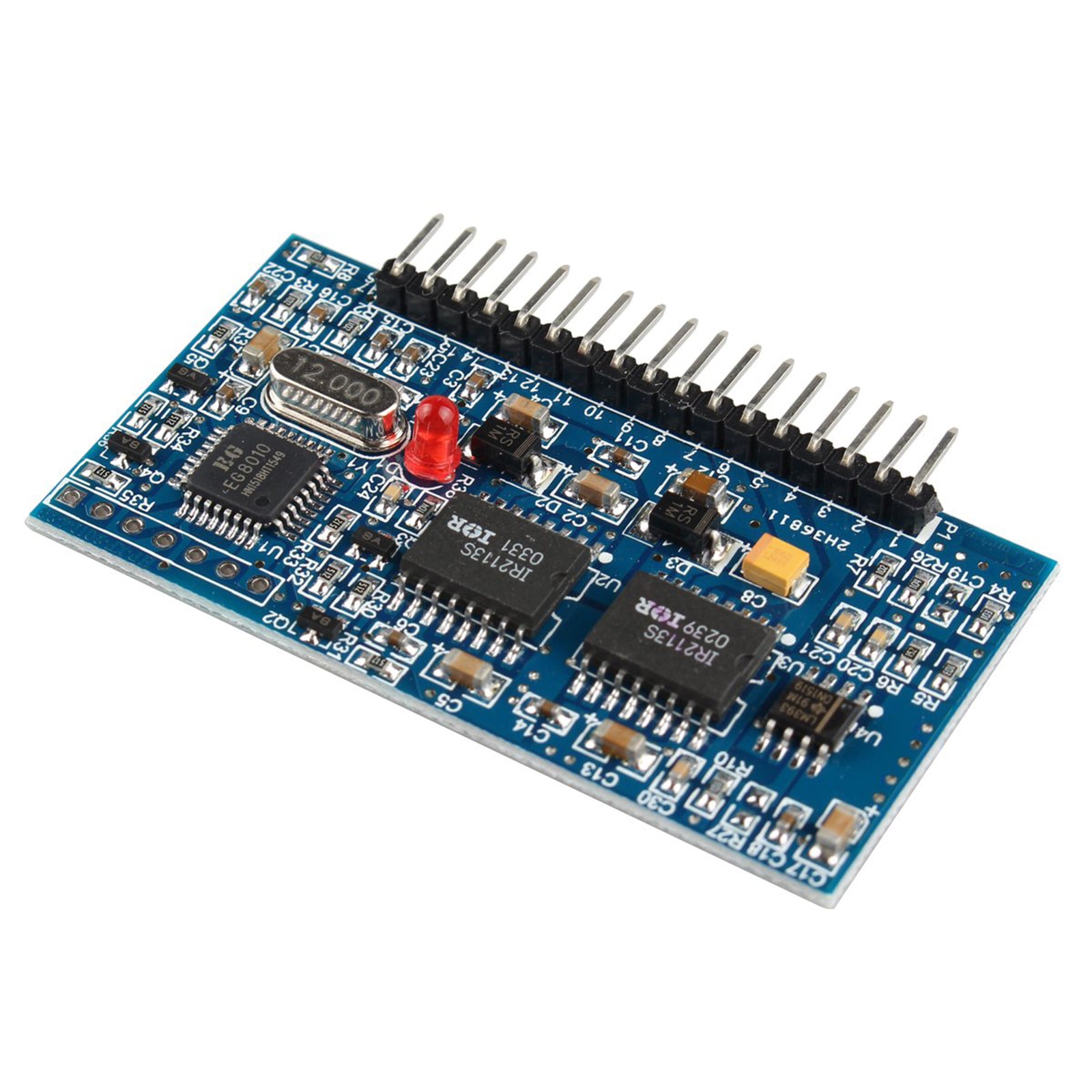

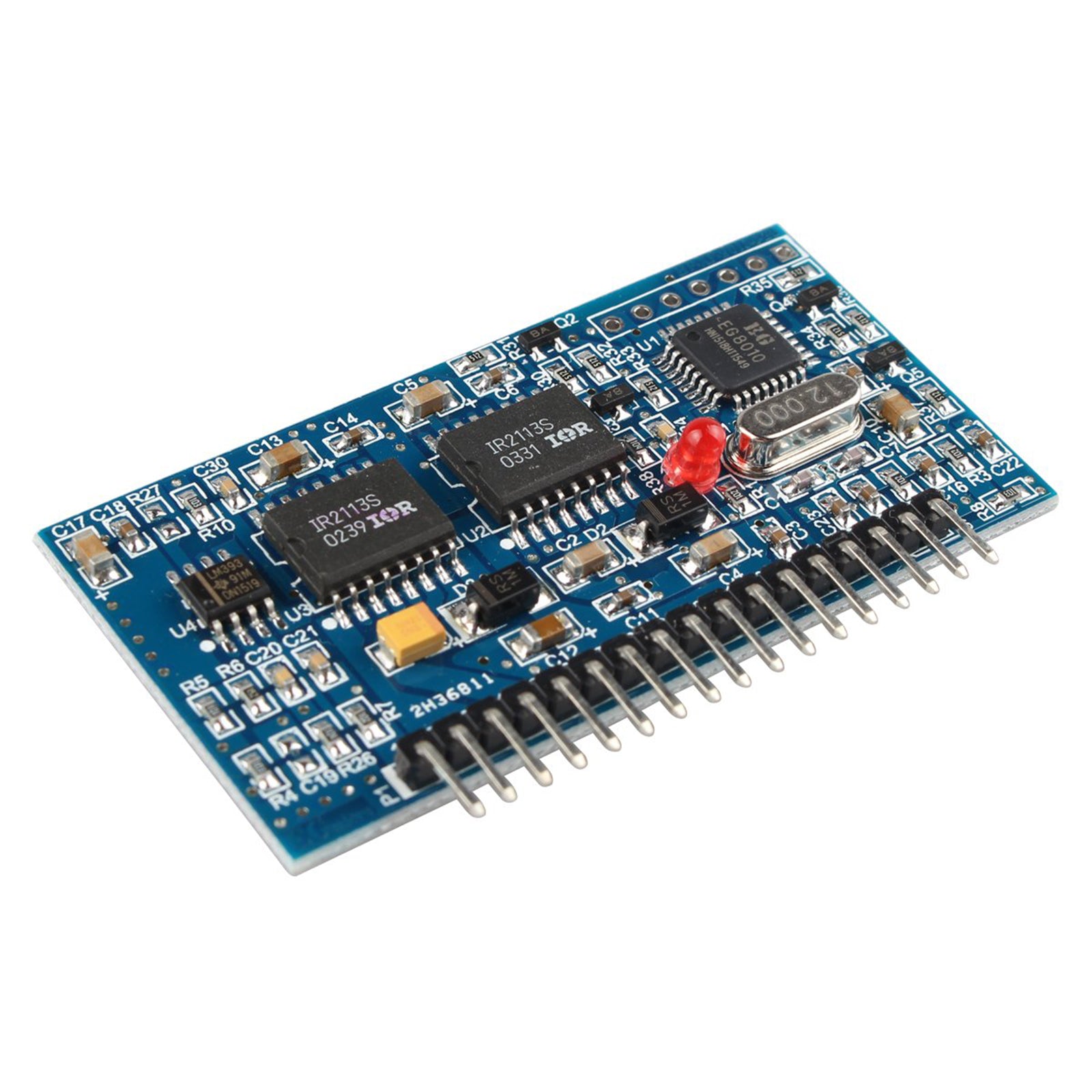

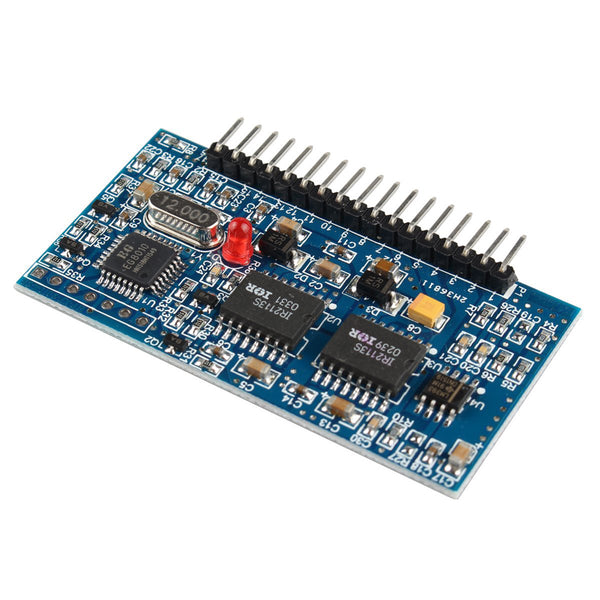

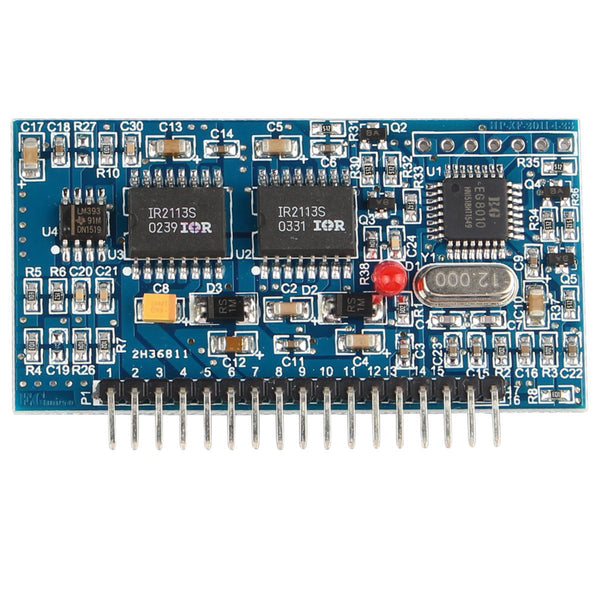

1 * Pure Sine Wave Inverter SPWM Board
4 pin set of pure sine wave output frequency:
50Hz pure sine wave of fixed frequency of 60Hz pure sine wave of fixed frequency 0-100Hz
pure sine wave frequency adjustable 0-400Hz pure sine wave frequency adjustable
Unipolar and bipolar modulation
Comes with deadband control, pin 4 dead time:
300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time
External 12MHz crystal oscillator
PWM carrier frequency 23.4KHz
Voltage, current, real time temperature feedback
Overvoltage, undervoltage, overcurrent and overheating protection
Soft-start mode pin setting the response time of 1S
Serial communication to set the output voltage, frequency and other parameters
External Serial LCD Module 1602 displays the inverter
voltage, frequency, temperature and current information
Packing List:
1 * Pure Sine Wave Inverter SPWM Board
