- SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency.
- The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ.
- Metal oxide semiconductor field effect transistor (MOSFET), which can realize large current output of up to 2A.
- Oscillation frequency 1.2MHz,efficiency is as high as 95%.
- Used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc.
Specifications:
Oscillation Frequency: 1.2MHz
Efficiency up to 95%
Short circuit protection and overtemperature protection.
10K regulator potentiometer can regulate voltage output.
Max Input Voltage: DC2V-24V;
Max Output Voltage: DC2V-28V
Switching Frequency: 1.2MHz;
Max Output Current: 2A
Package Inculded:

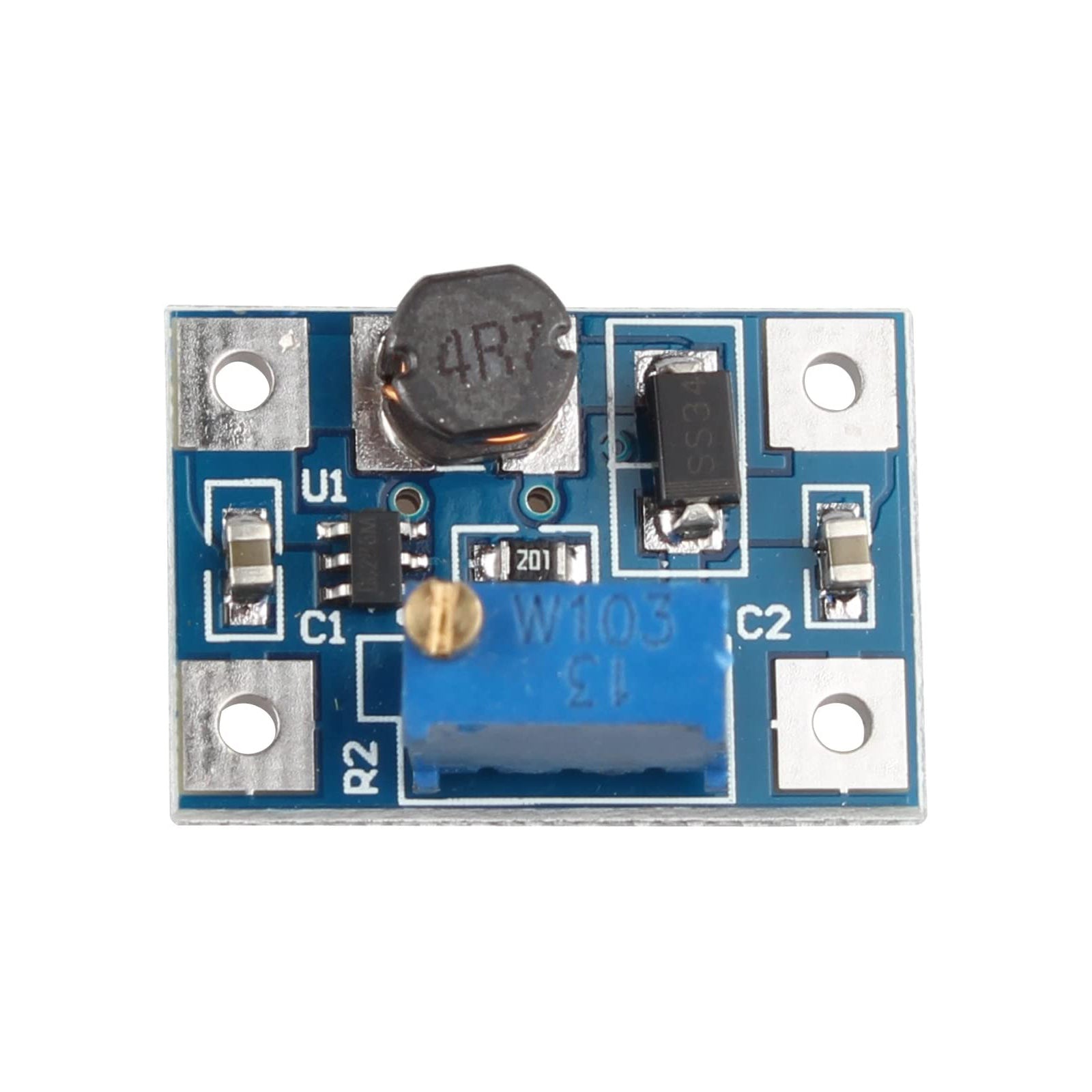

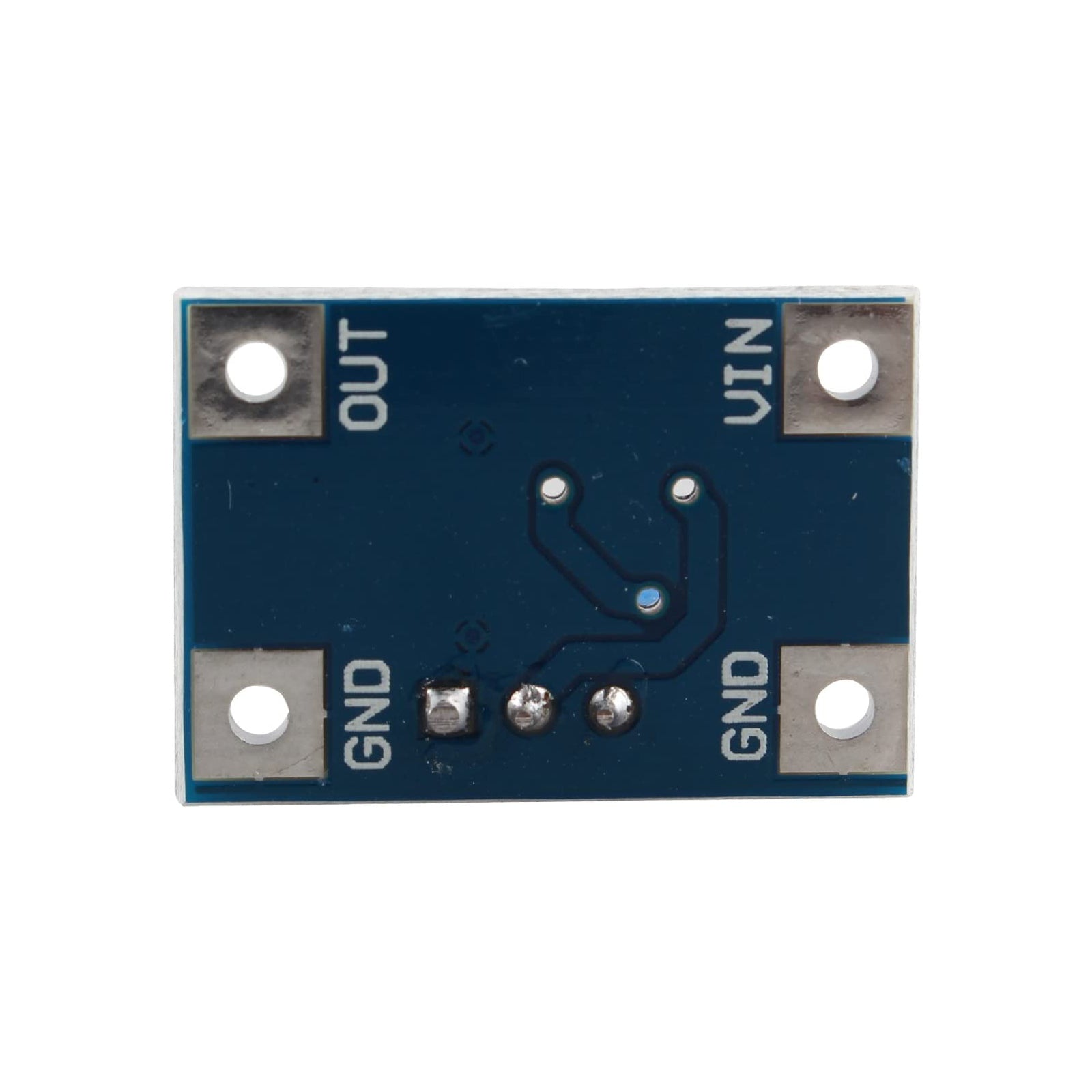

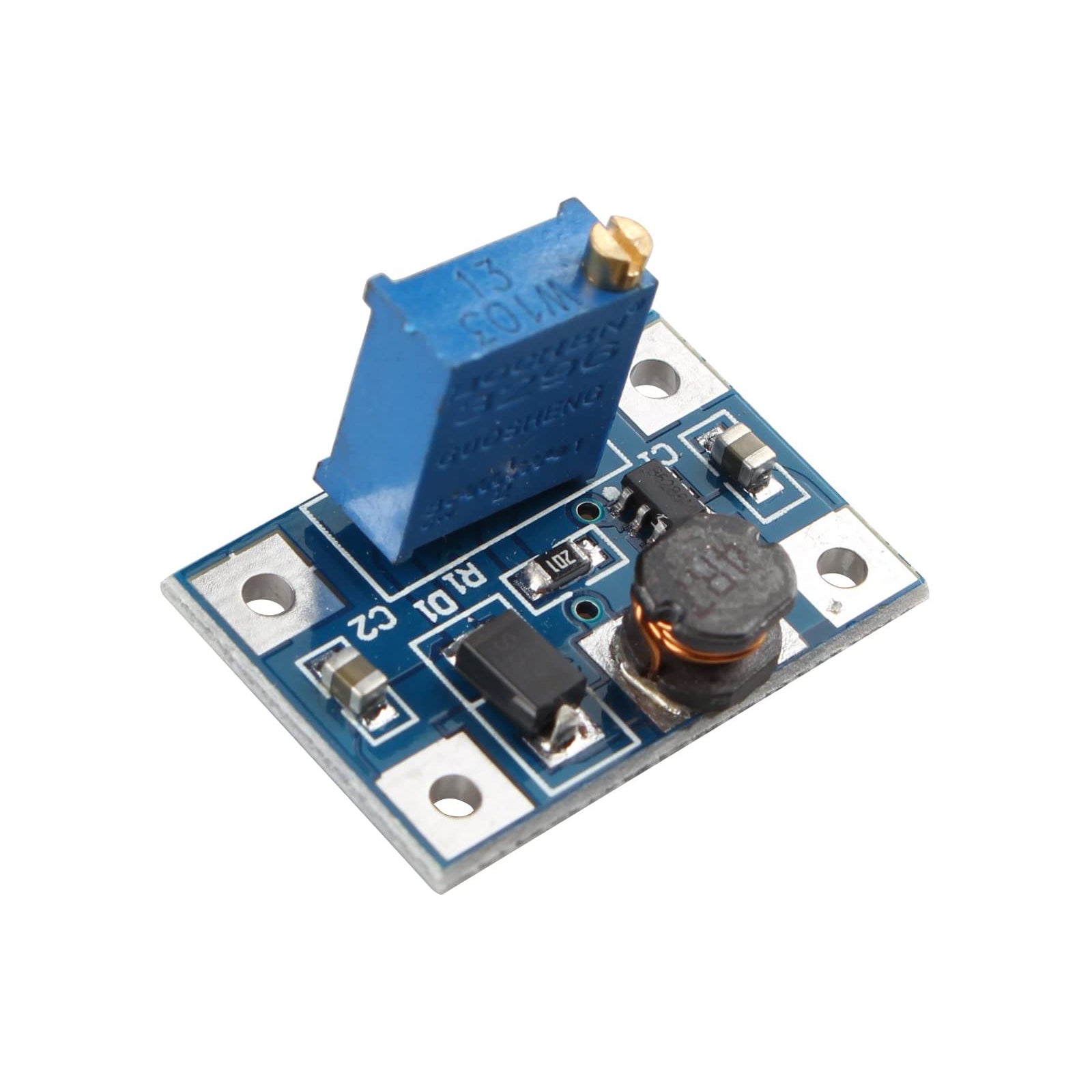

1 x SX1308 Booster Module
