-ESP32 is a single-chip solution that integrates 2.4 GHz Wi-Fi and Bluetooth dual-mode, using TSMC's ultra-low power 40 nm process
-Has the best power performance, RF performance, stability, versatility and reliability, can be used for a variety of applications and different power requirements.
-ESP32 Designed for Mobile Devices, Wearable Electronics,IoT and so on
-As the leading low-power chip, ESP32 has the following features:fine-resolution clock gating, power-saving modes and dynamic voltage regulation.
-Energy consumption of ESP32 chip is least.the output power of RF power amplifier can also be adjusted to achieve the best balance between communication distance, data rate and power consumption.
Parameter:
16 MByte flash
2.2V to 3.6V operating voltage
-40 Degrees Celsius to +125 Degrees Celsius operating temperature
On-board PCB antenna / IPEX connector for external antenna
Supports sniffer, station, softAP and Wi-Fi direct modes
Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b
Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Minimum receiver sensitivity of -98 dBm
135 Mbps UDP sustained throughput
2.5 μA deep sleep current
Application:
Universal Low-Power IoT Sensor Hub
Universal Low Power IoT Recorder
Camera video streaming transmission
OTT TV box / set top box equipment
music player
Internet music player
Audio streaming equipment
Wi-Fi toys
counter
Anti-lost toys
Wi-Fi voice recognition device
Headset
Smart socket
Home automation
Mesh network
Industrial Wireless Control
Baby monitor
Wearable electronics
Wi-Fi Location Awareness Devices
Security ID label
Health care
Motion monitoring and anti-lost alarm
Temperature recorder
Packing List:

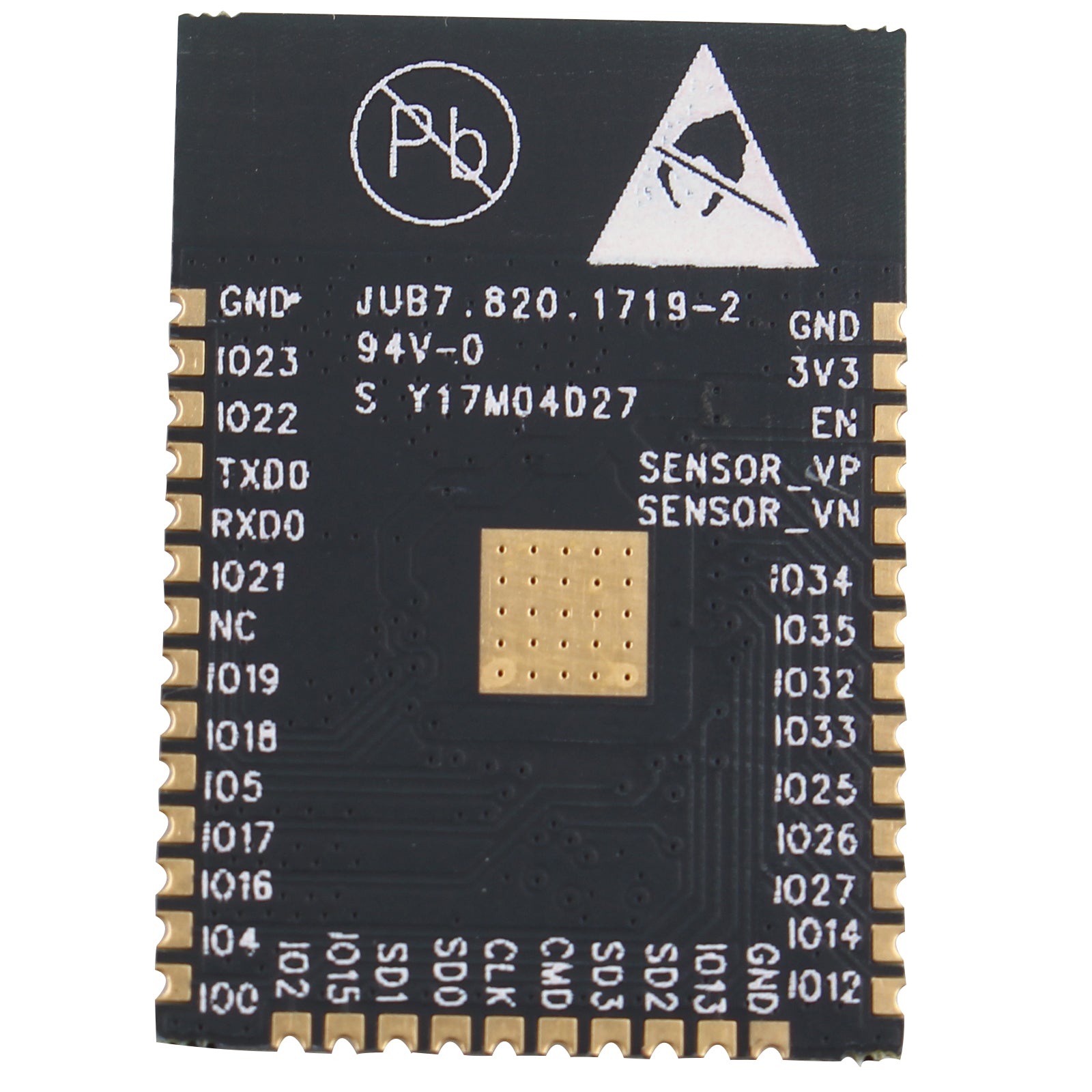

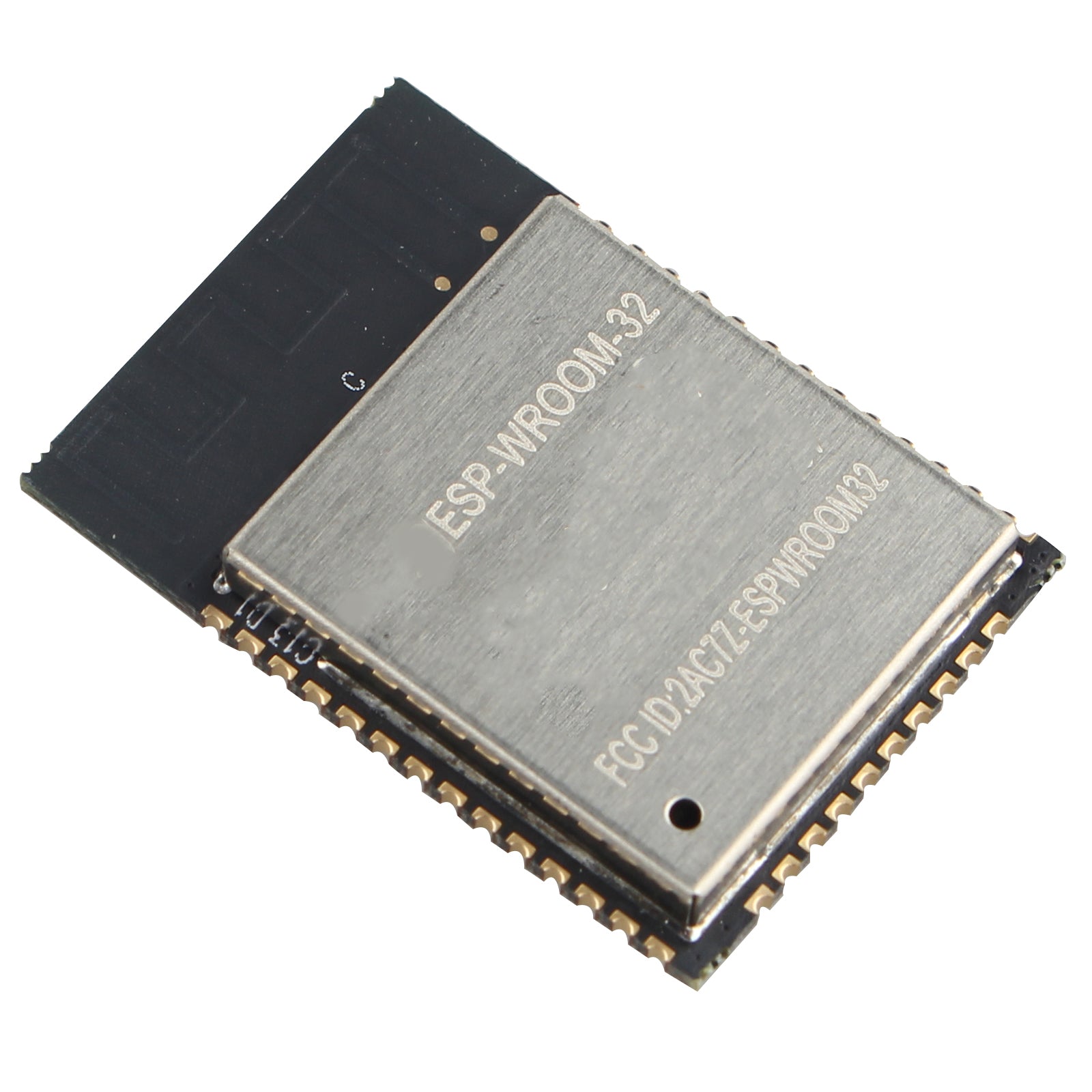

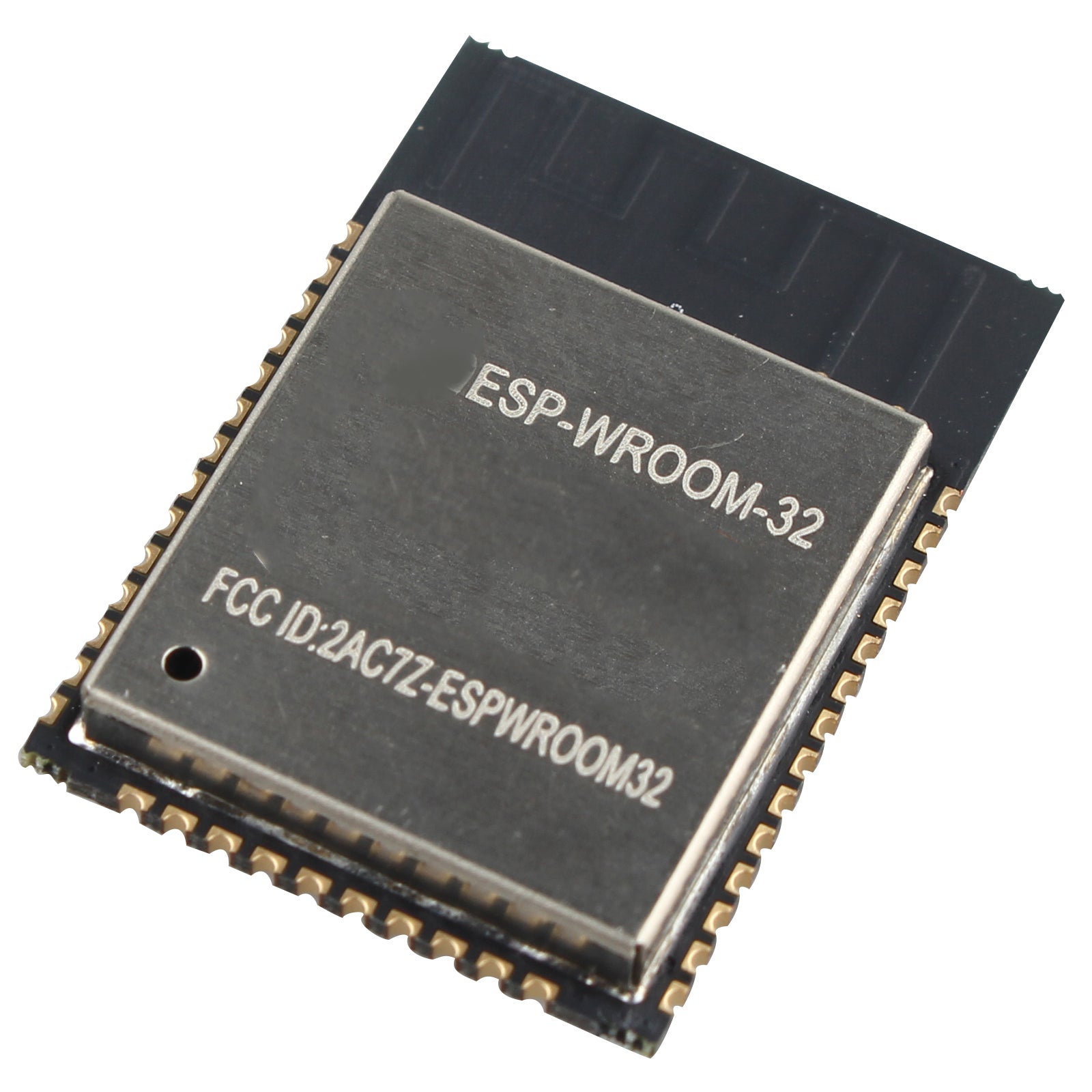

1*ESP-WROOM-32 module
