1.Supply power for APM2.5.2 APM2.6 Pixhawk flight controller,GPS / Data Transfer / OSD
2.Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery
as well as current consumption and battery voltage measurements, all through a 6P cable.
3.The on-board switching regulator outputs 5.3V and a maximum of 3A，up to a 6S LiPo battery.
4.Input voltage: 2~6S LiPo battery (Max. 28V)
5.Output voltage: 5.3V
6.The maximum output current: 3A
7.The maximum measurement current: 90A
8.Voltage and current measurement configured for 5V ADC
9.Color: Black + Red
10.Size: Approx. 25mm x 21mm x 9mm / 1 x 0.8 x 0.35 inch
11.Size: Approx. 144mm/5.7inch
12.Cable length: Approx. 192mm / 7.6 inch
Note:If the product is equipped with a steering engine, please use BEC or ESC BEC to power the steering engine.
Packing List:

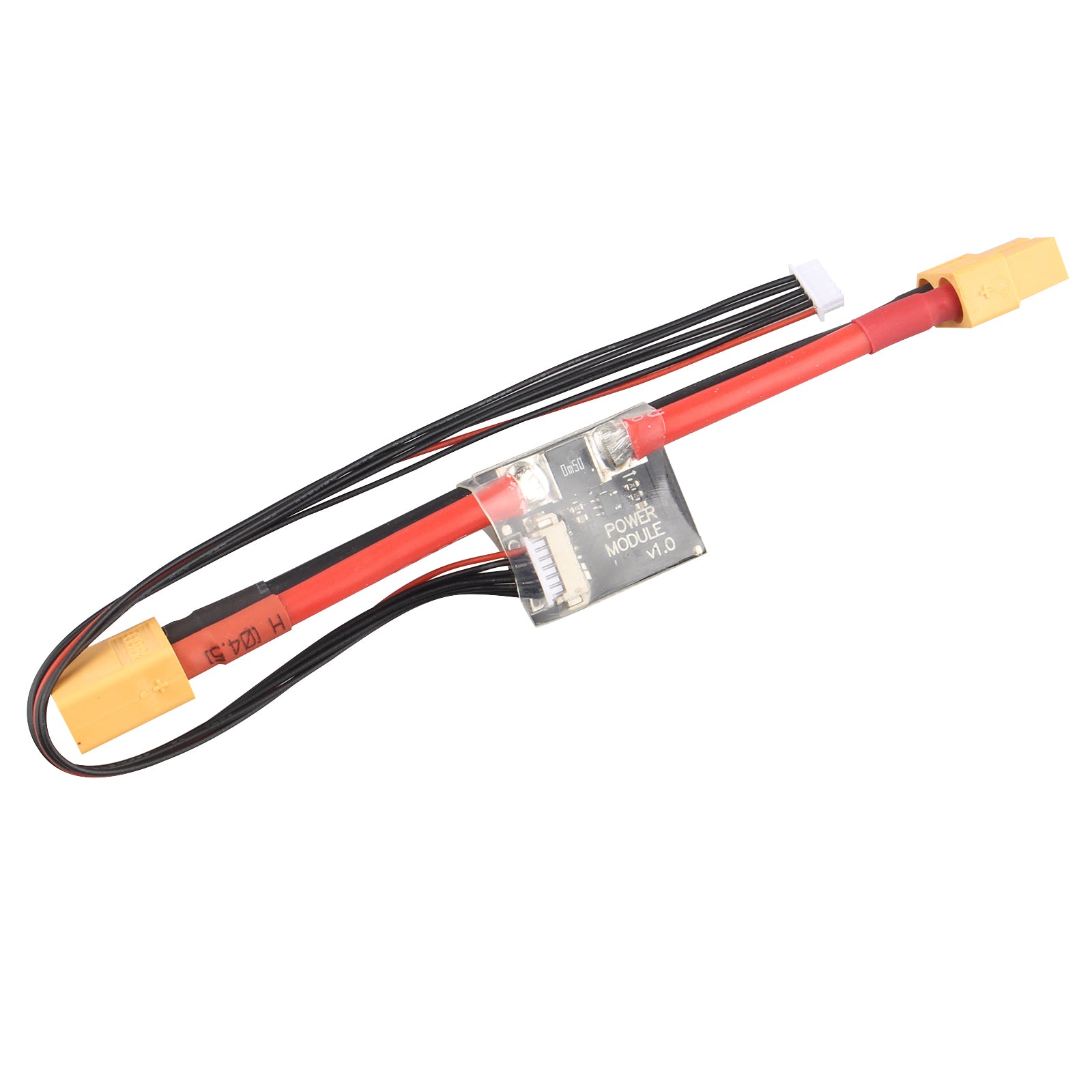

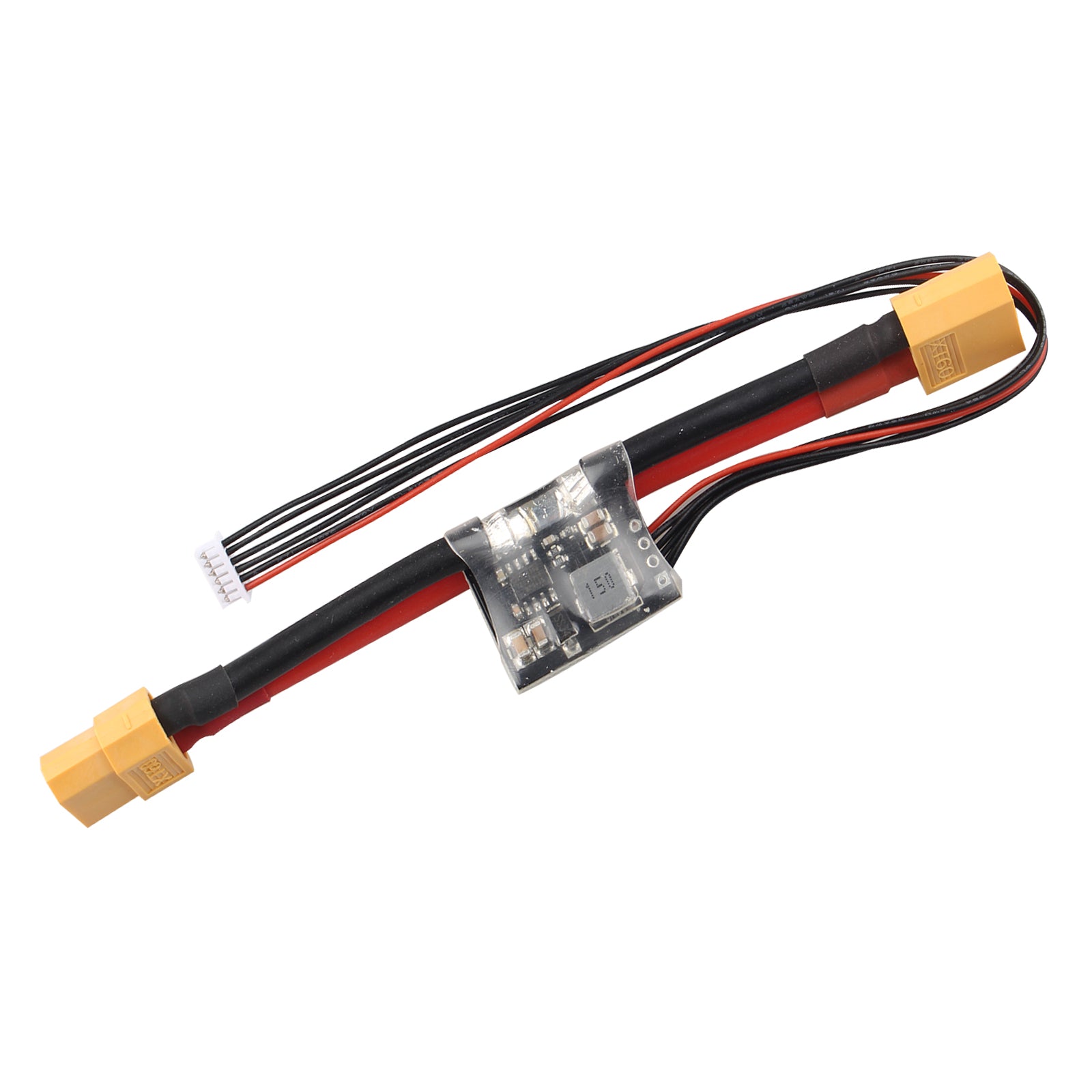

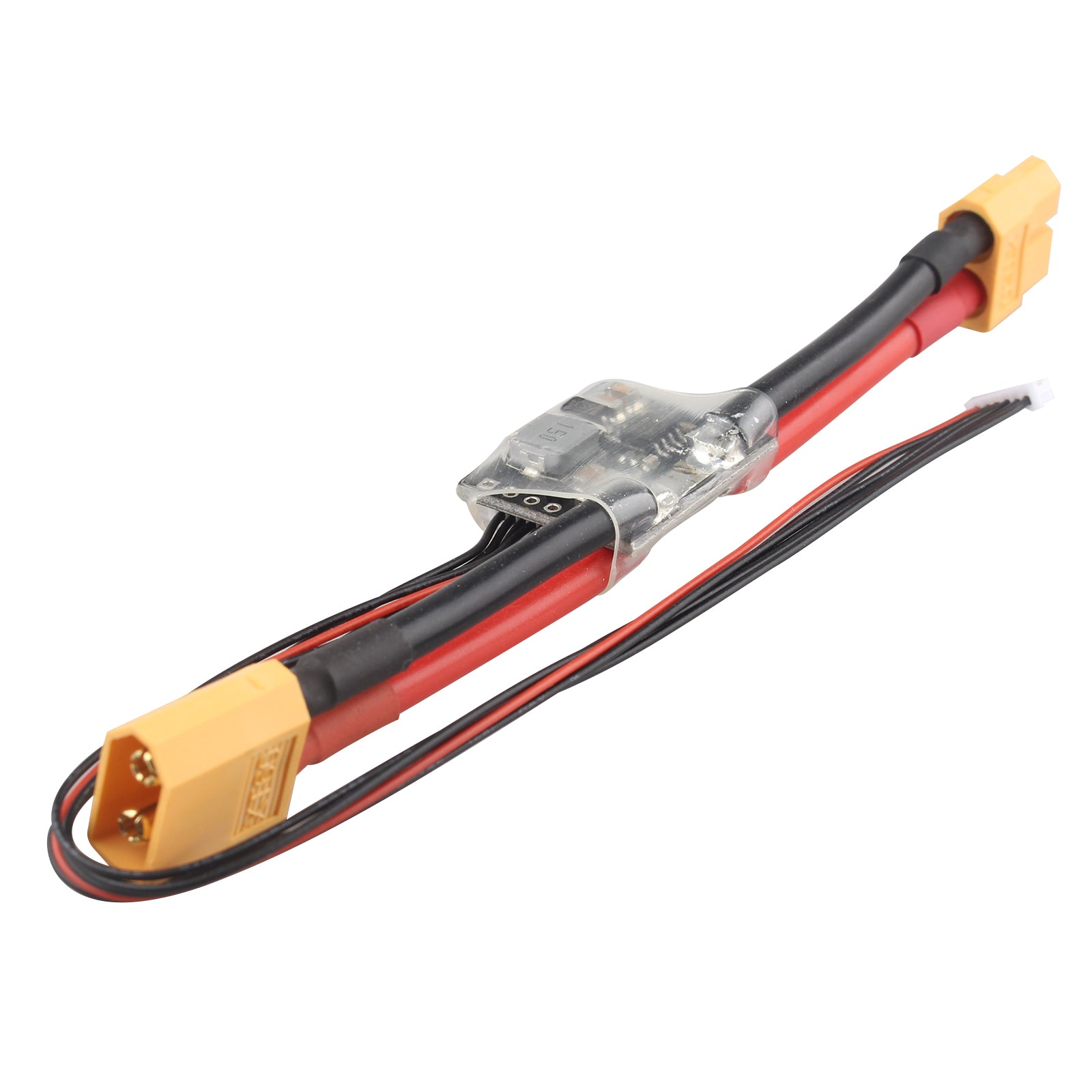

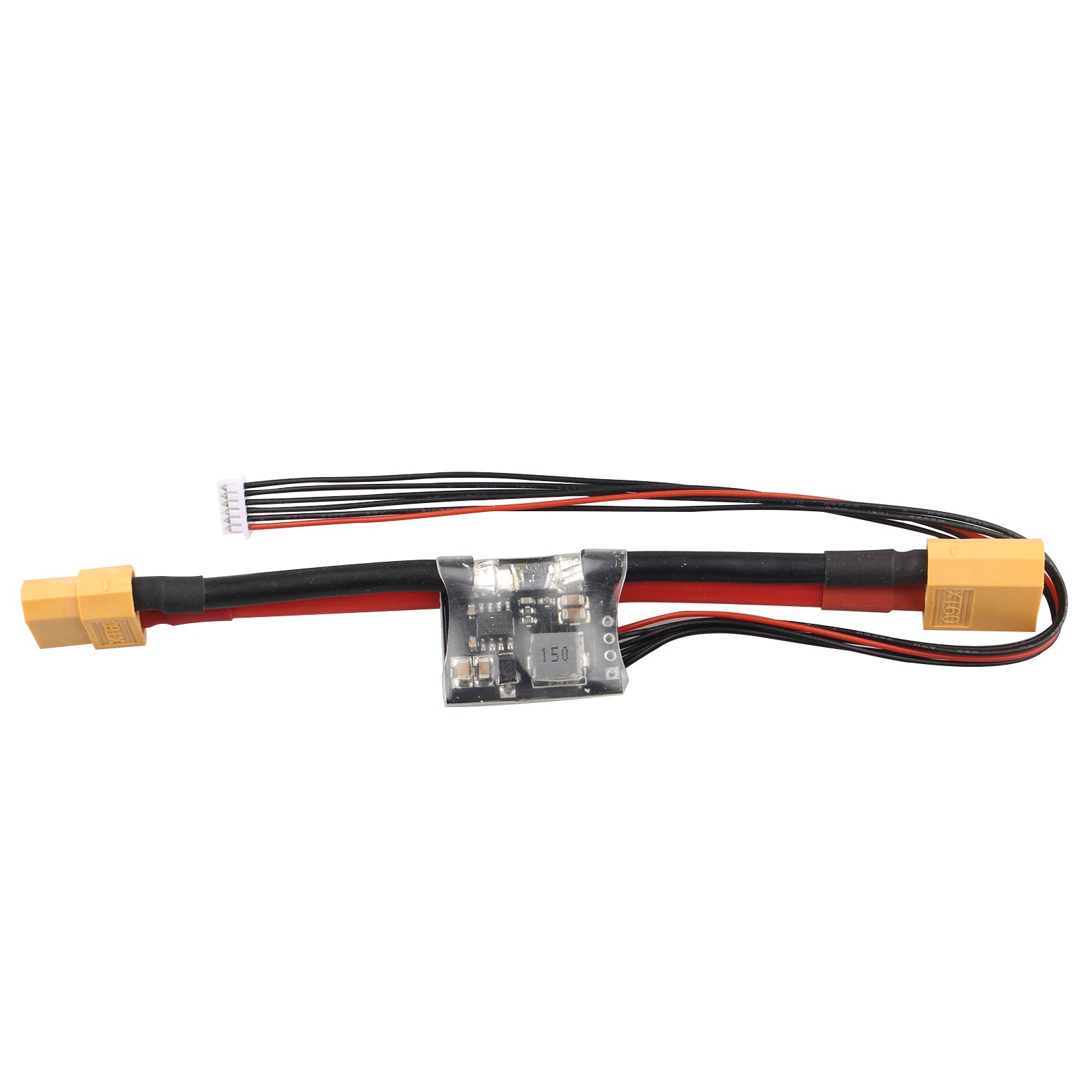

1*APM Power Module V1.0
