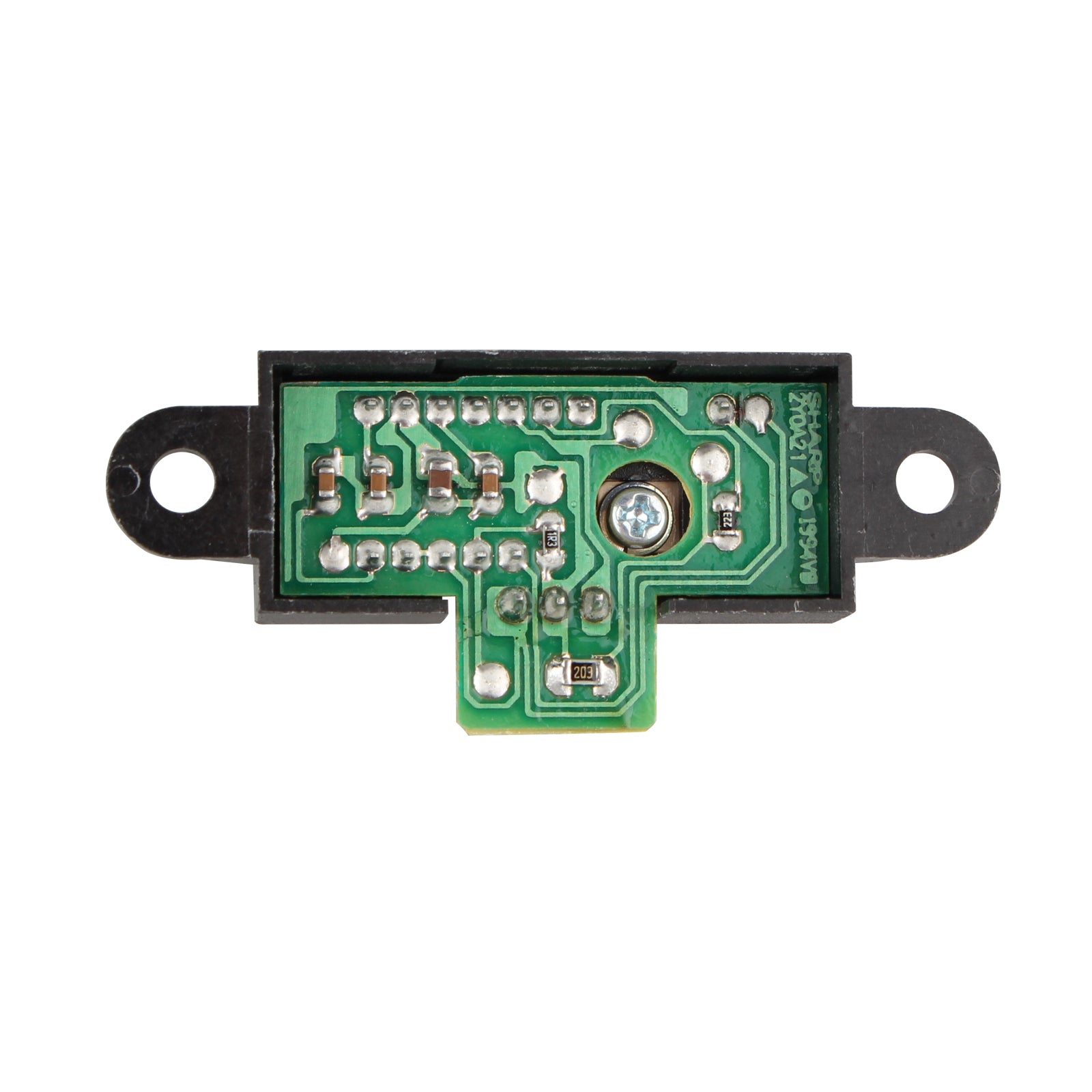

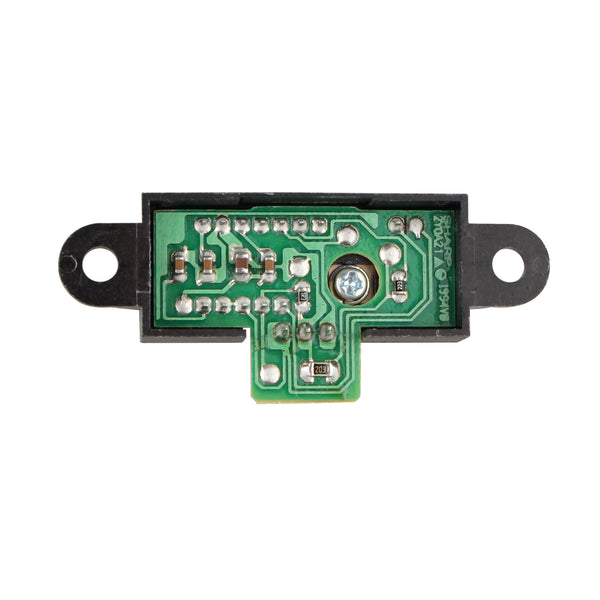

- This product consists of three parts: PSD(position sensitive detector) and IRED (infrared detector), and signal processing circuit.
- This product is made of high-quality materials, with strong connectivity and good signal, which can be used for a long time.
- The output voltage of the sensor corresponds to the detection range of 10-80cm wire feeding.
- Distance of the detected object can be obtained by measuring the voltage value, so this sensor can be used for distance measurement, obstacle avoidance and other occasions.
- This product is suitable for all kinds of DIY electrical production, to provide you with a satisfactory experience.
Parameter:
1. Distance measurement range: 10~80 cm
2. Analog output type
3. Typical current consumption is 30 mA
4. Power voltage: 4.5 ~ 5.5 V
5. Size: 47 × 27 × 17 mm

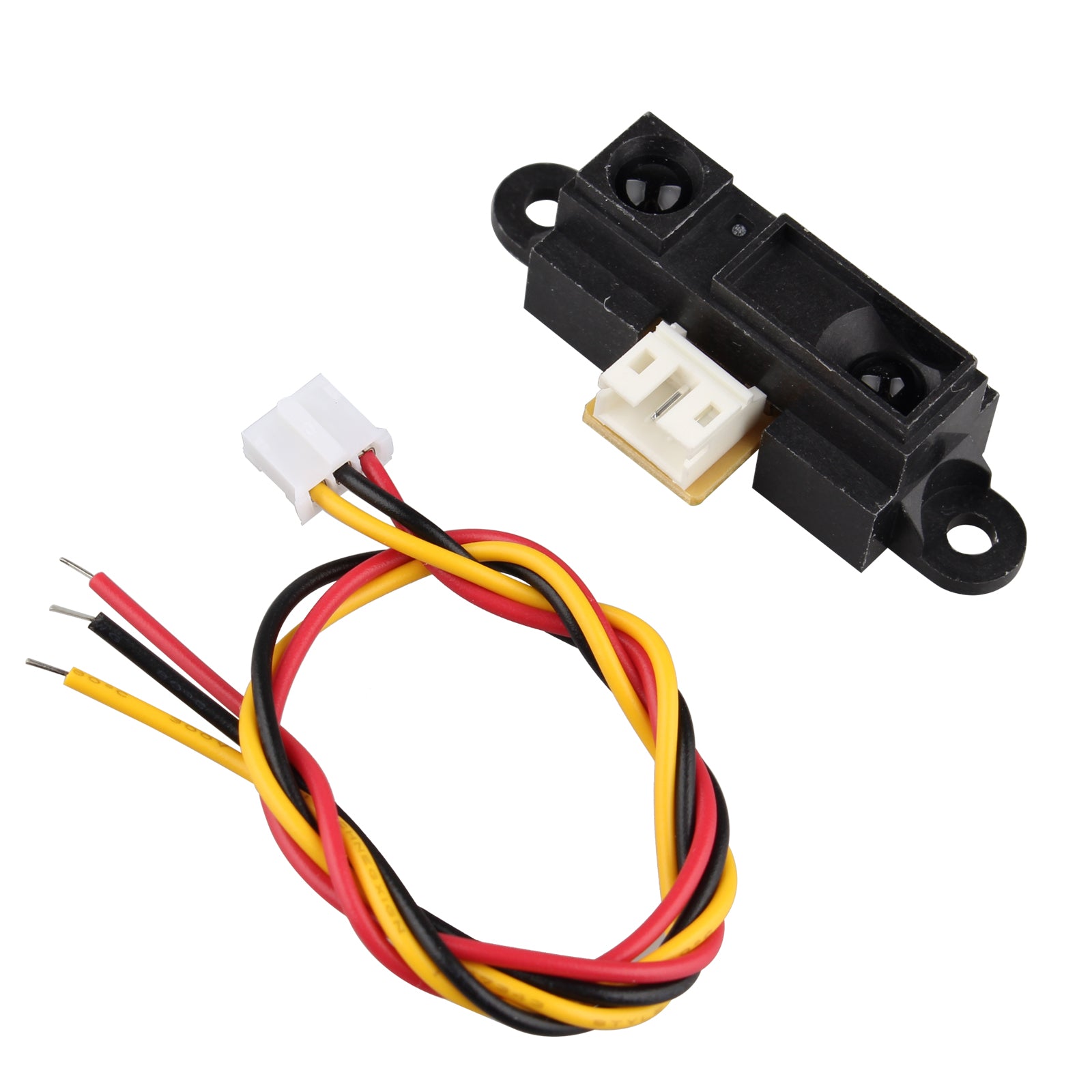

6. Cable length: 20 cm
7. Weight: 5.2g
Note:
1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Packing List:
1 × IR Distance Sensor
