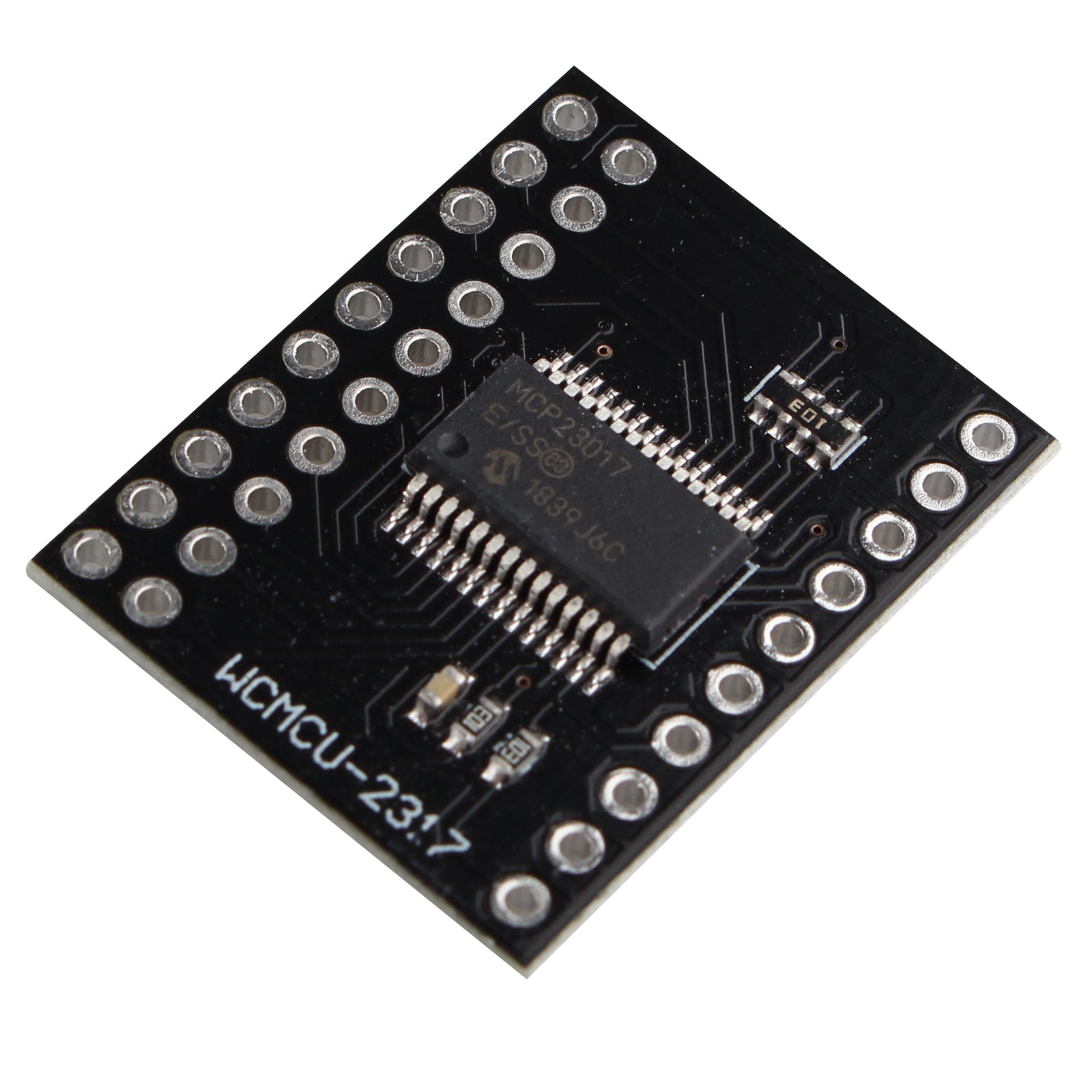

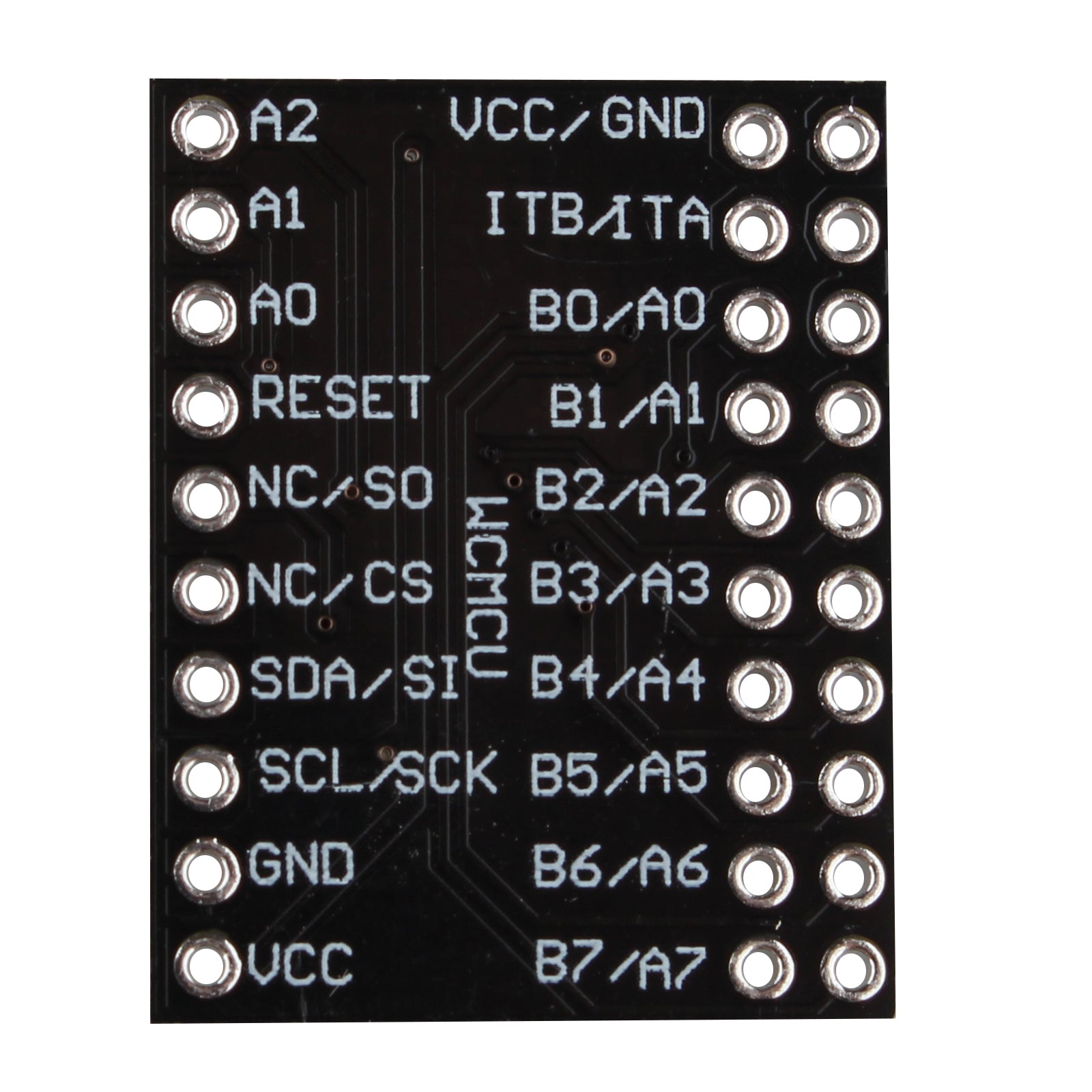

- This is I2C serial interface 16 bit I/O Expander Serial Module.
- MCP23017 can convert 16-bit parallel data into serial data of IIC interface and convert each other.
- Internal integrated power-on reset (POR) circuit reset to device default state.
- Two opposite programmable interrupt source outputs.
- Polarity flip register configures GPIO input polarity.
Feature:
16-Bit Remote Bidirectional I/O Port:
-I/O pins default to input
High-Speed I2C Interface (MCP23017):
-100kHz
-400kHz
-1.7MHz
High-Speed SPI Interface (MCP23S17):
-10 MHz (maximum)
Three Hardware Address Pins to Allow Up to
Eight Devices On the Bus
Configurable Interrupt Output Pins:
-Configurable as active-high, active-low or
open-drain
INTA and INTB Can Be Configured to Operate
Independently or Together
Configurable Interrupt Source:
-Interrupt-on-change from configured register
defaults or pin changes
Polarity Inversion Register to Configure the
Polarity of the Input Port Data
External Reset Input
Low Standby Current: 1 μA (max.)
Operating Voltage:
-1.8V to 5.5V @ -40°C to +85°C
-2.7V to 5.5V @ -40°C to +85°C
-4.5V to 5.5V @ -40°C to +125°C

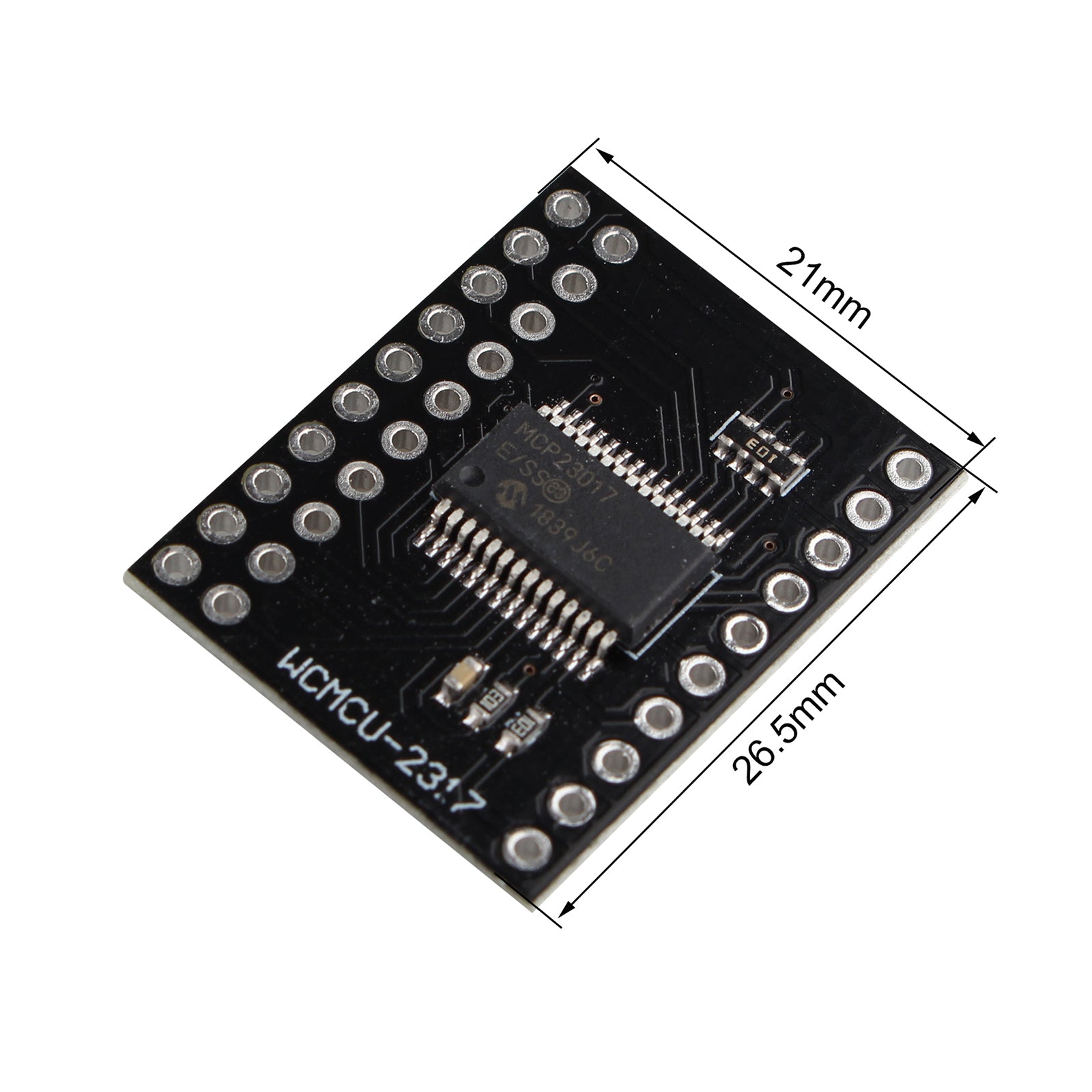

Module Size: 26.5 x 21mm
Weight: 3.5g

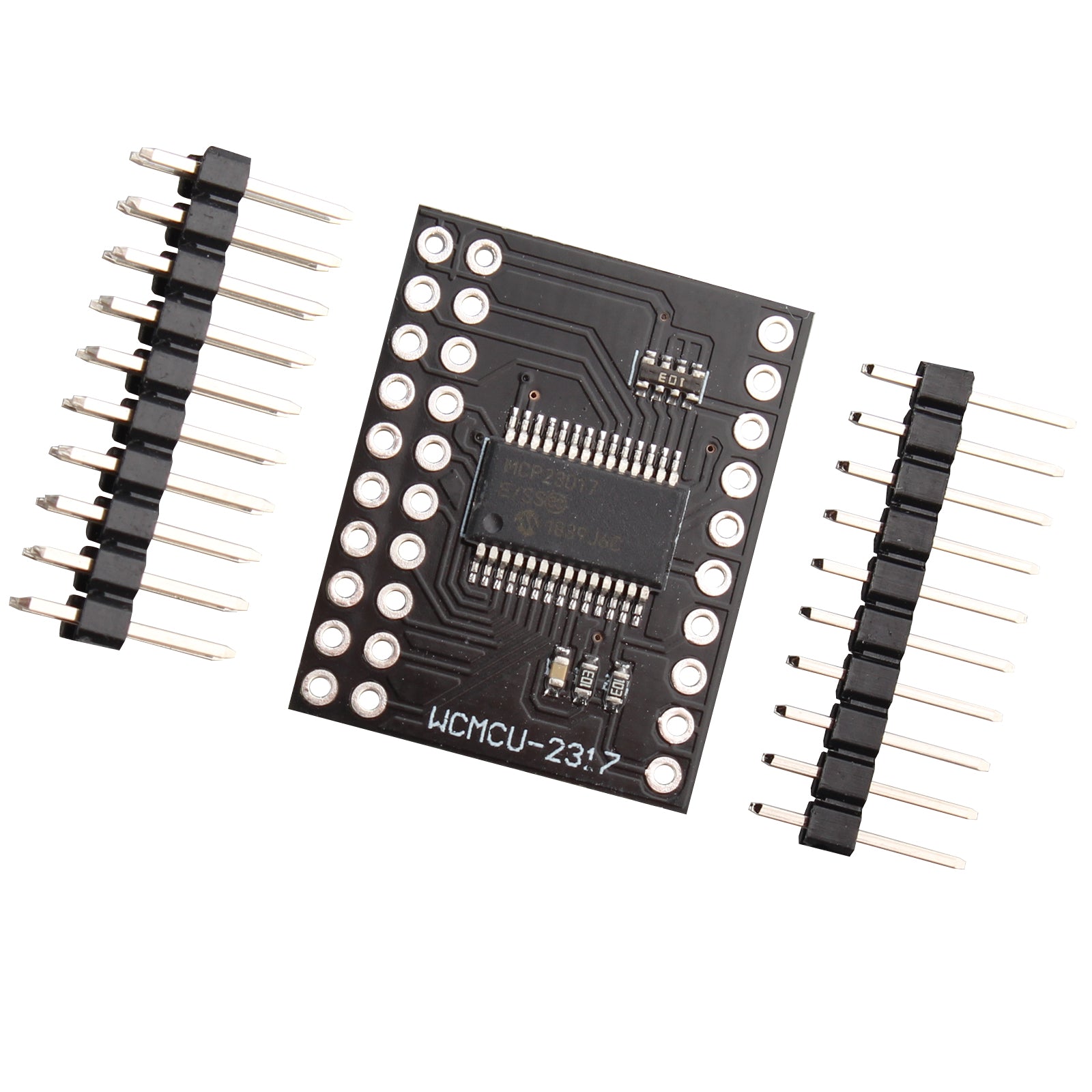

Packing List:
1 x MCP23017 Module
