1.Ultra Volume: 23*24mm/0.9*0.94"
2.Excellent noise suppression, you will hear any noise without connecting with audio
3.Dual-channel stereo, only need 5V power supply and can output 5W+5W power,
it can drive 4Ω, 8Ω little speaker directly with large output power, enough energy, superior quality,
and left right channel volume adjustment

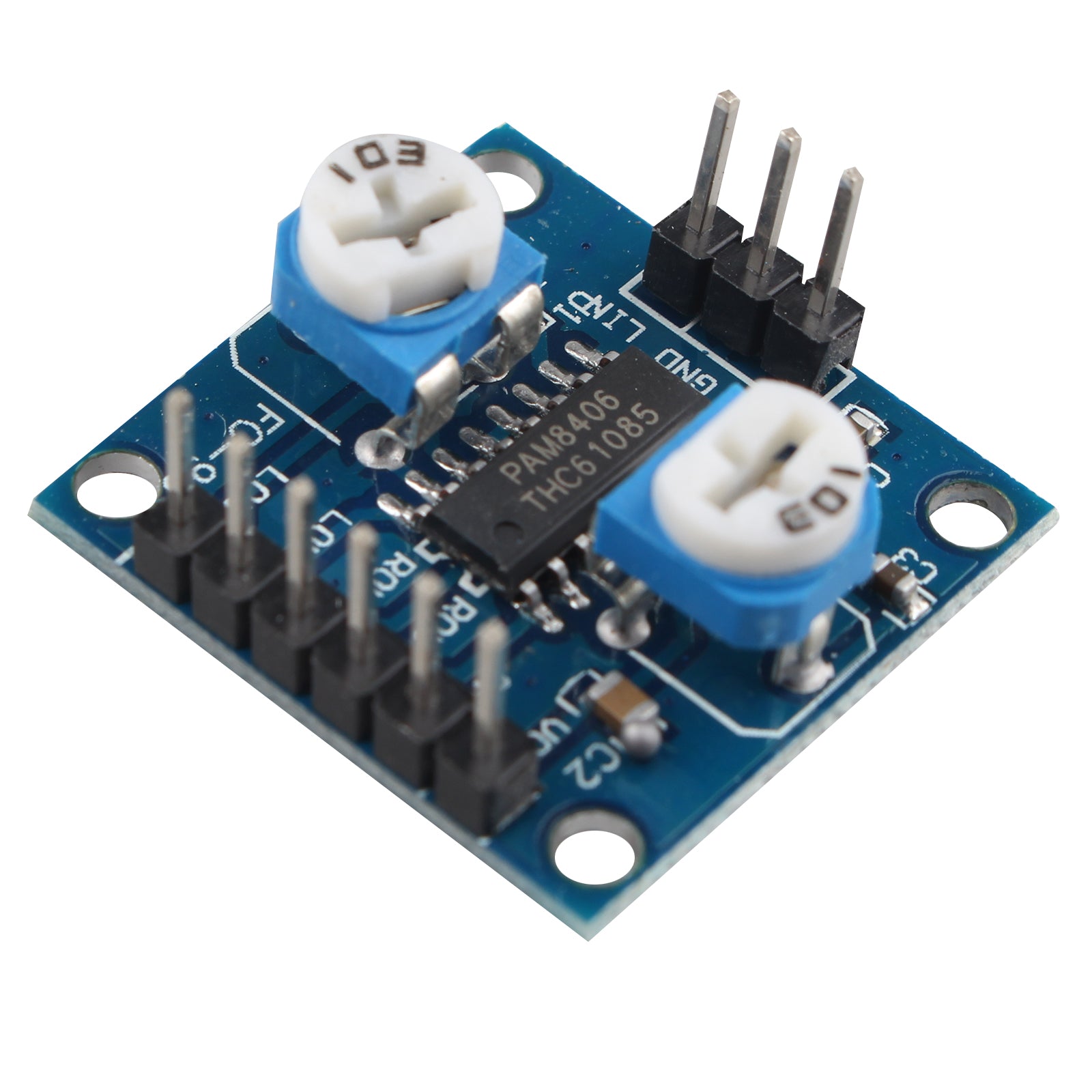

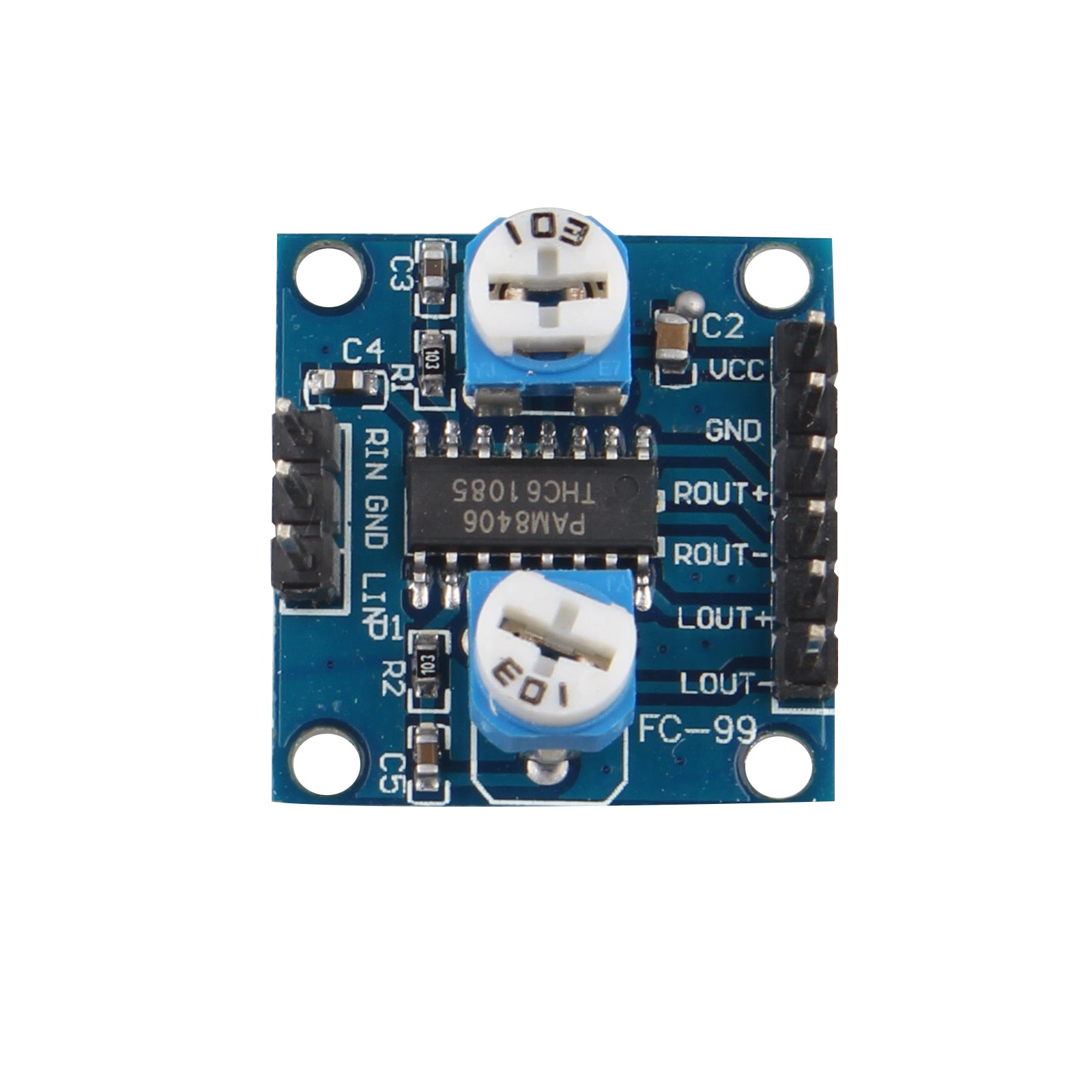

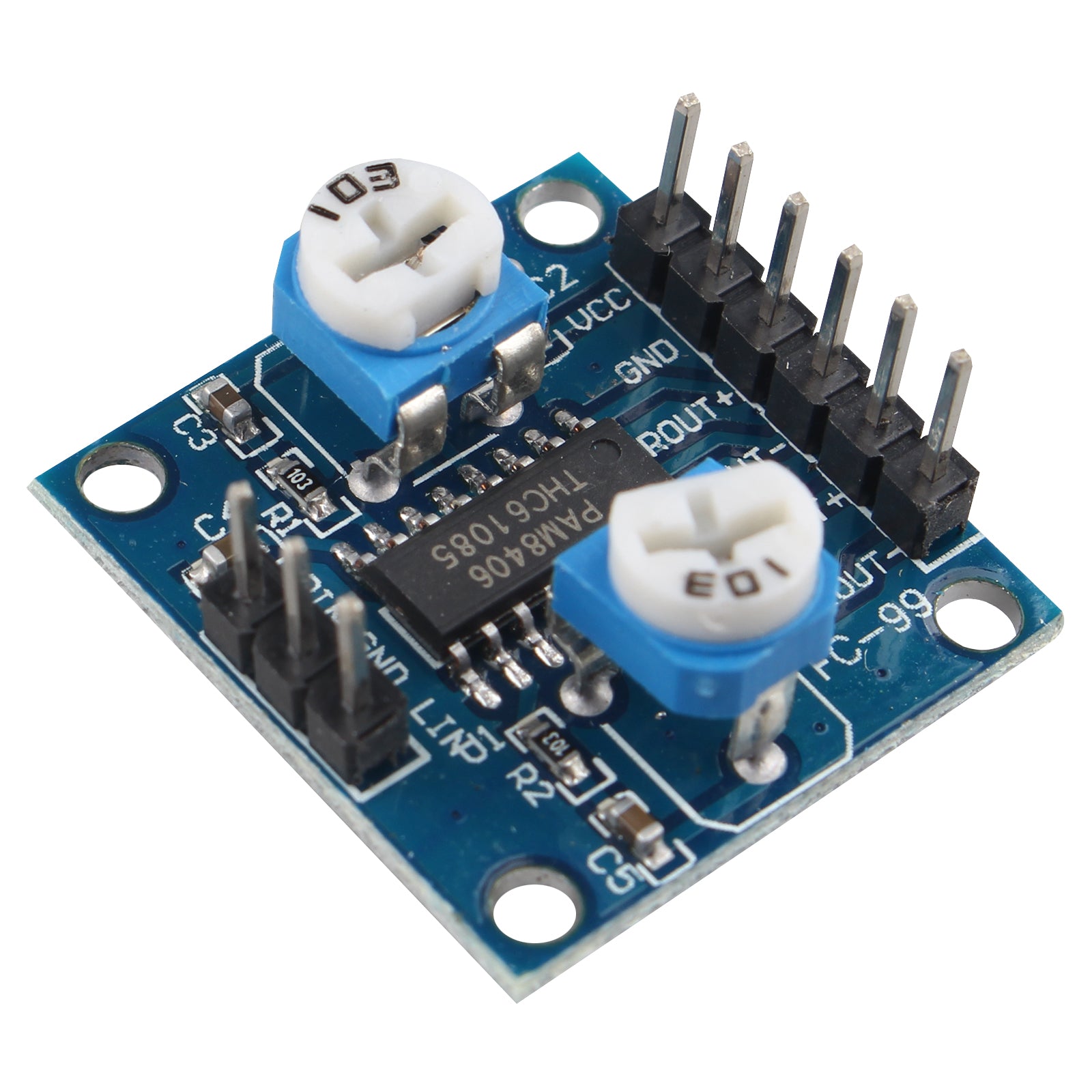

4.The unique non-LC filter Class-D digital power amplifier board, can be charged by computer USB
5.Dual-panel wiring, can properly solve the problem of crosstalk between channels caused by wiring
6.Super mini design, can be easily placed in a variety of digital product
7.Used machine to weld whole plate
8.Rated operating voltage is 2.5-5V, the limited operating voltage is 5.5V
Note:
1.The "negative" of left and right channel output port can not be connected together, otherwise it will damage IC
2.Please kindly connect with the speaker before charging.
Packing List:
1*Digital Amplifier Board
