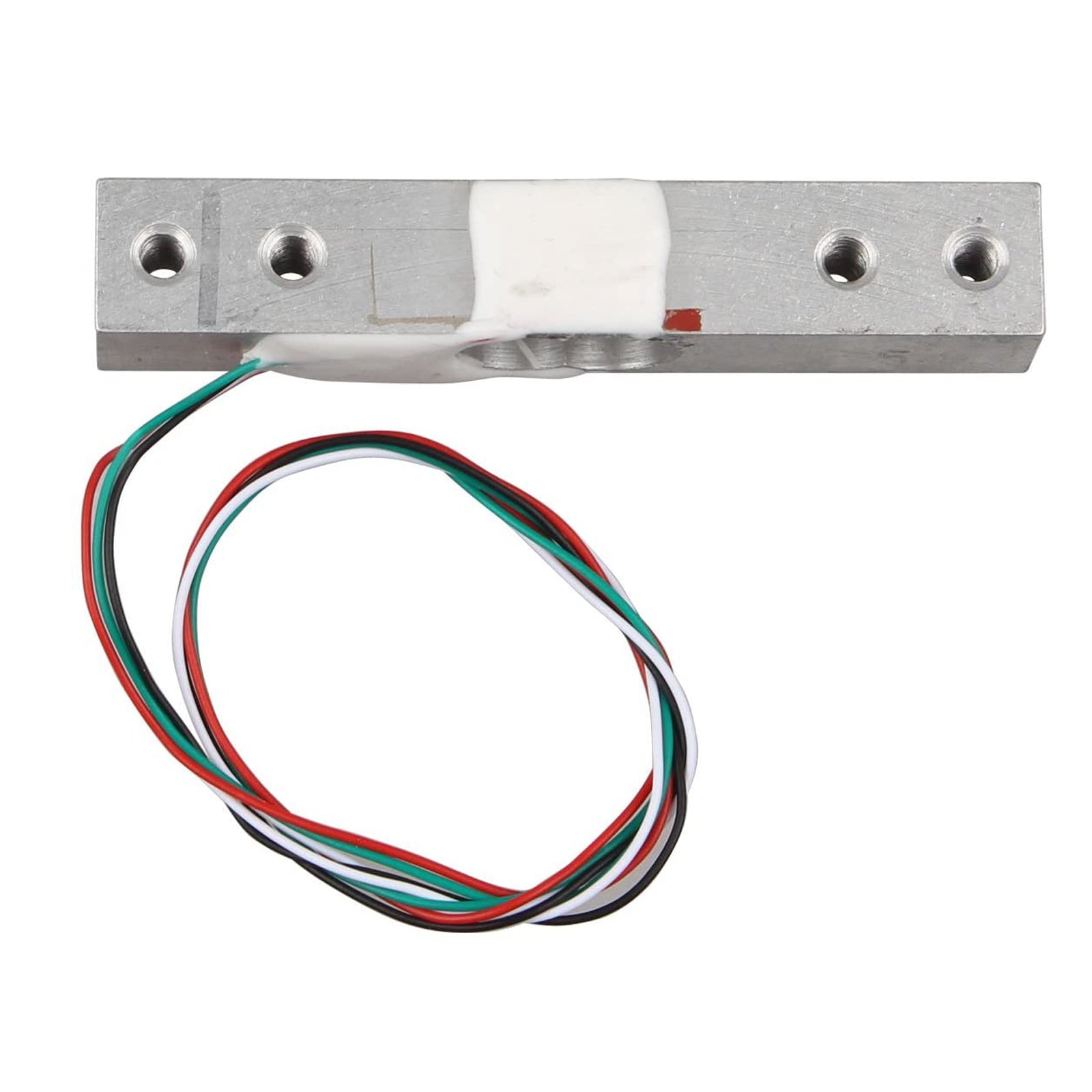

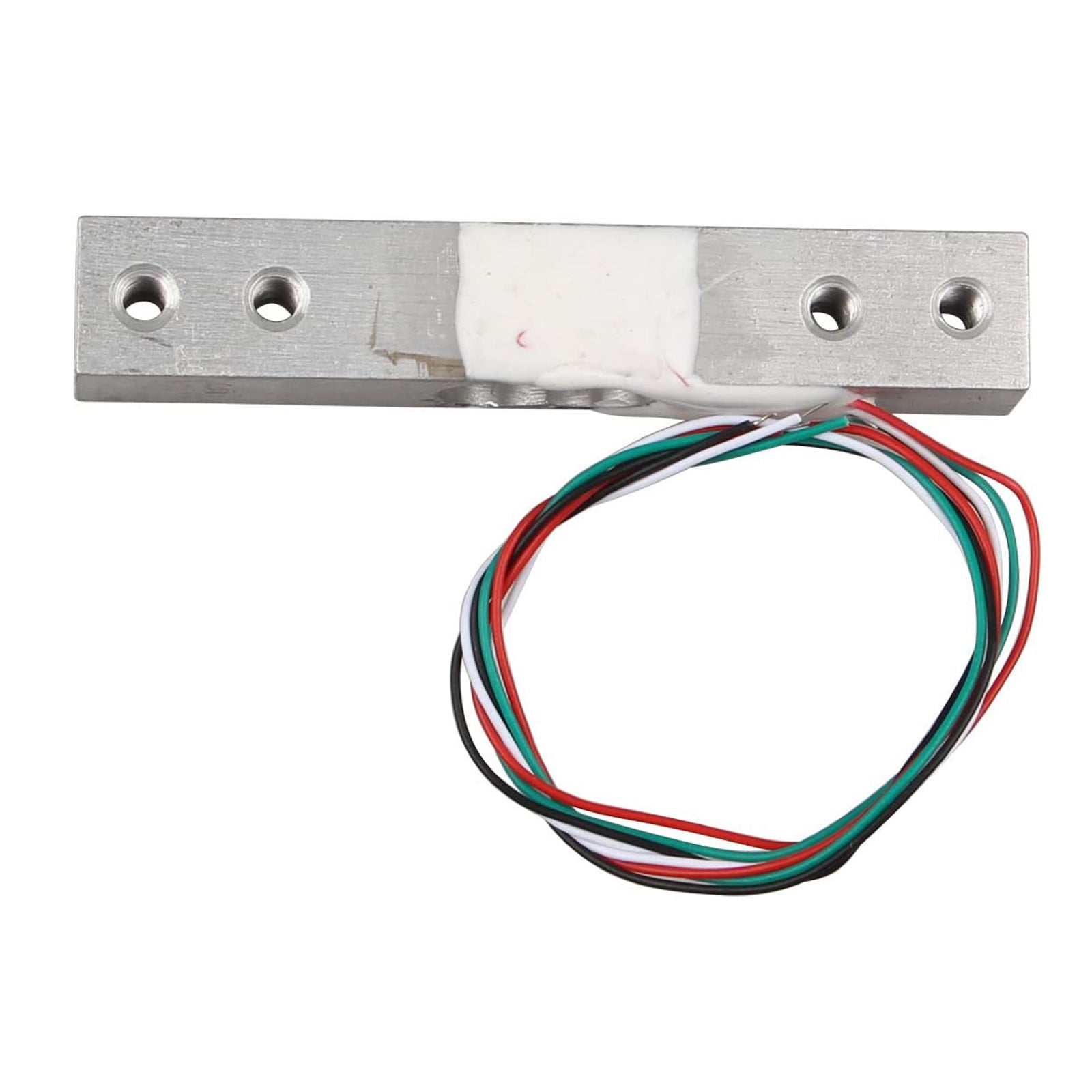

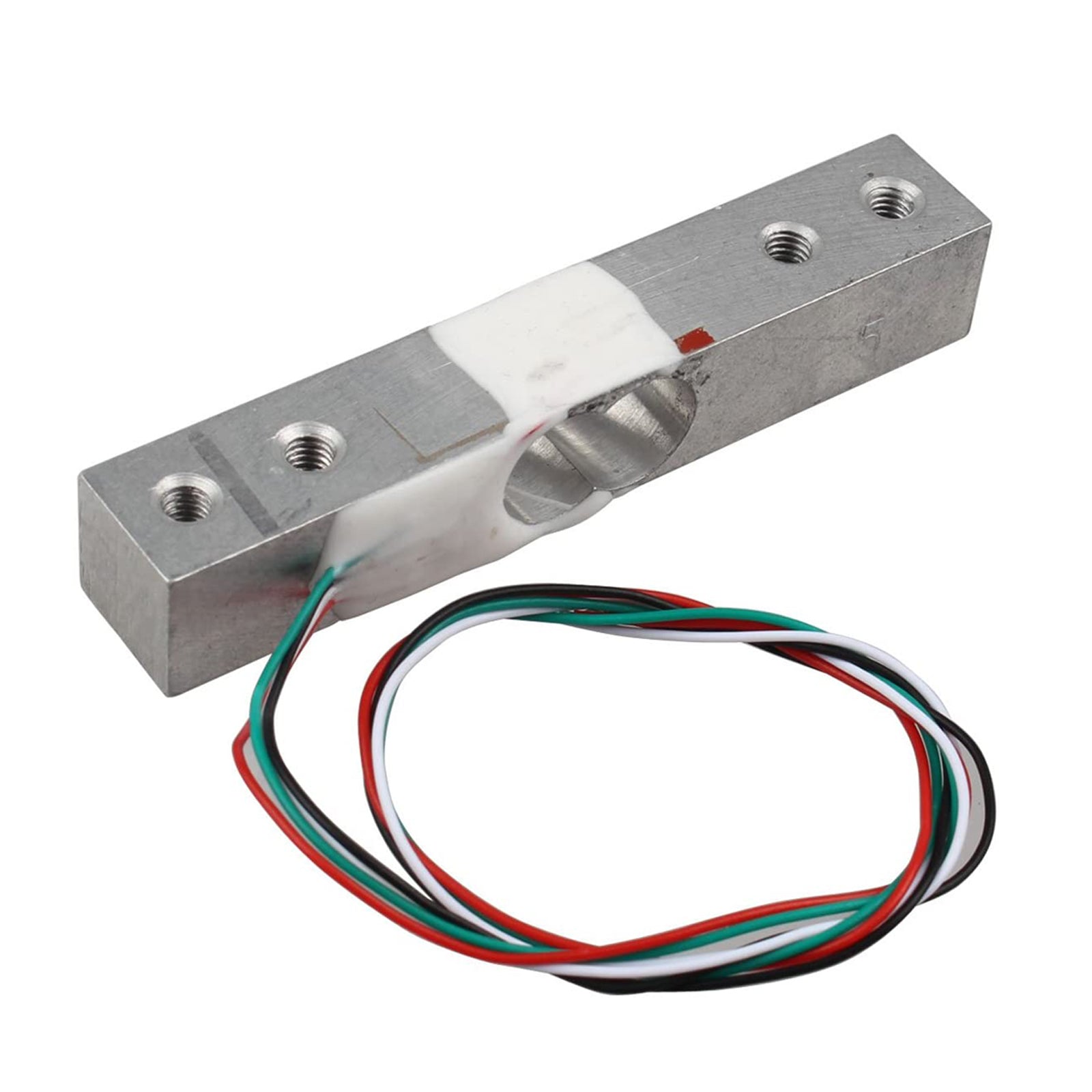

- Portable electronic load cell.
- For working with Arduino etc.
- Rated load: 5 kg.
- Protection class: IP65.
- Recommended operating voltage: 3–12 V DC.
Specification:
Rated load: 5kg
Rated output: 1.0 mV / V +/- 0.15 mV / V.
Zero output: +/- 0.1 mV / V.
Creep: 0.03% F.S./30 min.
Input: red + (EXC), black- (EXC)
Output: green + (signal), white- (signal)
Recommended operating voltage: 3 ~ 12 V DC
Operating voltage: 15 V DC
Input impedance: 1115 ± 10% ohms.
Output impedance: 1000 ± 10% ohms.
Protection class: IP65
Overall size approx. 8 x 1.3 x 1.3 cm
Cable size: 0.8 x 20 cm (diameter x length)
Material: aluminum alloy
Package Inculded:
1 x load cell (cable: 20 cm)
