Feature:
The MAX31865 is an easy-to-use digital output transducer thermistor optimized for platinum resistance temperature (RTD) detectors.
The external resistor sets the RTD sensitivity and the high-precision Δ- ΣADC converts the RTD resistor and the reference resistor into the digital output.
The MAX31865 input has over-voltage protection of up to ± 45V and provides configurable RTD and cable open, short-circuit detection.
Compensating 3 or 4 wire RTDs for better accuracy.
Could be used with any Arduino or microcontroller.
3.3V regulator and level shifting.
Could be used with any 2, 3 or 4 wire PT100 RTD.
Handling all of your RTD needs.
Material: Metal + PC
Colour: Purple

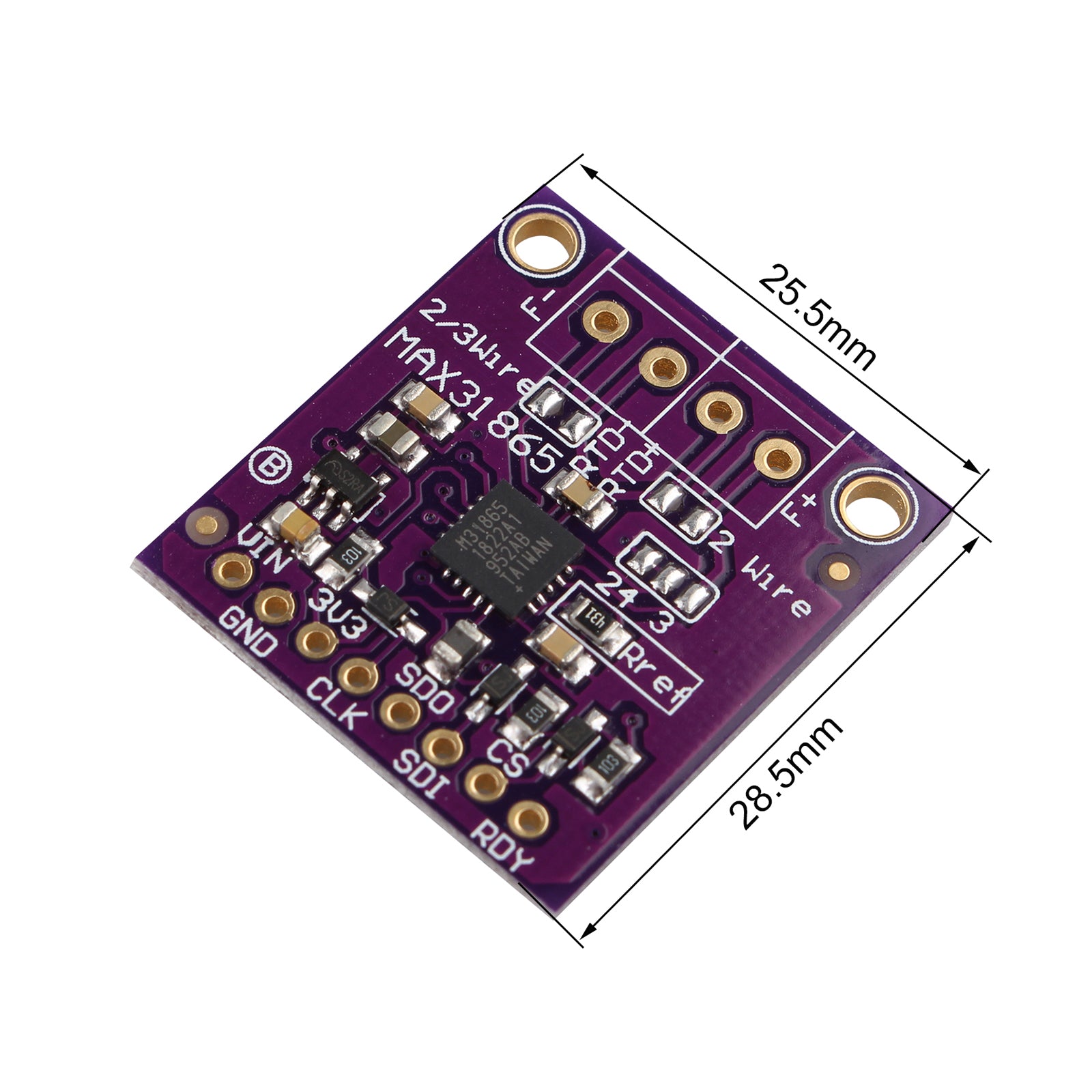

Module Size: 28.5 x 25.5mm
Weight: 4.8g

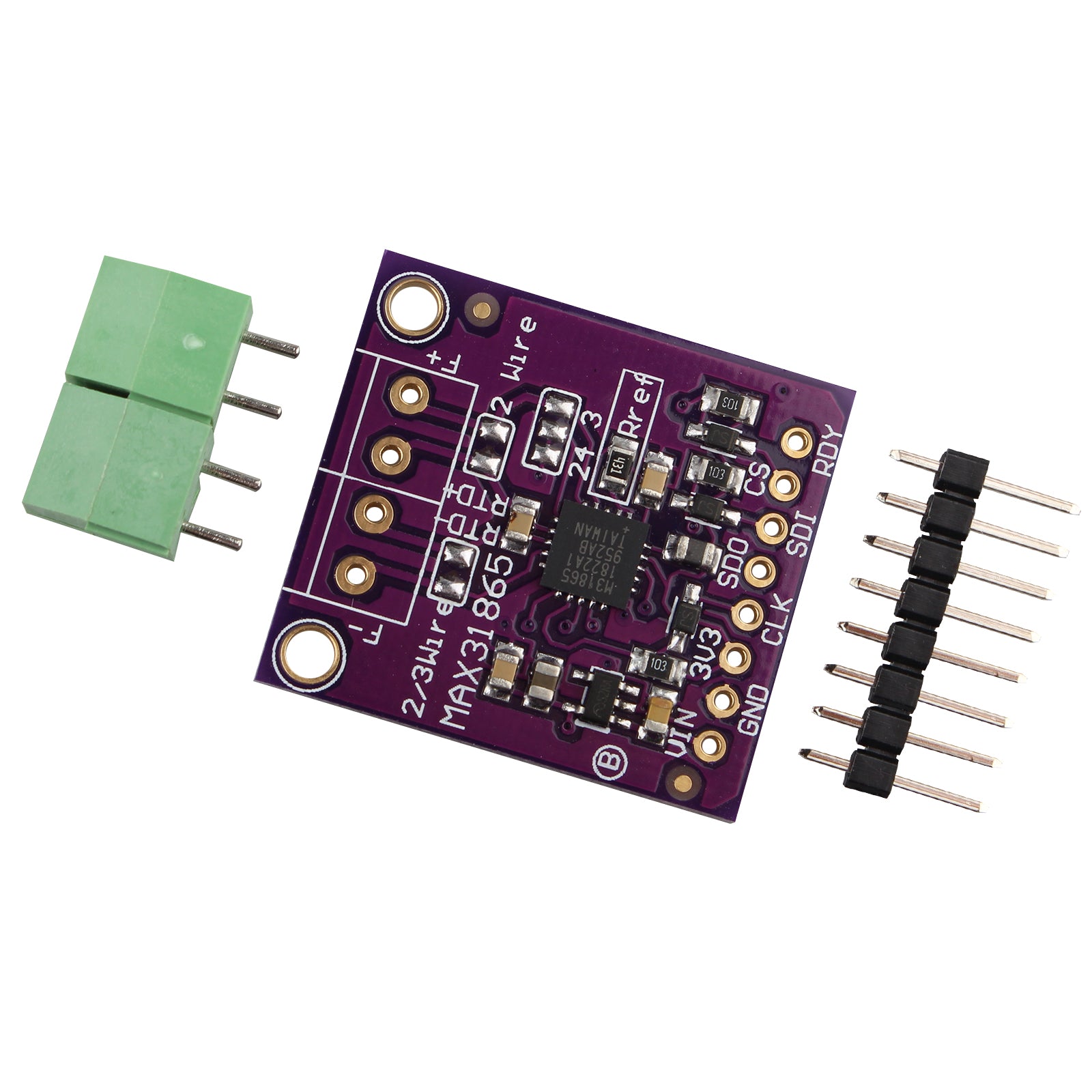

Packing List:
1 x MAX31865 Detector Module
