- The relay contact module is suitable for 5 ~ 400V AC or DC inductive loads (less than 1000W load), for the protection of relay contacts or Thyristor.

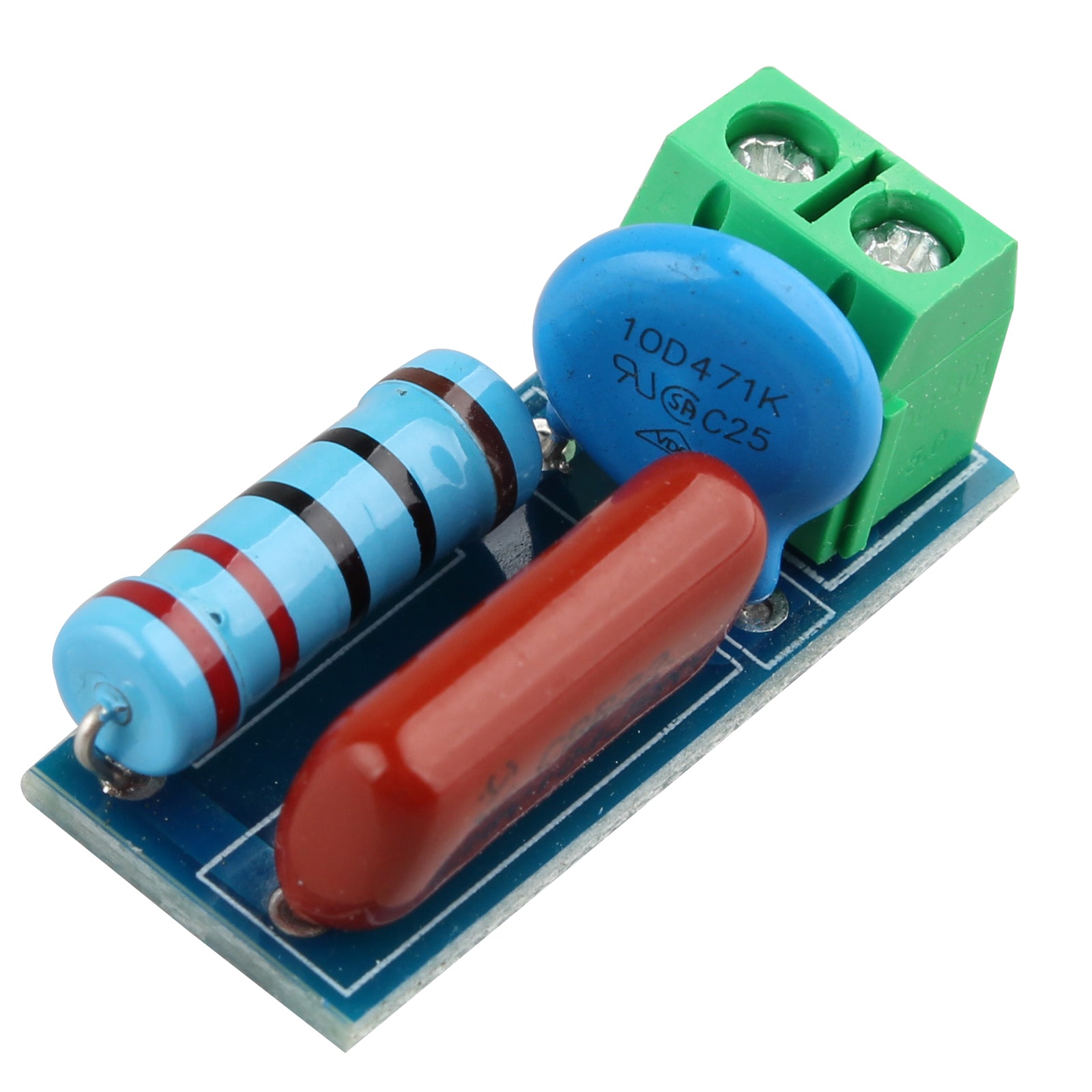

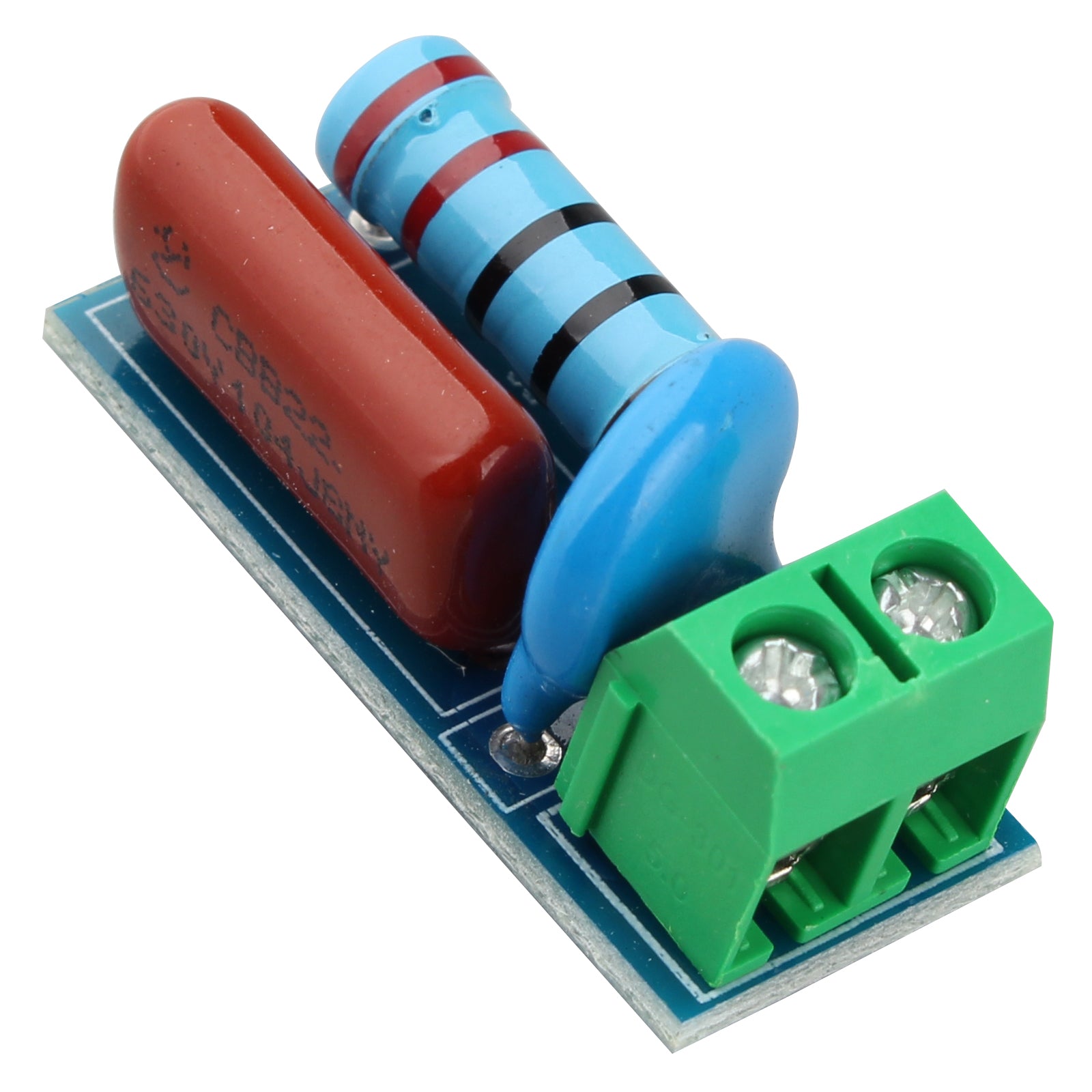

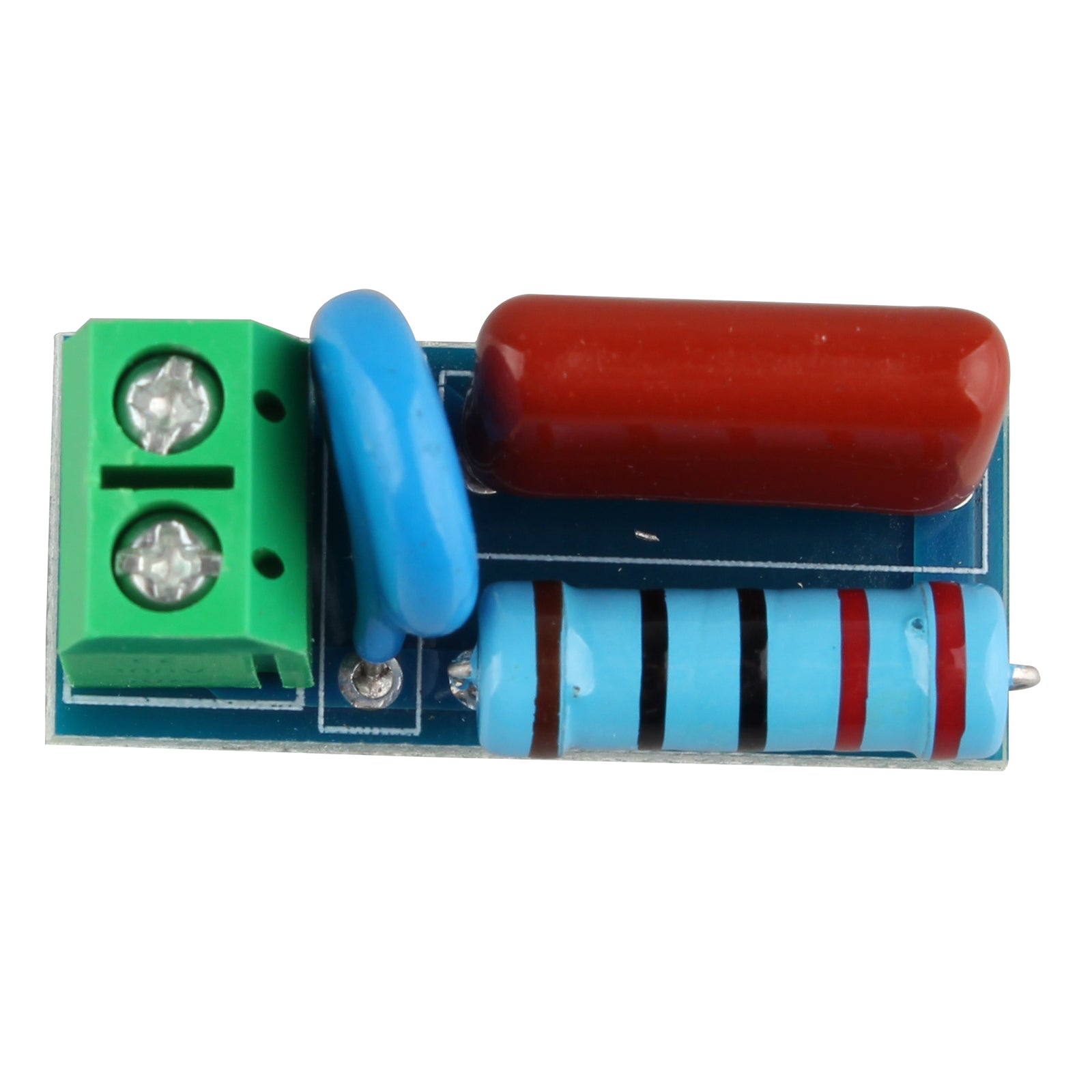

- The circuit protection module sensor comes with RC snubber circuit, the absorption induced emf inductive loads.
- Varistor to prevent excessive current voltage fluctuation is too large, causing the relay contacts adhesions.
- The module can effective protect your circuitry from electromagnetic interference, enhance anti-interference ability.
- External connection using rotating crimp terminals make wiring more firmly, surrounded by a fixed mounting holes, easy to install.
Function:
This module is suitable for circuits with inductive loads and switching devices (such as relays and thyristors).
When used, the two interfaces of the module are connected to the two contacts of the relay (such as the common and normally open ends of the relay) or in parallel with the thyristor to avoid damage to the relay and thyristor induced by the electromotive force.
Note:
1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

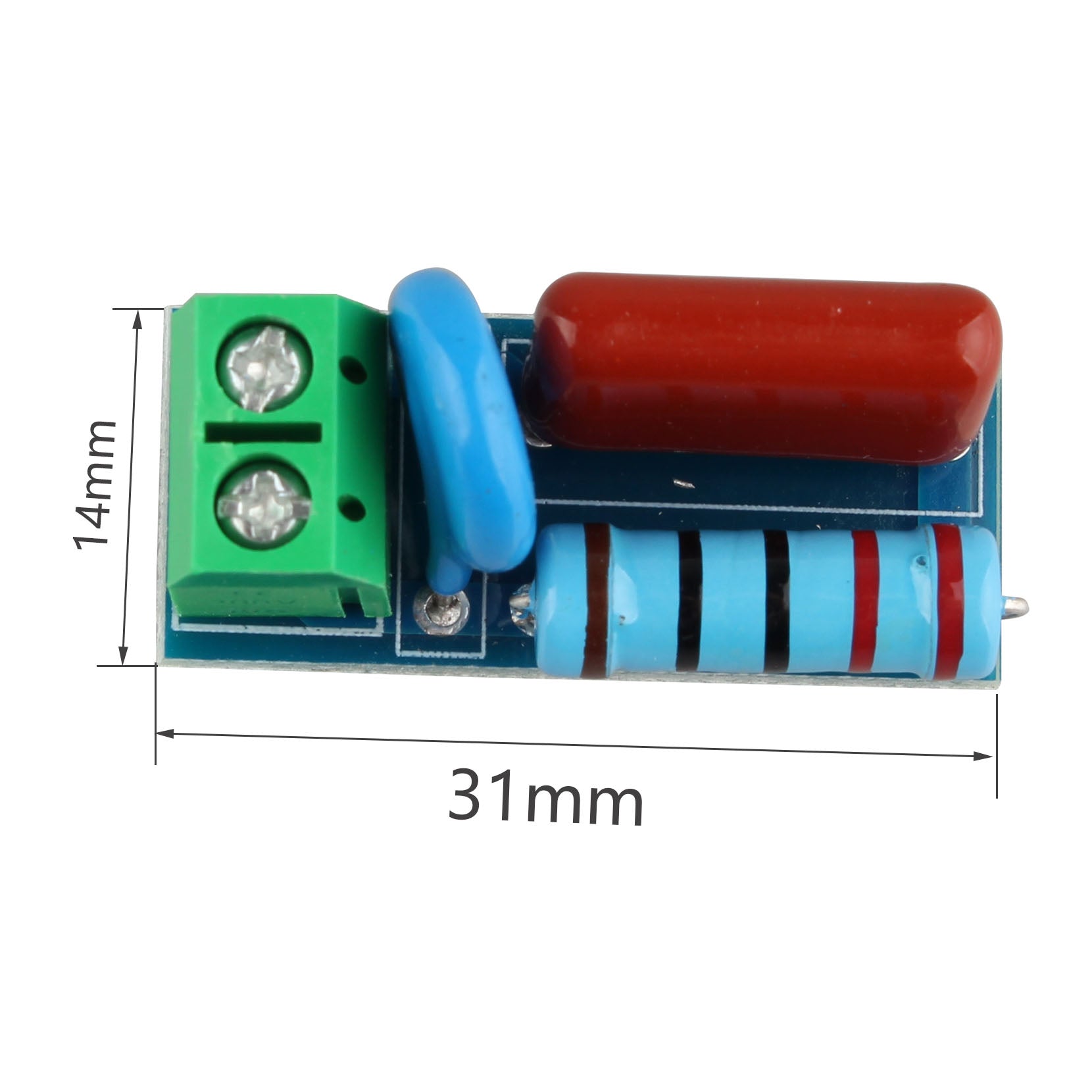

Size: 31 (mm) x 14 (mm) x 17 (mm)
Weight : 6g
Packing List:
1 x RC Absorption/Snubber Circuit Module
