- Includes all I/O ports 'pins for UNO R3 main board.
- Interfaces: IIC interface, Bluetooth interface, SD card interface, APC220 interface, ultra sonic interface, Servo interface, 12864 LCD parallel interface, etc.

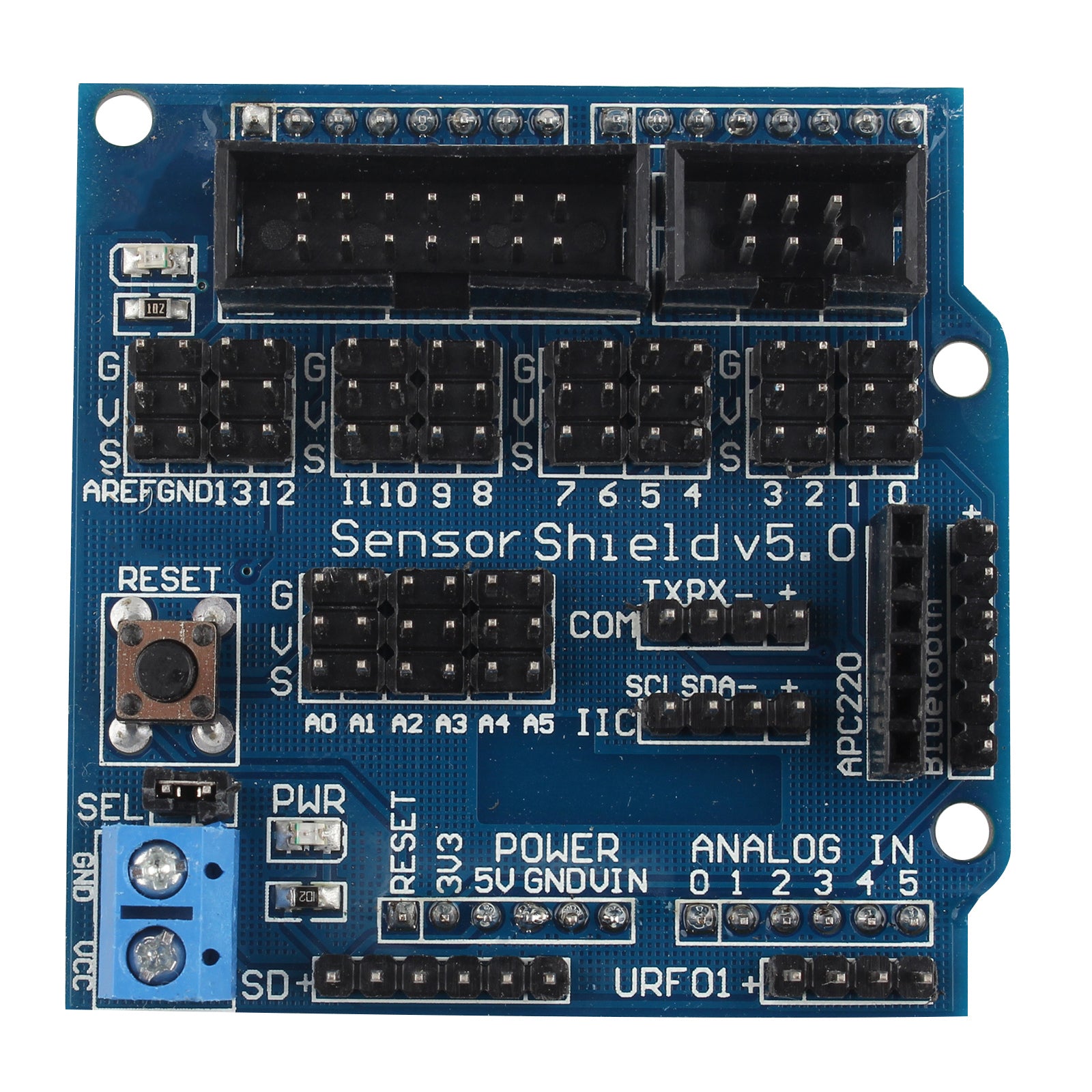

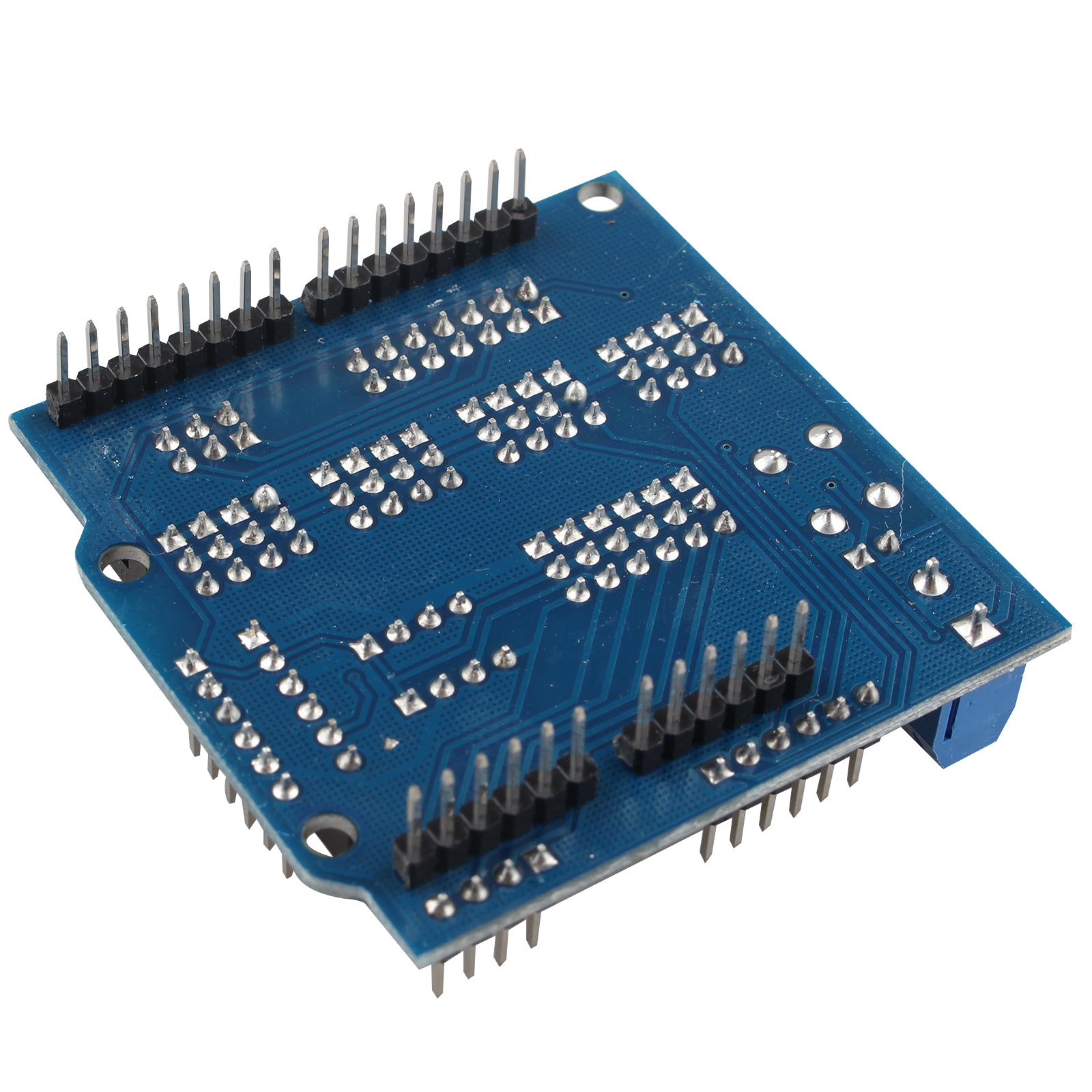

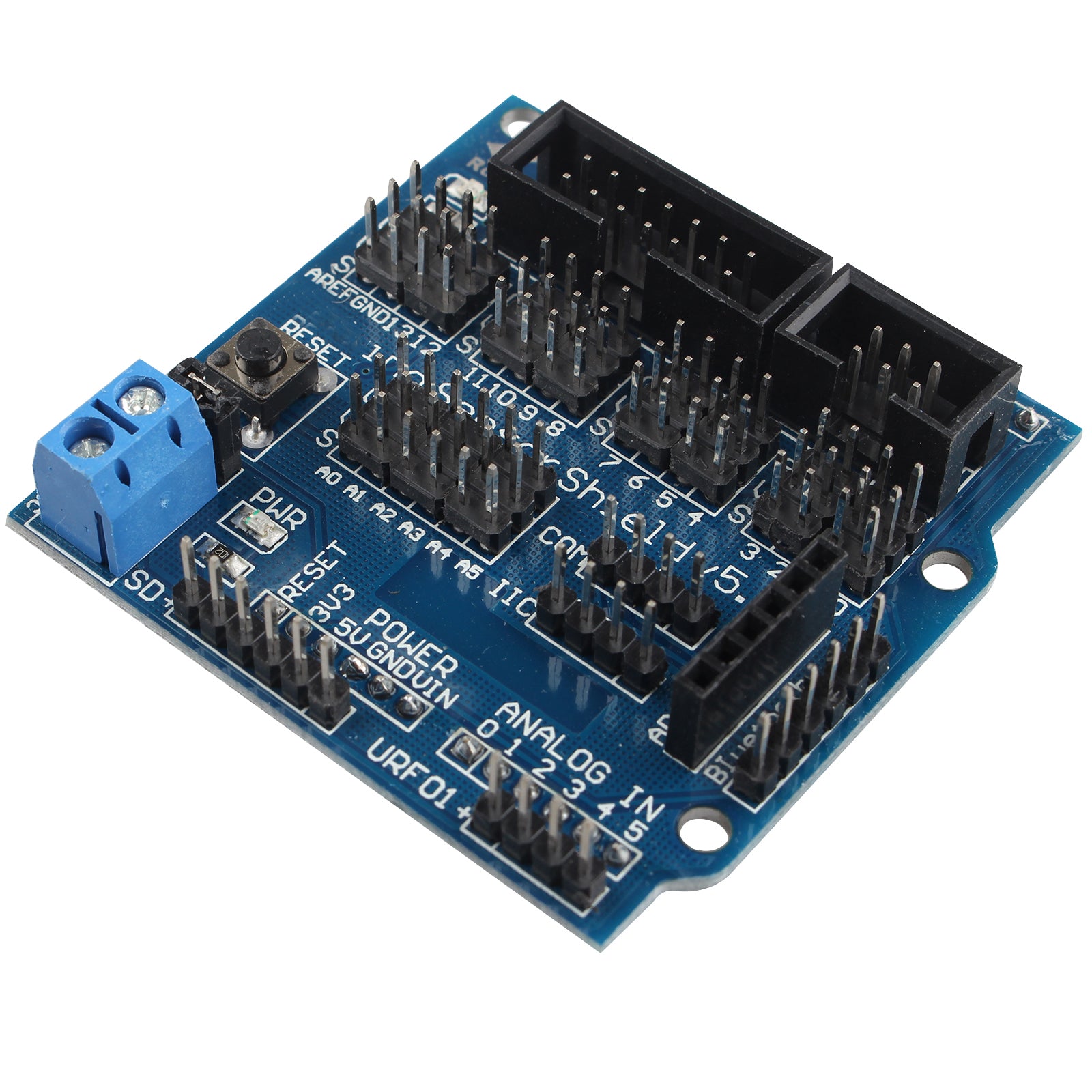

- Arduino sensor shield V5.0 expansion development board
- Material: electric components
- Main colour: blue
Parameter:
Material: metal
Dimensions: approximately '57 x 57 x 19 mm/2.2" x 2.2" x 0.7"
Interfaces:
IIC interface
APC220 Interface
SD card interface
Ultrasonic interface
Bluetooth interface
Servo interface
12864 LCD parallel interface
12864 LCD serial port
I/O Port:
14 Digital I/O ports: D0-D13 (includes 6 ports for PWM function)
8 analogue I/O ports: A0 – A5
Packing List:
1*Sensor Shield V5.0 expansion board
