Size：16.4*14.5*3.2mm.
Weight:1.1g.
powered from 3.3V
connecting MCUs to the CAN network
compatible with PCA82C250
SN65HVD230 can be used under high interference environment.
The device has good ability to send and receive at different rates.
Fully compatible with ISO11898 standard;
High input impedance, allowing 120 nodes;
Low current standby mode, the typical current of 370μA;
Signal transfer rate up to 1Mb / s;
Thermal protection, open circuit failure protection function;
With anti-instantaneous interference protection;
Slope control, reduce radio frequency interference (RFI);
Differential receiver with a wide range of anti-common-mode interference, electromagnetic interference (EMI) capabilities.
Packing List:

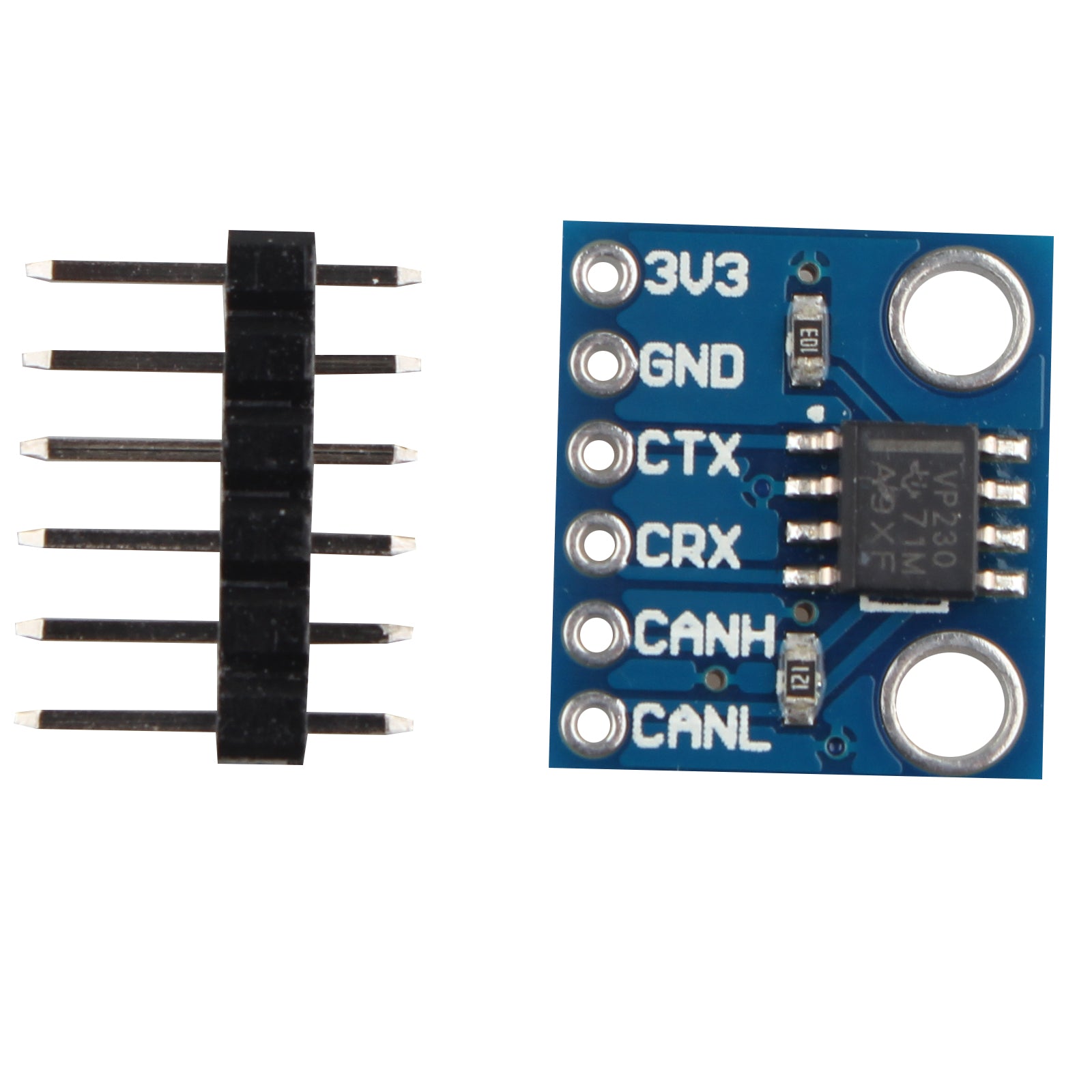

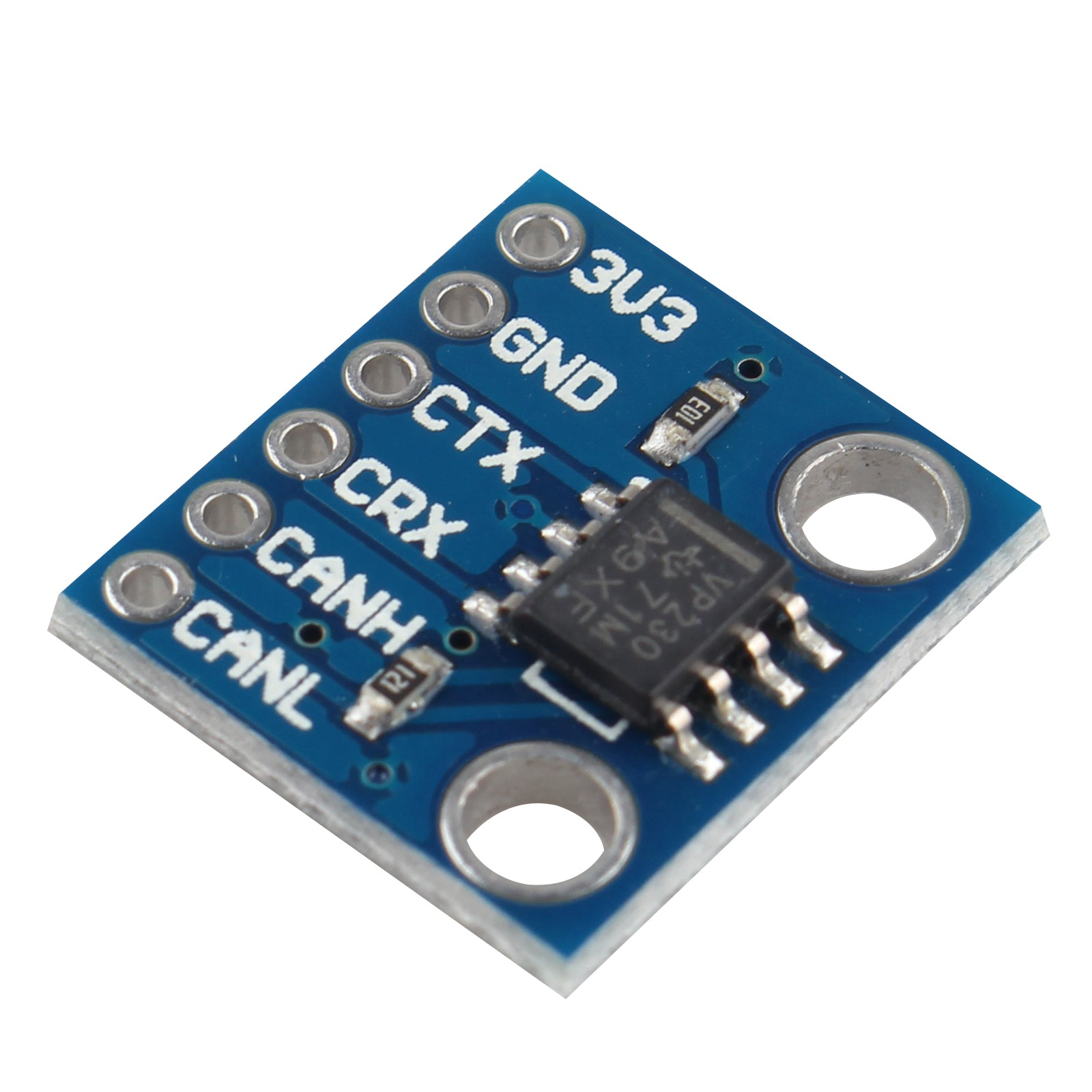

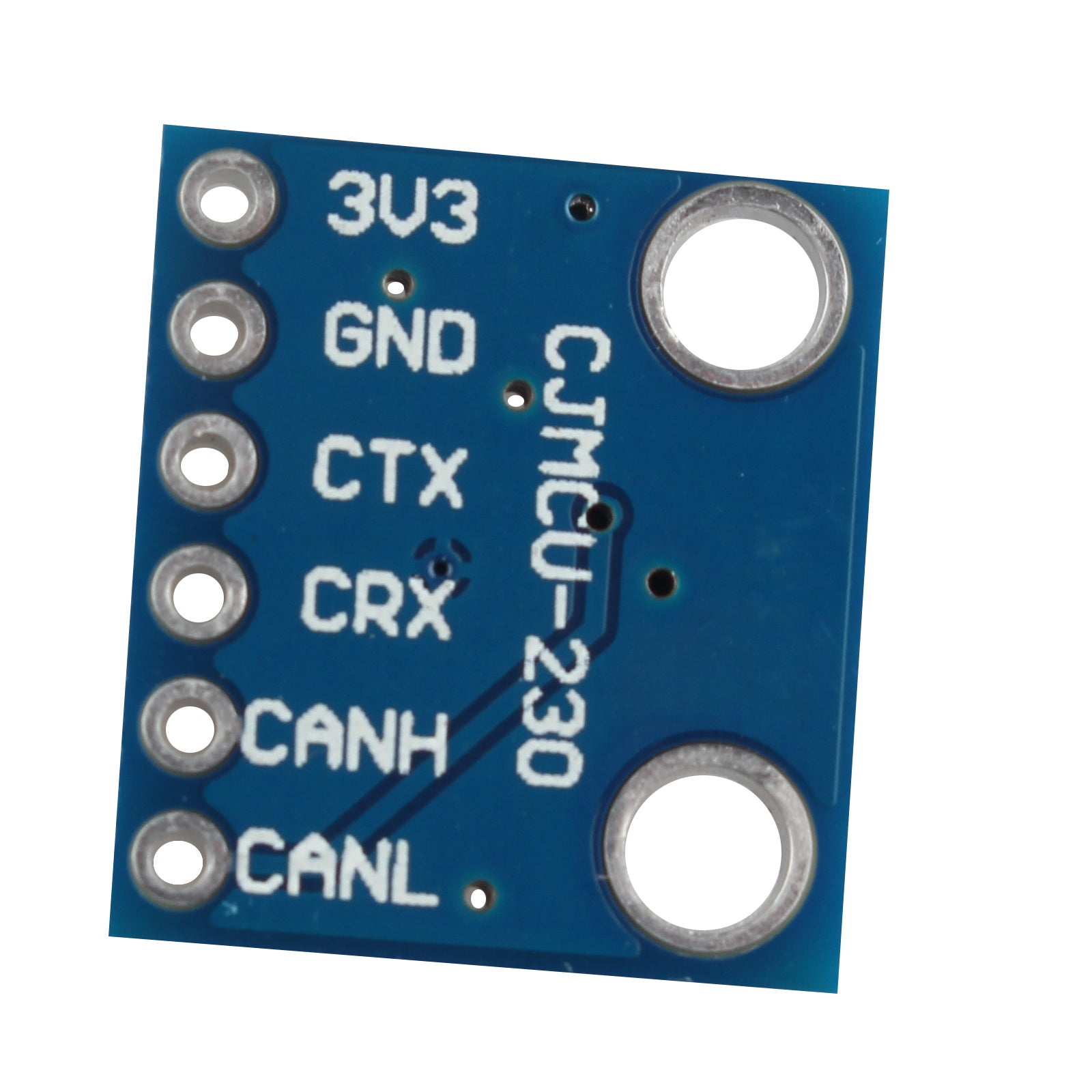

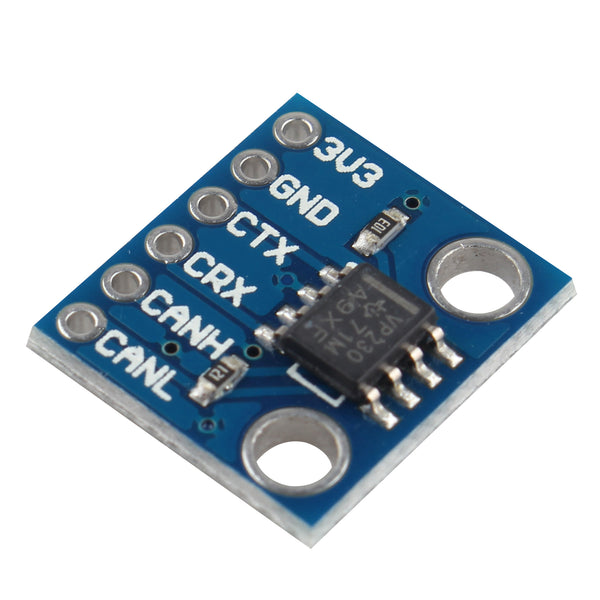

1*SN65HVD230 CAN bus module Communication module CAN bus transceiver
