- Perfect for cooling down semiconductor devices.
- Solid state, vibration free, noise-free
- Easy to install and operate
- Reverse the polarity to get device cold in minutes or heat
- Used for many situations from CPU coolers to alternate power sources
Feature:
Dimensions: 40 * 40 * 3.4mm
Lead Specifications: Lead length 300 ± 5mm
Internal resistance: 1.2 ~ 1.5Ω (ambient temperature 23 ± 1 ℃, 1kHZ Ac test)
Maximum temperature difference: △ Tmax (Qc = 0) 60 ℃ above.
Operating current: Imax = 10A (15Vmax voltage start)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 92W
Assembly pressure: 85N / cm2
Working environment: temperature range -55 ℃ ~ 83 ℃ (high temperature will directly affect the cooling efficiency)
Packaging process: around the standard 704 silicone rubber seal
Packaging standards: foam box packaging, storage temperature -10 ℃ ~ 40 ℃
Packing List:

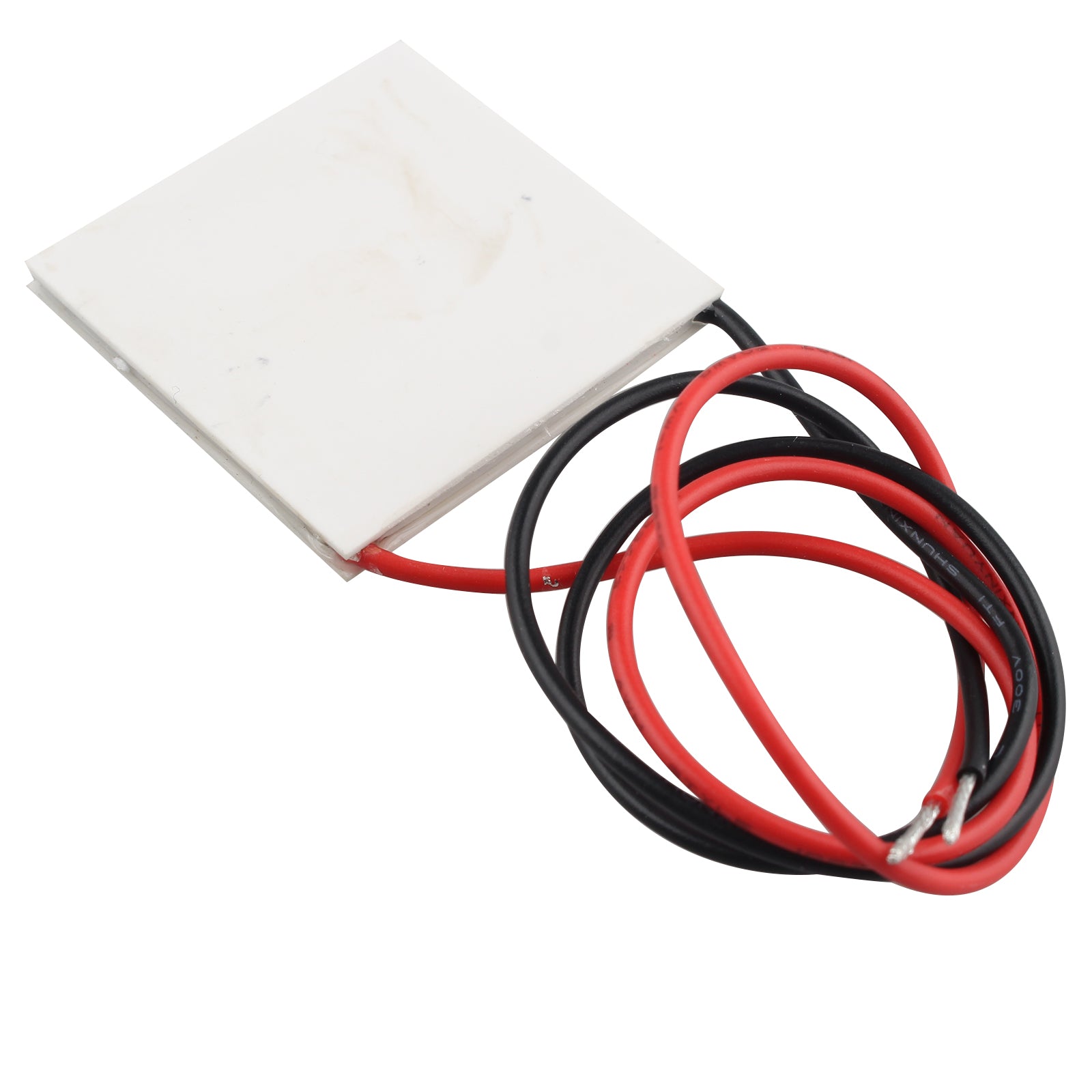

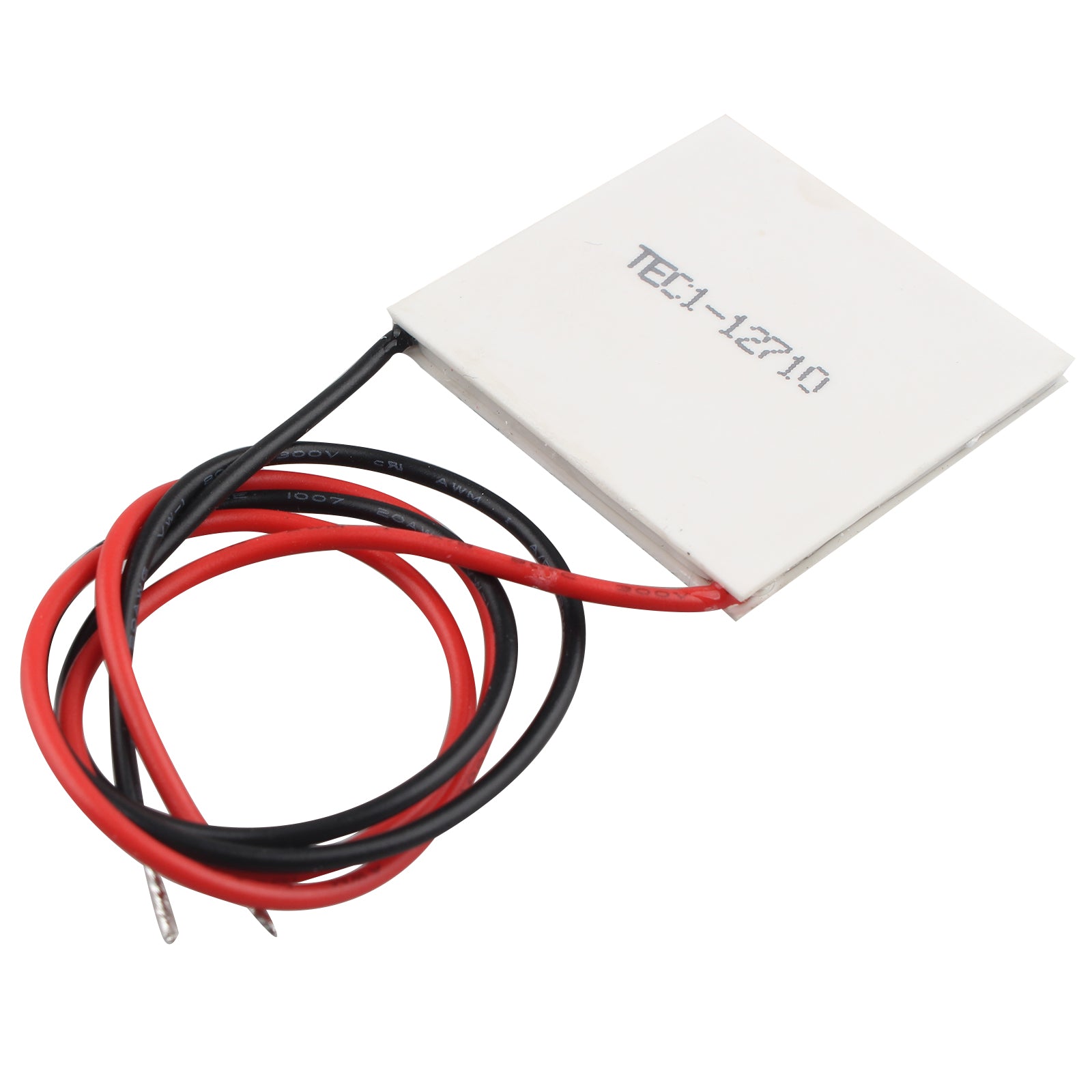

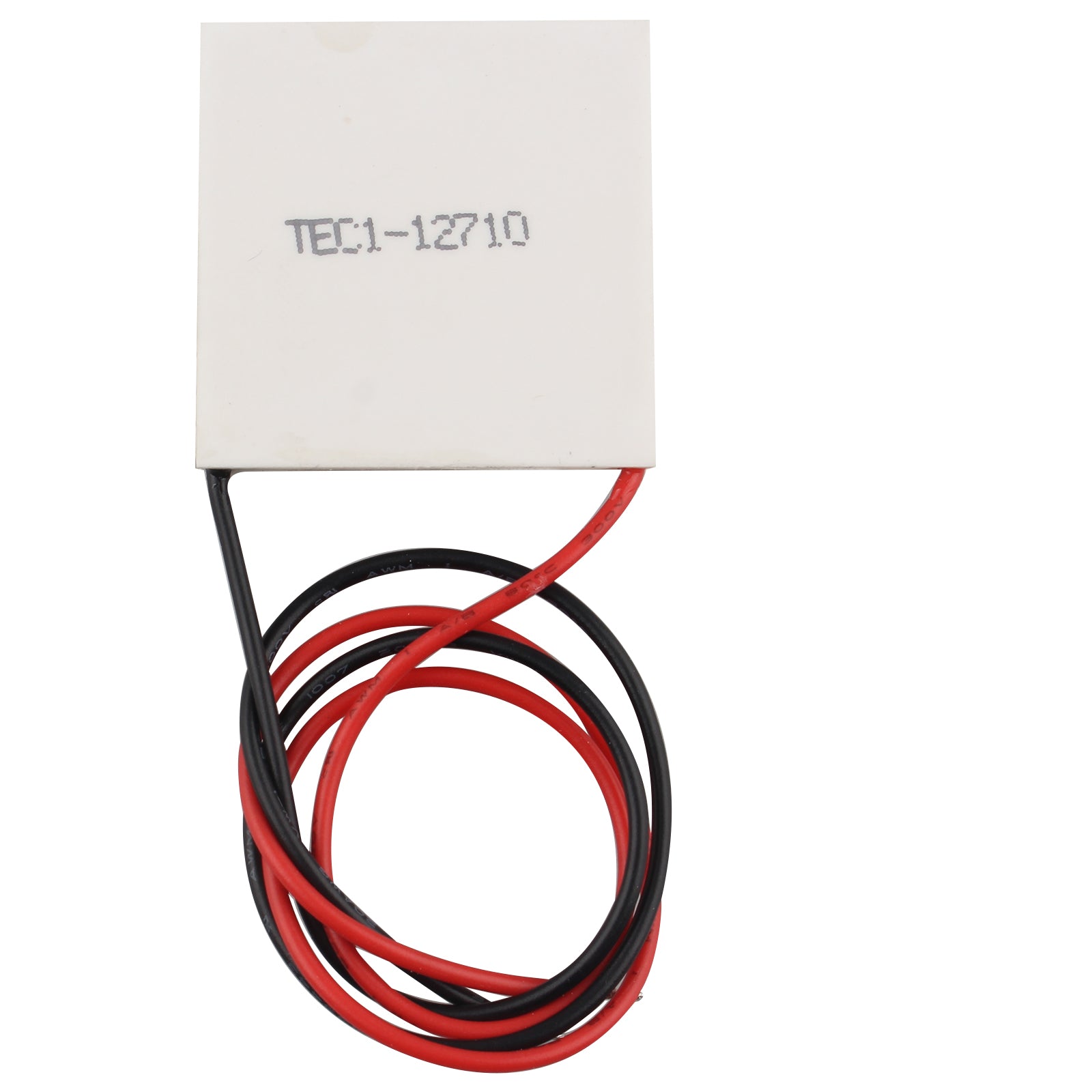

1 x TEC1-12710 Heatsink Thermoelectric Cooler Cooling Peltier Plate Module 12V 92W
