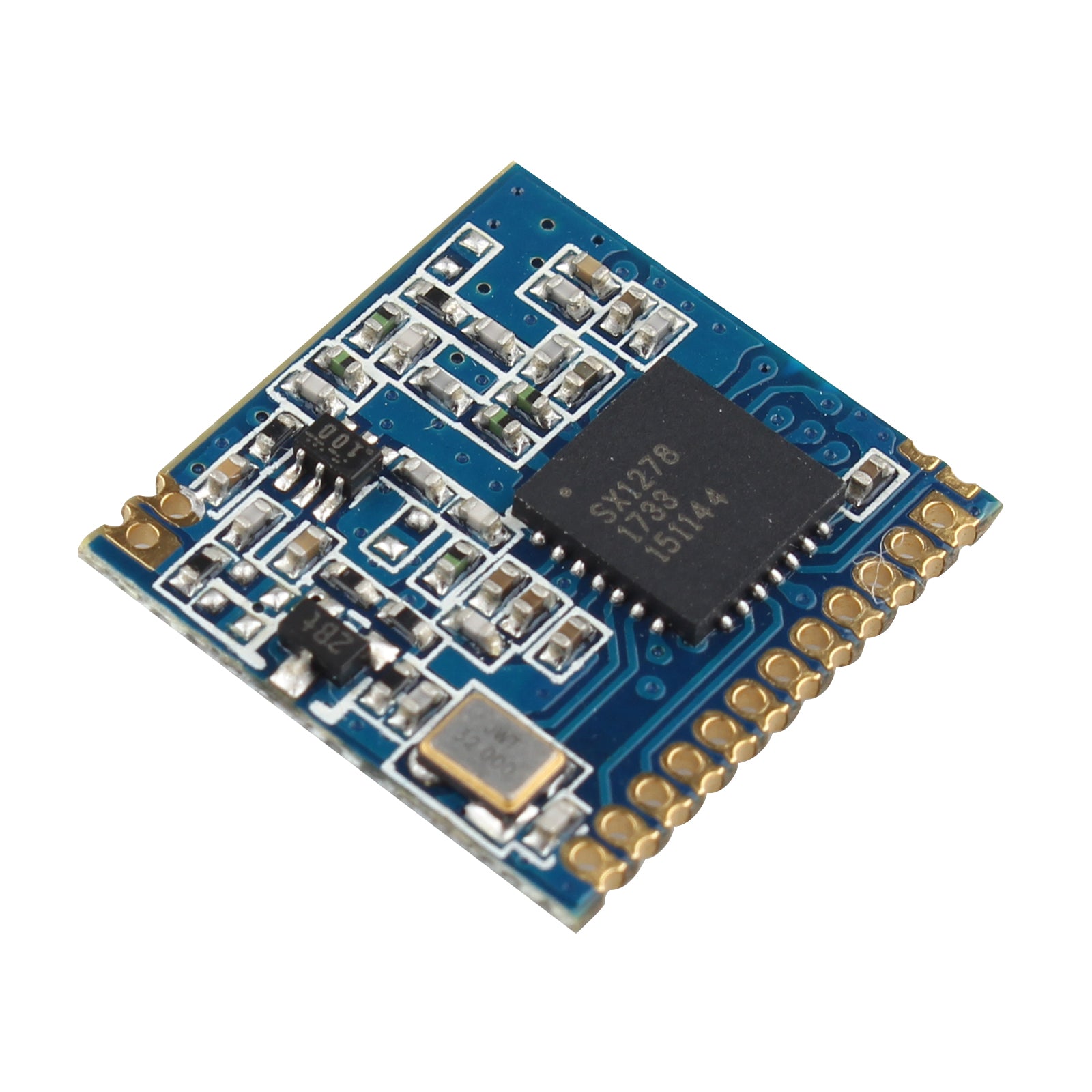

- XL1276-D01 wireless module is a wireless chip using SEMTECH's latest LoRa modulation technology.
- In addition to the traditional GFSK modulation technology, the module uses LoRa (long-range) spread spectrum technology, with ultra-long-range spread spectrum communication
- The module has high receiving sensitivity and super high anti-interference
- Receiving Distance as far as 5Km. 32M high-precision 10ppm passive crystal.

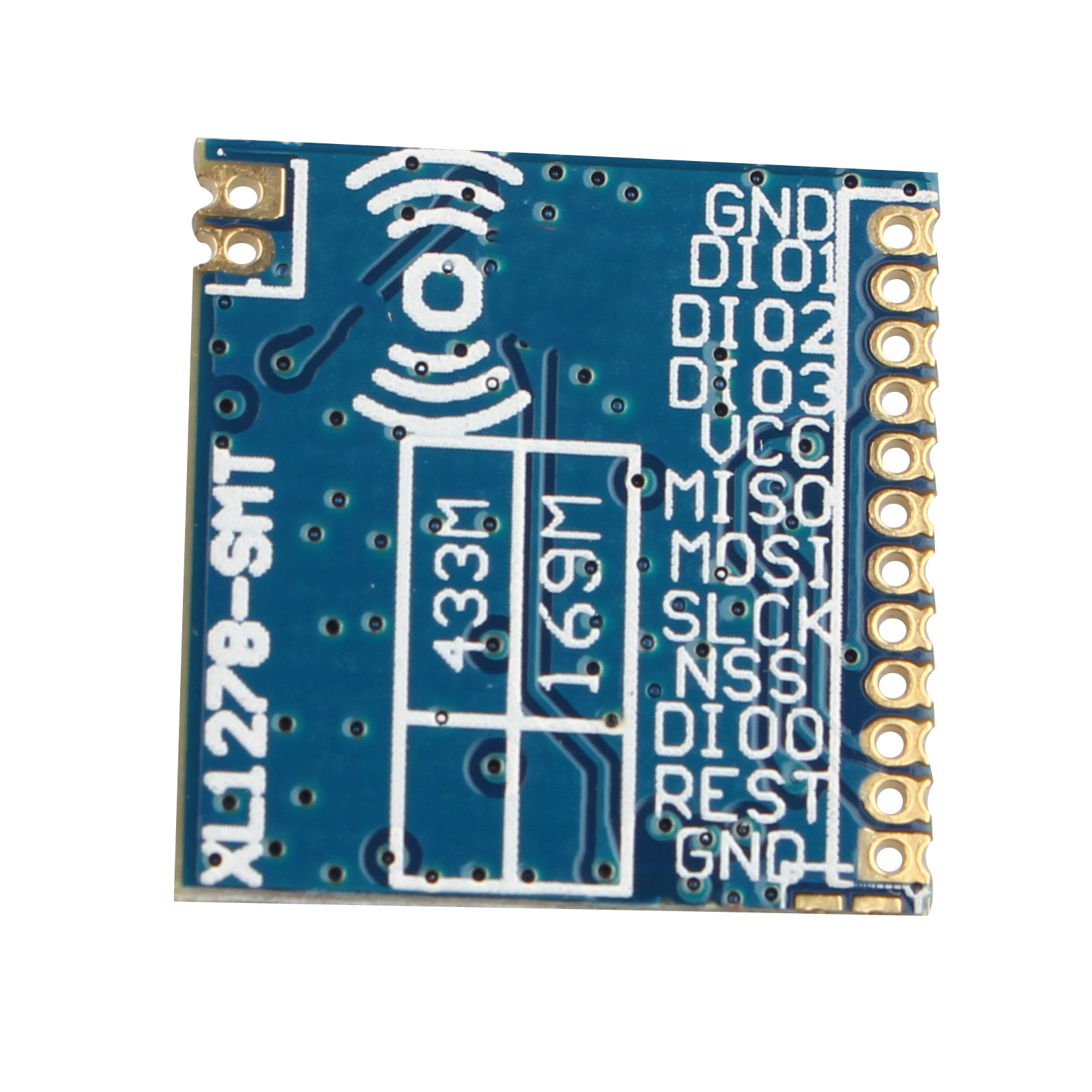

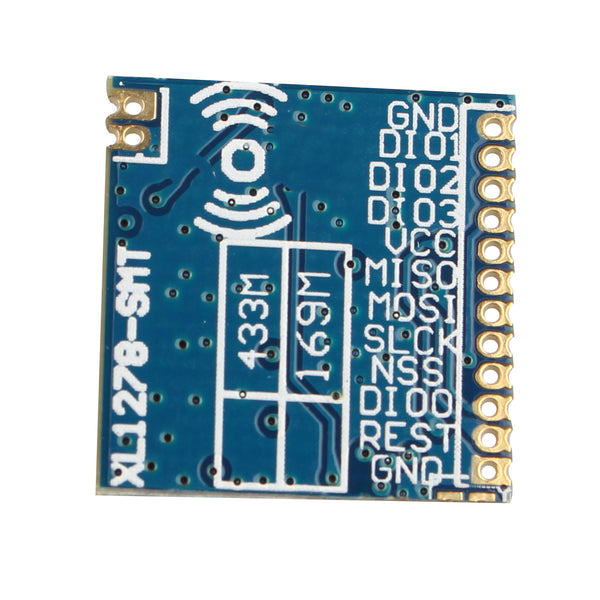

- The standard SPI interface,so module can be easily embedded into the existing product or system.
Feature:
-FSK / GFKS technology, LoRa (remote) spread spectrum technology
-Half duplex communication
-strong anti-interference (channel rejection ratio: 56db)

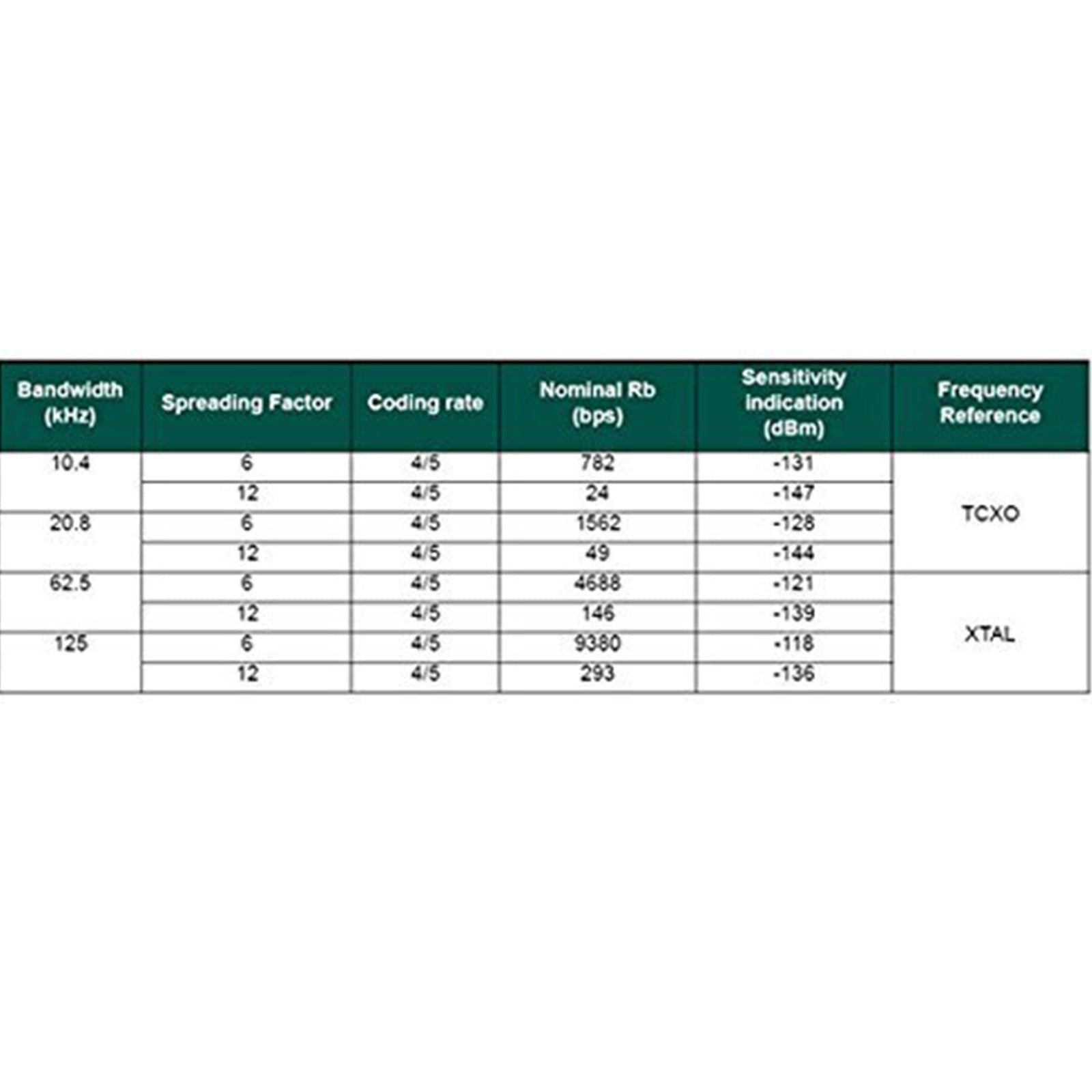

-high receiving sensitivity -139dbm. (32M passive 10ppm crystal)
-ISM multi-band, do not need to apply for free use of frequency.
-multi-frequency options, a variety of transmission rates can be used in FDMA and FM technology.
-intelligent reset, low voltage monitoring, timing wake-up, low power mode, sleep mode
-low power to accept the current: 10-12mA
-256-bit FIFO TX / RX
-RSSI channel detection function
-Transfer mode: FIFO / direct mode (recommended FIFO packet mode)
-configuration: AFC / airborne wake-up function / low power consumption / carrier sense / FEC error correction / AEC encryption
-ultra-long distance transmission open up to 5KM.
-Module size: 22.8 * 22.7 * 4.2mm
Application:
1) remote control and remote data acquisition system
2) wireless meter reading (water meter, electricity meter, gas meter)
3) used for oil field, mining area, site, factory and other original 485/232 interface system
4) Industrial data acquisition, transmission, intelligent control system
5) wireless alarm system
6) smart furniture system
7) Baby Monitoring System / Hospital Paging System
8) wireless small data transmission system
Download link:
http://download.haljia.com/download/Transceiver/XL1276-D01/XL1276-D01.rar
Packing List:

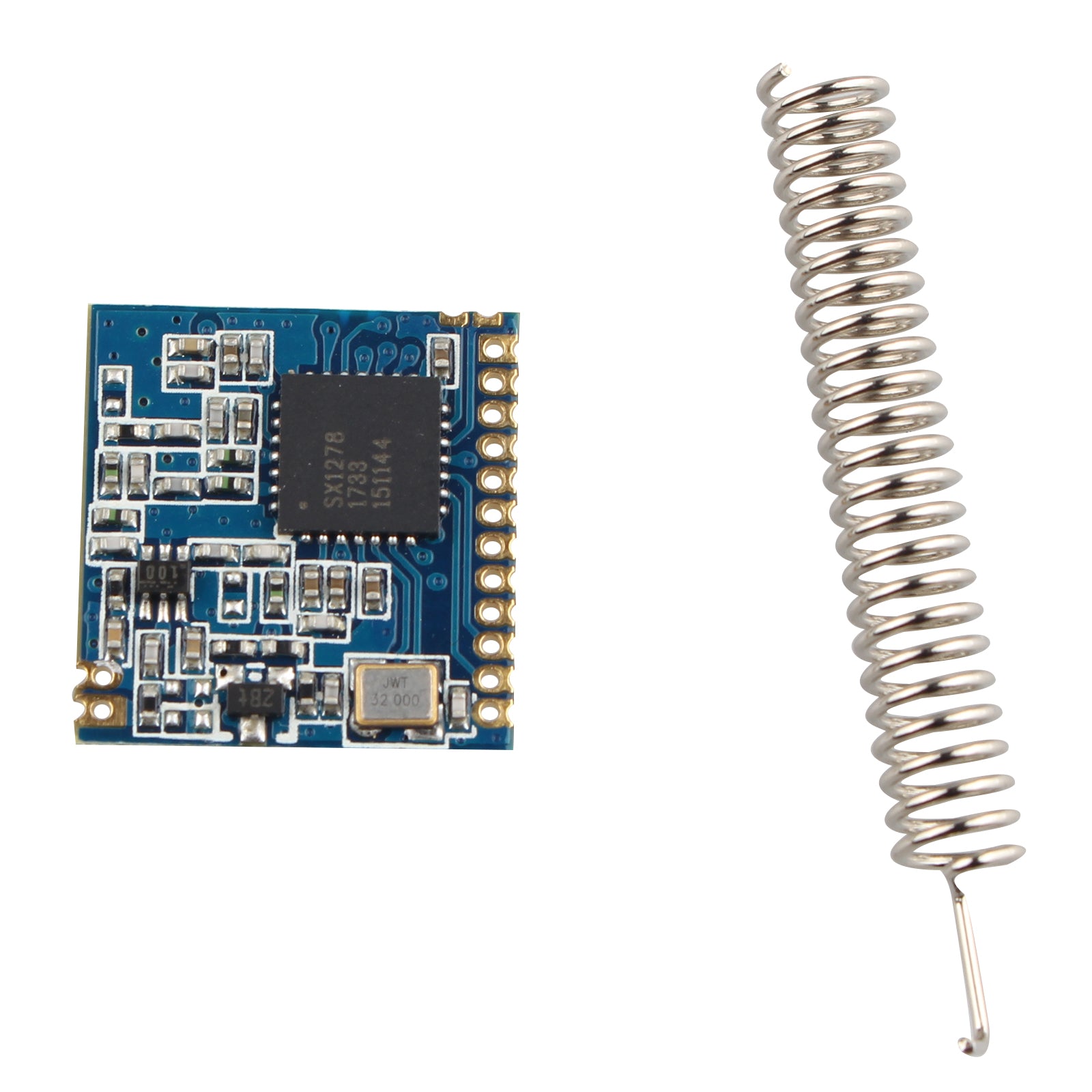

1* SX1278 LoRa Spread Spectrum/Power Meter reading module
1* Spring
