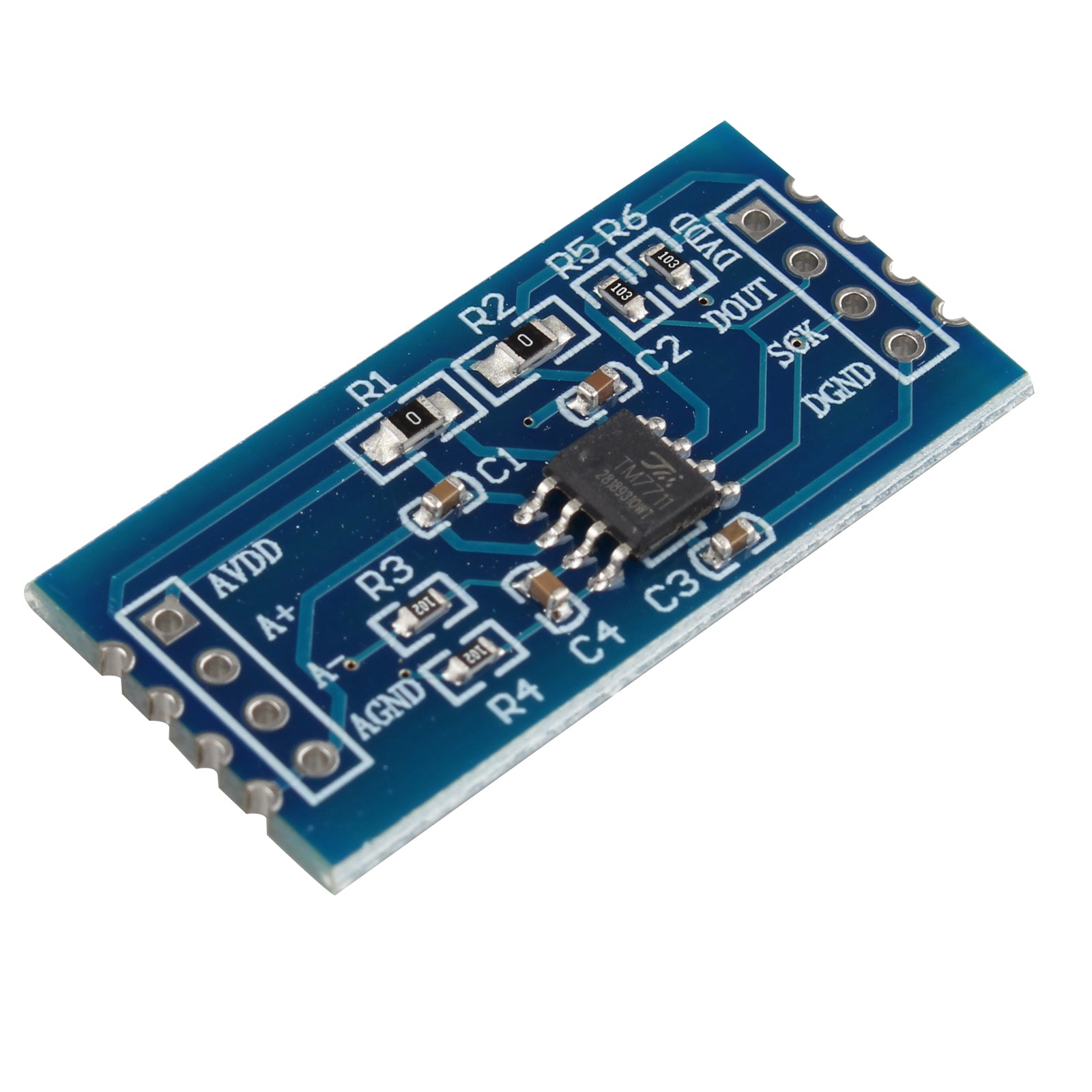

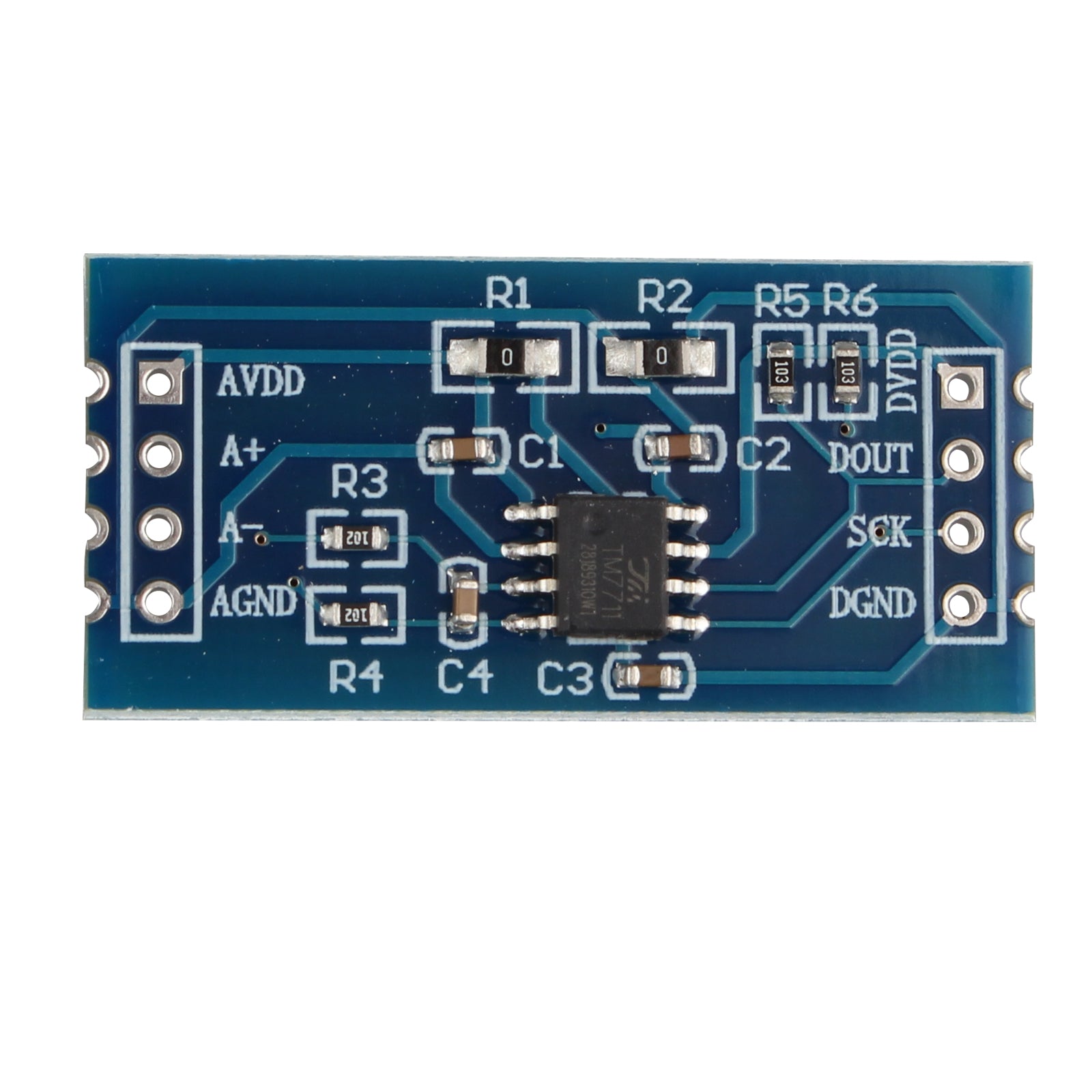

Model Number:TM7711 module/electronic weighing sensor
Package:DIP
The TM7711 is a single-channel analog front end for low-frequency measurements on electronic scales. The device accepts low-level input signals directly from the sensor and then produces a serial digital output.
Single chip microcomputer weighing AD module - TM7711 compatible with HX710A chip is hardware and software; TM7711 higher performance-price ratio.
This module uses the high-precision 24 A/D converter chip TM7711, which is designed for high-precision electronic scales and has a single analog channel input.
The input circuit can be configured to provide bridge-bridged (eg, pressure, weighing) sensor modes, making it an ideal high-precision, low-cost sampling front-end module.
The chip also has the advantages of high integration, fast response, strong anti-interference, etc., which can greatly reduce the overall machine cost of the electronic scale system and improve the performance and reliability of the whole system.

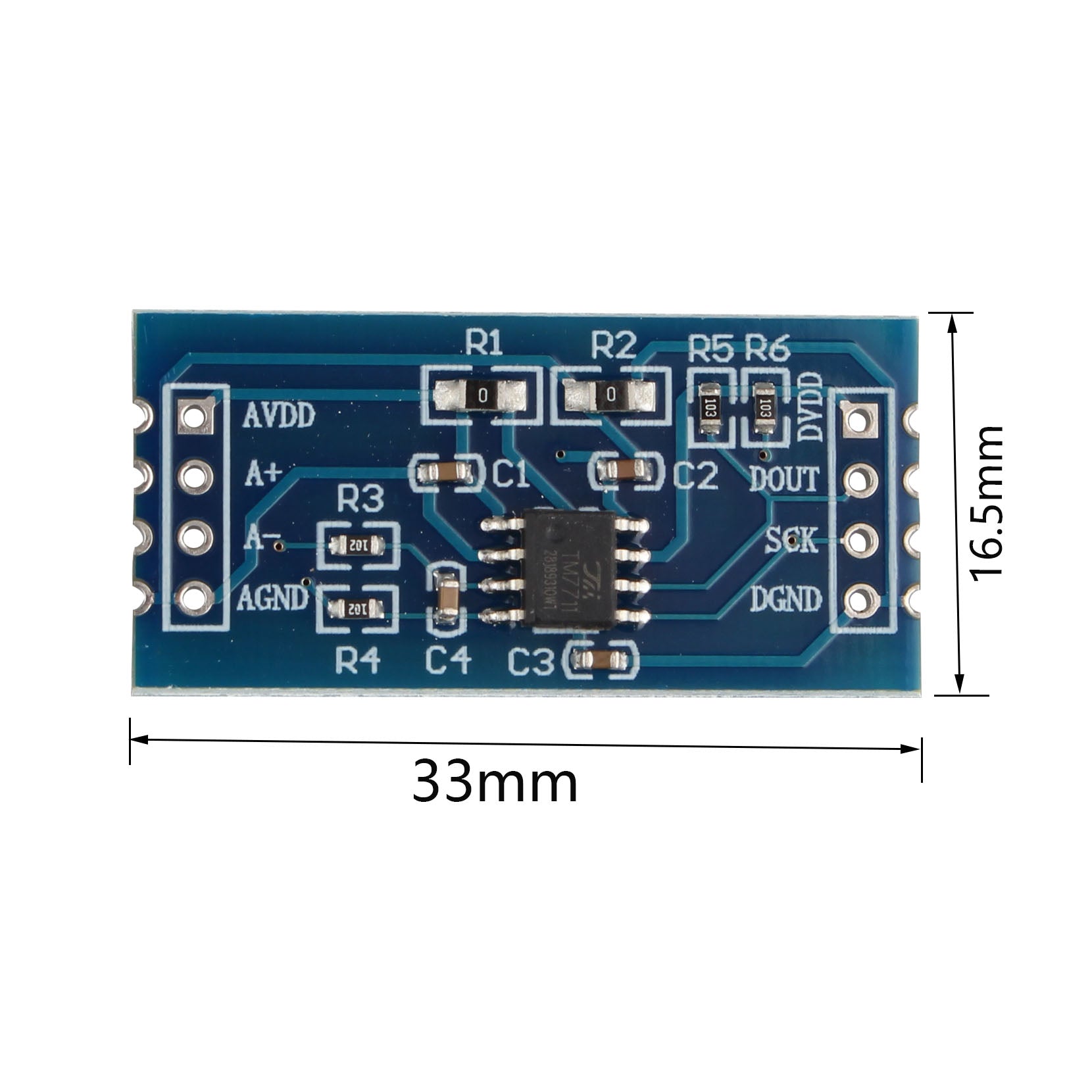

Size: 33x 16 x 5 mm
Weight: 2.2g
Packing List:

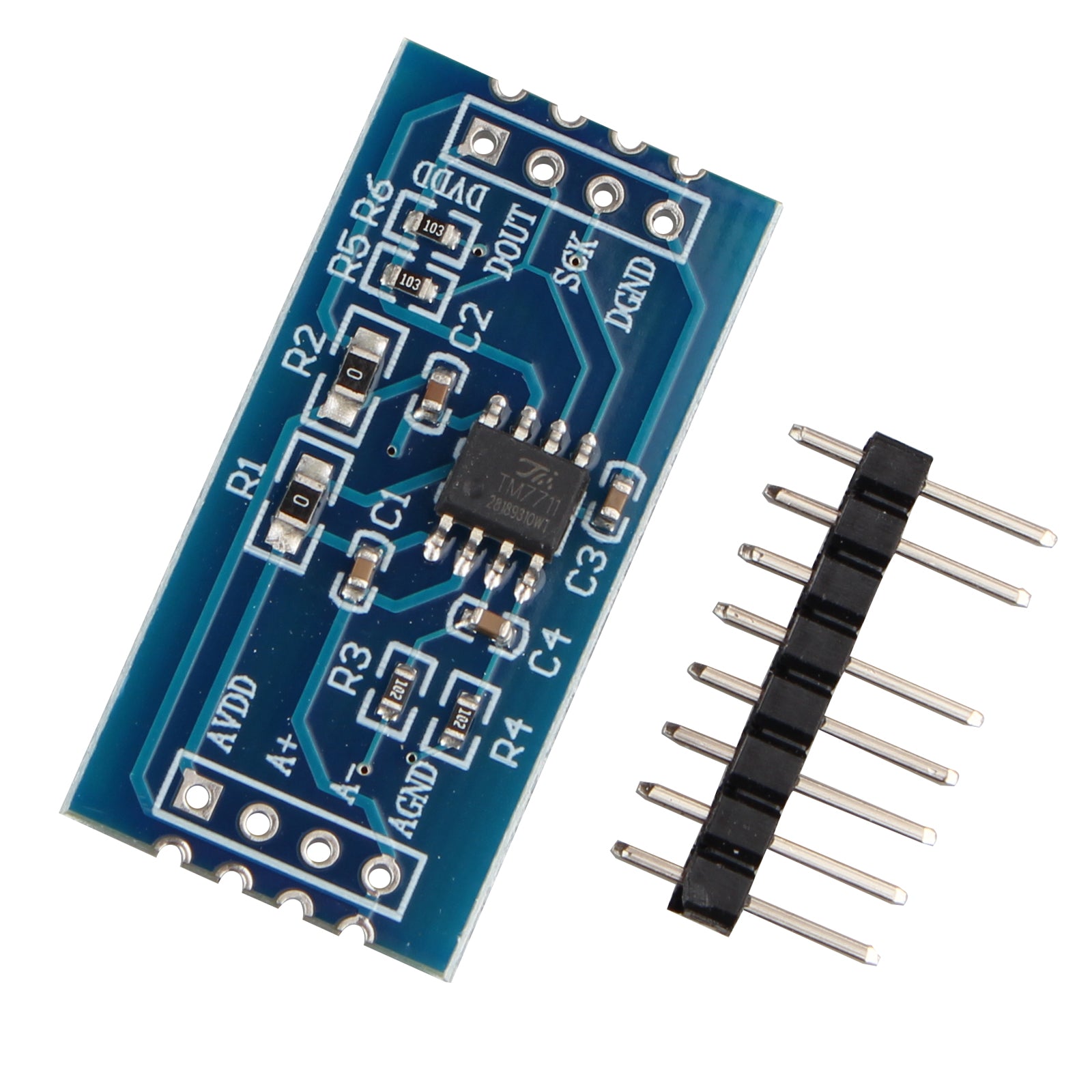

1 x TM7711 electronic weighing sensor module
