- Voltage of Distance Measuring Board: DC 2.4V-5V
- Quiescent current: less than 2mA
- Induction angle of : not more than 15 degrees
- Detection distance of This US-100 ultrasonic module : 2cm-450cm
- High precision: up to 1mm,The module performance is stable
Specification:
1.Voltage: DC 2.4V-5V
2.Quiescent current: less than 2mA
3.Induction angle: not more than 15 degrees
4.Detection distance: 2cm-450cm
5.High precision: up to 1mm
6.Output way: level or UART

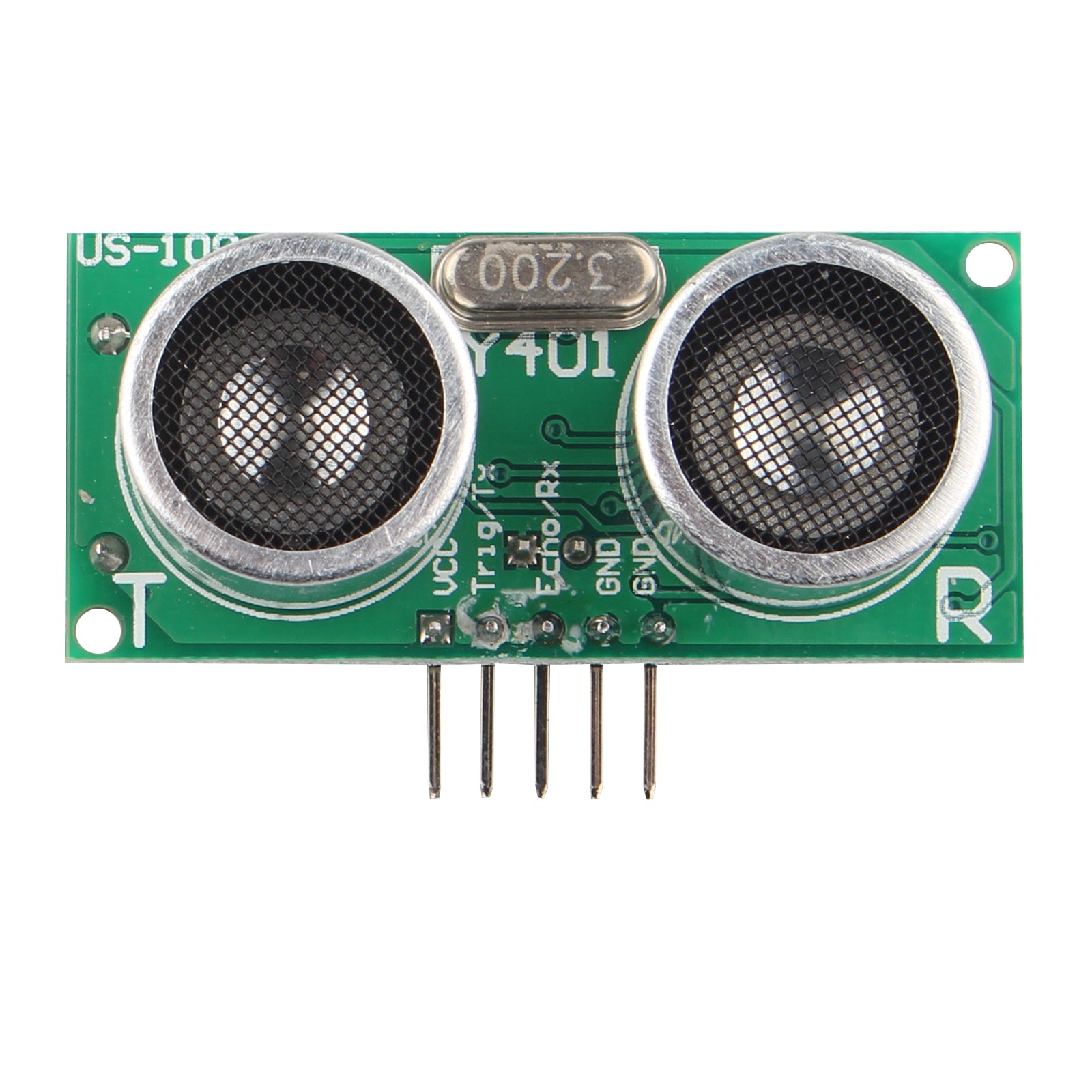

7.Wiring method: VCC, trig (control side), echo (receiver), GND

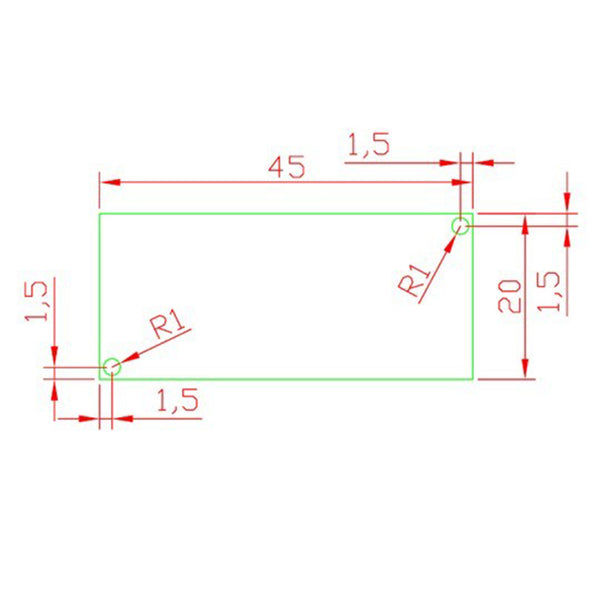

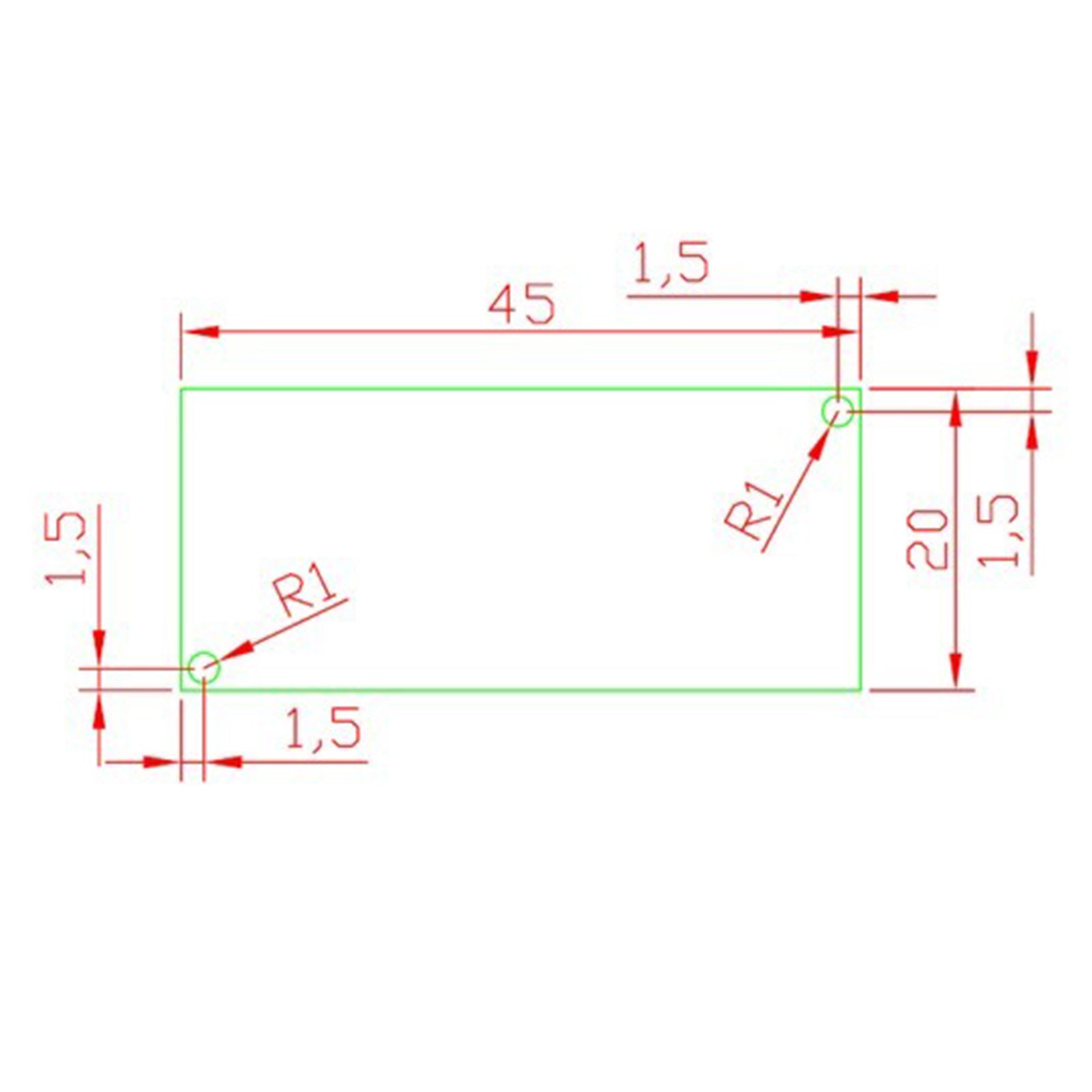

8.Board Size:44*20*15mm
Download Link:
http://download.haljia.com/download/Sensor/US-100/US-100.rar
Packing List:
1*Ultrasonic Sensor
