- SAFE - Selecting the best flame retardant insulating material modified nylon PA6.6, which is long life, no corrosion, anti-aging, pressure 4KV and against electrical shock
- REUSABLE - This Wire Connector is suitable for Soft And Hard wire. What's more, it is a reusable connector.
- PRACTICAL - The voltage range of the connector is from 0.08 to 2.5 mm2, which is very practical.
- EASY TO USE - It is no need tools, plug and play, greatly reduce the wiring work time.
- WIDELY USED - It is widely used in building wiring where space is at a premium for all connections requiring.
Product description
This 2 port wire connector is widely used in building wiring, such as used for controlling multiple lights by one switch. It is ideal for compact and complex applications.
Specifications:
Port Number: 2

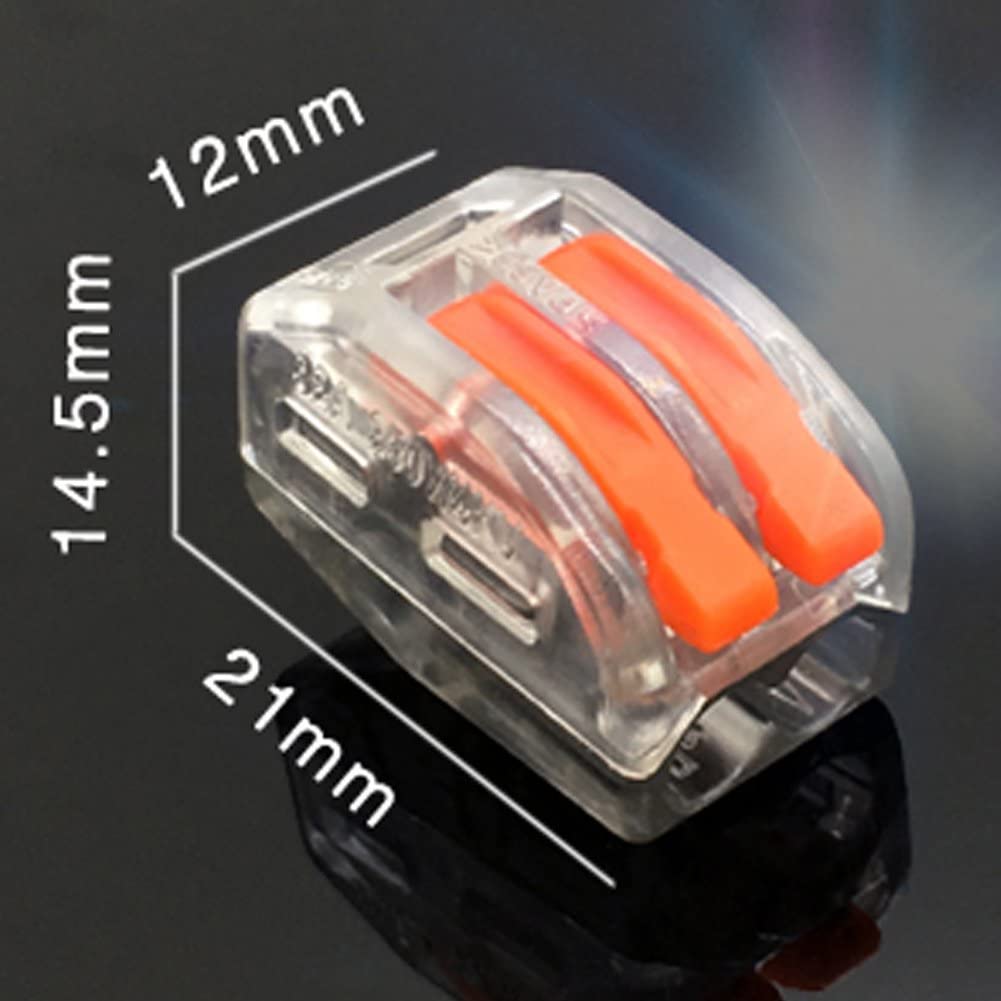

Size: 12.6 x 21 x 14.5mm
Color: Orange and Transparent
Electrical Specs: 32A 250 V / 4KV
For Flexible Conductors: 0.08- 4 mm²
For Solid conductor size: 0,08 to 2,5 mm²
Max Operating Temperature: 85℃

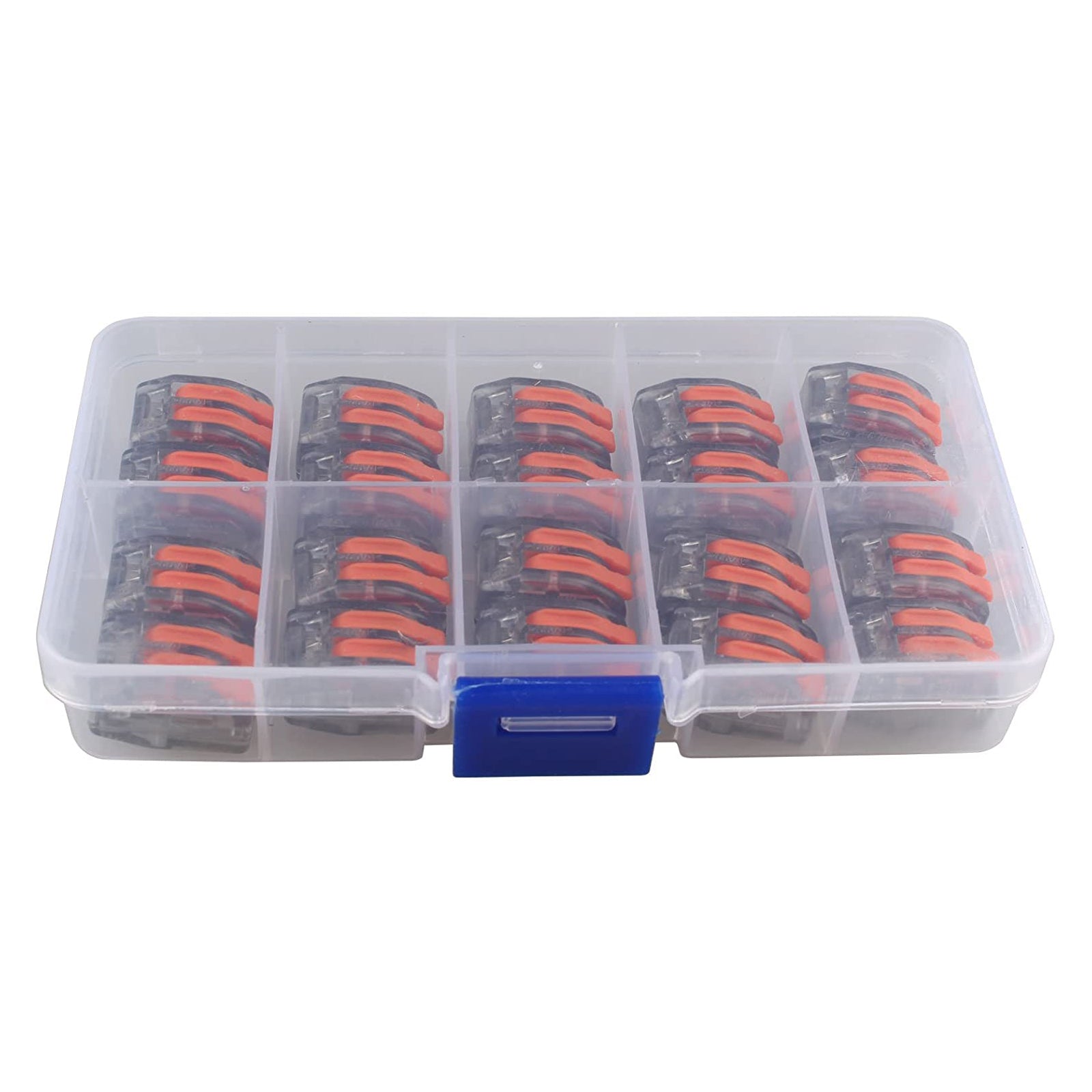

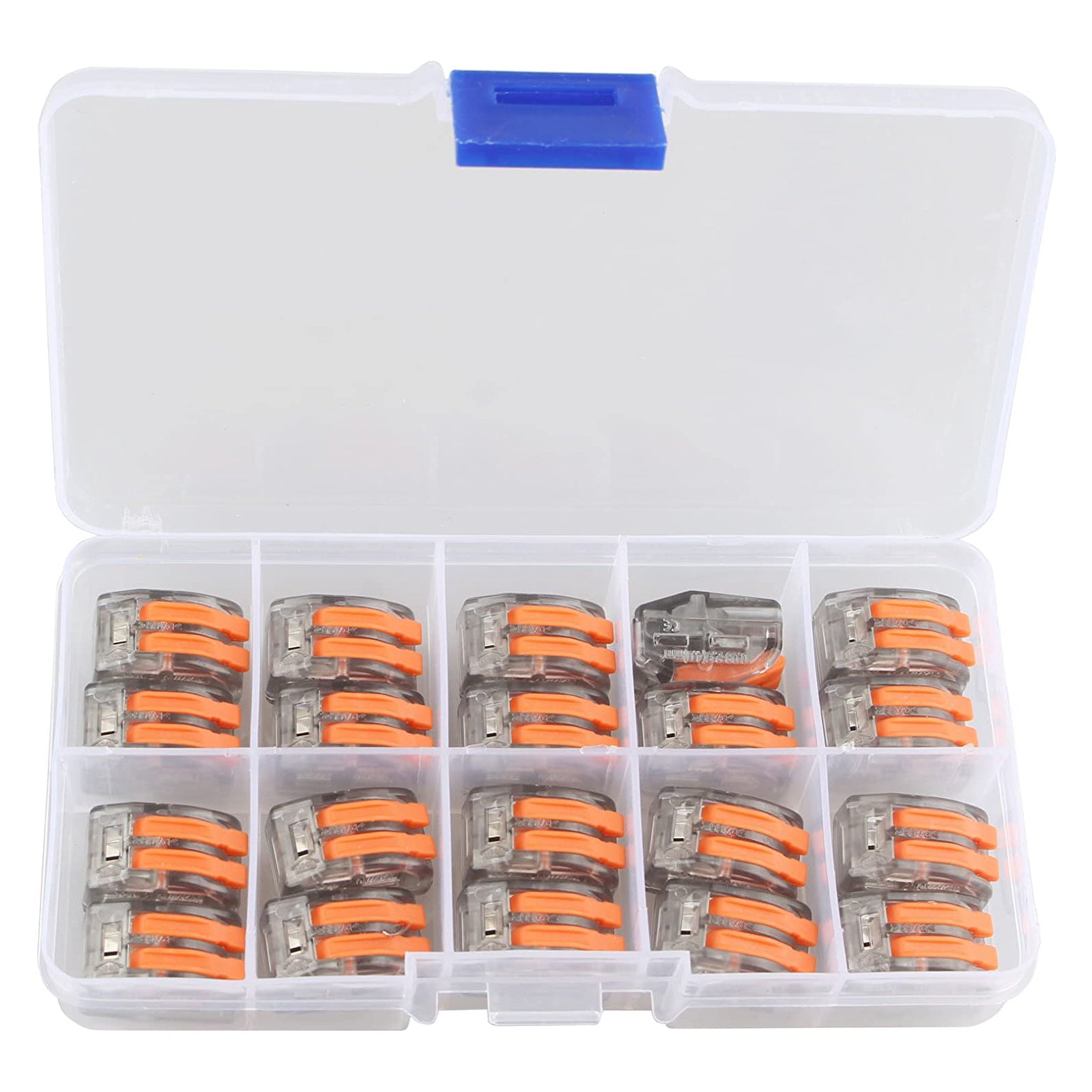

Packing List:
20 * Wire Connector
