- Intelligent reverse connection protection, reverse power connection will not damage the IC.
- IC control circuit and LED point light source share a power supply.

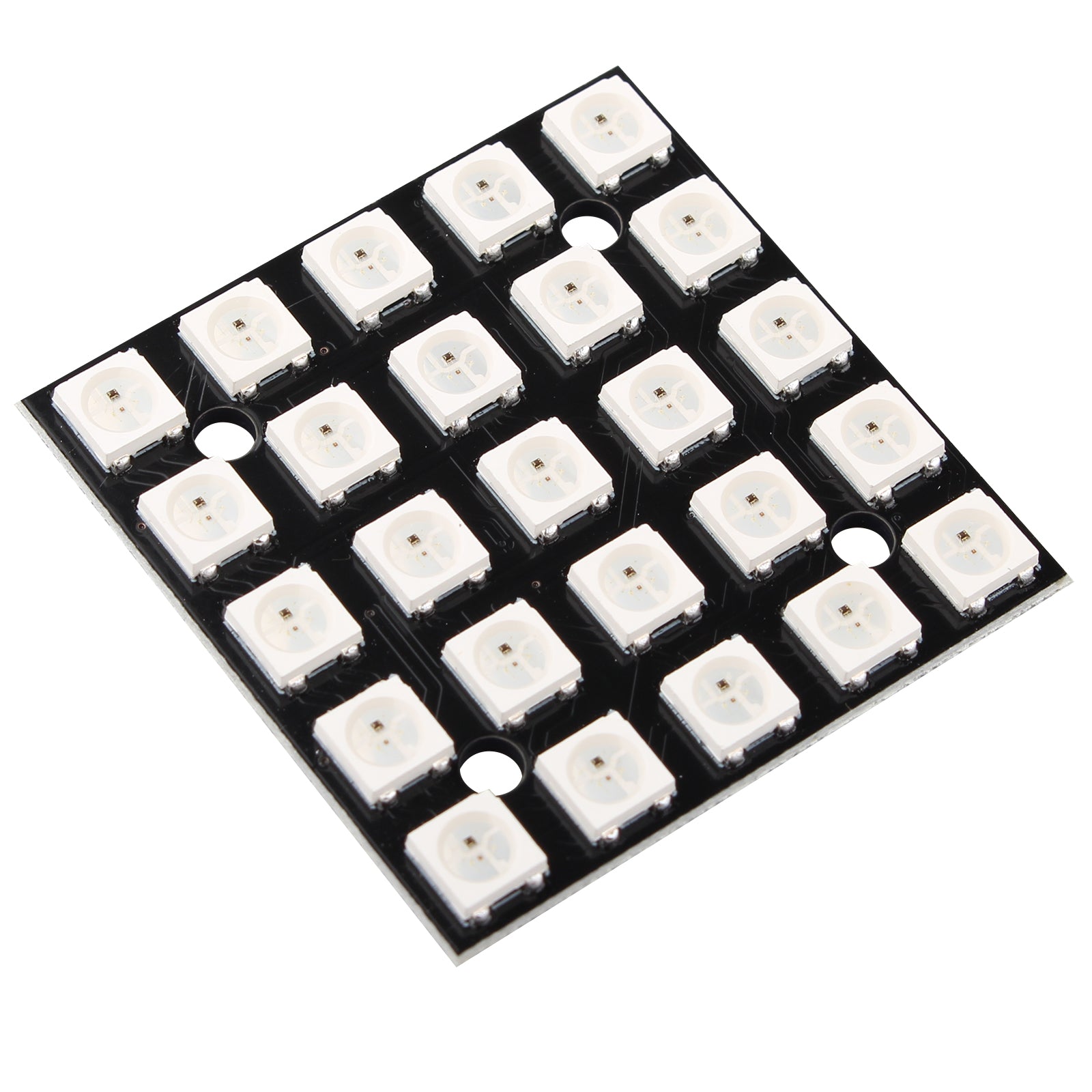

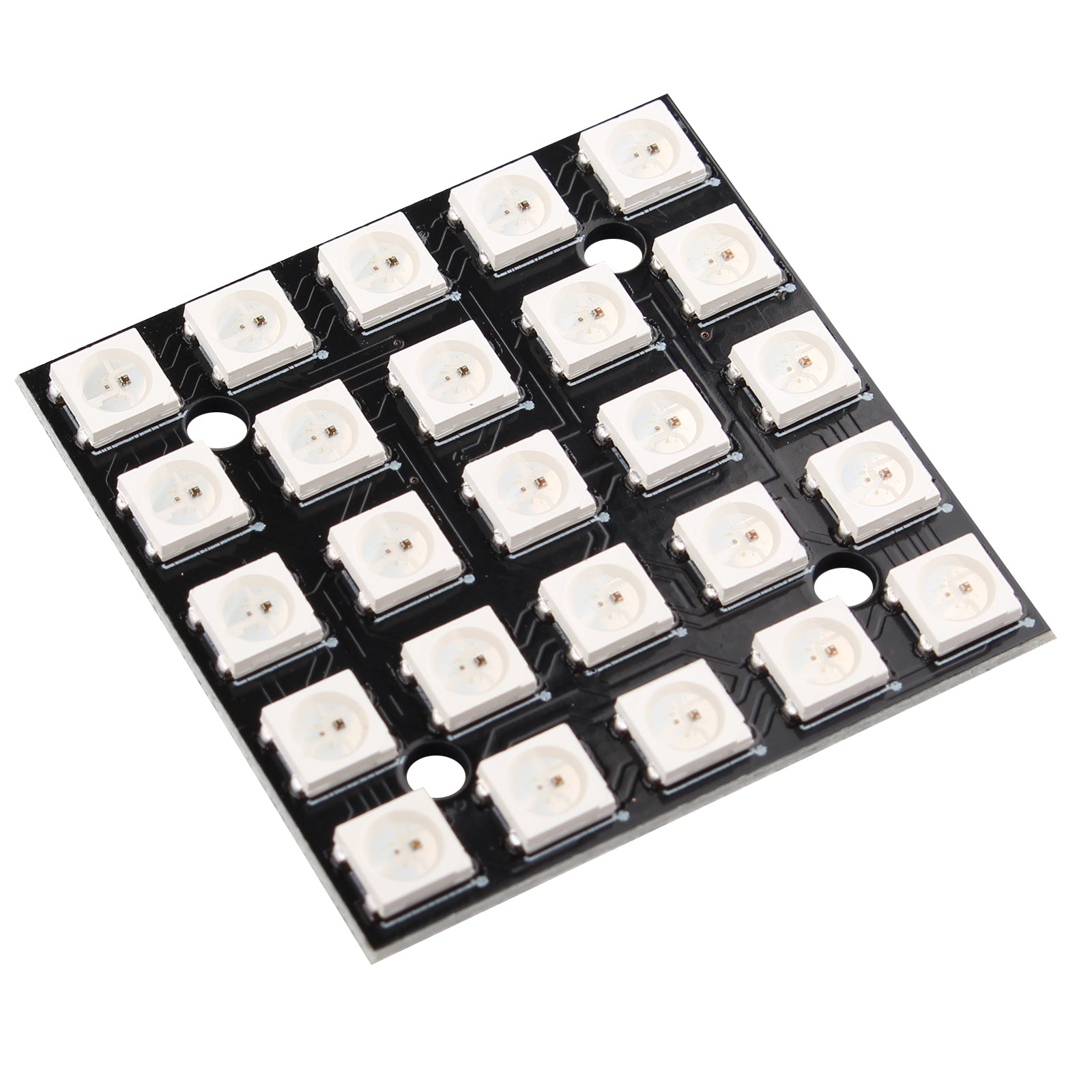

- The control circuit and the RGB chip are integrated in a 5050 package component to form a complete external control pixel.
- Built-in signal shaping circuit, after any signal is received by a pixel, it is waveform-shaped and then output to ensure that the waveform distortion of the line will not be accumulated.
- Built-in power-on reset and power-down reset circuit.
Feature:
The three primary colors of each pixel can realize 256-level brightness display, complete the true color display of 16777216 colors, and the scanning frequency is not lower than 400Hz/s.

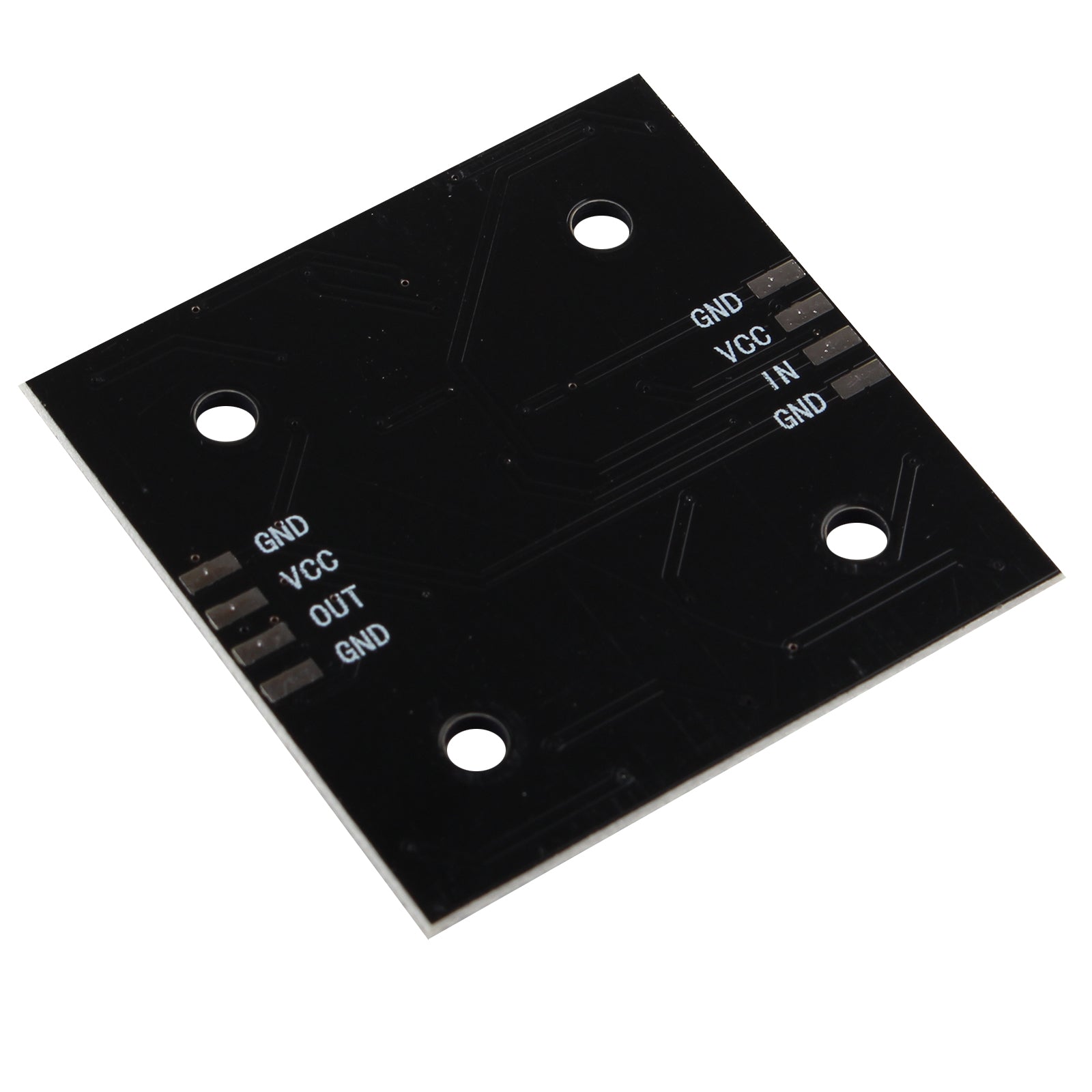

Serial cascading interface for data reception and decoding via a single signal line.
No need to add any circuit when the transmission distance of any two points is less than 5 meters.
When the refresh rate is 30 frames/second, the number of cascades is not less than 1024 points.
Data transmission speed up to 800Kbps.
The color of light is highly consistent and cost-effective.
Mainly used in LED full color luminous word string, LED full color module, LED full color soft light strip hard light strip, LED guardrail tube. Suitable for LED point light source, LED pixel screen, LED shaped screen, various electronic products, electrical equipment marquee. Weight: 7.2g

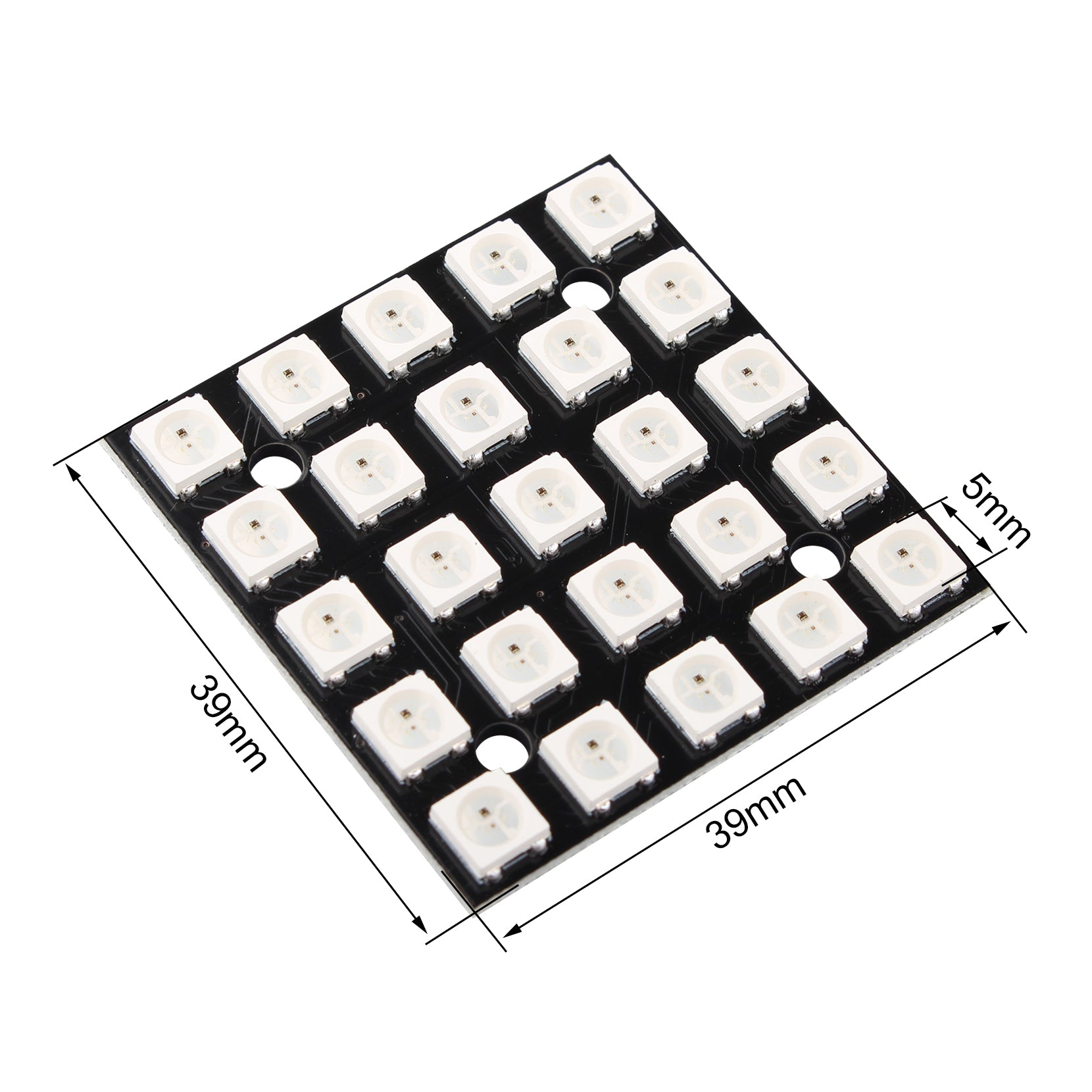

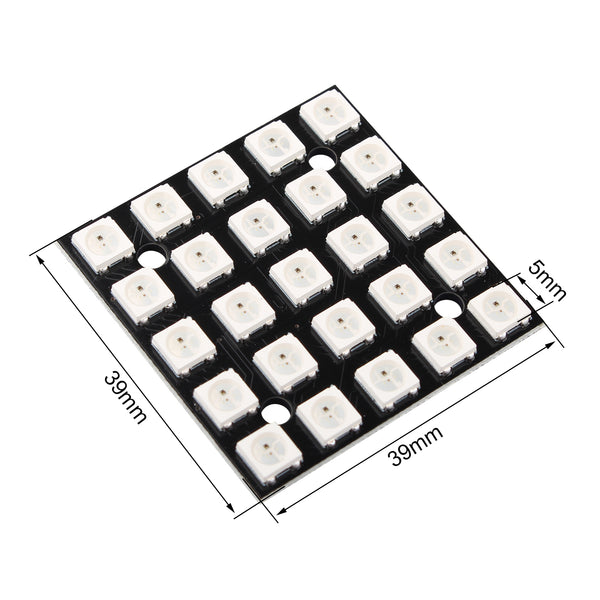

Size: 39mm x 39mm x 3mm
Packing List:
1 x Board
