- Suitable for water heater, automatic water dispenser, etc.
- Lightweight, small, easy to install
- With stainless steel axis in the wheel, abrasion resistant
- Sealing ring would never leak water
- All material meets RoHS standard
Product description
Min. working voltage: DC 5V~12V
Max. working current: 15mA (DC 5V)
Working voltage range: DC 5V~18V
Load capability£º<10mA /=10mA (DC 5V)
Working temperature:<80'C / =80'C
Humidity range: 35%~90%RH
Water pressure: <1.75 Mpa
Storage temperature: -25'C~80'C
Storage humidity: 25%~95% RH
Measuring range: 0.5~5L/min
Precautions:
Non-violent shock, and chemical erosion.
Non-throwing or hitting.
Model£º YF-S401
Form Color£º White
Material£º PVC
Suitable for water heater, automatic water dispenser, etc. Lightweight, small, easy to install; With stainless steel axis in the wheel, abrasion resistant; Sealing ring would never leak water
Dimension: 2.28" x 1.38" x 1.06" (5.8 cm x 3.5 cm x 2.7 cm)
Weight:0.88 oz (25 g)
Packing List:

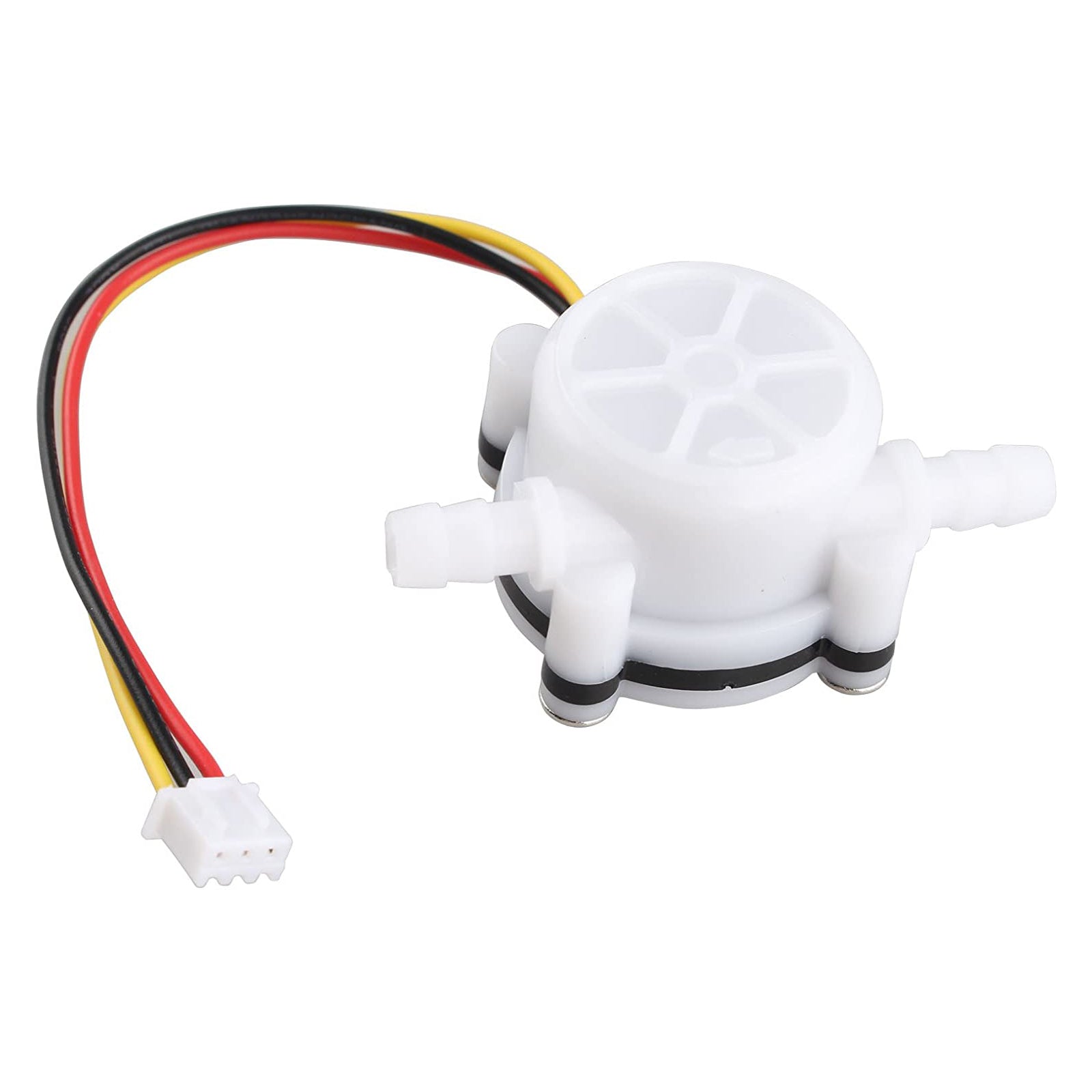

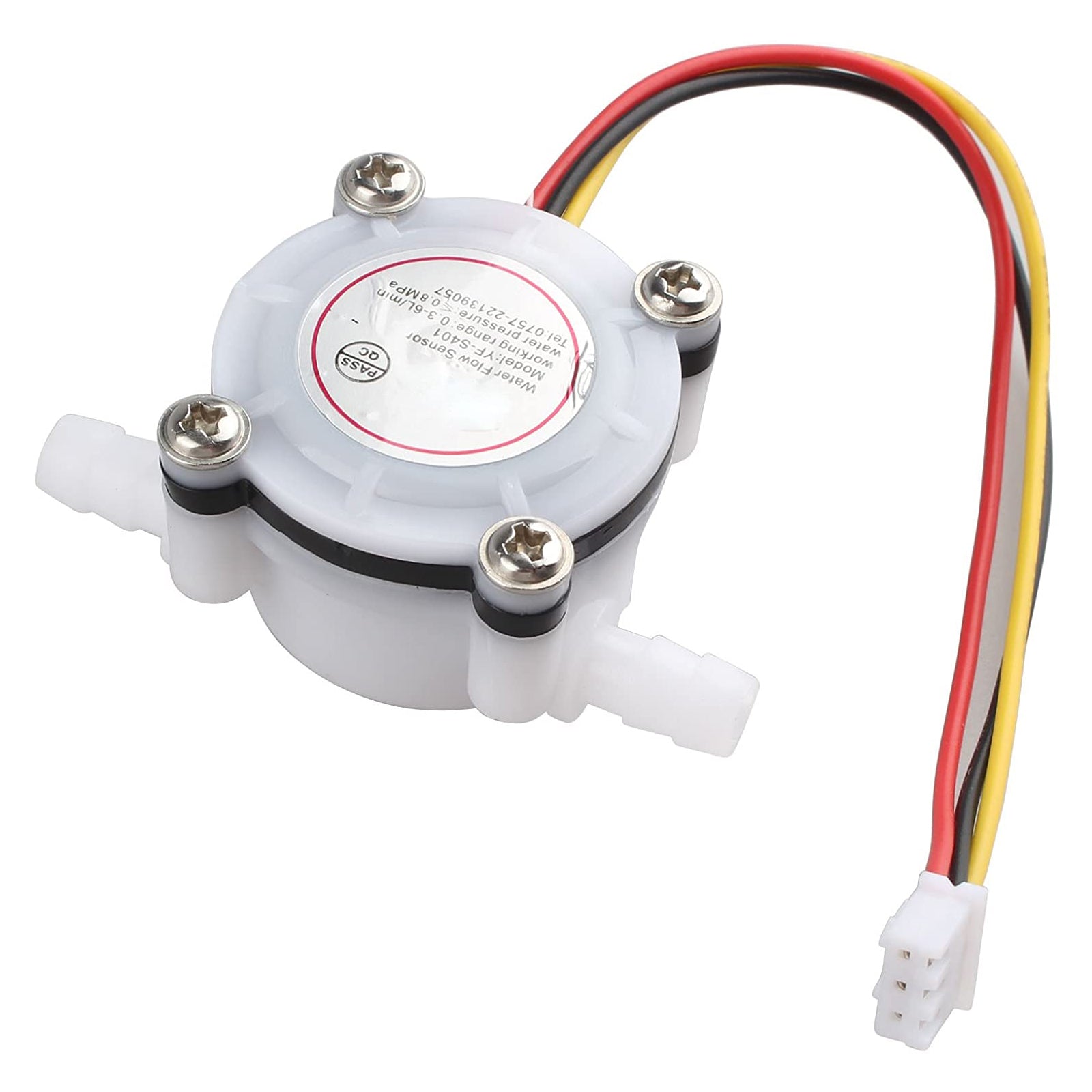

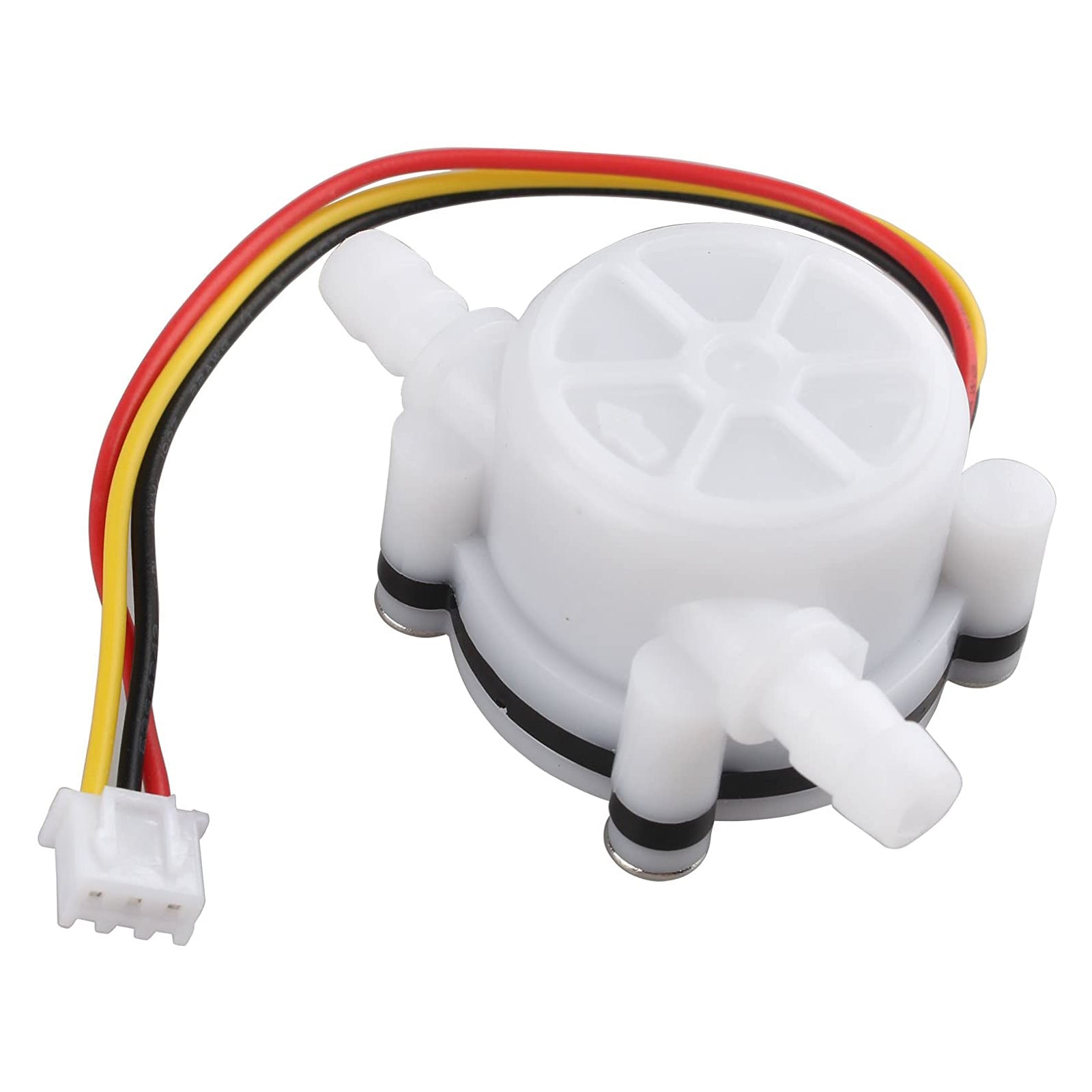

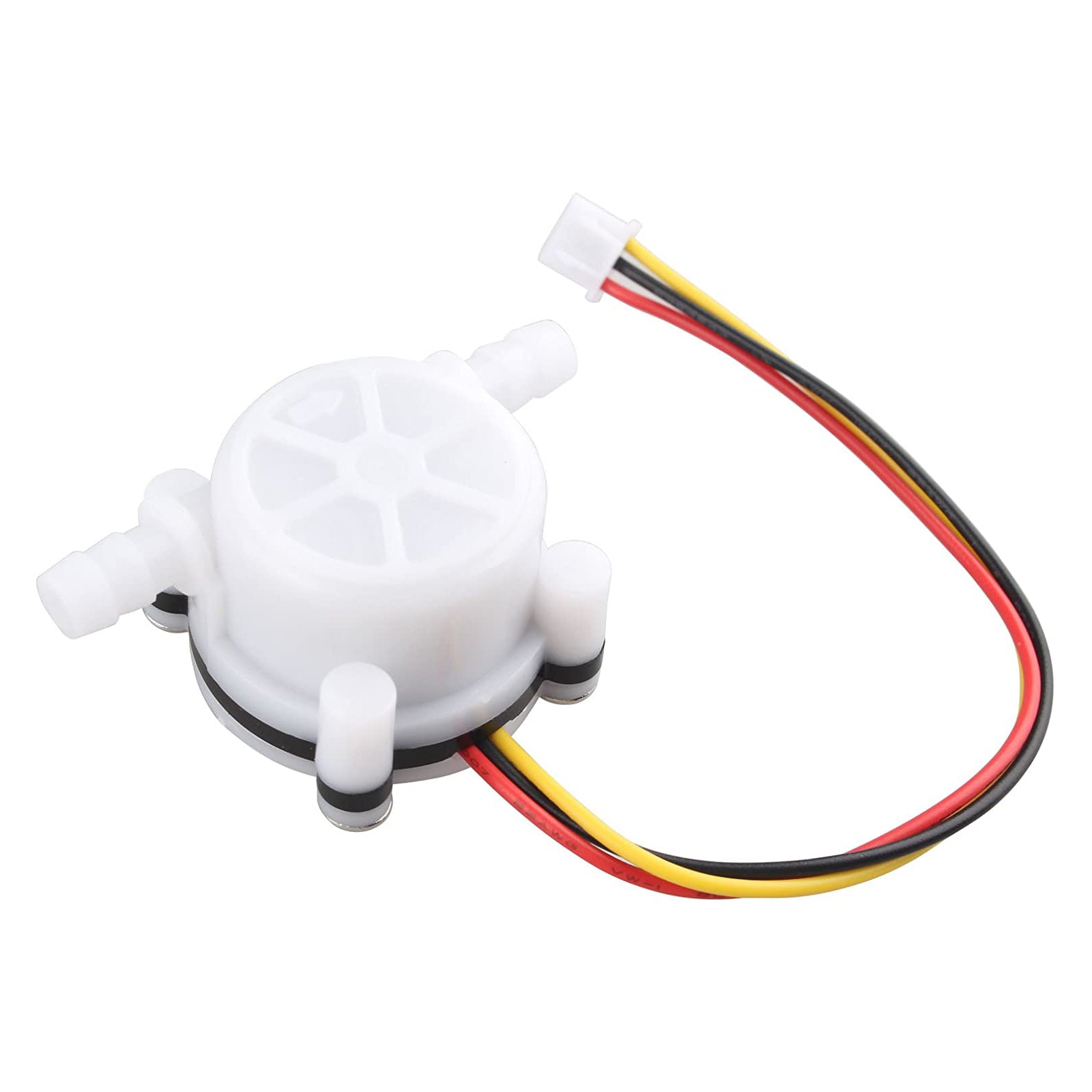

1 x Water flow sensor (14cm-cable)
